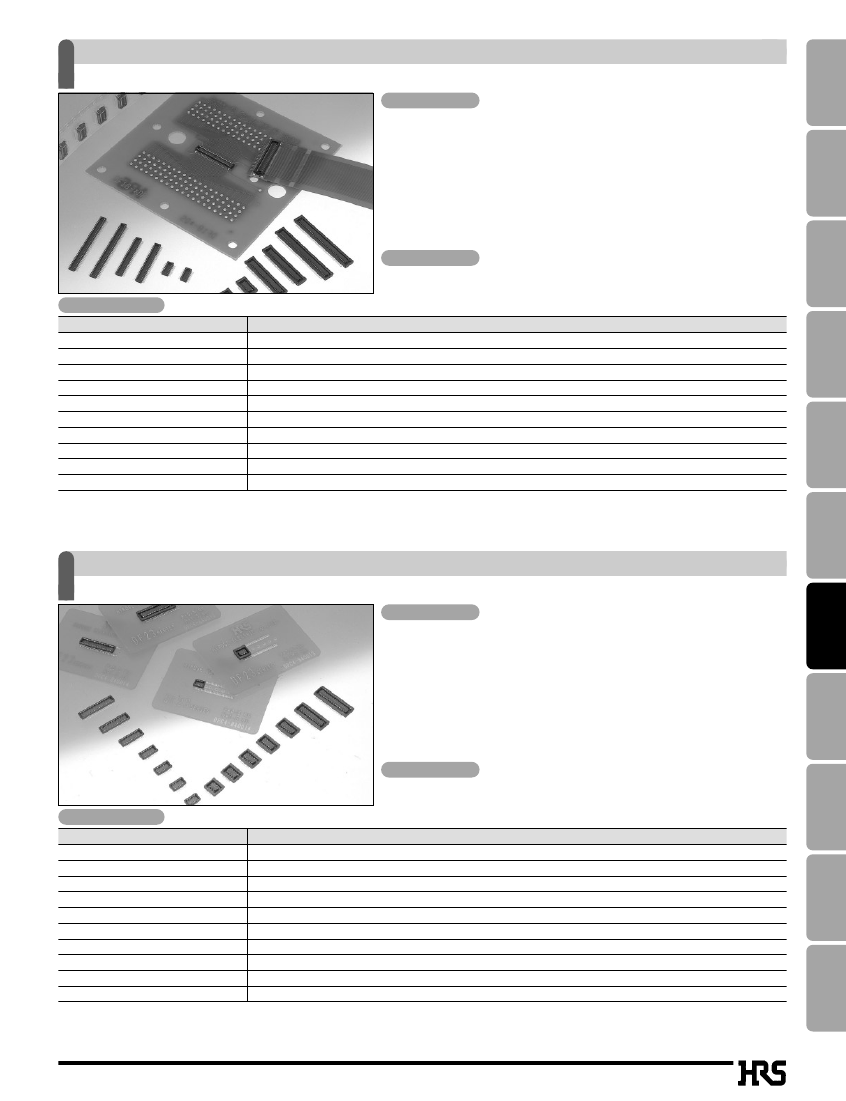

0.4mm pitch, 1.5mm above the board, board to board / board to FPC connectors
DF18 Series
Features
q
Space-saving design with the connector occupying area reduced to the
limits.
q
The female contact has a long enough spring length, thus ensuring high
reliability.
q
Low stack, yet providing fine mating.
q
Four reinforced fittings provide greater adhesion to the board, protecting
against solder peeling and providing a stronger ground.
q
A miniature design, yet the connector has the vacuum area, which enables
the automatic mounting by the embossed tape packaging.
Circular
Connectors
Rectangular
Connectors
Coaxial
Connectors
Applications
DVC, DSC, Mobile Phones, LCDs
Specifications
Memory Card
Item
No. of Positions
Current rating (A)
PCB Mount Type
Contact Plating
Terminal Pitch (mm)
Contact Pitch (mm)
Contact Layout
Stack Height (mm)
Operating Temperature Range (ç)
Insulator
20·30·40·50·60·70·80,100
0.3
SMT
Gold
0.4
0.4
Double row
1.5
-35 to 85
LCP (UL94V-0, Color: Black)
Requirements
Modular
Connectors
Card Edge
Connectors
0.5mm pitch low profile board to board / board to FPC connectors
DF23 Series
Features
q
The stacking height of 1.5mm ideal for low-profile mounting.
q
Contacts in a wide variety. Connectors with 10 to 20 contacts in 2-contact
increments are ideal for use in small LCD connections in cellular phones.
q
Positive click sensation when completely mated confirms correct insertion
and connection of all contacts.
q
The large range of alignment of 0.3mm allows for smooth insertion.
q
A miniature design, yet the connector has the vacuum area, which enables
the automatic mounting by the embossed tape packaging.
Board-to-Board
Connectors
Board-to-Wire
Connectors
Applications
FPC/FFC
Connectors
Mobile Phones, Information terminal equipment, Notebook PCs, Digital
cameras
Specifications
Item
No. of Positions
Current rating (A)
PCB Mount Type
Contact Plating
Terminal Pitch (mm)
Contact Pitch (mm)
Contact Layout
Stack Height (mm)
Operating Temperature Range (ç)
Insulator
10·14·16·18·20·30·40·50
0.3
SMT
Gold
0.5
0.5
Double row
1.5
-35 to 85
LCP (UL94V-0, Color: Black)
Requirements
Optical Connectors
and Devices
Microwave
Components
93
