144-PIN 8-BYTE DIMM SOCKET CONNECTORS
SX6E SERIES
SX6E-144S-0.8SH
Standard type
SX6ER-144S-0.8SH
Reverse type
s
Features

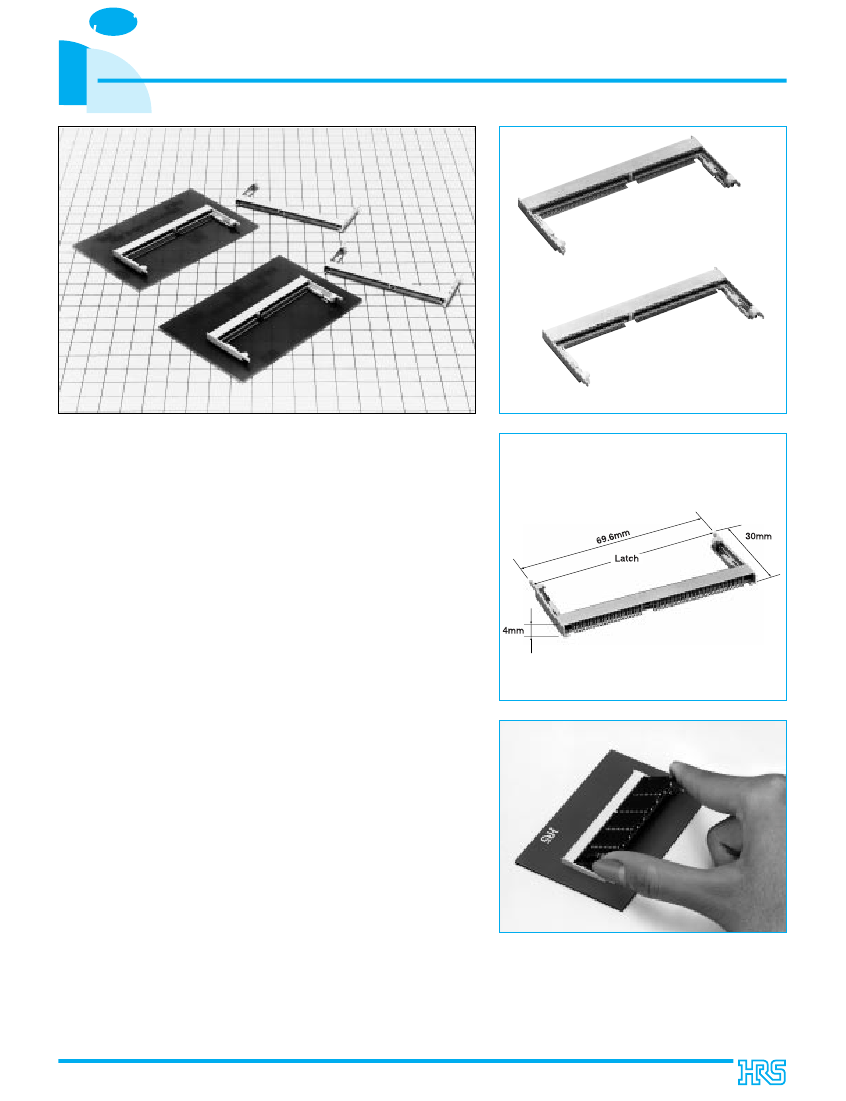

1. Complies with requirements of JEDEC MO-190 Standard
The SX6E Series is a 0.8mm pitch horizontal SMT type socket
connector that complies with the JEDEC"144-pin 8-byte Small
Outline Dual Inline Memory Module(DIMM)" Standards.
Protrusion above mounting surface of 4mm,
width 69.6mm
2. Low profile
Protrudes above the mounting surface only 4 mm.
3. Narrow width
Width of 69.6 mm, with molded-in latches.
4. Easy insertion and removal of module
A. Insert the module at approximately 30˚angle into clearly
visible card slot.
B. Push the module down toward the socket connector mounting
surface. The latches will automatically deflect outwards and
lock the module in place.
Audible click will be heard to verify the lock.
C. Removal of the module can be accomplished by deflecting
the latches outward.
The module will lift itself for removal.
Easy insertion and removal of module
5. Two mounting styles of standard and reverse
This allows installation of modules on top and bottom surface of
the board.
6. Easy mounting
Packaged for placement with automatic pick-and-place
equipment.
sApplications
Personal computers, OA equipment, measuring instruments, communications equipment, medical equipment,
factory automation equipment, game equipment, EWS, etc.
2000.2
1
sProduct
Specifications
Operating temperature
Rating
Voltage
Current
Item
Contact resistance
Insulation resistance
Voltage proof
Durability
(Mating / Unmating)
Vibration
Shock
55 m
ø
or less
1000 M
ø
or more
No flashover or breakdown
q
Contact resistance: 55 m
ø
or less
w
No damage, cracks or parts looseness
q
No electrical discontinuity for 1 us or more
w
Contact resistance: 55 m
ø
or less
e
No damage, cracks or parts looseness
q
Contact resistance: 55 m
ø
or less
w
Insulation resistance: 1000 M
ø
or more
e
No damage, cracks, or parts looseness
q
Contact resistance: 55 m
ø
or less
w
Insulation resistance: 1000 M
ø
or more
e
No damage, cracks, or parts looseness
q
Contact resistance: 55 m
ø
or less
w
No noticeable corrosion
Requirements
Measured at 100 mA
Measured at DC 250 V
AC 250 V one minute
30 times
Frequency 10 to 55 Hz (1 cycle: 5 min.), single
amplitude of 0.75 mm in 3 directions, 10 cycles each
Acceleration: 490 m/S , duration: 11 ms, 1/2 sine wave,
for 3 cycles in the both directions of each of the 3 axes
Temperature: -55
/
+5
~
+35
/
+85
/
+5
~
+35
ç
Period: 30
/
10
~
15
/
30
/
10
~
15 min
5 cycles
2
-55ç~+85ç
AC 25V
0.3A
Conditions
Storage temperature
-55ç~+85ç
Temperature cycle
Damp heat
(Steady state)
Salt water spray
Temperature 40
±2 ç,
humidity 90 to 95%, 96 h
Salt water concentration 5%, 48 h
sMaterials
Item
Terminal
Insulation case
Fixing bracket
Material
Phosphor bronze
LCP resin (UL94V-0)
Phosphor bronze
Treatment
Gold plating
Solder plating
2
