HB56A232CC-8AL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HB56A232CC-8AL

HB56A232CC-8AL: DescriptionDRAM Card, 2MX32, 80ns, CMOS, 2 PIECE CONNECTOR-88; Categorystorage storage; File Size428KB，15 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HB56A232CC-8AL Overview

DRAM Card, 2MX32, 80ns, CMOS, 2 PIECE CONNECTOR-88

HB56A232CC-8AL Parametric

Parameter Name	Attribute value
Maker	Hitachi （Renesas ）
Parts packaging code	MODULE
package instruction	,
Contacts	88
Reach Compliance Code	unknow
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	80 ns
Other features	RAS ONLY/CAS BEFORE RAS REFRESH; BYTE ACCESS; PRESENCE DETECT PINS
Spare memory width	16
JESD-30 code	X-XXMA-X88
memory density	67108864 bi
Memory IC Type	DRAM CARD
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	88
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	50 °C
Minimum operating temperature
organize	2MX32
Output characteristics	3-STATE
Package body material	UNSPECIFIED
Package shape	UNSPECIFIED
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
refresh cycle	1024
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED

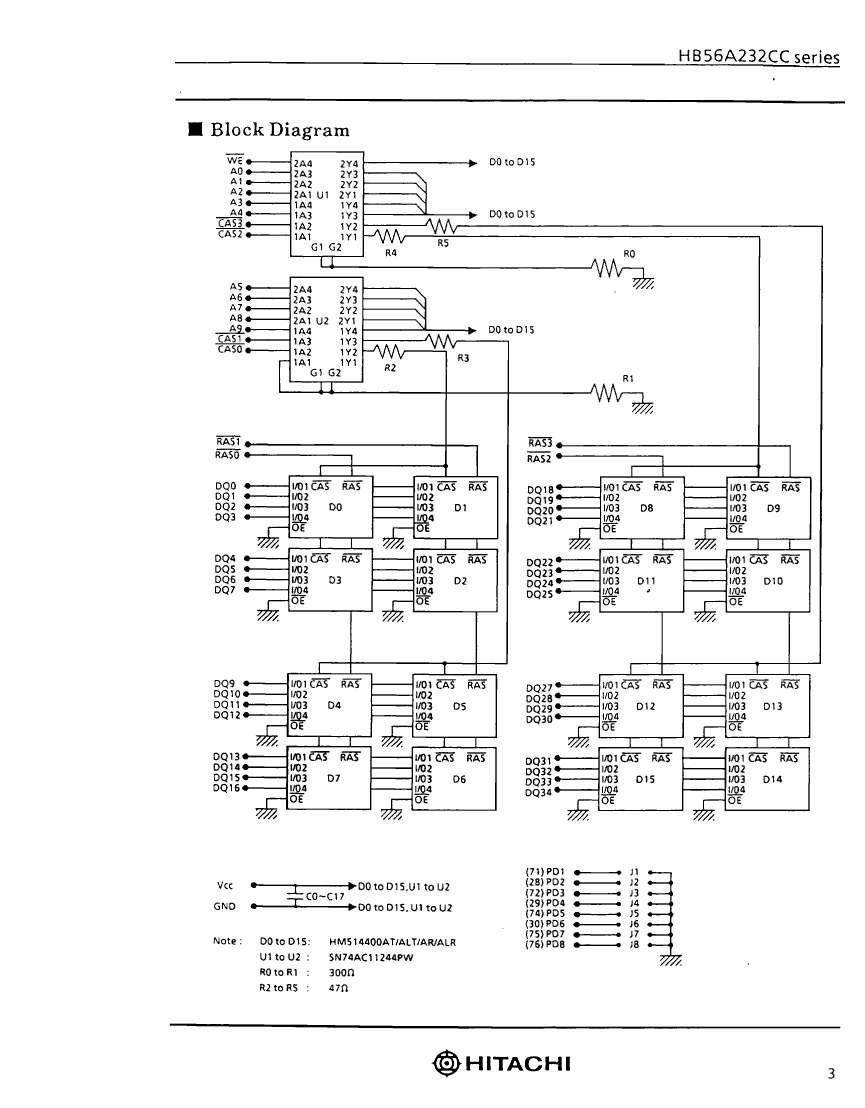

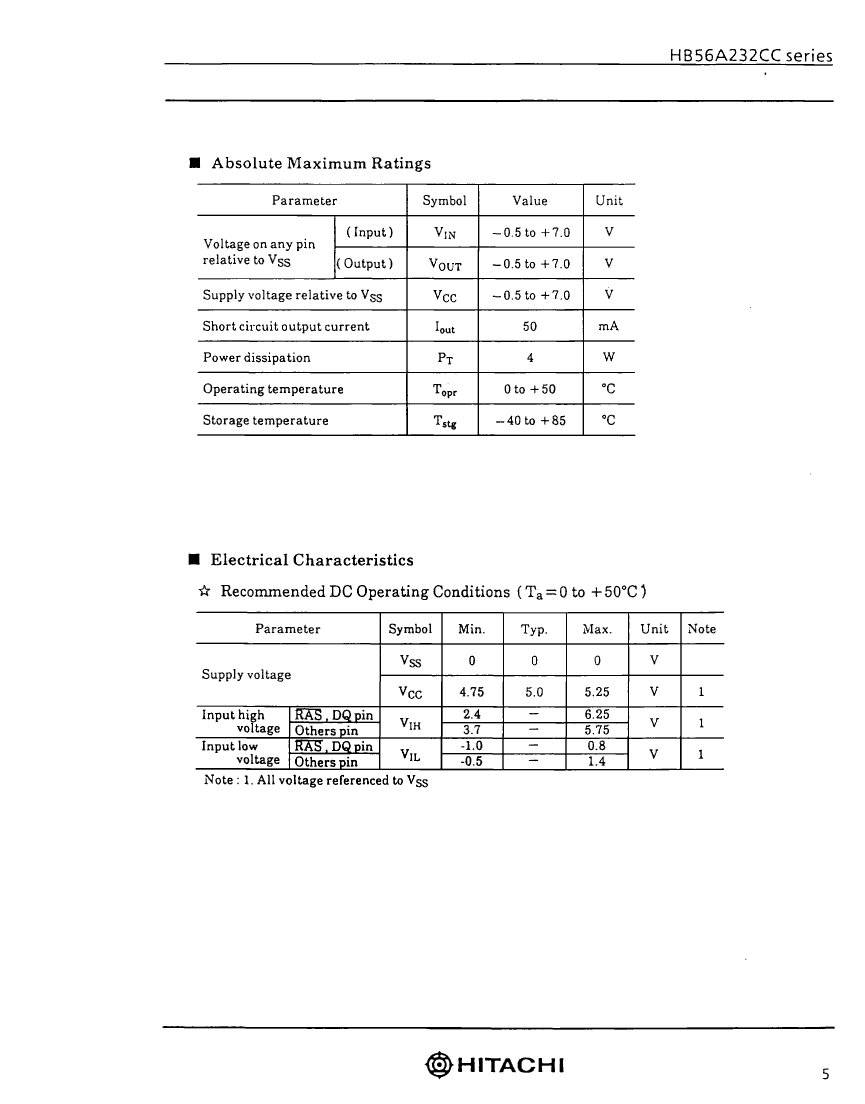

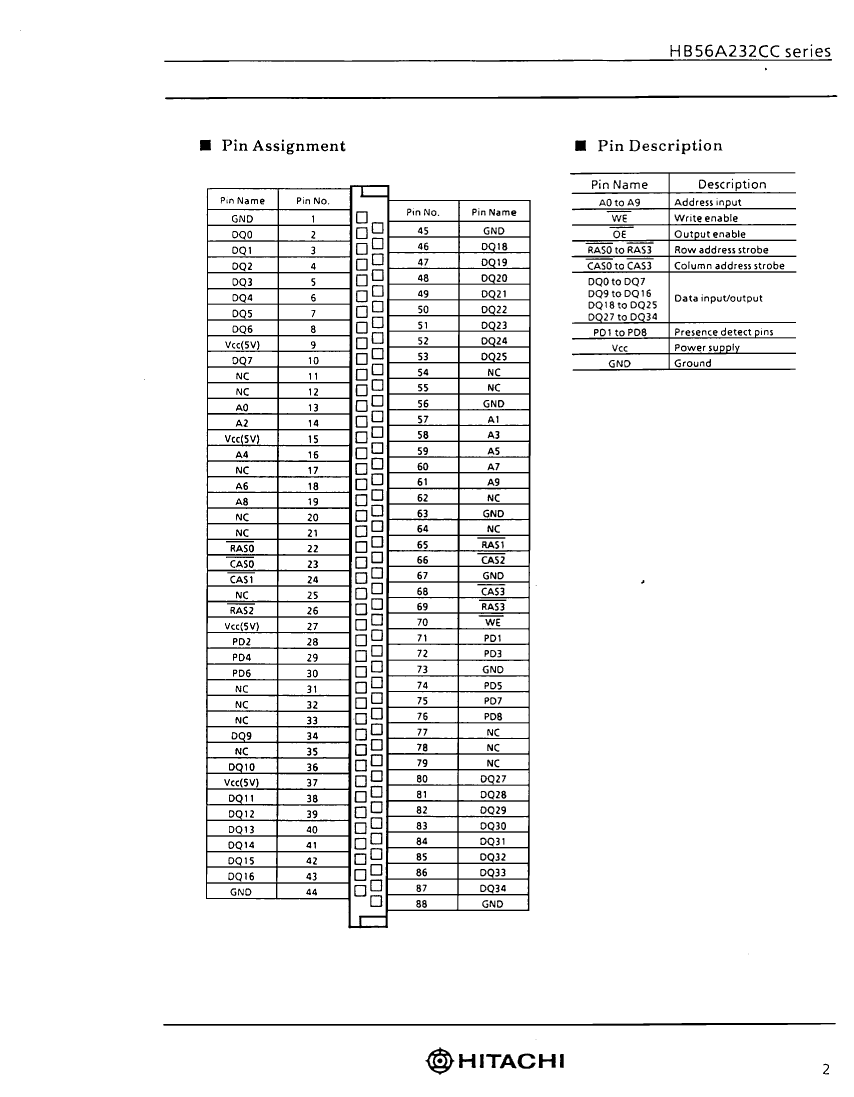

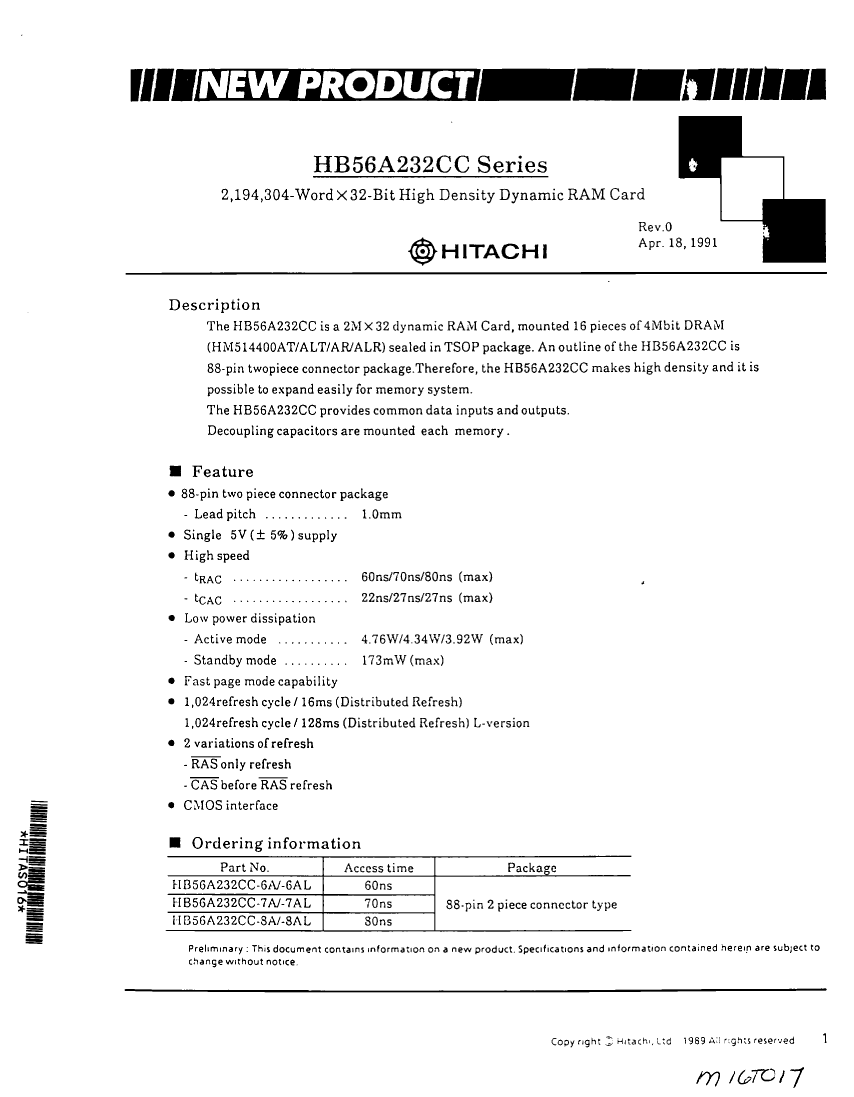

HB56A232CC-8AL Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

HB56A232CC-8AL Related Products

	HB56A232CC-8AL	HB56A232CC-8A	HB56A232CC-7AL	HB56A232CC-7A	HB56A232CC-6A	HB56A232CC-6AL
Description	DRAM Card, 2MX32, 80ns, CMOS, 2 PIECE CONNECTOR-88	DRAM Card, 2MX32, 80ns, CMOS, 2 PIECE CONNECTOR-88	DRAM Card, 2MX32, 70ns, CMOS, 2 PIECE CONNECTOR-88	DRAM Card, 2MX32, 70ns, CMOS, 2 PIECE CONNECTOR-88	DRAM Card, 2MX32, 60ns, CMOS, 2 PIECE CONNECTOR-88	DRAM Card, 2MX32, 60ns, CMOS, 2 PIECE CONNECTOR-88
Maker	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）
Parts packaging code	MODULE	MODULE	MODULE	MODULE	MODULE	MODULE
Contacts	88	88	88	88	88	88
Reach Compliance Code	unknow	unknown	unknown	unknown	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	80 ns	80 ns	70 ns	70 ns	60 ns	60 ns
Other features	RAS ONLY/CAS BEFORE RAS REFRESH; BYTE ACCESS; PRESENCE DETECT PINS	RAS ONLY/CAS BEFORE RAS REFRESH; BYTE ACCESS; PRESENCE DETECT PINS	RAS ONLY/CAS BEFORE RAS REFRESH; BYTE ACCESS; PRESENCE DETECT PINS	RAS ONLY/CAS BEFORE RAS REFRESH; BYTE ACCESS; PRESENCE DETECT PINS	RAS ONLY/CAS BEFORE RAS REFRESH; BYTE ACCESS; PRESENCE DETECT PINS	RAS ONLY/CAS BEFORE RAS REFRESH; BYTE ACCESS; PRESENCE DETECT PINS
Spare memory width	16	16	16	16	16	16
JESD-30 code	X-XXMA-X88	X-XXMA-X88	X-XXMA-X88	X-XXMA-X88	X-XXMA-X88	X-XXMA-X88
memory density	67108864 bi	67108864 bit	67108864 bit	67108864 bit	67108864 bi	67108864 bi
Memory IC Type	DRAM CARD	DRAM CARD	DRAM CARD	DRAM CARD	DRAM CARD	DRAM CARD
memory width	32	32	32	32	32	32
Number of functions	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1
Number of terminals	88	88	88	88	88	88
word count	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000	2000000	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	50 °C	50 °C	50 °C	50 °C	50 °C	50 °C
organize	2MX32	2MX32	2MX32	2MX32	2MX32	2MX32
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024	1024
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
