HN62442BCP datasheet, PDF - EEWORLD Datasheet

HN62442BCP: DescriptionMASK ROM, 128KX16, 100ns, CMOS, PQCC44, PLASTIC, LCC-44; Categorystorage storage; File Size97KB，6 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

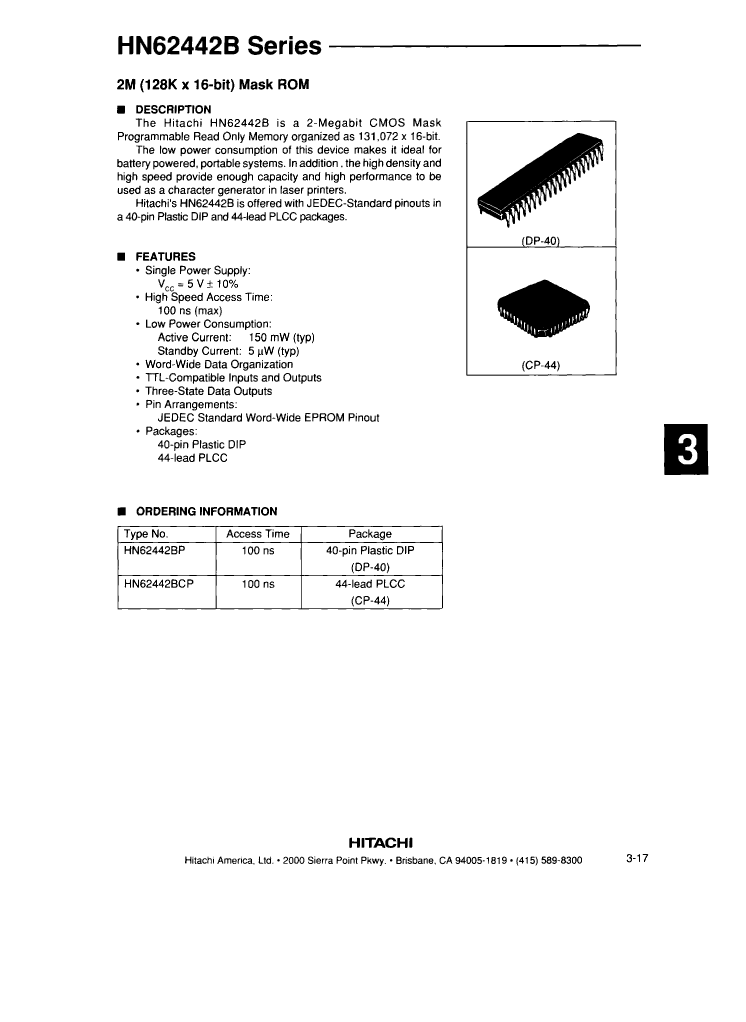

HN62442BCP Overview

MASK ROM, 128KX16, 100ns, CMOS, PQCC44, PLASTIC, LCC-44

Parameter Name	Attribute value
Maker	Hitachi （Renesas ）
Parts packaging code	LCC
package instruction	QCCJ,
Contacts	44
Reach Compliance Code	unknow
ECCN code	EAR99

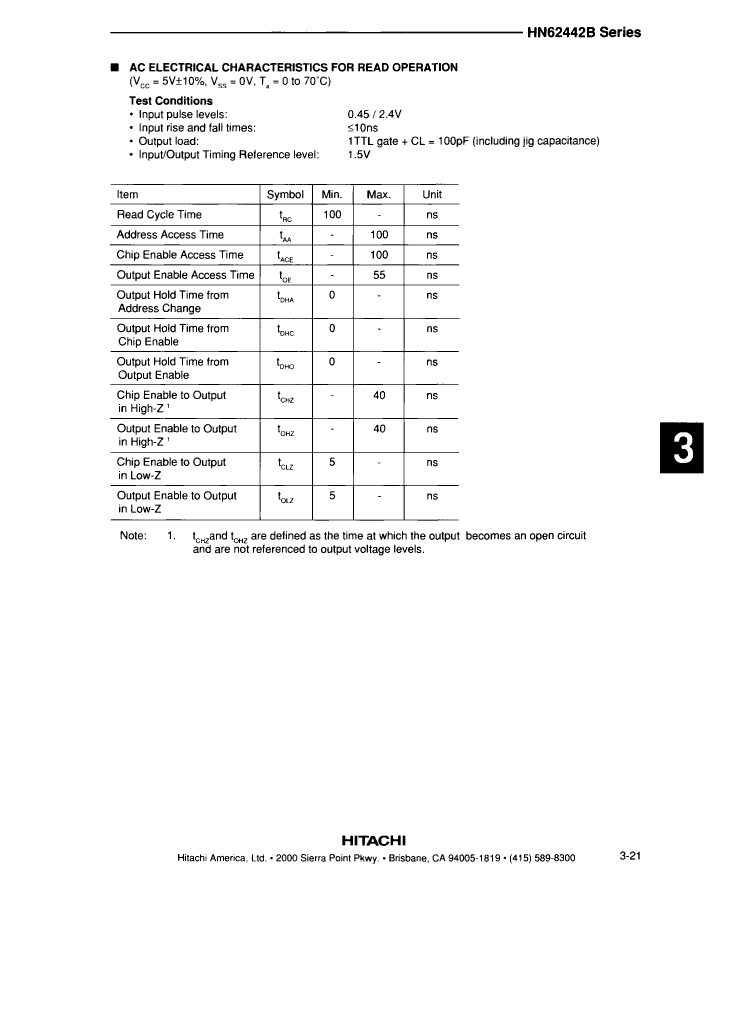

Maximum access time	100 ns
JESD-30 code	S-PQCC-J44
length	16.5862 mm
memory density	2097152 bi
Memory IC Type	MASK ROM
memory width	16
Number of functions	1

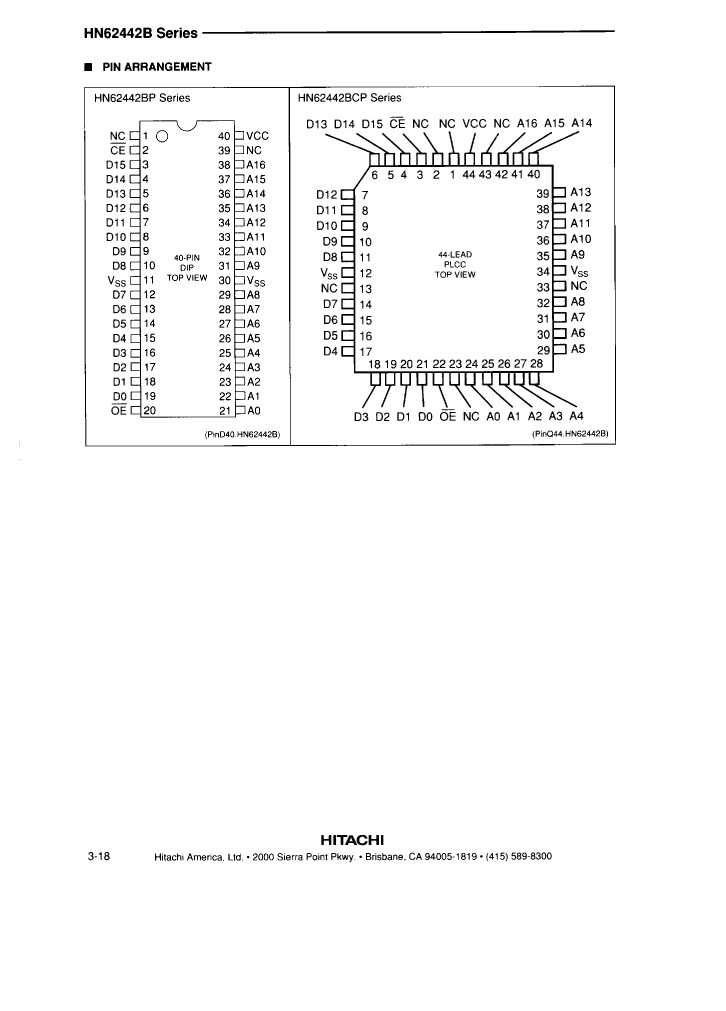

Number of terminals	44
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX16
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	4.57 mm

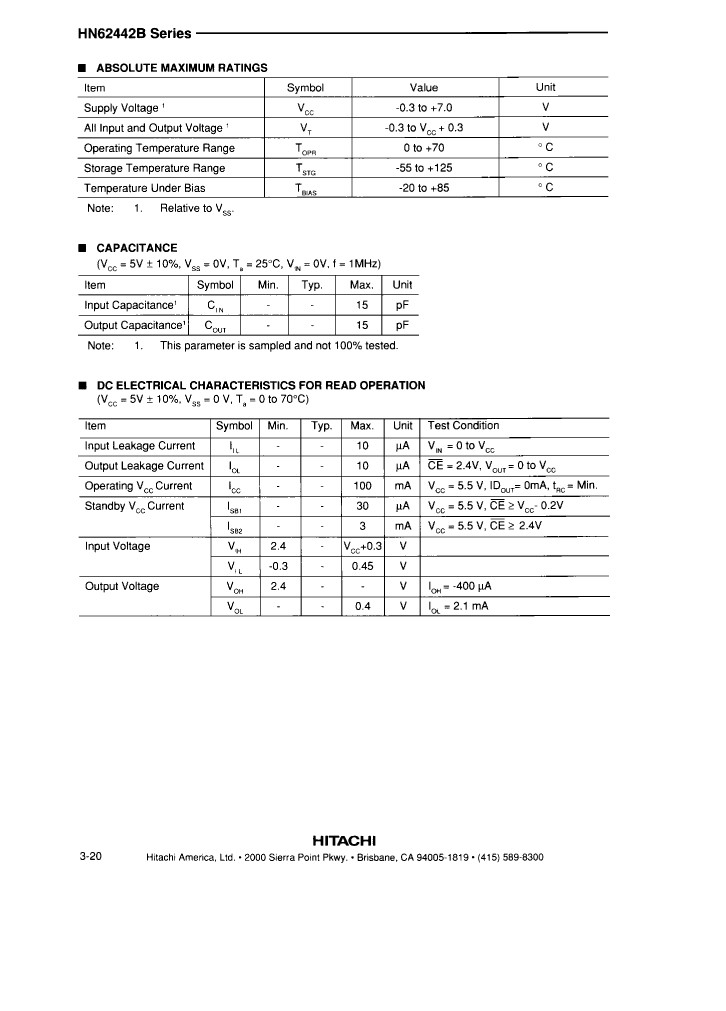

Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.5862 mm

	HN62442BCP	HN62442BP
Description	MASK ROM, 128KX16, 100ns, CMOS, PQCC44, PLASTIC, LCC-44	MASK ROM, 128KX16, 100ns, CMOS, PDIP40, PLASTIC, DIP-40
Maker	Hitachi （Renesas ）	Hitachi （Renesas ）
Parts packaging code	LCC	DIP
package instruction	QCCJ,	DIP,
Contacts	44	40
Reach Compliance Code	unknow	unknown
ECCN code	EAR99	EAR99
Maximum access time	100 ns	100 ns
JESD-30 code	S-PQCC-J44	R-PDIP-T40
length	16.5862 mm	52.8 mm
memory density	2097152 bi	2097152 bit
Memory IC Type	MASK ROM	MASK ROM
memory width	16	16
Number of functions	1	1
Number of terminals	44	40
word count	131072 words	131072 words
character code	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	128KX16	128KX16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	DIP
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	5.08 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL
width	16.5862 mm	15.24 mm
