HMGL1/2B4.32MOHMDTU datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> HMGL1/2B4.32MOHMDTU

HMGL1/2B4.32MOHMDTU: DescriptionFixed Resistor, Metal Film, 0.5W, 4320000ohm, 500V, 0.5% +/-Tol, -250,250ppm/Cel,; CategoryPassive components The resistor; File Size110KB，1 Pages; ManufacturerHokuriku; Websitehttp://www.hdk.co.jp/english/index_e.htm; Environmental Compliance

Download Datasheet Parametric View All

HMGL1/2B4.32MOHMDTU Overview

Fixed Resistor, Metal Film, 0.5W, 4320000ohm, 500V, 0.5% +/-Tol, -250,250ppm/Cel,

HMGL1/2B4.32MOHMDTU Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Hokuriku
Reach Compliance Code	unknow
ECCN code	EAR99
structure	Tubul
Lead diameter	0.65 mm
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package diameter	3.5 mm
Package length	9.5 mm
Package shape	TUBULAR PACKAGE
Package form	Axial
method of packing	TR
Rated power dissipation(P)	0.5 W
resistance	4320000 Ω
Resistor type	FIXED RESISTOR
series	HMGL
technology	METAL FILM
Temperature Coefficient	-250,250 ppm/°C
Tolerance	0.5%
Operating Voltage	500 V

HMGL1/2B4.32MOHMDTU Preview

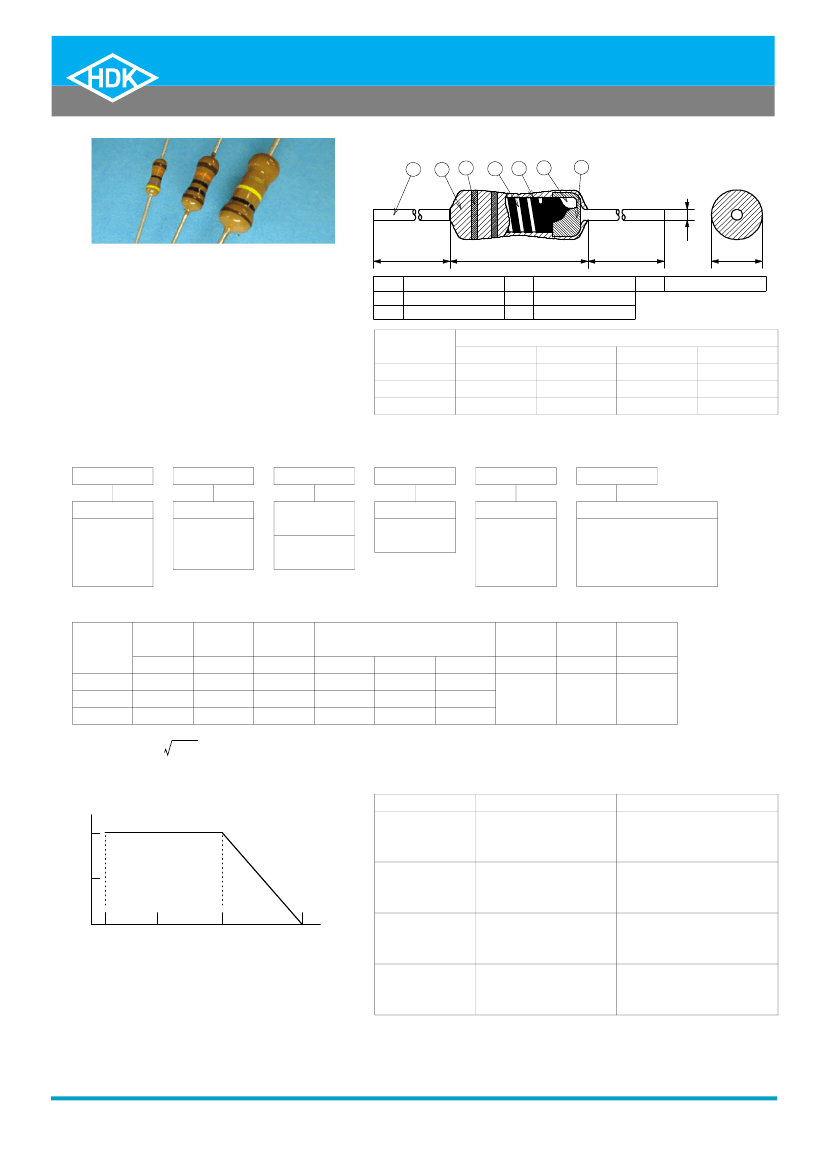

PAINT INSULATED GLAZED METAL FILM FIXED RESISTORS

Model No. HMGL

■Constructions

and Dimensions

⑦

cap

■Feature

・"HMGL"

is glazed metal film resistor with high resistance.

・"HMGL"

is suitable for circuit protection for surges.

・Available

with the tolerance of

±0.5%, ±1.0%, ±2.0%,

±5.0%.

・Body

color : Brown

①

②

③

lead wire

insulation coat

color code

Type

④

⑤

⑥

herical cutting groove

conductive film

ceramic base

Dimensions(mm)

6.4±0.8

9.5±1.0

14.2±1.6

2.3±0.5

3.5±1.0

4.8±1.0

27 min.

38±3

0.6±0.1

0.65±0.1

1.0±0.1

HMGL1/4W

HMGL1/2W

HMGL1W

■Type

Designation

Ex)HMGL1/4 B 10M

HMGL

Type

PAINT INSULATED

GLAZED METAL

FILM FIXED

RESISTORS

FTU

1/4

Power Rating

1/4：0.25W

1/2：0.5W

1：1W

T.C.R.

[ppm/℃]

A：±100

B：±250

10M

Resistance

E-24,E-96

series

※Please

refer to

　General

Specifications.

Resistance Range

[ ]

F,G

100k½10M 100k½50M 100k½50M

100k½10M 100k½50M

100k½100M

100k½10M 100k½50M

100k½500M

Tolerance

D：±0.5%

F：±1.0%

G：±2.0%

J：±5.0%

Forming, Packaging

TU：52mm Axial Taping

TP：26mm Axial Taping

RP：Radial Taping

No Marking : Bulk

※Please

refer to General Specifications.

Rated

Ambient

Temp.

■Power

Rating

Type

HMGL1/4

HMGL1/2

HMGL1

Power

Rating

[W]

0.25

0.5

1.0

Max.

Operational

Voltage

Dielectric

withstanding

Voltage

T.C.R.

[ppm/℃]

A：±100

B：±250

Operating

Temp.Range

[V]

250

500

750

[V]

500

700

1000

[℃]

+70

[℃]

-55½

+155

　※Rated

Voltage :

P・R (P=Rated power (W), R=Nominal resistance (Ω))

■Derating

Curve

Rated Power Ratio(％)

100

■Performance

Items

Short-time

over load

Resistance to

soldering heat

Characteristics

resistance change

within ±0.5%(A), ±1.0%(B)

resistance change

within ±0.5%(A), ±1.0%(B)

resistance change

within ±2.0%(A), ±3.0%(B)

resistance change

within ±2.0%(A), ±3.0%(B)

Test method

JIS C 5201-1 4.13

Rated voltage×2.5 5s

JIS C 5201-1 4.18

260℃ 10s

JIS C 5201-1 4.24

40℃、95%RH、1,000h

1.5hON, 0.5hOFF cycle

Endurance

(rated load)

JIS C 5201-1 4.25.1

70℃、1,000h

1.5hON, 0.5hOFF cycle

-55

Ambient Temp.(℃)

155

Damp heat

(steady state)

"Type" indicates the product No., which is not the trademark.

Apr. 1, 2015

HOKURIKU

Specifications are subject to change without notice.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
