SPRING-LOADED
CONNECTORS
SERIES 419, 499 • 2,54 GRID TARGET CONNECTORS
FOR SPRING
-
LOADED ASSEMBLIES • DOUBLE ROW STRIPS
•

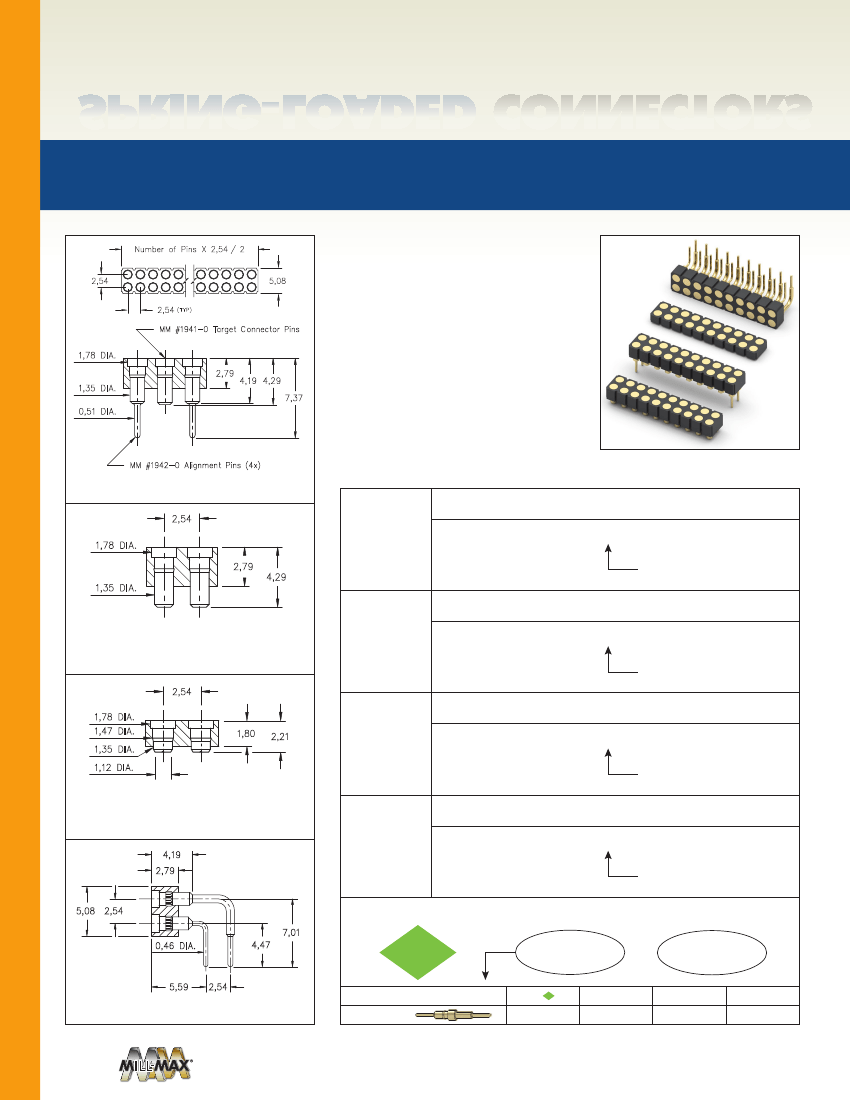

Series 419 and 499 Spring Target Connectors,
supplied in double row strips. Available in SMT
and right angle through-hole termination
configurations
•
Target Connectors provide an excellent gold-
plated conductive mating surface for spring
loaded connectors. These series are offered
with a flat face for making contact with our
standard 1,07 dia. spring pin plungers
•
Target connectors use MM #1940, #1941/1942,
#1953 and #1954 pins. See pages 218 & 223.3
for details
•
Insulators are high temperature thermoplastic
MM #1942-0 Alignment Pins (4x)
Number of Pins X 2,54 / 2
2,54
2,54
5,08
MM #1941-0 Target Connector Pins
1,78 DIA.
2,79
1,35 DIA.
0,51 DIA.
4,19 4,29
7,37
FIG. 1
2,54
1,78 DIA.
2,79
1,35 DIA.
4,29
ORDERING INFORMATION
Series 419...042
Surface Mount w/ Alignments Pins
419-10-2_ _-30-042000
Specify number of pins
06-72
FIG. 1
Series 419...041
Surface Mount
419-10-2_ _-30-041000
Coplanarity 0,13. For Pin counts >20 positions, consult
Technical Support.
FIG. 2
2,54
FIG. 2
Series 419...054
Specify number of pins
04-72
1,78 DIA.
1,47 DIA.
1,35 DIA.
1,80
2,21
Low Profile Surface Mount
419-10-2_ _-30-054000
FIG. 3
Series 499...008
PAGE 21.1 | SPRING-LOADED CONNECTORS
1,12 DIA.
Specify number of pins
04-72
Coplanarity 0,13. For Pin counts >20 positions, consult
Technical Support.
FIG. 3
Right Angle Solder Tails
499-10-2_ _-10-008000
4,19
2,79
FIG. 4
Specify number of pins
04-64
5,08
2,54
7,01
0,46 DIA.
4,47
For
Electrical, Mechanical
& Enviromental Data,
See page 264
2011/65/EU
2,54
RoHS - 2
XX=Plating Code
See Below
10
0,25μm Au
5,59
FIG. 4
SPECIFY PLATING CODE XX=
Pin Plating
