TN88F51FC datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> TN88F51FC

Preview

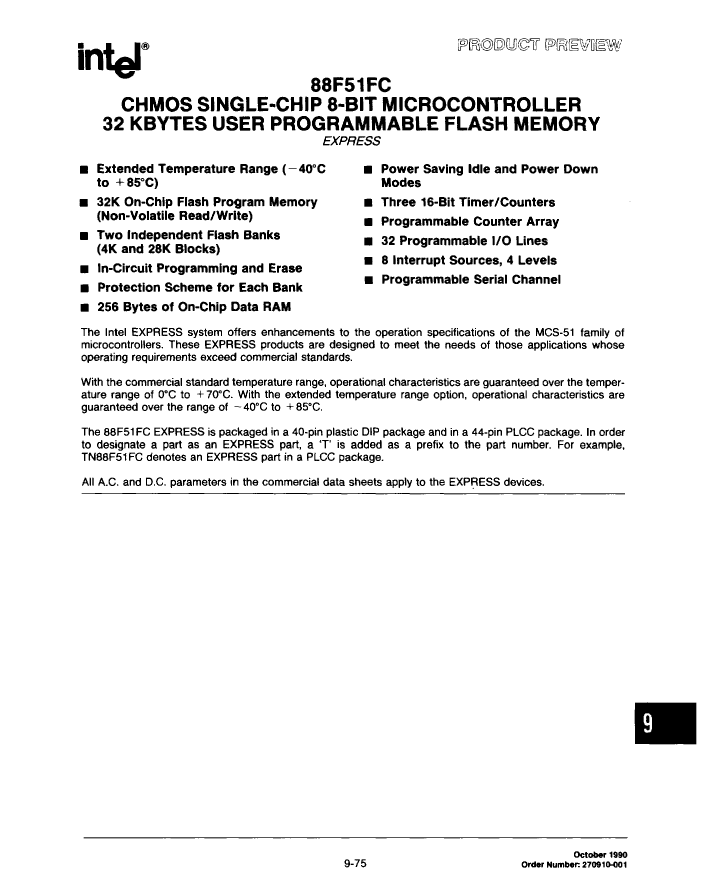

TN88F51FC: DescriptionMicrocontroller, 8-Bit, FLASH, 8051 CPU, 12MHz, CMOS, PQCC44, PLASTIC, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size28KB，1 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

TN88F51FC Overview

Microcontroller, 8-Bit, FLASH, 8051 CPU, 12MHz, CMOS, PQCC44, PLASTIC, LCC-44

TN88F51FC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
Parts packaging code	LCC
package instruction	QCCJ, LDCC44,.7SQ
Contacts	44
Reach Compliance Code	unknow
bit size	8
CPU series	8051
JESD-30 code	S-PQCC-J44
JESD-609 code	e0
length	16.5862 mm
Number of I/O lines	32
Number of terminals	44
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC44,.7SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	256
rom(word)	32768
ROM programmability	FLASH
Maximum seat height	4.57 mm
speed	12 MHz
Maximum slew rate	40 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	16.5862 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

TN88F51FC Related Products

	TN88F51FC	TP88F51FC-1	TN88F51FC-1	TP88F51FC
Description	Microcontroller, 8-Bit, FLASH, 8051 CPU, 12MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, FLASH, 8051 CPU, 16MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, FLASH, 8051 CPU, 16MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, FLASH, 8051 CPU, 12MHz, CMOS, PDIP40, PLASTIC, DIP-40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Intel	Intel	Intel	Intel
Parts packaging code	LCC	DIP	LCC	DIP
package instruction	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6
Contacts	44	40	44	40
Reach Compliance Code	unknow	compliant	compliant	unknown
bit size	8	8	8	8
CPU series	8051	8051	8051	8051
JESD-30 code	S-PQCC-J44	R-PDIP-T40	S-PQCC-J44	R-PDIP-T40
JESD-609 code	e0	e0	e0	e0
length	16.5862 mm	52.26 mm	16.5862 mm	52.26 mm
Number of I/O lines	32	32	32	32
Number of terminals	44	40	44	40
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	DIP	QCCJ	DIP
Encapsulate equivalent code	LDCC44,.7SQ	DIP40,.6	LDCC44,.7SQ	DIP40,.6
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	256	256	256	256
rom(word)	32768	32768	32768	32768
ROM programmability	FLASH	FLASH	FLASH	FLASH
Maximum seat height	4.57 mm	5.08 mm	4.57 mm	5.08 mm
speed	12 MHz	16 MHz	16 MHz	12 MHz
Maximum slew rate	40 mA	52 mA	52 mA	40 mA
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	THROUGH-HOLE	J BEND	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	16.5862 mm	15.24 mm	16.5862 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
