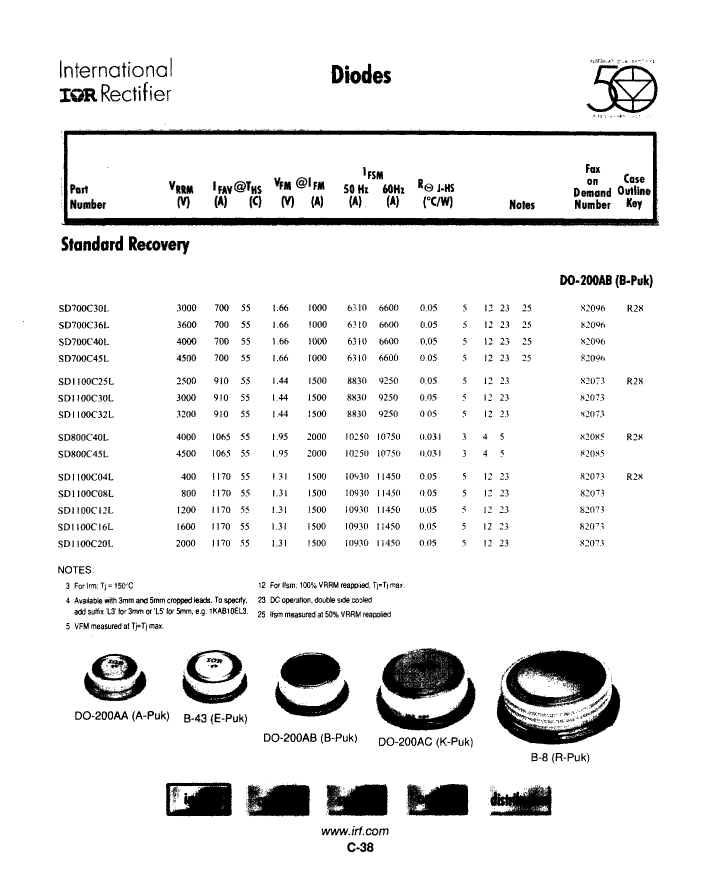

Rectifier Diode, 1 Phase, 1 Element, 1065A, 4000V V(RRM), Silicon, DO-200AB,
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | International Rectifier （ Infineon ） |
| package instruction | O-CEDB-N2 |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| application | GENERAL PURPOSE |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| JEDEC-95 code | DO-200AB |
| JESD-30 code | O-CEDB-N2 |
| JESD-609 code | e0 |
| Maximum non-repetitive peak forward current | 10750 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 2 |
| Maximum output current | 1065 A |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| Package shape | ROUND |
| Package form | DISK BUTTON |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 4000 V |
| surface mount | YES |
| Terminal surface | TIN LEAD |
| Terminal form | NO LEAD |
| Terminal location | END |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| SD800C40LL5 | SD800C45LL5 | SD800C45LL5PBF | SD800C45LL3PBF | SD800C45LL3 | SD800C40LL5PBF | SD800C40LL3 | SD800C40LL3PBF | |
|---|---|---|---|---|---|---|---|---|
| Description | Rectifier Diode, 1 Phase, 1 Element, 1065A, 4000V V(RRM), Silicon, DO-200AB, | Rectifier Diode, 1 Phase, 1 Element, 1065A, 4500V V(RRM), Silicon, DO-200AB, | Rectifier Diode, 1 Phase, 1 Element, 1065A, 4500V V(RRM), Silicon, DO-200AB, | Rectifier Diode, 1 Phase, 1 Element, 1065A, 4500V V(RRM), Silicon, DO-200AB, | Rectifier Diode, 1 Phase, 1 Element, 1065A, 4500V V(RRM), Silicon, DO-200AB, | Rectifier Diode, 1 Phase, 1 Element, 1065A, 4000V V(RRM), Silicon, DO-200AB, | Rectifier Diode, 1 Phase, 1 Element, 1065A, 4000V V(RRM), Silicon, DO-200AB, | Rectifier Diode, 1 Phase, 1 Element, 1065A, 4000V V(RRM), Silicon, DO-200AB, |
| Is it lead-free? | Contains lead | Contains lead | Lead free | Lead free | Contains lead | Lead free | Contains lead | Lead free |
| Is it Rohs certified? | incompatible | incompatible | conform to | conform to | incompatible | conform to | incompatible | conform to |
| Maker | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） |
| package instruction | O-CEDB-N2 | O-CEDB-N2 | O-CEDB-N2 | O-CEDB-N2 | O-CEDB-N2 | O-CEDB-N2 | O-CEDB-N2 | O-CEDB-N2 |
| Reach Compliance Code | compli | compliant | compliant | compliant | compliant | compliant | compli | compli |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| application | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| JEDEC-95 code | DO-200AB | DO-200AB | DO-200AB | DO-200AB | DO-200AB | DO-200AB | DO-200AB | DO-200AB |
| JESD-30 code | O-CEDB-N2 | O-CEDB-N2 | O-CEDB-N2 | O-CEDB-N2 | O-CEDB-N2 | O-CEDB-N2 | O-CEDB-N2 | O-CEDB-N2 |
| Maximum non-repetitive peak forward current | 10750 A | 10750 A | 10750 A | 10750 A | 10750 A | 10750 A | 10750 A | 10750 A |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum output current | 1065 A | 1065 A | 1065 A | 1065 A | 1065 A | 1065 A | 1065 A | 1065 A |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | DISK BUTTON | DISK BUTTON | DISK BUTTON | DISK BUTTON | DISK BUTTON | DISK BUTTON | DISK BUTTON | DISK BUTTON |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | 260 | 260 | NOT SPECIFIED | 260 | NOT SPECIFIED | 260 |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 4000 V | 4500 V | 4500 V | 4500 V | 4500 V | 4000 V | 4000 V | 4000 V |
| surface mount | YES | YES | YES | YES | YES | YES | YES | YES |
| Terminal form | NO LEAD | NO LEAD | NO LEAD | NO LEAD | NO LEAD | NO LEAD | NO LEAD | NO LEAD |
| Terminal location | END | END | END | END | END | END | END | END |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | 40 | 40 | NOT SPECIFIED | 40 | NOT SPECIFIED | 40 |
