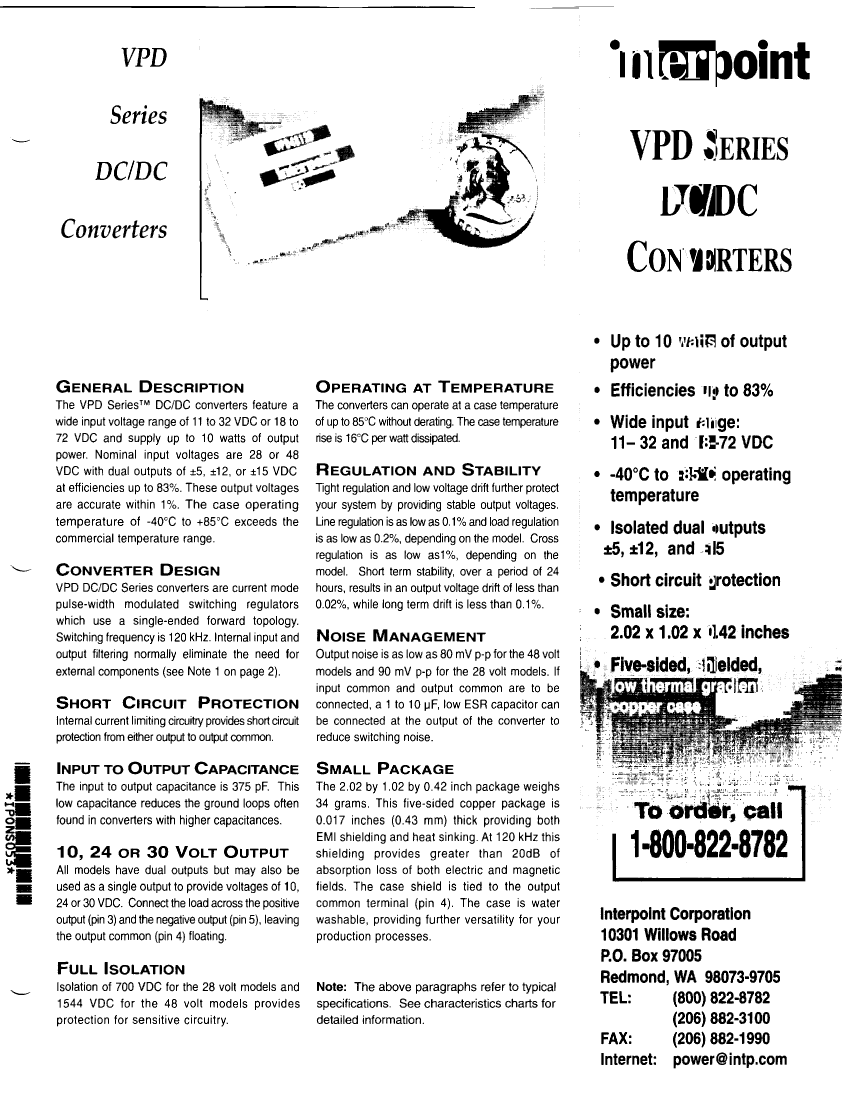

VPD2815D datasheet, PDF - EEWORLD Datasheet

VPD2815D: Description2-OUTPUT 10W DC-DC REG PWR SUPPLY MODULE, 2.020 X 1.020 INCH, 0.420 INCH HEIGHT, METAL, PACKAGE-5; CategoryPower/power management The power supply circuit; File Size220KB，4 Pages; ManufacturerInterpoint （ Crane Aerospace & Electronics ）; Websitehttp://www.interpoint.com

Download Datasheet Parametric View All

VPD2815D Overview

2-OUTPUT 10W DC-DC REG PWR SUPPLY MODULE, 2.020 X 1.020 INCH, 0.420 INCH HEIGHT, METAL, PACKAGE-5

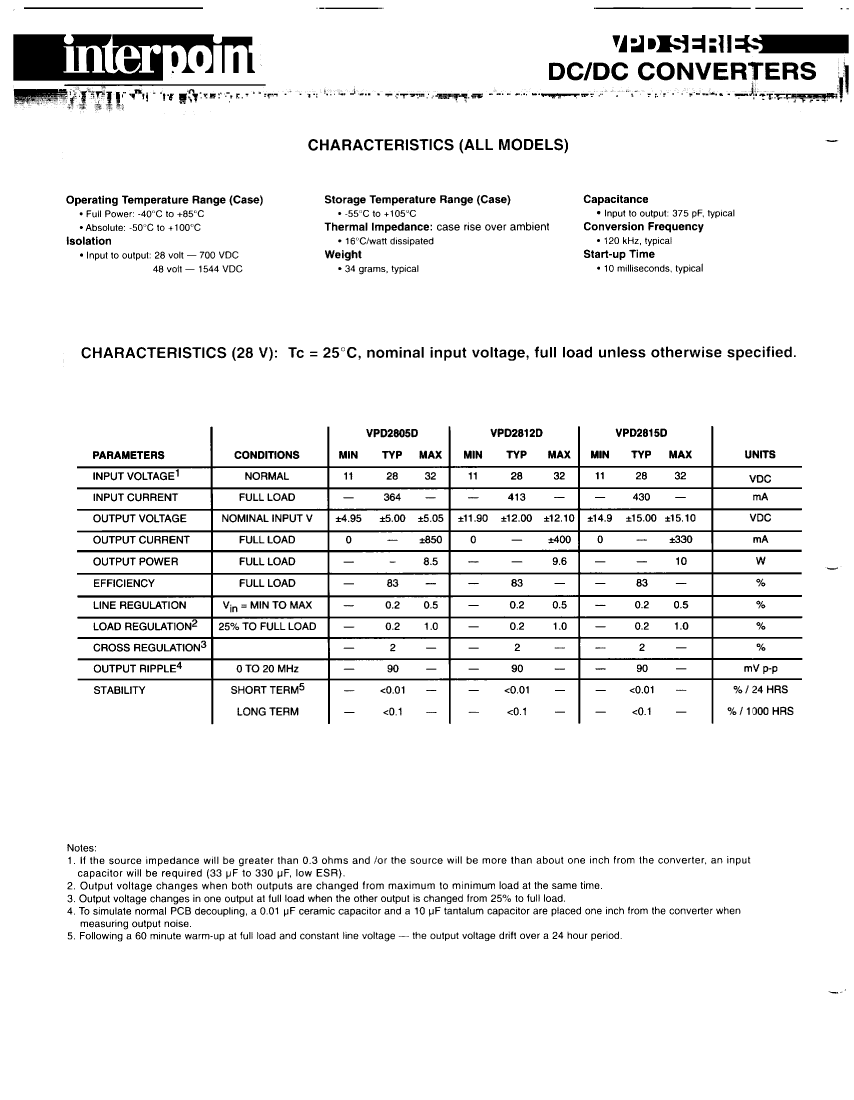

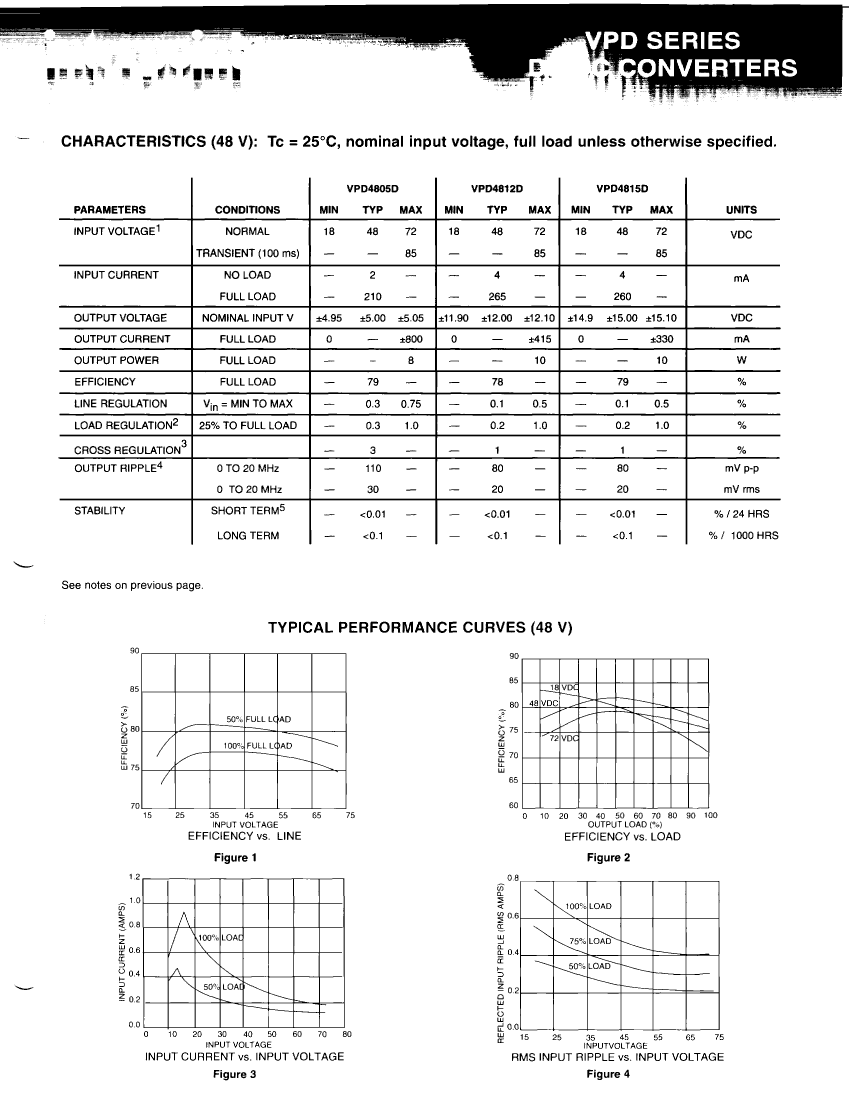

Parameter Name	Attribute value
Maker	Interpoint （ Crane Aerospace & Electronics ）
Parts packaging code	MODULE
package instruction	,
Contacts	5
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	83%
Maximum input voltage	32 V
Minimum input voltage	11 V
Nominal input voltage	28 V
JESD-30 code	R-MDMA-P5
Maximum grid adjustment rate	0.5%
Maximum load regulation	1%
Number of functions	1
Output times	2
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	15.1 V
Minimum output voltage	14.9 V
Nominal output voltage	15 V

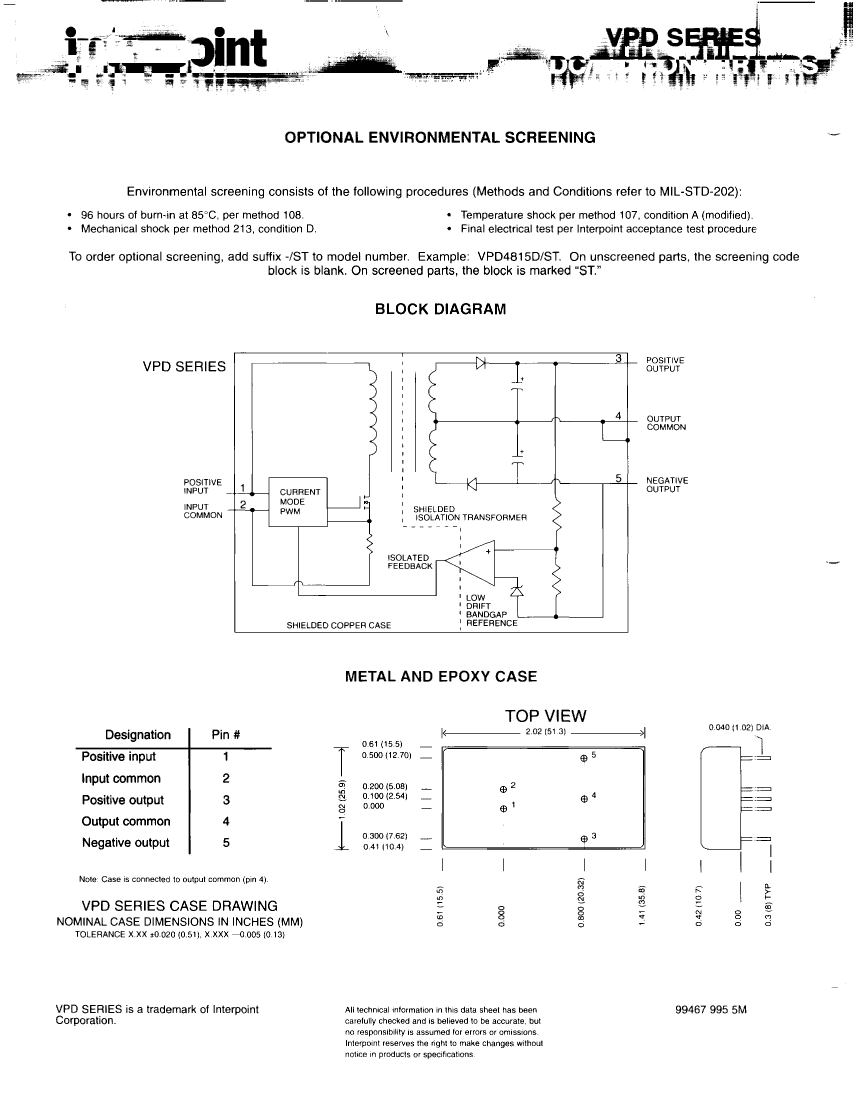

Package body material	METAL
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Protect	CURRENT
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	10 W
Fine-tuning/adjustable output	NO
