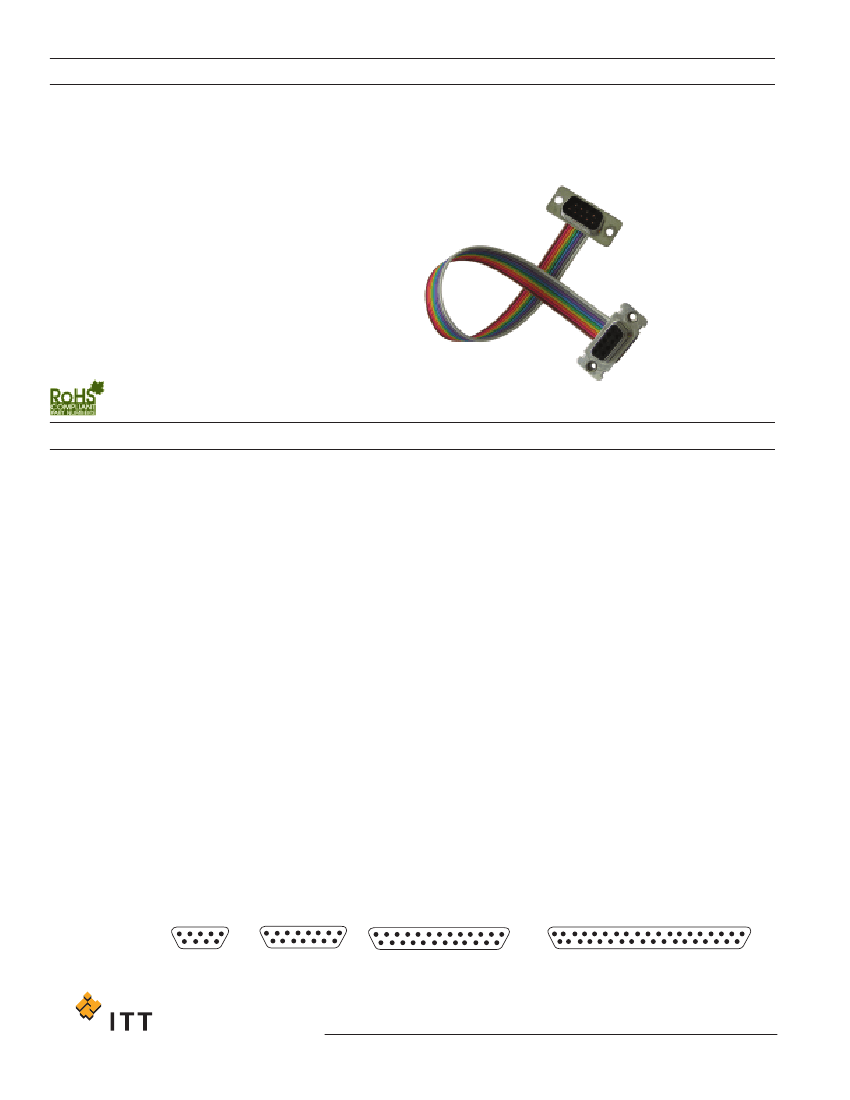

Cannon Speedy D
IDC contacts
Speedy D connectors terminate ribbon cables without stripping and without splicing. They are
intermateable with all D Subminiature types offered on the market. The extremely low profile
is another typical feature of the Speedy D.
Technical Data
Materials
Shell
Insulator
Contacts
Contact area
Termination area
Steel, with pure tin matt
High quality thermoplast, flame retardant, UL94V-0
Copper alloy
gold-plated over nickel
pure tin, matt
Mechanical Features
Coupling
Polarizing
Termination
Wire sizes
Ribbon cable
Temperature rating
to DIN IEC 68 part 1
Friction, accessories
Keystone shape shell
IDC
AWG 26 (0,13mm2), AWG 28 (0,08mm2) solid or stranded
Conductor spacing 1,27mm
-55/125°C
Electrical Data
Current rating
Contact resistance
Voltage rating
Insulation resistance
Air/creepage paths
1.5 A at 25°C, 1 A at 70°C ambient temperature
15 mOhm (milli Ohm)
780 VAC
5 x 10
3
MOhm (Mega Ohm)
minimum 0,9mm
Standard Contact Arrangements
Contact size 20
Face view pin insert
1
2
3
4
5
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
10
11
12
13
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
6
7
8
9
9
10
11
12
13
14
15
14
15
16
17
18
19
20
21
22
23
24
25
20 21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
Shell size
No. of contacts
E
9
A
15
B
25
C
37
Dimensions shown in mm
Specifications and dimensions subject to change.
www.ittcannon.com
2
Cannon Speedy D
RoHS Compliant Ordering Key
D
Series
D Subminiature
Shell size
E
A
B
C
–
–
–
–
9 contacts
15 contacts
25 contacts
37 contacts
B
SF
Y – 25
P – A190 – K87
Contact termination
SF – flat cable termination
Mounting method
without letter–
through-hole ø 3.05
E–clinch nut 4–40
X–clinch nut M3
Y–Float mounting
Number of contacts
9; 15; 25; 37
Contact type
P–Pin
S–Socket
Contact finish (=Performance class)
without code – Performance class 3
A191 – Performance class 2
A190 – Performance class 1
Shielding and shell finish
A197
– shell with pure tin, matt, (socket connector only)
K87
– shielding with grounding indents.
Pure tin, matt, (pin connector only)
Modification
F204 – supplied with strain relief
Contact finishes/Performance class
without code –
A191
A190
performance class 3 (50 mating cycles) is standard version of Speedy D
– performance class 2 (200 mating cycles)
– performance class 1 (500 mating cycles)
Dimensions shown in mm
Specifications and dimensions subject to change.
www.ittcannon.com
3

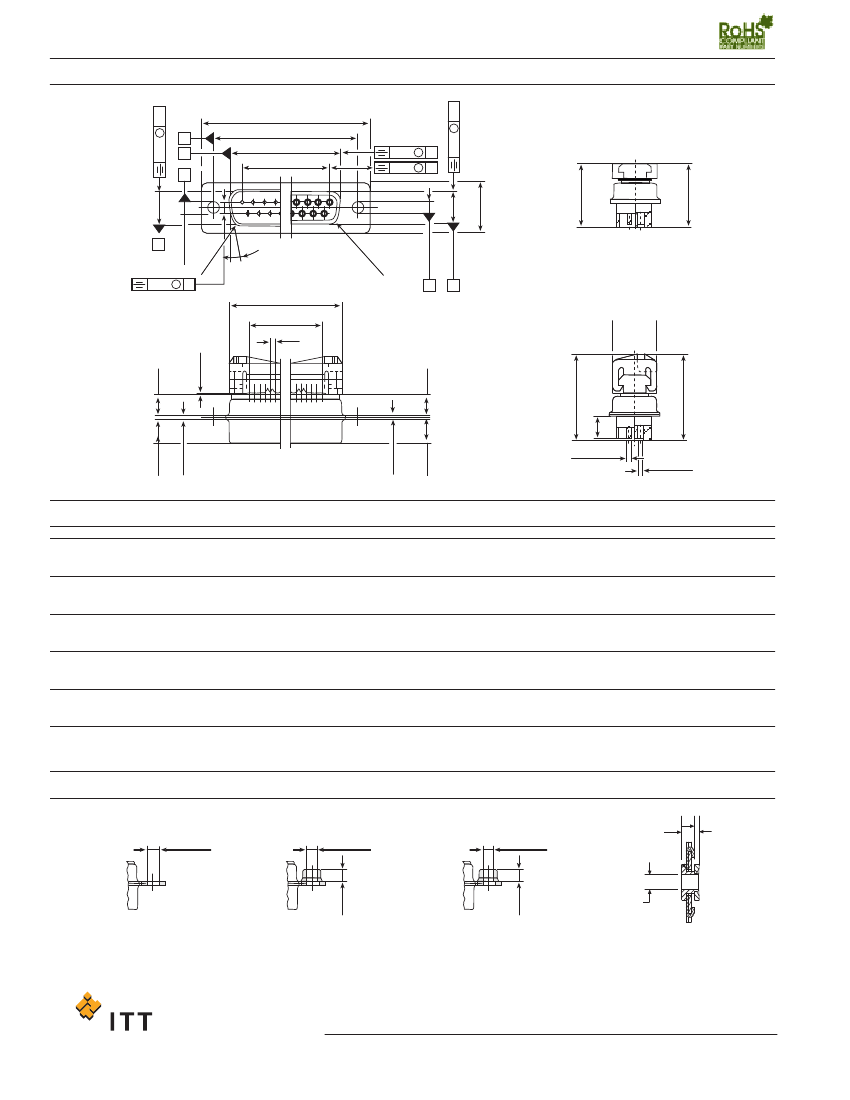

Cannon Speedy D
Pin connector / Socket connector
0,15
M
B-E
A
A
D
E
+0,25
1
2
3
4
4
3
2
1
B
C
0,2
M
A
0,1
M
D
0,15
M
B-E
ITT CANNON
1
+0,15
10 11 12
12 12 12 12
+0
,1
3,05
C
R2
,6
2
°
10
R
2,
6
2
-0
,1
6
0,1
M
C
D
n x 1,27 = E
1,27
1,15 max.
2,84
3,05
+0,15
B
5
-.0,3
5
-.0,3
8,02
+0,25
C
12,9
-0,7
8,23
21,8
6,1
-.0,25
6,3
-.0,25
+0,2
0,8
+0,2
ø1,2
±0,02
ø1,2
+0.1
Dimensions
No. of contacts
9
15
25
37
P
S
P
S
P
S
P
S
A
±0,3
30,8
30,8
39,1
39,1
53,0
53,0
69,3
69,3
B
±0,3
25,0
25,0
33,3
33,3
47,0
47,0
63,5
63,5
C
±0,15
16,8
16,25
25,1
24,55
38,85
38,3
55,3
54,75
D
19,4
19,4
27,7
27,7
41,4
41,4
57,9
57,9
E
0,9
8 x 1,27 = 10,18
14 x 1,27 = 17,78
24 x 1,27 = 30,48
36 x 1,27 = 45,72
P–Pin
S–Socket
Mounting methods
3,30 MAX,
ø3,05
+0,15
4-40UNC-B
M3
2,8
±03
2,8
±03
Standard
Through-hole
E
Clinch nut
4-40UNC
X
Clinch nut
M3
5,59
-0,4
Ø 2,26
±
0,08
Y
dual float mount
Dimensions shown in mm
Specifications and dimensions subject to change.
www.ittcannon.com
4
22
16,2
16
Cannon Speedy D
IDC contacts
Receptacle
No. of
contacts
9
15
25
37
Through-hole
DESF- 9
DASF-15
DBSF-25
DCSF-37
S-A197
S-A197
S-A197
S-1A97
Float mount
DESFY- 9
DASFY-15
DBSFY-25
DCSFY-37
S-A197
S-A197
S-A197
S-A197
Clinch nut 4–40*
DESFE- 9
DASFE-15
DBSFE-25
DCSFE-37
S-A197
S-A197
S-A197
S-A197
or metric thread replace E by X
Plugs
(pin connector only)
No. of
contacts
9
15
25
37
with grounding indents
DESF- 9P-K87
DASF-15P-K87
DBSF-25P-K87
DCSF-37P-K87
Float mount
DESFY- 9P-K87
DASFY-15P-K87
DBSFY-25P-K87
DCSFY-37P-K87
Clinch nut 4–40*
DESFE-9P-K87
DASFE-15P-K87
DBSFE-25P-K87
DCSFE-37P-K87
or metric thread replace E by X
Performance class
Performance class 1: A190 into order ref.
Performance class 2: A191 into order ref.
e.g.DESF—9P-A190-K87 or
DESF—9S-A191-A197
Cable strain relief
No. of contact
9
15
25
37
Order No.
029-8757-009
029-8757-015
029-8758-025
029-8757-037
Dimensions shown in mm
Specifications and dimensions subject to change.
www.ittcannon.com
5
Cannon Speedy D
Mounting combinations
Figure 1A
front mount
Figure 1B
rear mount
front mount
Pin
Pin
rear mount
B
A
H
C
front mount
Socket
rear mount
front mount
Socket
rear mount
Figure 2
front mount
Figure 3
rear mount
front mount
Pin
Pin
rear mount
A
C
C
B
front float mount
Socket
rear float mount
front float mount
Socket
front float mount
Fig.
1A
1B
2
2
2
2
3
3
3
3
Size
A, E
B, C, D
A, E
B, C, D
A, E
B, C, D
A, E
B, C, D
A, E
B, C, D
Pin
Standard
Standard
Standard
Standard
float
float
Standard
Standard
float
float
Socket
Standard
Standard
float
float
Standard
Standard
float
float
Standard
Standard
A
+0,76
6,35
6,04
5,53
5,23
5,53
5,23
–
–
–
–
B
+0,76
7,63
7,71
–
–
–
–
8,59
8,66
8,59
8,51
C
+0,76
6,99
7,06
6,18
6,25
6,18
5,87
7,95
7,64
7,95
7,87
H
_0,76/-0
6,99
6,68
–
–
–
–
–
–
–
–
Remark:
A, B, C and H are dimensions between panels and
represent the recommended limit to be used in the
design of the connector mounting method.
Standard pin assemblies contain 0,38 mm thick
front shells on E and A sizes and 0,61 mm thick
shells on B, C and D sizes.
Dimensions shown in mm
Specifications and dimensions subject to change.
www.ittcannon.com
6
