DBMC21X1SJA197

Description
D Subminiature Connector, 21 Contact(s), Female, Solder Terminal, #4-40, Receptacle
CategoryThe connector    The connector
File Size130KB,2 Pages
ManufacturerITT
Websitehttp://www.ittcannon.com/
Environmental Compliance
Download Datasheet Parametric View All

DBMC21X1SJA197 Overview

D Subminiature Connector, 21 Contact(s), Female, Solder Terminal, #4-40, Receptacle

DBMC21X1SJA197 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerITT
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresAPPLICATION: RF AND TELECOM TRANSMISSION, EMI/RFI SHIELDED
body width0.494 inch
body length2.088 inch
Body/casing typeRECEPTACLE
Connector typeD SUBMINIATURE CONNECTOR
Contact arrangementS20C1
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Contact resistance7.5 mΩ
Contact styleRND PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VAC V
Durability500 Cycles
empty shellNO
Filter functionNO
IEC complianceNO
Insulation resistance5000000000 Ω
insulator materialPOLYESTER
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsYES
Installation option 1#4-40
Installation option 2CLINCH NUT
Installation methodRIGHT ANGLE
Installation typeBOARD AND PANEL
Number of connectorsONE
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceTIN
Shell materialSTEEL
Housing size3/B
Termination typeSOLDER
Total number of contacts21
UL Flammability Code94V-0

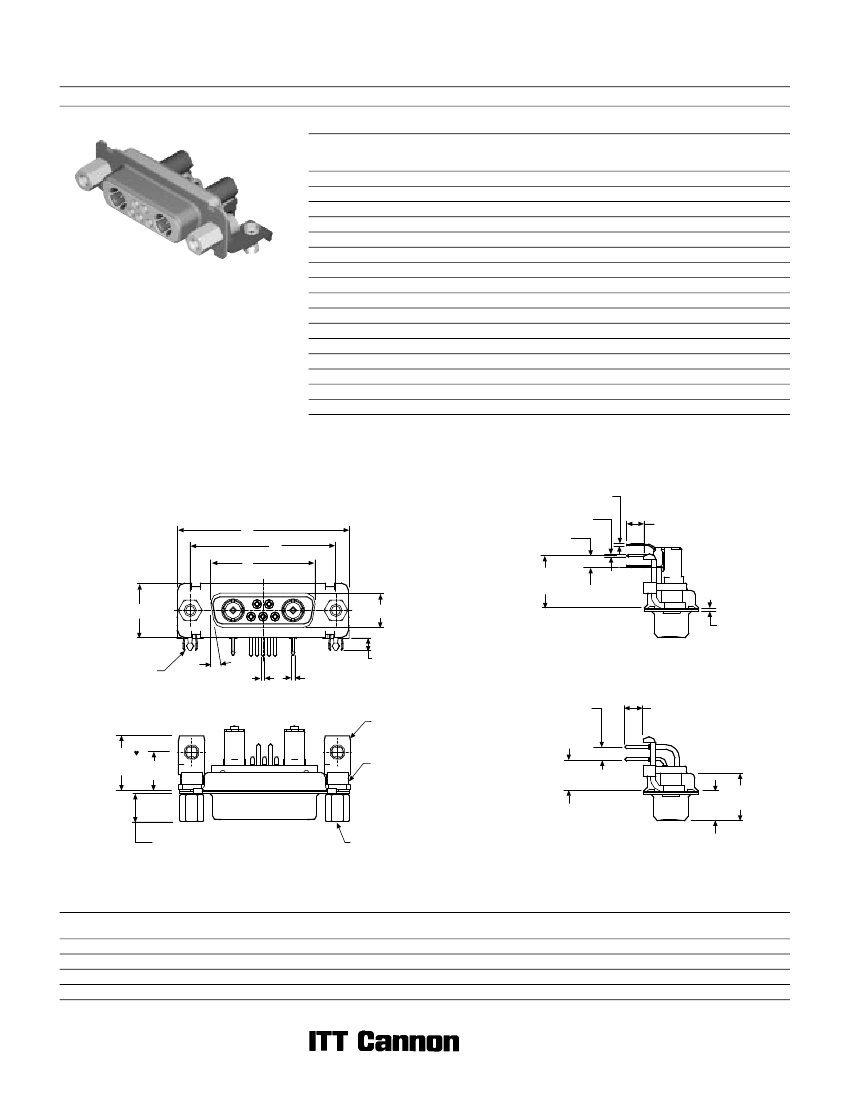

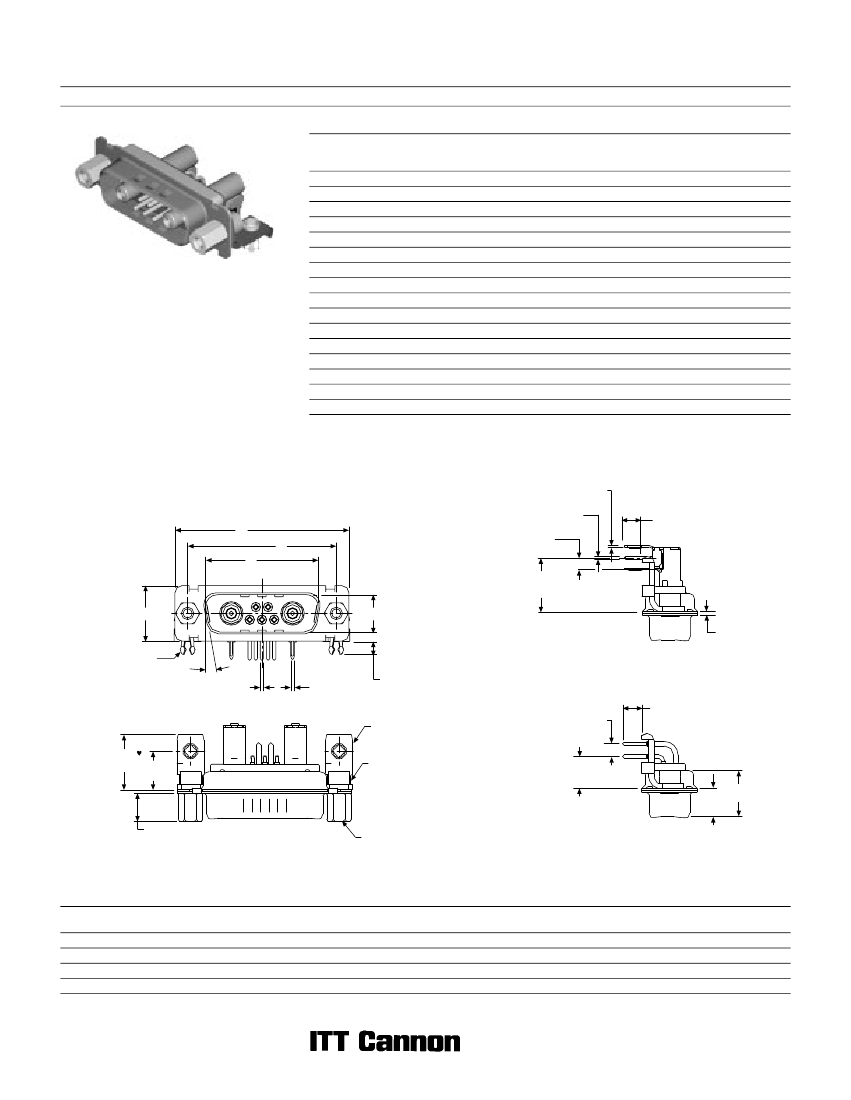

D Subminiature
Coaxial 90° — Standard Footprint .318 or .283 inch
Plug
Combo D
®
(Sizes DE-DC)
Part Number
Without Screw Locks
Without Boardlocks
DEMP5C1PJK87
DAMP7C2PJK87
DAMP11C1PJK87
DAMP3C3PJK87
DAMP3CK3PJK87TM
DBMP5C5PJK87
DBMP9C4PJK87
DBMP13C3PJK87
DBMP17C2PJK87
DBMP21C1PJK87
DCMP8C8PJK87
DCMP13C6PJK87
DCMP17C5PJK87
DCMP21CA4PJK87
DCMP25C3PJK87
DCMP27C2PJK87
Part Number
Without Screw Locks
With Boardlocks
DEMC5C1PJK87
DAMC7C2PJK87
DAMC11C1PJK87
DAMC3C3PJK87
DAMC3CK3PJK87TM
DBMC5C5PJK87
DBMC9C4PJK87
DBMC13C3PJK87
DBMC17C2PJK87
DBMC21C1PJK87
DCMC8C8PJK87
DCMC13C6PJK87
DCMC17C5PJK87
DCMC21CA4PJK87
DCMC25C3PJK87
DCMC27C2PJK87
Part Number
With Screw Locks
Without Boardlocks
DEMD5C1PJK87
DAMD7C2PJK87
DAMD11C1PJK87
DAMD3C3PJK87
DAMD3CK3PJK87TM
DBMD5C5PJK87
DBMD9C4PJK87
DBMD13C3PJK87
DBMD17C2PJK87
DBMD21C1PJK87
DCMD8C8PJK87
DCMD13C6PJK87
DCMD17C5PJK87
DCMD21CA4PJK87
DCMD25C3PJK87
DCMD27C2PJK87
Part Number
With Screw Locks
With Boardlocks
DEMG5C1PJK87
DAMG7C2PJK87
DAMG11C1PJK87
DAMG3C3PJK87
DAMG3CK3PJK87TM
DBMG5C5PJK87
DBMG9C4PJK87
DBMG13C3PJK87
DBMG17C2PJK87
DBMG21C1PJK87
DCMG8C8PJK87
DCMG13C6PJK87
DCMG17C5PJK87
DCMG21CA4PJK87
DCMG25C3PJK87
DCMG27C2PJK87
75 Ohm Part Numbers* with Metal Bracket and Rivnut #4-40 UNC
Shell Size
DE
DA
DA
DA
DA
DB
DB
DB
DB
DB
DC
DC
DC
DC
DC
DC
Layout
5W1
7W2
11W1
3W3
3WK3
5W5
9W4
13W3
17W2
21W1
8W8
13W6
17W5
21WA4
25W3
27W2
Reader’s Resource
For contact cavity arrangements,
see page 222.
For P.C. hole patterns, see pages 228-229.
For panel cutouts, see page 221.
For hardware views (Standard), see page 226.
For alternate bracket configuration (when
connectors are supplied without boardlocks),
see page 226.
For alternate 50 Ohm coaxial configuration,
see page 225.
Notes: * For 50 Ohm Coaxial substitute X for C. Example: DEMP5X1PJK87
For contacts with 30 microinches gold substitute K127 for K87. Example: DEMP5C1PJK127
For DD shell sizes, see page 46.
Keyed.
Engaging Face
A
C
B
0,56
(.023)
Ø 0,51
(.020)
2,54
(.100)
11,94
±
0,33
(.470
±
.013)
3,89 (.153)
MIN
E
D
L
BOARDLOCK
10°
Ø 0,76
(.030)
0,82
(.032)
2,92
(.115)
Screw lock, boardlock, and signal contacts
removed for clarity
4,33
±
0,38
(.170
±
.015)
BRACKET,
METAL
12,34
(.486) 8,64
(.340)
RIVNUT
#4-40 UNC
2,84
(.112)
7,18
±
0,25
(.283
±
.010)
W
F
6,50
±
0,25
(.256
±
.010)
SCREW LOCK
#4-40 UNC
Screw lock, boardlock, and coaxial contact
removed for clarity
Note:
Dimension varies with alternate bracket configuration, see Reader’s Resource page 226.
Dimensions
Shell Size
DE
DA
DB
DC
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,04 (2.088)
69,32 (2.729)
B
±0,13
(.005)
16,92 (.666)
25,25 (.994)
38,96 (1.534)
55,42 (2.182)
C
±0,13
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
D
±0,13
(.005)
8,36 (.329)
8,36 (.329)
8,36 (.329)
8,36 (.329)
E
±0,38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
F
±0,25
(.010)
10,72 (.422)
10,72 (.422)
10,82 (.426)
10,82 (.426)
W
±0,368
(.0145)
6,693 (.2635)
6,693 (.2635)
W
±0,41
(.016)
6,84 (.269)
6,84 (.269)
L
±0,25
(.010)
0,76 (.030)
0,76 (.030)
0,99 (.039)
0,99 (.039)
Connector footprint measured from the front shell.
Connector footprint measured from the rear shell.
44
Dimensions are shown in mm (inch)
Dimensions subject to change
