D Subminiature
Straight Solder Termination (Machined) — European PC Tails
Receptacle
Part Numbers
Shell Size
DE
DA
DB
DC
DD
Layout
9
15
25
37
50
Through Hole
DE9S-0L2-A197
DA15S-0L2-A197
DB25S-0L2-A197
DC37S-0L2-A197
DD50S-0L2-A197
Standoff #4-40 UNC
With Pushfit/Boardlock
DEE9S-0L2-A197-146
DAE15S-0L2-A197-146
DBE25S-0L2-A197-146
DCE37S-0L2-A197-146
DDE50S-0L2-A197-146
D*
Standoff M3 With
Pushfit/Boardlock
DEX9S-0L2-A197-146
DAX15S-0L2-A197-146
DBX25S-0L2-A197-146
DCX37S-0L2-A197-146
DDX50S-0L2-A197-146
Selection Guide
For Product Features, Specifications,
Materials and Finishes, see pages 2-3.
Reader’s Resource
For contact cavity arrangements,
see page 224.
For P.C. hole patterns, see page 274.
For panel cutouts, see page 221.
For hardware views (European),
see page 227.
Note: For performance class 2 add -A191. Example DA15S-0L2-A191-A197
PC Tail
Modifier
OL2
OL4
X
±0,30
(.012)
5,20 (.205)
6,75 (.266)
Y
±0,30
(.012)
10,20 (.401)
11,80 (.465)

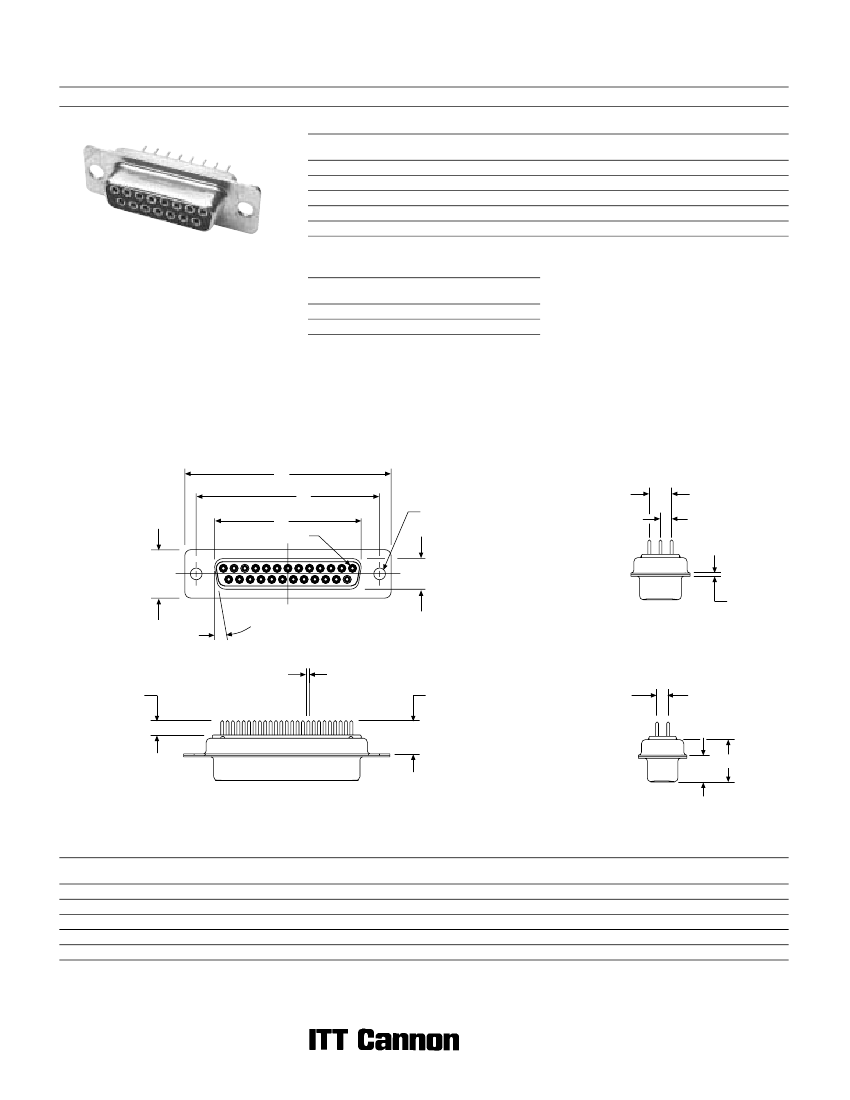

Engaging Face
DD Configuration
A
C
B
POSITION 1
Ø 3,05
(.120)
5,69 (.224)
2,84 (.112)
E
D
L
10°
Ø 0,60 (.024)
X
Y
2,84 (.112)
W
F
Dimensions
Shell Size
DE
DA
DB
DC
DD
A
±0,38
(.015)
30,81 (1.213)
39,14 (1.541)
53,04 (2.088)
69,32 (2.729)
66,93 (2.635)
B
±0,13
(.005)
16,33 (.643)
24,66 (.971)
38,38 (1.511)
54,84 (2.159)
52,42 (2.064)
C
±0,13
(.005)
24,99 (.984)
33,32 (1.312)
47,04 (1.852)
63,50 (2.500)
61,11 (2.406)
D
±0,13
(.005)
7,90 (.311)
7,90 (.311)
7,90 (.311)
7,90 (.311)
10,74 (.423)
E
±0,38
(.015)
12,55 (.494)
12,55 (.494)
12,55 (.494)
12,55 (.494)
15,37 (.605)
F
±0,25
(.010)
10,90 (.429)
10,90 (.429)
10,90 (.429)
10,90 (.429)
10,90 (.429)
W
±0,38
(.015)
6,94 (.273)
6,94 (.273)
6,94 (.273)
6,94 (.273)
6,94 (.273)
L
±0,25
(.010)
0,76 (.030)
0,76 (.030)
0,76 (.030)
0,76 (.030)
0,76 (.030)
Dimensions are shown in mm (inch)
Dimensions subject to change
