D Subminiature
Coaxial 90° — Standard Footprint .489 or .454 inch
Plug
Combo D
®
(Size DD)
Part Number
Without Screw Locks
Without Boardlocks
DDMP24C7PJK87
DDMP36C4PJK87
DDMP43C2PJK87
DDMP47C1PJK87
Part Number
Without Screw Locks
With Boardlocks
DDMC24C7PJK87
DDMC36C4PJK87
DDMC43C2PJK87
DDMC47C1PJK87
Part Number
With Screw Locks
Without Boardlocks
DDMD24C7PJK87
DDMD36C4PJK87
DDMD43C2PJK87
DDMD47C1PJK87
Part Number
With Screw Locks
With Boardlocks
DDMG24C7PJK87
DDMG36C4PJK87
DDMG43C2PJK87
DDMG47C1PJK87
75 Ohm Part Numbers* with Metal Bracket and Rivnut #4-40 UNC
Shell Size
DD
DD
DD
DD
Layout
24W7
36W4
43W2
47W1
Notes: * For 50 Ohm Coaxial substitute X for C. Example: DDMG36X4PJK87
For contacts with 30 microinches gold substitute K127 for K87. Example: DDMP24C7PJK127
Reader’s Resource
For contact cavity arrangements,
see page 222.
For P.C. hole patterns, see page 230.
For panel cutouts, see page 221.
For hardware views (Standard), see page 226.
For alternate bracket configuration (when
connectors are supplied without boardlocks),
see page 226.
For alternate 50 Ohm coaxial configuration,
see page 225.

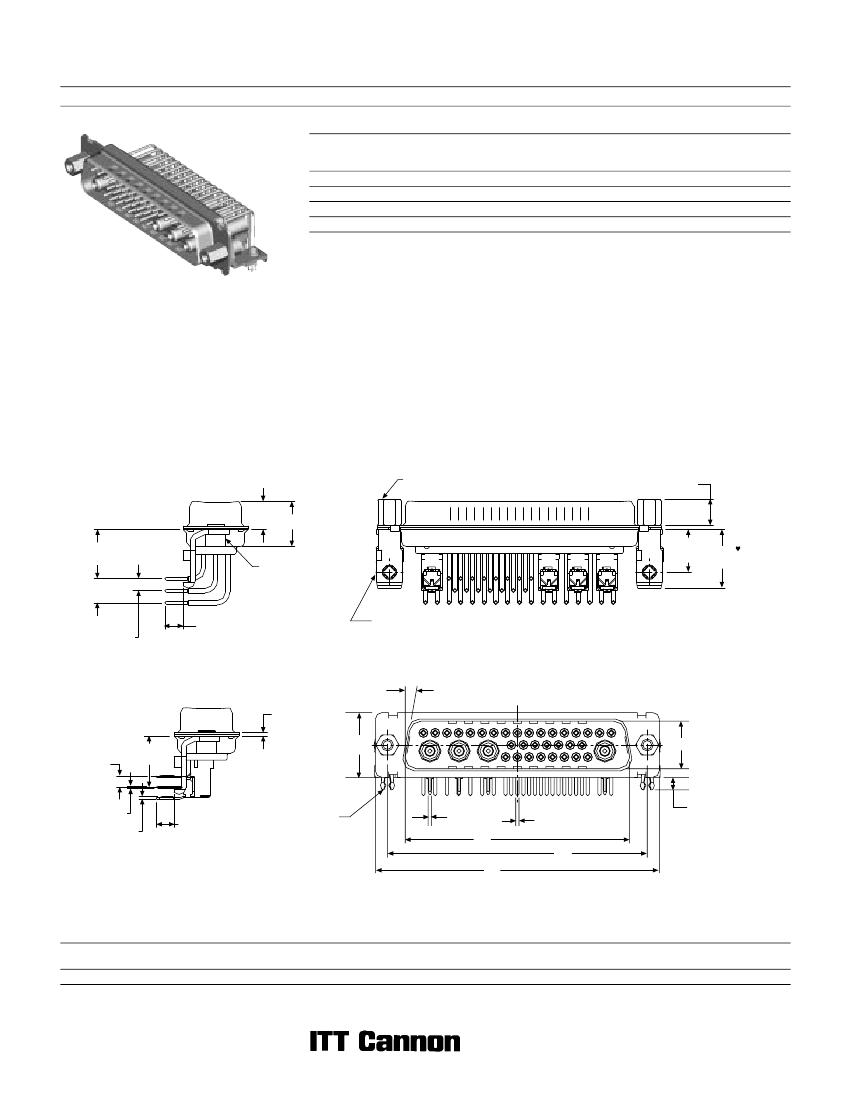

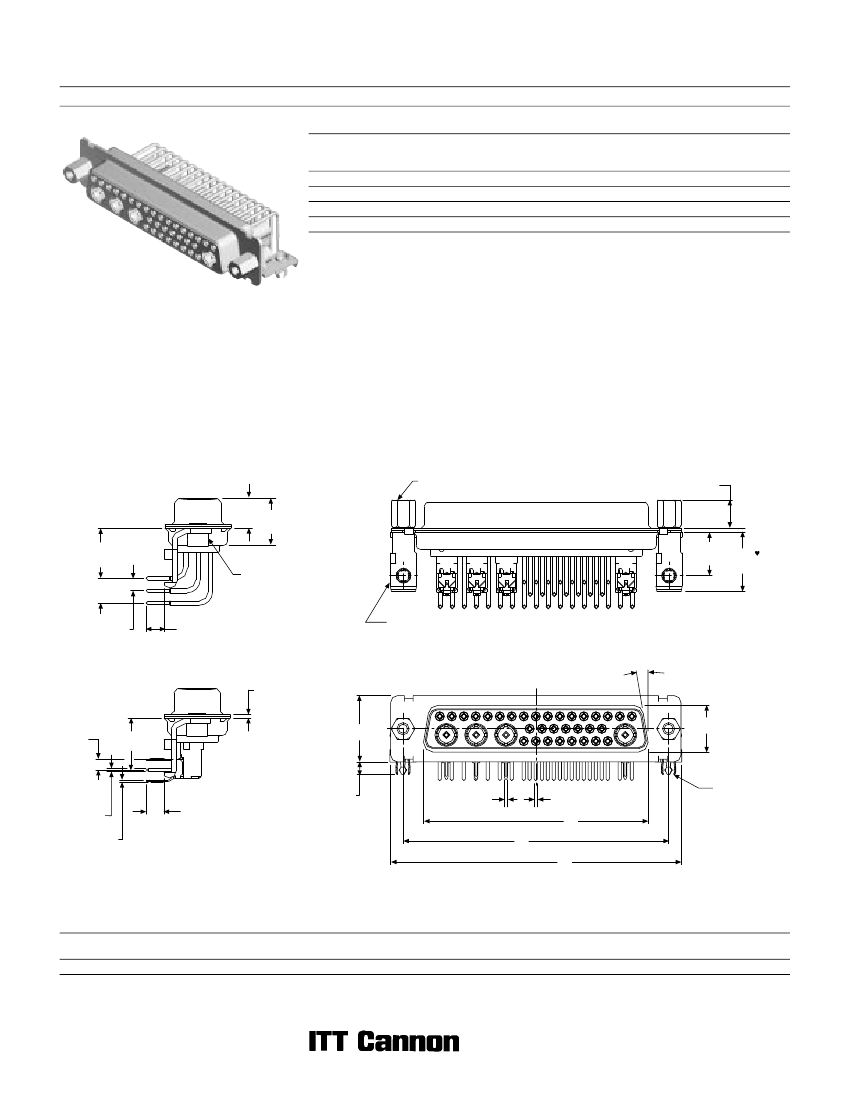

SCREW LOCK
#4-40 UNC
W
11,53
±
0,25
(.454
±
.010)
5,68
(.224)
4,33
±
0,38
(.170
±
.015)
BRACKET,
METAL
6,50
±
0,25
(.256
±
.010)
F
10,06
(.396)
13,74
(.541)
RIVNUT
#4-40 UNC
2,84
(.112)
Screw lock, boardlock, and coaxial contacts
removed for clarity
10°
L
11,94
±
0,33
(.470
±
.013)
E
Engaging Face
D
2,54
(.100)
Ø 0,51
(.020)
0,56
(.023)
3,89 (.153)
MIN
BOARDLOCK
0,82
(.032)
B
Ø 0,76
(.030)
C
2,92
(.115)
Screw lock, boardlock, and signal contacts
removed for clarity
Note:
Dimension varies with alternate bracket configuration, See Reader’s Resource page 226.
A
Dimensions
Shell Size
DD
A
±0,38
(.015)
66,93 (2.635)
B
±0,13
(.005)
52,81 (2.079)
C
±0,13
(.005)
61,11 (2.406)
D
±0,13
(.005)
11,07 (.436)
E
±0,38
(.015)
15,37 (.605)
F
±0,25
(.010)
10,82 (.426)
W
±0,41
(.016)
6,84 (.269)
L
±0,25
(.010)
0,99 (.039)
Connector footprint measured from the front shell.
Connector footprint measured from the rear shell.
Dimensions are shown in mm (inch)
Dimensions subject to change
46
D Subminiature
Coaxial 90° — Standard Footprint .489 or .454 inch
Receptacle
Combo D
®
(Size DD)
Part Number
Without Screw Locks
Without Boardlocks
DDMP24C7SJA197
DDMP36C4SJA197
DDMP43C2SJA197
DDMP47C1SJA197
Part Number
Without Screw Locks
With Boardlocks
DDMC24C7SJA197
DDMC36C4SJA197
DDMC43C2SJA197
DDMC47C1SJA197
Part Number
With Screw Locks
Without Boardlocks
DDMD24C7SJA197
DDMD36C4SJA197
DDMD43C2SJA197
DDMD47C1SJA197
Part Number
With Screw Locks
With Boardlocks
DDMG24C7SJA197
DDMG36C4SJA197
DDMG43C2SJA197
DDMG47C1SJA197
75 Ohm Part Numbers* with Metal Bracket and Rivnut #4-40 UNC
Shell Size
DD
DD
DD
DD
Layout
24W7
36W4
43W2
47W1
Notes: * For 50 Ohm Coaxial substitute X for C. Example: DDMG36X4SJA197
For contacts with 30 microinches gold substitute K126 for A197. Example: DDMP24C7SJK126
Reader’s Resource
For contact cavity arrangements,
see page 223.
For P.C. hole patterns, see page 233.
For panel cutouts, see page 221.
For hardware views (Standard), see page 226.
For alternate bracket configuration (when
connectors are supplied without boardlocks),
see page 226.
For alternate 50 Ohm coaxial configuration,
see page 225.
SCREW LOCK
#4-40 UNC
W
11,53
±
0,25
(.454
±
.010)
5,68
(.224)
4,33
±
0,38
(.170
±
.015)
RIVNUT
#4-40 UNC
BRACKET,
METAL
6,50
±
0,25
(.256
±
.010)
F
10,06
(.396) 13,74
(.541)
2,84 (.112)
Screw lock, boardlock, and coaxial contact
removed for clarity
L
Engaging Face
10°
2,54
(.100)
11,94
±
0,33
(.470
±
.013)
E
D
Ø 0,51
(.020)
0,56
(.023)
3,89 (.153)
MIN
2,92
(.115)
0,82
(.032)
Ø 0,76
(.030)
B
C
A
BOARDLOCK
Screw lock, boardlock, and signal contacts
removed for clarity
Note:
Dimension varies with alternate bracket configuration, See Reader’s Resource page 226.
Dimensions
Shell Size
DD
A
±0,38
(.015)
66,93 (2.635)
B
±0,13
(.005)
52,42 (2.064)
C
±0,13
(.005)
61,11 (2.406)
D
±0,13
(.005)
10,74 (.423)
E
±0,38
(.015)
15,37 (.605)
F
±0,25
(.010)
10,90 (.429)
W
±0,38
(.015)
6,94 (.273)
L
±0,25
(.010)
0,76 (.030)
Connector footprint measured from the front shell.
Connector footprint measured from the rear shell.
Dimensions are shown in mm (inch)
Dimensions subject to change
47
