F161ST684J050A

Description
Film Capacitor, Polyethylene Terephthalate, 50V, 0.68uF, 2924, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size1MB，14 Pages
ManufacturerKEMET
Websitehttp://www.kemet.com
Environmental Compliance
Download Datasheet Parametric View All

F161ST684J050A Overview

Film Capacitor, Polyethylene Terephthalate, 50V, 0.68uF, 2924, ROHS COMPLIANT

F161ST684J050A Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerKEMET
package instruction, 2924
Reach Compliance Codecompli
ECCN codeEAR99
capacitance0.68 µF
Capacitor typeFILM CAPACITOR
dielectric materialsPOLYETHYLENE TEREPHTHALATE
high4.5 mm
length7.3 mm
negative tolerance5%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package formSMT
method of packingTR, 13 Inch
positive tolerance5%
Rated (AC) voltage (URac)30 V
Rated (DC) voltage (URdc)50 V
size code2924
width6 mm

F161ST684J050A Preview

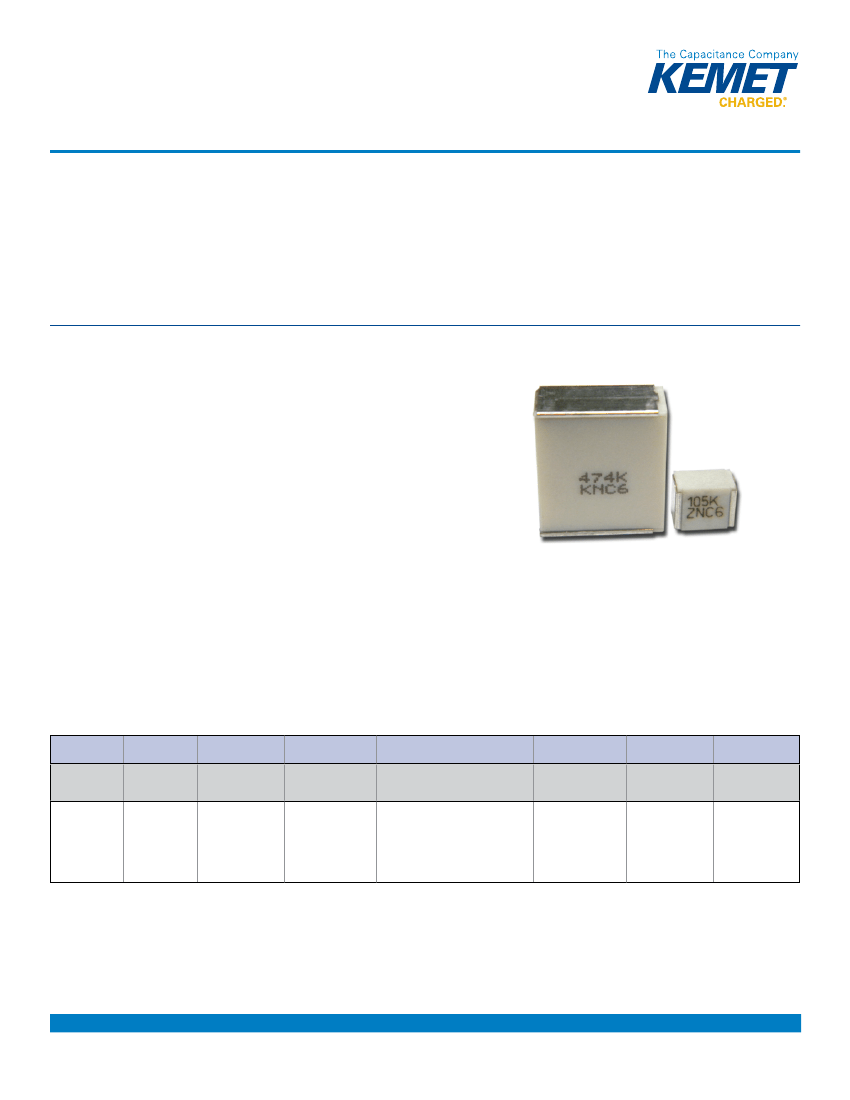

General Purpose, High Stability and AC Line EMI Suppression
F161 Series Encapsulated Stacked, Size 2220 – 6560,
50 – 400 VDC
Overview
KEMET’s F161 Series polyester (PET) film capacitor for surface
mounting is encapsulated in self-extinguishing material meeting
the requirements of UL 94 V–0.
Applications
Typical applications include bypassing and signal coupling. F161
is a general purpose series designed for the highest reliability.
Benefits
•
•
•
•
•
•
•
•
Rated voltage: 50 – 400 VDC
Rated voltage: 30 – 200 VAC
Capacitance range: 0.01 – 12 µF
EIA size: 2220 – 6560
Capacitance tolerance: ±5%, ±10%, other tolerances on request
Climatic category: 55/125/56
RoHS Compliant and lead-free terminations
Operating temperature range of -55˚C to +125˚C
Part Number System
F
Capacitor
Class
F = Film
161
Series
Metallized
Polyester
Stacked
Technology
P
Chip Size
P = 2220
S = 2824
W = 4036
Y = 5045
Z = 6560
L
Size Code
See Dimension
Table
102
Capacitance Code (pF)
First two digits indicate the
two most significant digits
of the capacitance value in
picofarads. The third digit is
the number of following zeros.
K
Capacitance
Tolerance
J = ±5
K = ±10%
Other tolerances
on request
050
Rated Voltage
(VDC)
050 = 50
063 = 63
100 = 100
250 = 250
400 = 400
V
Packaging Code
See Ordering
Options Table
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3086_F161 • 4/4/2013
1
Film Surface Mount Capacitors
General Purpose, High Stability and AC Line EMI Suppression – F161 Series Encapsulated Stacked, Size 2220 – 6560, 50 – 400 VDC
Ordering Options Table
Chip Size
(EIA)
2220
Packaging Type
Standard Packaging Options
Tape & Reel (Standard Reel)
Bulk (Bag)
Standard Packaging Options
Tape & Reel (Standard Reel)
Bulk (Bag)
Standard Packaging Options
V
A
V
A
Packaging
Code
2824
4036
Tape & Reel (Standard Reel)
Bulk (Bag)
Other Packaging Options
Tape & Reel (Vertical Orientation Standard Reel)
Standard Packaging Options
V
A
Y
5045
Tape & Reel (Standard Reel)
Bulk (Bag)
Other Packaging Options
Tape & Reel (Vertical Orientation Standard Reel)
Standard Packaging Options
V
A
Y
6560
Tape & Reel (Standard Reel)
Bulk (Bag)
Other Packaging Options
Tape & Reel (Vertical Orientation Standard Reel)
V
A
Y
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3086_F161 • 4/4/2013
2
Film Surface Mount Capacitors
General Purpose, High Stability and AC Line EMI Suppression – F161 Series Encapsulated Stacked, Size 2220 – 6560, 50 – 400 VDC
Dimensions – Millimeters
F
H
B
L
F
Size Code
PL
PP
PU
SG
SL
SP
ST
WP
YR
ZS
Chip Size
(EIA)
2220
2220
2220
2824
2824
2824
2824
4036
5045
6560
B
Nominal
5.0
5.0
5.0
6.0
6.0
6.0
6.0
9.1
11.5
15
Tolerance
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
Nominal
2.5
3.0
4.0
2.5
3.0
3.5
4.5
5.5
6.5
7.0
H
Tolerance
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
Nominal
5.7
5.7
5.7
7.3
7.3
7.3
7.3
10.2
12.7
16.5
L
Tolerance
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
+/-0.2
Nominal
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
F
Tolerance
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Nominal
Environmental Compliance
All KEMET surface mount capacitors are RoHS Compliant.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3086_F161 • 4/4/2013
3
Film Surface Mount Capacitors
General Purpose, High Stability and AC Line EMI Suppression – F161 Series Encapsulated Stacked, Size 2220 – 6560, 50 – 400 VDC
Performance Characteristics
Rated Voltage (VDC)
Rated Voltage (VAC)
Capacitance Range (μF)
Chip Size (EIA)
Capacitance Tolerance
Category Temperature Range
Rated Temperature
Voltage Derating
Climatic Category
Test Voltage
50
30
0.01 – 12
2220 – 6560
±5%, ±10%, other tolerances on request
-55°C to +125°C
+85°C
The rated voltage is decreased with 1.25%/°C from +85°C
55/125/56
1.6 x V
R
, 60 seconds
Measured at +20°C, Charging Time 1 Minute
Minimum Values Between Terminals
Insulation Resistance
Charging Voltage
10 V for V
R
≤ 100
100 v for V
R
> 100
C ≤ 0.1 µF
Dissipation Factor
1 kHz
10 kHz
100 kHz
0.8%
1.2%
2.5%
C ≤ 0.33 µF
1,000 MΩ
1,000 MΩ
Maximum Values at +23°C
0.1 < C < 1 µF
0.8%
1.2%
3.0%
1 ≤ C ≤ 10 µF
0.8%
1.5%
C > 10 µF
0.8%
3.0%
C > 0.33 µF
400 MΩ • µF
400 MΩ • µF
63
40
0.01 – 4.7
100
63
0.01 – 3.3
250
160
0.01 – 1
400
200
0.022 – 0.47
The capacitors can withstand an unlimited number of pulses with a dV/dt according to Table below.
Maximum Pulse Rise Time
Voltage Range
dV/dt (V/µs)
50 VDC
40
63 VDC
40
100 VDC
50
250 VDC
150
400 VDC
200

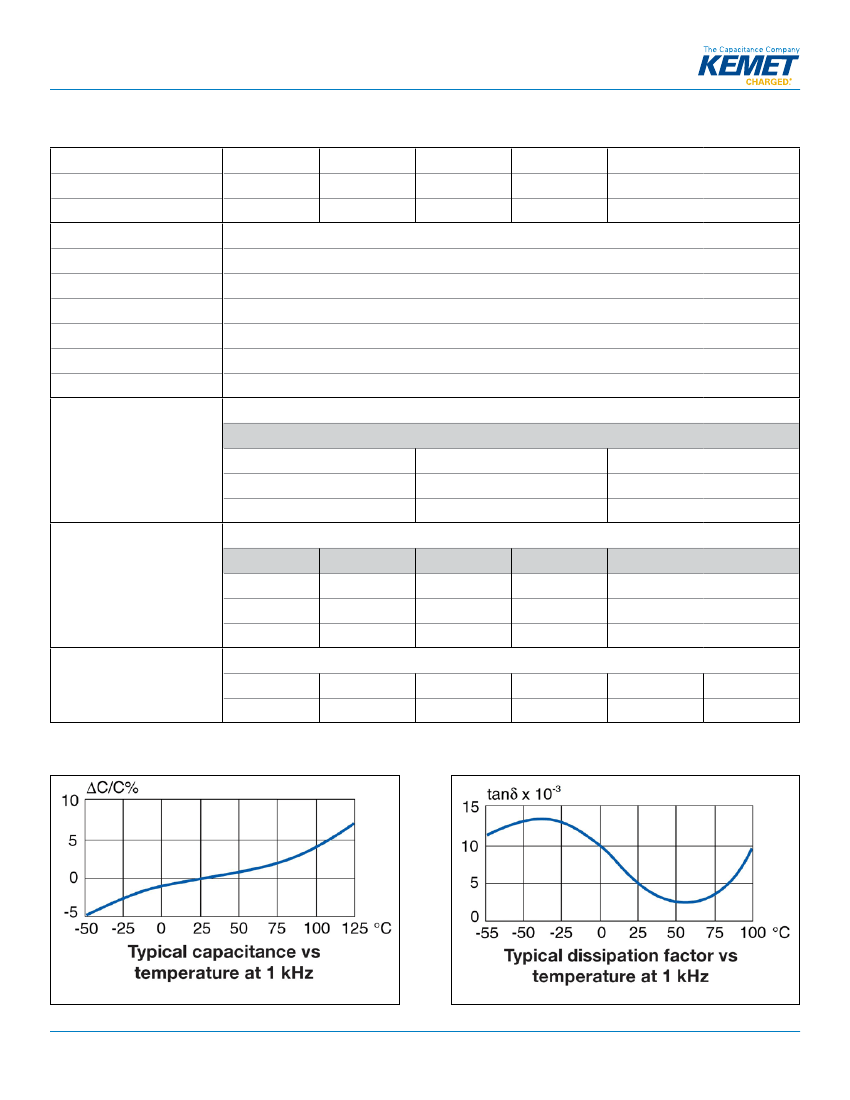

Capacitance vs. Temperature
