General Purpose, Pulse and DC Transient Suppression
F5D Series Metallized Polyester Film with Integrated
Ceramic Capacitor, 63 – 100 VDC
Overview
The F5D Series is a metallized polyester (MKT) film
capacitor with integrated ceramic capacitor encapsulated in a
thermosetting resin-filled plastic box with tinned wire leads. Box
material is solvent resistant and flame retardant meeting the
requirements of UL 94 V–0.
Applications
Typical applications include worldwide use as EMI/RFI
suppressors for automotive motors and other suppression
applications such as engine blower fans, central locking systems,
heating/air-conditioning blowers, electric sun roofs, electric
window regulators, fuel/oil pumps, electric windshield wipers
and electrically operated seats. This through-hole EMI/RFI
suppression element is mainly used for automotive applications
without a printed circuit board, e.g., motor suppression or mixed
through-hole and surface mount printed circuit boards.
Benefits
• Low inductive MKT capacitors in parallel construction with
a ceramic capacitor in a single case provide superior
suppression results
• Approvals: AEC–Q200, ISO 7637–2
• Rated voltage: 63 – 100 VDC
• Capacitance range: 0.1 – 2.2 μF
•
•
•
•
•
Capacitance tolerance: ±10%, ±20%
Climatic category: 55/125/56, IEC 60068–1
Tape and reel packaging in accordance with IEC 60286–2
RoHS Compliant and lead-free terminations
Operating temperature range: -55˚C to +125˚C
Part Number System
F5D
Series
Film
Capacitor/
Ceramic
Capacitor Unit
D
Rated Voltage
(VDC)
D = 63
E = 100
C
Lead Spacing
(mm)
C = 5 mm
F= 10 mm
3100
Capacitance Code (pF)
Digits 2 – 4 indicate the
first three digits of the
capacitance value. First
digit indicates the number
of zeros to be added.
DQ
Lead and
Packaging Code
See Ordering
Options Table
W
Ceramic Capacitor
Value
See Ceramic
Capacitor Table
5
Size Code
See Dimension
Table
M
Capacitance
Tolerance
K = ±10%
M = ±20%

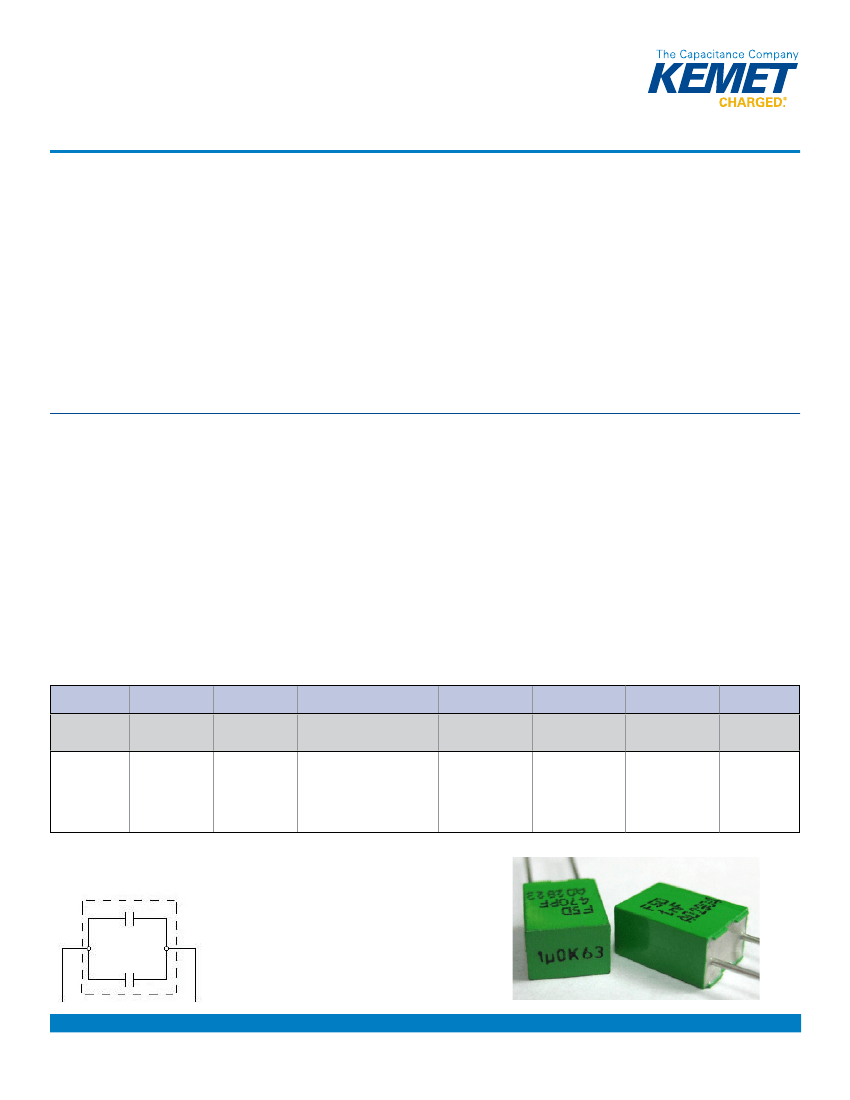

Circuit Diagram
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3022_F5D • 4/4/2013
1
Film Capacitors – General Purpose, Pulse and DC Transient Suppression
F5D Series Metallized Polyester Film with Integrated Ceramic Capacitor, 63 – 100 VDC
Ordering Options Table
Lead Spacing
Nominal (mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Lead Length
(mm)
4 +2/-0
H
0
= 18.5 +/-0.5
17 +1/-2
H
0
= 18.5 +/-0.5
Lead and
Packaging
Code
AA
DQ
Z3
CK
5
Bulk (Bag) – Short Leads
Ammo Pack
Other Lead and Packaging Options
Bulk (Bag) – Long Leads
Tape & Reel (Standard Reel)
Standard Lead and Packaging Options
10
Bulk (Bag) – Short Leads
Ammo Pack
Other Lead and Packaging Options
Bulk (Bag) – Long Leads
Tape & Reel (Large Reel)
4 +2/-0
H
0
= 18.5 +/-0.5
17 +1/-2
H
0
= 18.5 +/-0.5
AA
DQ
Z3
CK
Dimensions – Millimeters
L
H
d
p
Rated
Capacitance µF
V
r
= 63 V
0.1 – 0.47
0.56 – 1.5
1.8
0.1 – 1.0
1.2 – 1.5
V
r
= 100 V
0.1 – 0.33
0.47 – 1.0
1.2 – 1.5
0.1 – 1.0
1.2 – 1.5
B
0.5
LL
Size
Code
(Digit 13) Nominal
5
6
7
2
3
5.0
5.0
5.0
10.0
10.0
p
Tolerance
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
Nominal
4.6
5.1
6.1
5.2
6.2
B
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
9.6
10.1
11.1
11.1
12.1
H
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
7.4
7.5
7.5
13.4
13.4
L
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
0.6
0.6
0.6
0.75
0.75
d
Tolerance
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
Note: See Ordering Options Table for lead length (LL) options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3022_F5D • 4/4/2013
2
Film Capacitors – General Purpose, Pulse and DC Transient Suppression
F5D Series Metallized Polyester Film with Integrated Ceramic Capacitor, 63 – 100 VDC
Performance Characteristics
Rated Voltage
Capacitance Range
Capacitance Tolerance
Temperature Range
Climatic Category
Leakage Current
Approvals
Dissipation Factor
Test Voltage Between Terminals
Insulation Resistance
63 – 100 VDC
(For temperature over 100°C a decreasing factor of 2% per degree has
to be applied on the rated voltage V
R
)
0.1 – 2.2 µF (See Ceramic Capacitor Value Table)
±10%, ±20%
-55°C to +125°C
55/125/56, IEC 60068–1
≤ 10 µA at V
R
AEC–Q200, ISO 7637
0.025 (1 kHz at 25ºC ± 5ºC)
1.6 x V
R
100 MΩ @ 50 V

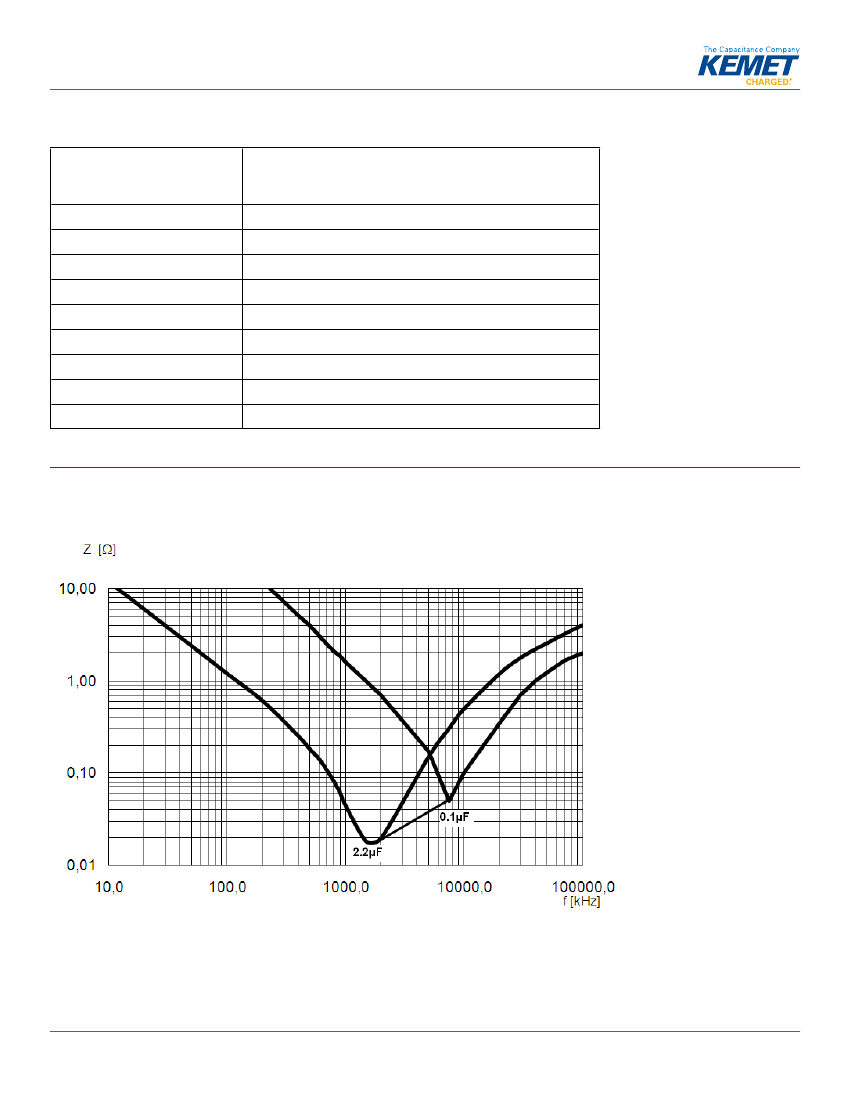

Impedance Graphs
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3022_F5D • 4/4/2013
4
Film Capacitors – General Purpose, Pulse and DC Transient Suppression
F5D Series Metallized Polyester Film with Integrated Ceramic Capacitor, 63 – 100 VDC
Impedance Graphs cont'd

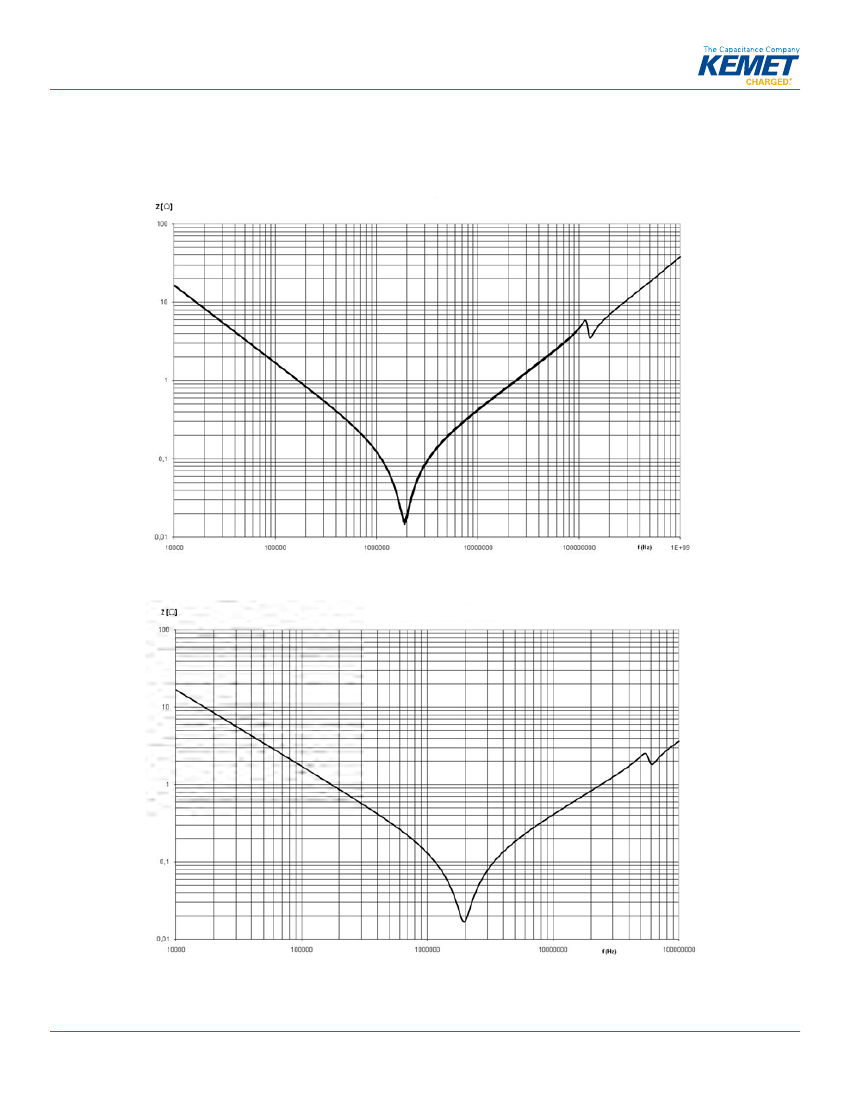

Example: Combination of 1 µF and 1 nF
Impedance vs. Frequency
Example: Combination of 1 µF and 4.7 nF
Impedance vs. Frequency
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3022_F5D • 4/4/2013
5
Test/Measurement
