SNIL5150MB8M0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> SNIL5150MB8M0

SNIL5150MB8M0: DescriptionFilm Capacitor, Polyester, 250V, 20% +Tol, 20% -Tol, 15uF, Surface Mount, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size1MB，10 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SNIL5150MB8M0 Overview

Film Capacitor, Polyester, 250V, 20% +Tol, 20% -Tol, 15uF, Surface Mount, CHIP, ROHS COMPLIANT

SNIL5150MB8M0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	KEMET
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
Other features	RATED AC VOLTAGE (VAC): 160
capacitance	15 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
high	20 mm
length	17 mm
Manufacturer's serial number	JSN
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	BULK
positive tolerance	20%
Rated (AC) voltage (URac)	160 V
Rated (DC) voltage (URdc)	250 V
series	JSN
surface mount	YES
Terminal shape	J BEND
width	42.9 mm

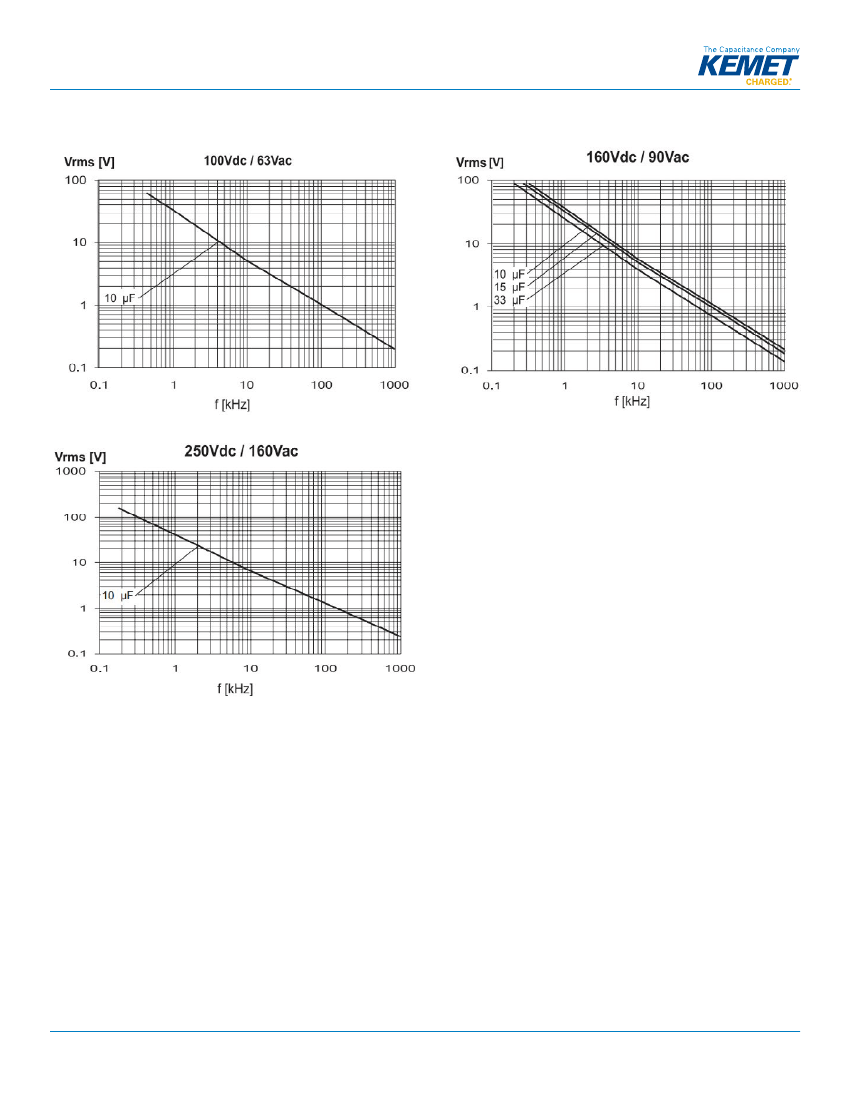

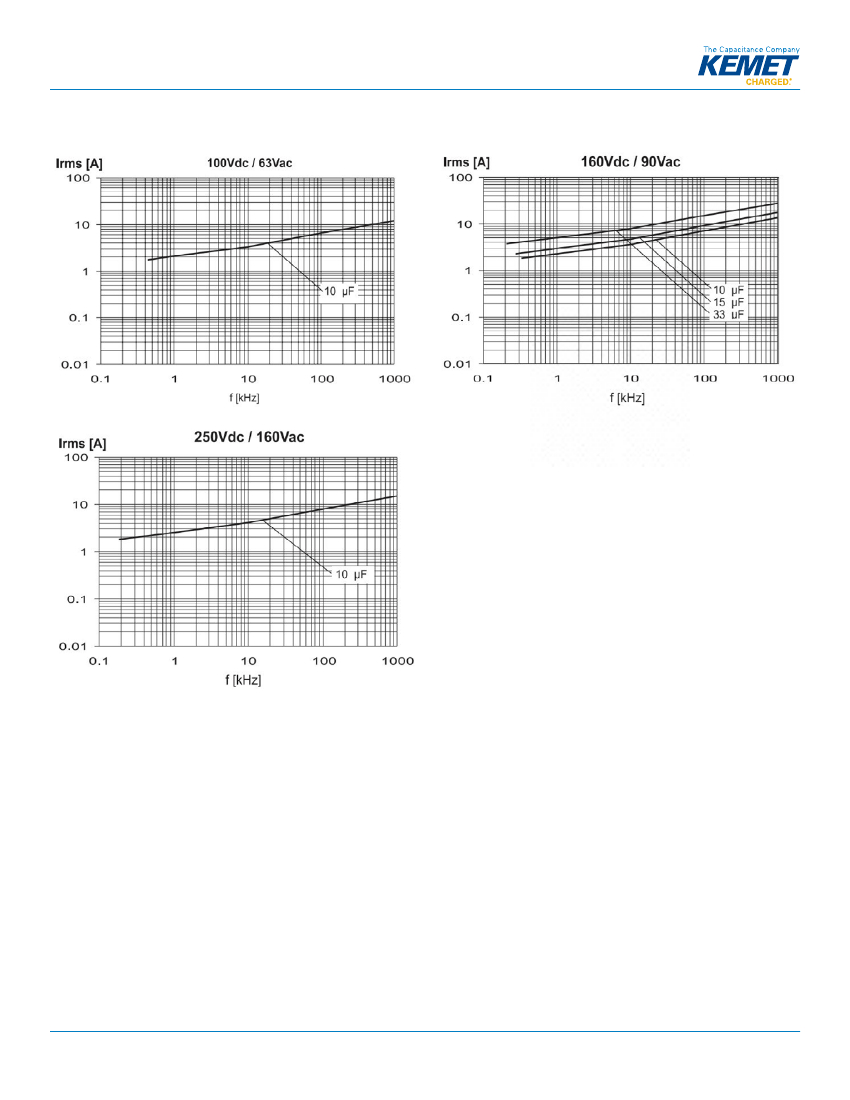

Preview

Download Datasheet

View All

General Purpose, High Stability and AC Line EMI Suppression

JSN Series Unencapsulated Stacked Chip with Flat

Terminations, 100 – 250 VDC, for DC Link

Overview

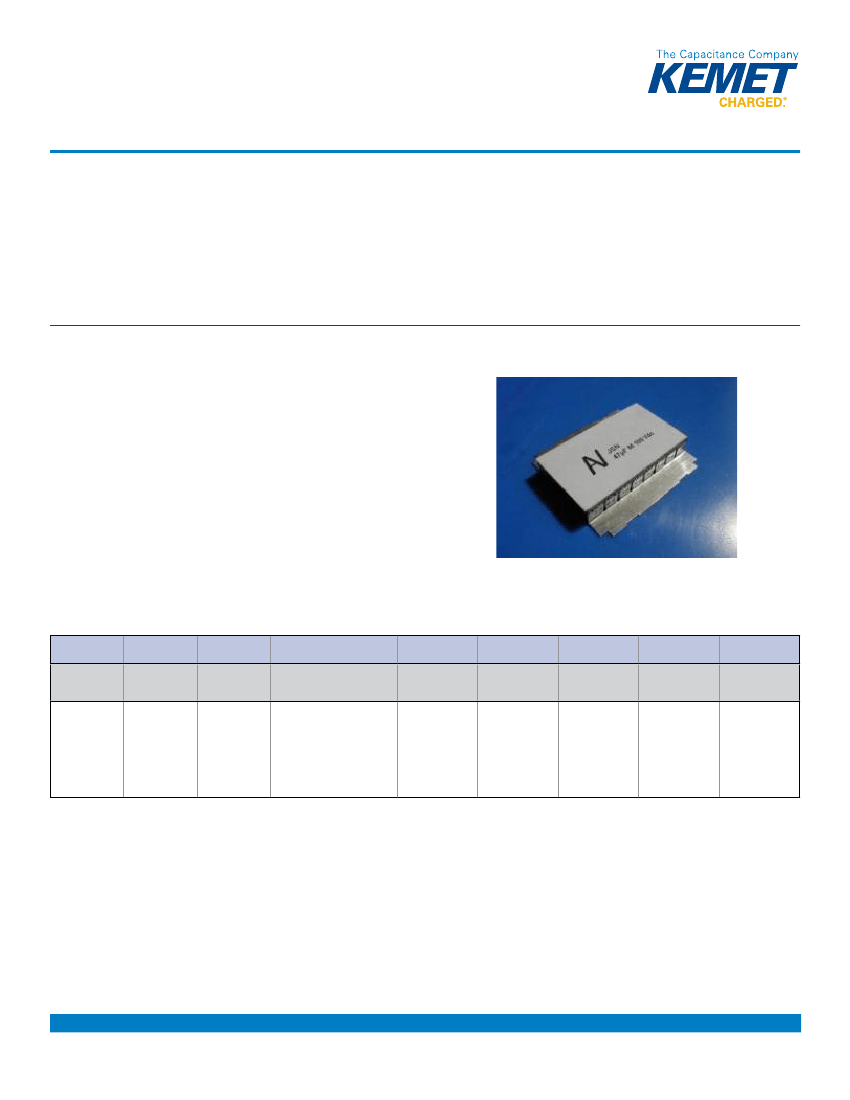

Jumbo stacked naked metallized polyester capacitor with flat

terminations.

Applications

JSN Series capacitors are designed especially for automotive

power electronics applications that require high reliability, long

life and severe working conditions such as high operating

temperature and significant mechanical and vibration

requirements.

Benefits

•

Rated voltage: 100 – 250 VDC

Rated voltage: 63 – 160 VAC

Capacitance range: 10 – 68 µF

Capacitance tolerance: ±10%, ±20%

Climatic category: 55/125/56

RoHS Compliant and lead-free terminations

Operating temperature range of -55˚C to +125˚C

Part Number System

JSN

Series

JSN =

Jumbo

Stacked

Naked

Rated Voltage

(VDC)

E = 100

G = 160

I = 250

Size Code

See

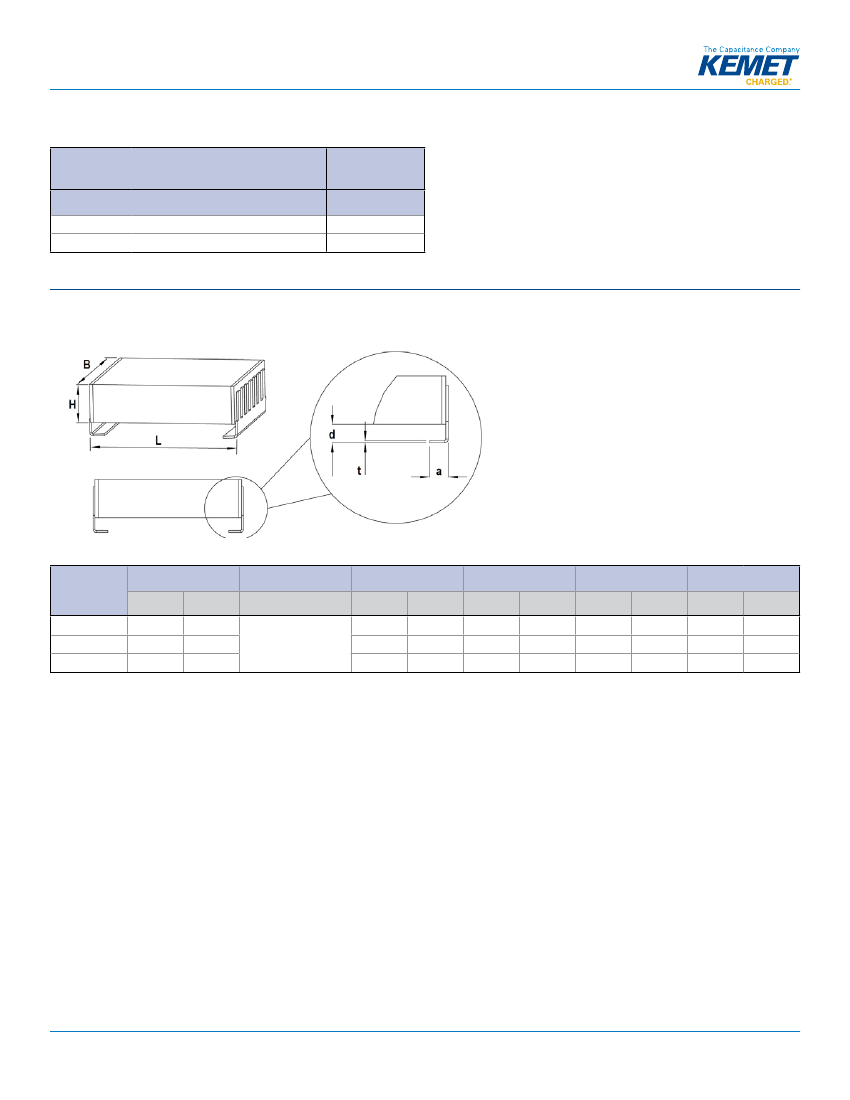

Dimension

Table

5100

Capacitance Code (pF)

Digits 2 – 4 indicate the

first three digits of the

capacitance value.

First digit indicates the

number of zeros to be

added.

Capacitance

Tolerance

K = ±10%

M = ±20%

Dielectric

B = Metallized

PET

Terminal Width

(mm)

6 = 20

8 = 40

Packaging

Code

See Ordering

Options Table

Internal Use

0 (Standard)

One world. One KEMET

F3077_JSN • 11/12/2012

SNIL5150MB8M0 Related Products

	SNIL5150MB8M0	SNGL5330MB8M0	SNGL5330KB8M0	SNGL5330MB8L0	SNGL5330KB8L0	SNIL5150MB8L0	SNIL5150KB8L0	SNIL5150KB8M0
Description	Film Capacitor, Polyester, 250V, 20% +Tol, 20% -Tol, 15uF, Surface Mount, CHIP, ROHS COMPLIANT	Film Capacitor, Polyester, 160V, 20% +Tol, 20% -Tol, 33uF, Surface Mount, CHIP, ROHS COMPLIANT	Film Capacitor, Polyester, 160V, 10% +Tol, 10% -Tol, 33uF, Surface Mount, CHIP, ROHS COMPLIANT	Film Capacitor, Polyester, 160V, 20% +Tol, 20% -Tol, 33uF, Surface Mount, CHIP, ROHS COMPLIANT	Film Capacitor, Polyester, 160V, 10% +Tol, 10% -Tol, 33uF, Surface Mount, CHIP, ROHS COMPLIANT	Film Capacitor, Polyester, 250V, 20% +Tol, 20% -Tol, 15uF, Surface Mount, CHIP, ROHS COMPLIANT	Film Capacitor, Polyester, 250V, 10% +Tol, 10% -Tol, 15uF, Surface Mount, CHIP, ROHS COMPLIANT	Film Capacitor, Polyester, 250V, 10% +Tol, 10% -Tol, 15uF, Surface Mount, CHIP, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	KEMET	KEMET	KEMET	KEMET	KEMET	KEMET	KEMET	KEMET
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compliant	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	RATED AC VOLTAGE (VAC): 160	RATED AC VOLTAGE (VAC): 90	RATED AC VOLTAGE (VAC): 90	RATED AC VOLTAGE (VAC): 90	RATED AC VOLTAGE (VAC): 90	RATED AC VOLTAGE (VAC): 160	RATED AC VOLTAGE (VAC): 160	RATED AC VOLTAGE (VAC): 160
capacitance	15 µF	33 µF	33 µF	33 µF	33 µF	15 µF	15 µF	15 µF
Capacitor type	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR
dielectric materials	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
high	20 mm	23 mm	23 mm	23 mm	23 mm	20 mm	20 mm	20 mm
length	17 mm	17 mm	17 mm	17 mm	17 mm	17 mm	17 mm	17 mm
Manufacturer's serial number	JSN	JSN	JSN	JSN	JSN	JSN	JSN	JSN
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	20%	20%	10%	20%	10%	20%	10%	10%
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT	SMT
method of packing	BULK	BULK	BULK	TRAY	TRAY	TRAY	TRAY	BULK
positive tolerance	20%	20%	10%	20%	10%	20%	10%	10%
Rated (AC) voltage (URac)	160 V	90 V	90 V	90 V	90 V	160 V	160 V	160 V
Rated (DC) voltage (URdc)	250 V	160 V	160 V	160 V	160 V	250 V	250 V	250 V
series	JSN	JSN	JSN	JSN	JSN	JSN	JSN	JSN
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal shape	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
width	42.9 mm	42.9 mm	42.9 mm	42.9 mm	42.9 mm	42.9 mm	42.9 mm	42.9 mm
