DA36-11EWA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> DA36-11EWA

DA36-11EWA: Description7 SEG NUMERIC DISPLAY, HIGH EFFICIENCY RED, 9.14mm; CategoryLED optoelectronic/LED photoelectric; File Size125KB，5 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric Compare View All

DA36-11EWA Overview

7 SEG NUMERIC DISPLAY, HIGH EFFICIENCY RED, 9.14mm

DA36-11EWA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
Reach Compliance Code	compli
Other features	IC COMPATIBLE
color	HIGH EFFICIENCY RED
Configuration	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT
Display height	9.14 mm
Maximum forward current	0.03 A
Number of functions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

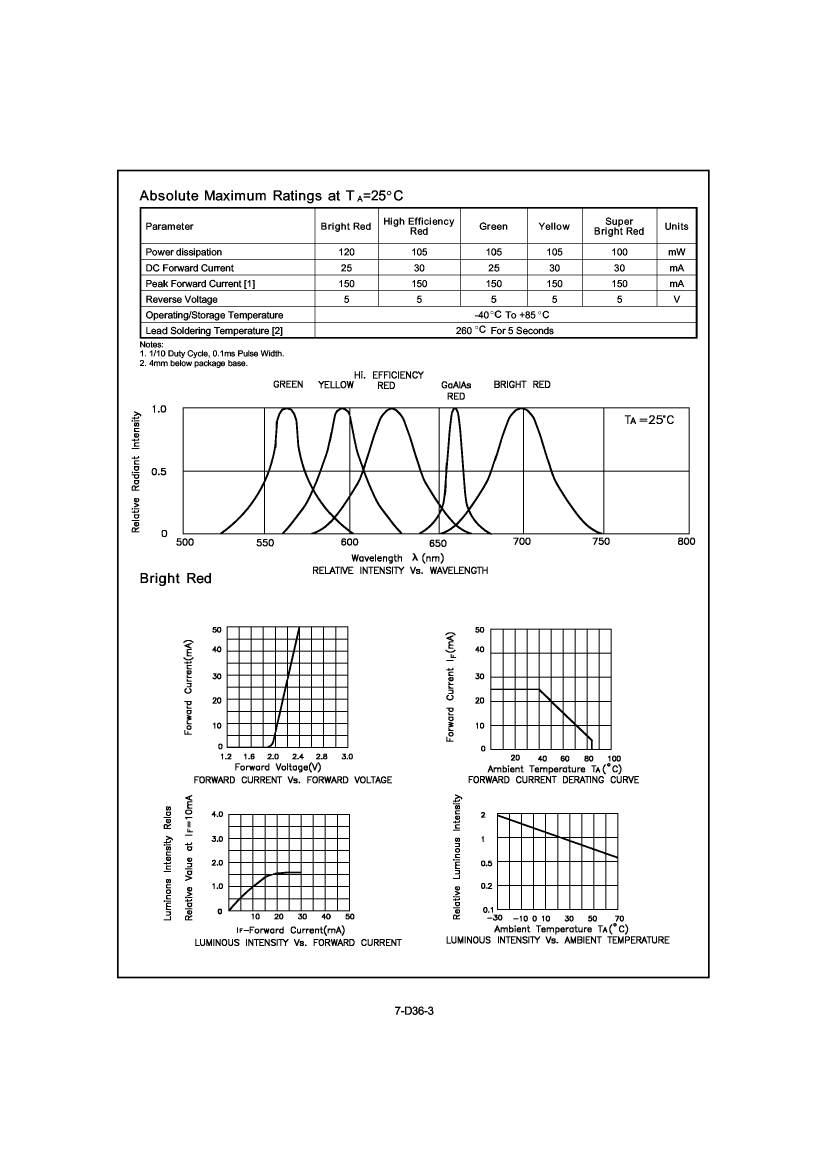

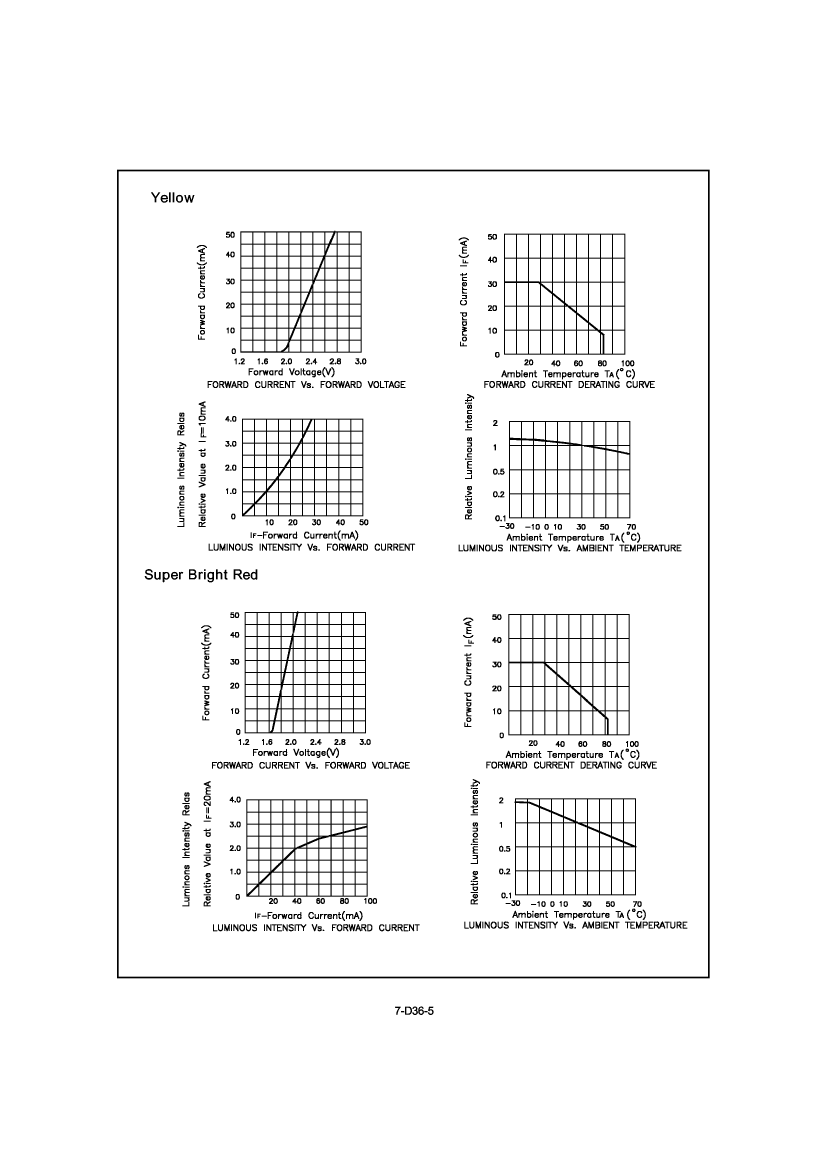

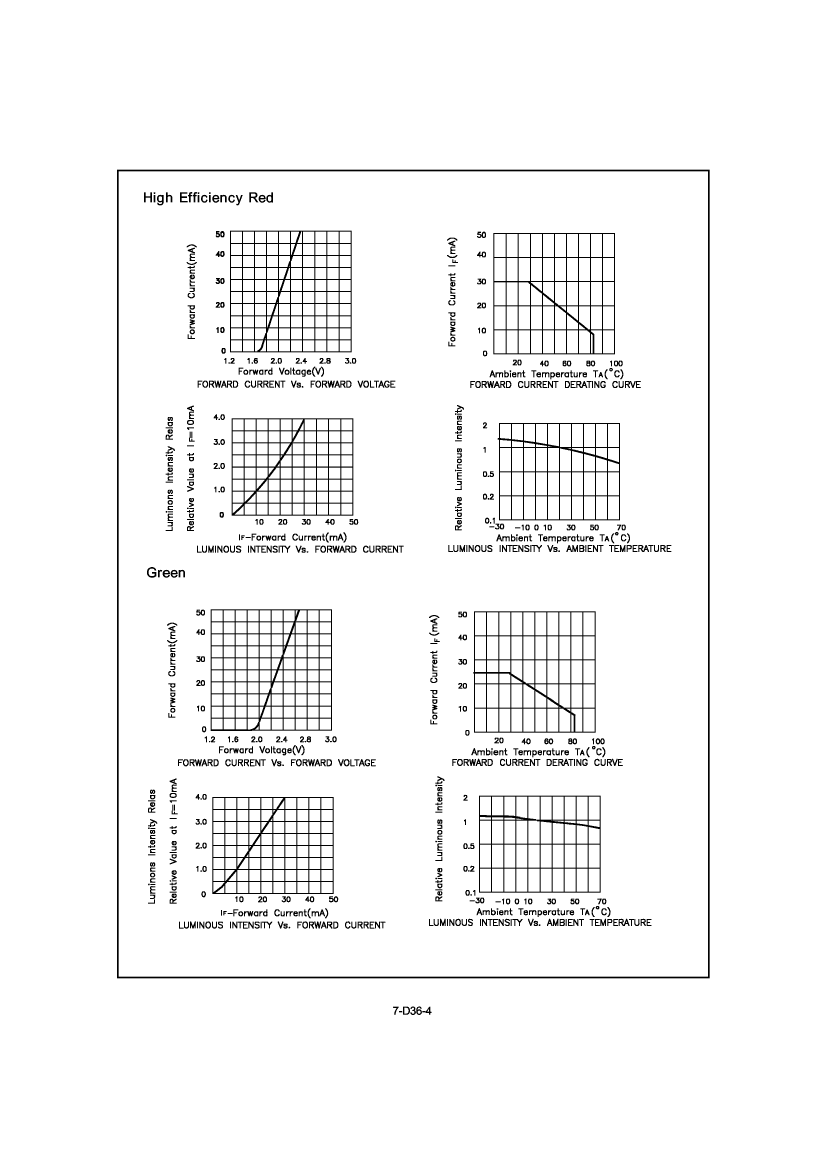

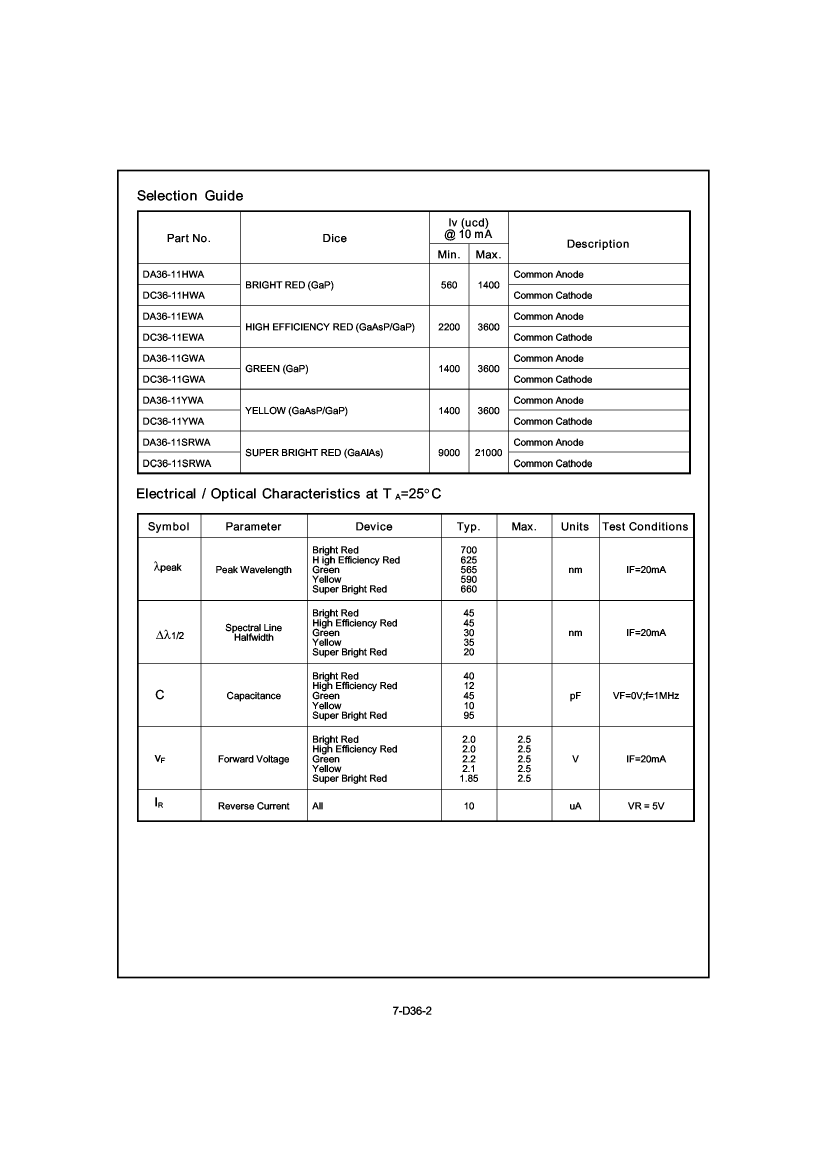

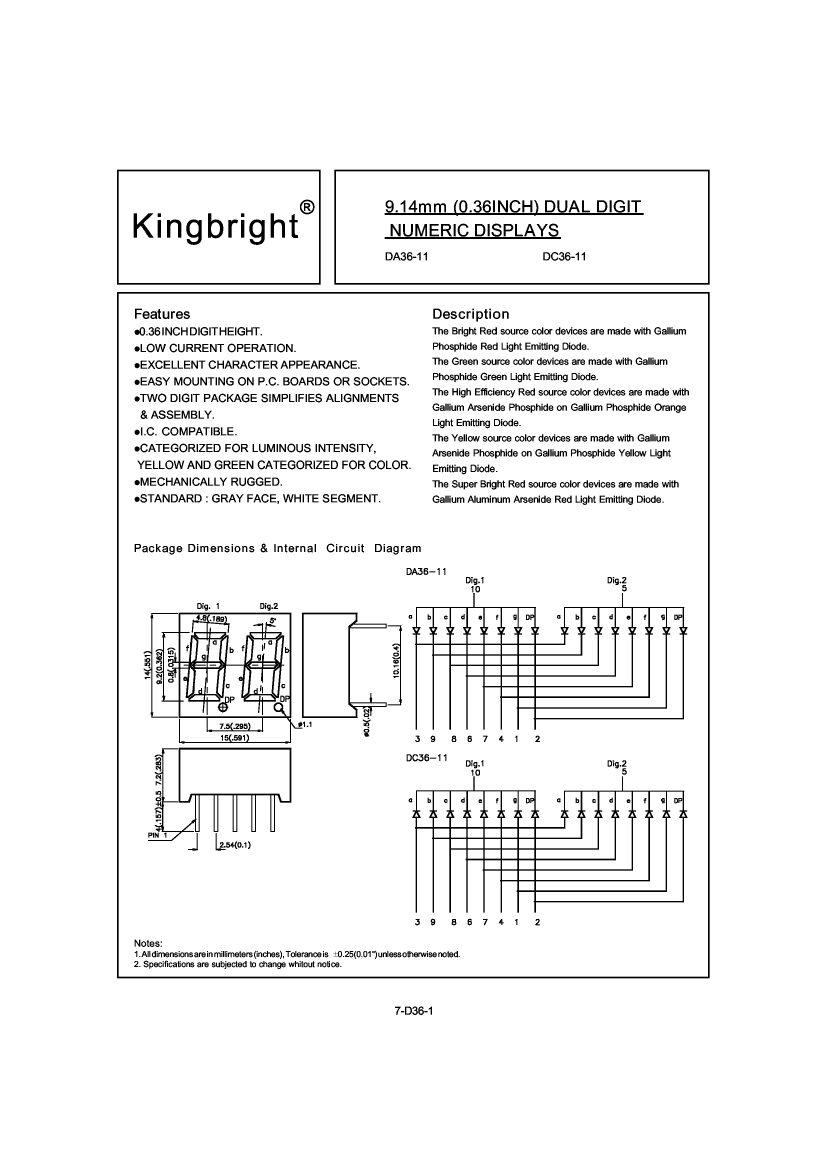

Preview

Download Datasheet

View All

DA36-11EWA Related Products

	DA36-11EWA	DC36-11HWA	DC36-11GWA	DC36-11SRWA	DC36-11EWA	DA36-11GWA	DA36-11HWA	DA36-11YWA	DA36-11SRWA	DC36-11YWA
Description	7 SEG NUMERIC DISPLAY, HIGH EFFICIENCY RED, 9.14mm	7 SEG NUMERIC DISPLAY, BRIGHT RED, 9.14mm	7 SEG NUMERIC DISPLAY, GREEN, 9.14mm	7 SEG NUMERIC DISPLAY, SUPER BRIGHT RED, 9.14mm	7 SEG NUMERIC DISPLAY, HIGH EFFICIENCY RED, 9.14mm	7 SEG NUMERIC DISPLAY, GREEN, 9.14mm	7 SEG NUMERIC DISPLAY, BRIGHT RED, 9.14mm	7 SEG NUMERIC DISPLAY, YELLOW, 9.14mm	7 SEG NUMERIC DISPLAY, SUPER BRIGHT RED, 9.14mm	7 SEG NUMERIC DISPLAY, YELLOW, 9.14mm
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE
color	HIGH EFFICIENCY RED	BRIGHT RED	GREEN	SUPER BRIGHT RED	HIGH EFFICIENCY RED	GREEN	BRIGHT RED	YELLOW	SUPER BRIGHT RED	YELLOW
Configuration	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 2 DIGITS WITH DECIMAL POINT
Display height	9.14 mm	9.14 mm	9.14 mm	9.14 mm	9.14 mm	9.14 mm	9.14 mm	9.14 mm	9.14 mm	9.14 mm
Maximum forward current	0.03 A	0.025 A	0.025 A	0.03 A	0.03 A	0.025 A	0.025 A	0.03 A	0.03 A	0.03 A
Number of functions	2	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Base Number Matches	-	1	1	1	1	1	1	1	1	-
