T-1 3/4 (5mm) INFRA-RED EMITTING DIODE
L-7113SF6C
Features
MECHANICALLY AND SPECTRALLY MATCHED
TO THE L-7113P3C PHOTOTRANSISTOR.
WATER CLEAR LENS.
RoHS COMPLIANT.
Description
SF6 Made with Gallium Aluminum Arsenide Infrared
Emitting diodes.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO: DSAD6220
APPROVED: J. Lu
REV NO: V.3
CHECKED: Allen Liu
DATE: MAR/20/2005
DRAWN: B.H.LI
PAGE: 1 OF 3
Selection Guide
Part No.
Dice
Lens Type
Po (mW/sr)
@ 20 mA*50mA
Min.
10
L-7113SF6C
GaAlAs
WATER CLEAR
*50
Notes:
1. 1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2. * Luminous intensity with asterisk is measured at 50mA.
Viewing
Angle
2θ1/2
θ
20
°
20
°
Typ.
40
*100
Electrical / Optical Characteristics at T
A
=25°C
Item
Forward Voltage
Reverse Current
Junction Capacitance
Peak Spectral Wavelength
Spectral Bandwidth
P/N
SF6
SF6
SF6
SF6
SF6
Symbol
V
F
I
R
C
λP
∆λ1/2
Typ.
1.35
-
30
860
50
Max.
1.6
10
-
-
-
Units
V
uA
pF
nm
nm
Condition
I
F
=20mA
V
R
=5V
V
F
=0V;f=1MHz
I
F
=20mA
I
F
=20mA
Absolute Maximum Ratings at T
A
=25°C
Item
Power dissipation
Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating Temperature
Storage Temperature
Lead Solder Temperature [2]
Lead Solder Temperature [3]
Notes:
1. 1/100 Duty Cycle, 10us Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
Symbol
P
T
I
F
i
FS
V
R
Topr
Tstg
SF6
100
50
1
5
-40°C To +85°C
-40°C To +85°C
260°C For 3 Seconds
260°C For 5 Seconds
Units
mW
mA
A
V
SPEC NO: DSAD6220
APPROVED: J. Lu
REV NO: V.3
CHECKED: Allen Liu
DATE: MAR/20/2005
DRAWN: B.H.LI
PAGE: 2 OF 3

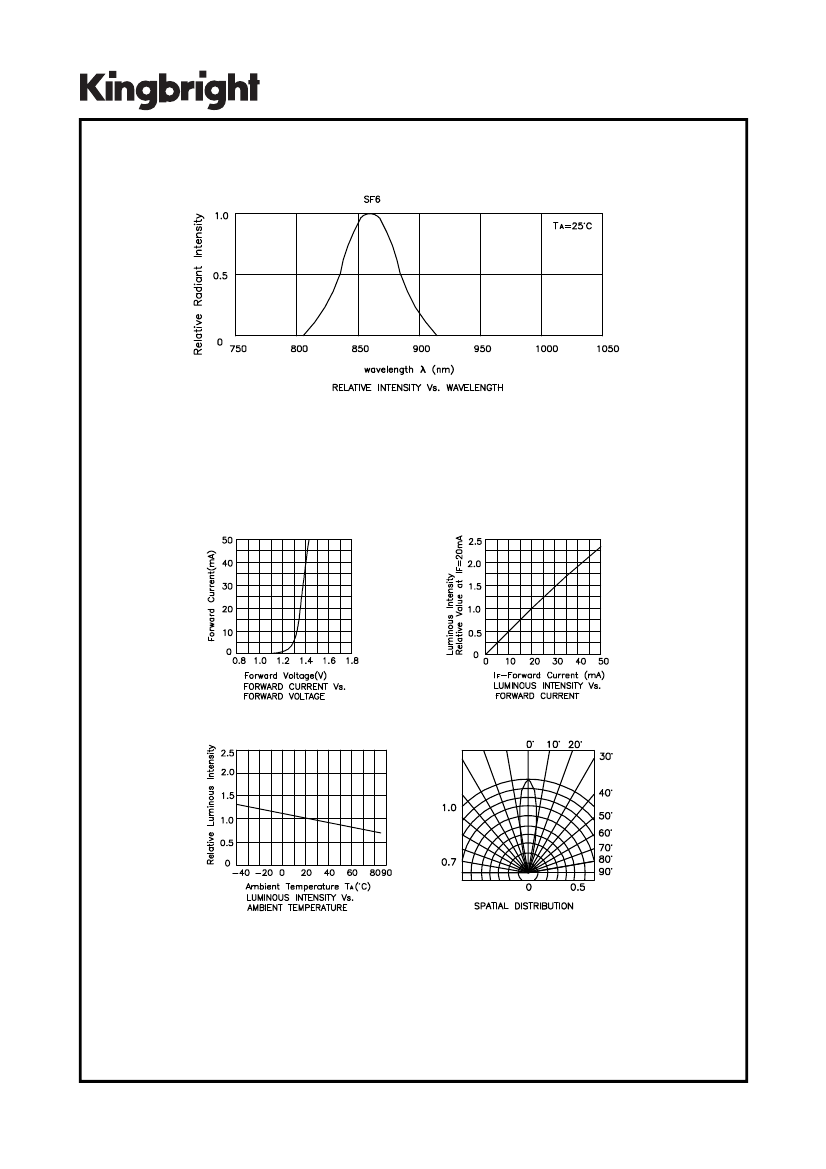

L-7113SF6C
Remarks:
If special sorting is required (e.g. binning based on forward voltage or radiant intensity),
the typical accuracy of the sorting process is as follows:
1. Radiant Intensity: +/-15%
2. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
SPEC NO: DSAD6220
APPROVED: J. Lu
REV NO: V.3
CHECKED: Allen Liu
DATE: MAR/20/2005
DRAWN: B.H.LI
PAGE: 3 OF 3
