L-73JC/2IDA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L-73JC/2IDA

L-73JC/2IDA: DescriptionSingle Color LED, High Efficiency Red, Red Diffused, 4.8mm,; CategoryLED optoelectronic/LED photoelectric; File Size411KB，5 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com

Download Datasheet Parametric Compare View All

L-73JC/2IDA Overview

Single Color LED, High Efficiency Red, Red Diffused, 4.8mm,

L-73JC/2IDA Parametric

Parameter Name	Attribute value
Maker	Kingbright
Reach Compliance Code	compli
Other features	IC COMPATIBLE
color	HIGH EFFICIENCY RED
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A
Lens type	RED DIFFUSED
Nominal luminous intensity	20 mcd
Installation features	RADIAL MOUNT
Number of functions	2
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	12.52 mm
method of packing	BULK
peak wavelength	625 nm
shape	ROUND
size	4.8 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	60 deg

Preview

Download Datasheet

View All

Kingbright

Features

4.8mm BI-LEVEL LED INDICATORS

L-73JC/2

Description

The Green source color devices are made with Gallium

Phosphide Green Light Emitting Diode.

The High Efficiency Red source color devices are made

with Gallium Arsenide Phosphide on Gallium Phosphide

Orange Light Emitting Diode.

The Yellow source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Yellow Light

Emitting Diode.

The Super Bright Red source color devices are made with

Gallium Aluminum Arsenide Red Light Emitting Diode.

PRE-TRIMMED LEADS FOR PC MOUNTING.

COLORS CAN BE MIXED IN A SINGLE HOUSING.

I.C. COMPATIBLE.

BLACK CASE ENHANCES CONTRAST RATIO.

WIDE VIEWING ANGLE.

HIGH RELIABILITY

LIFE MEASURED IN YEARS.

Package

Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

0.25(0.01") unless otherwise noted.

3. Lead spacing is measured where the lead emer ge package.

4. Specifications are subjected to change without notice.

3-L73JC-1

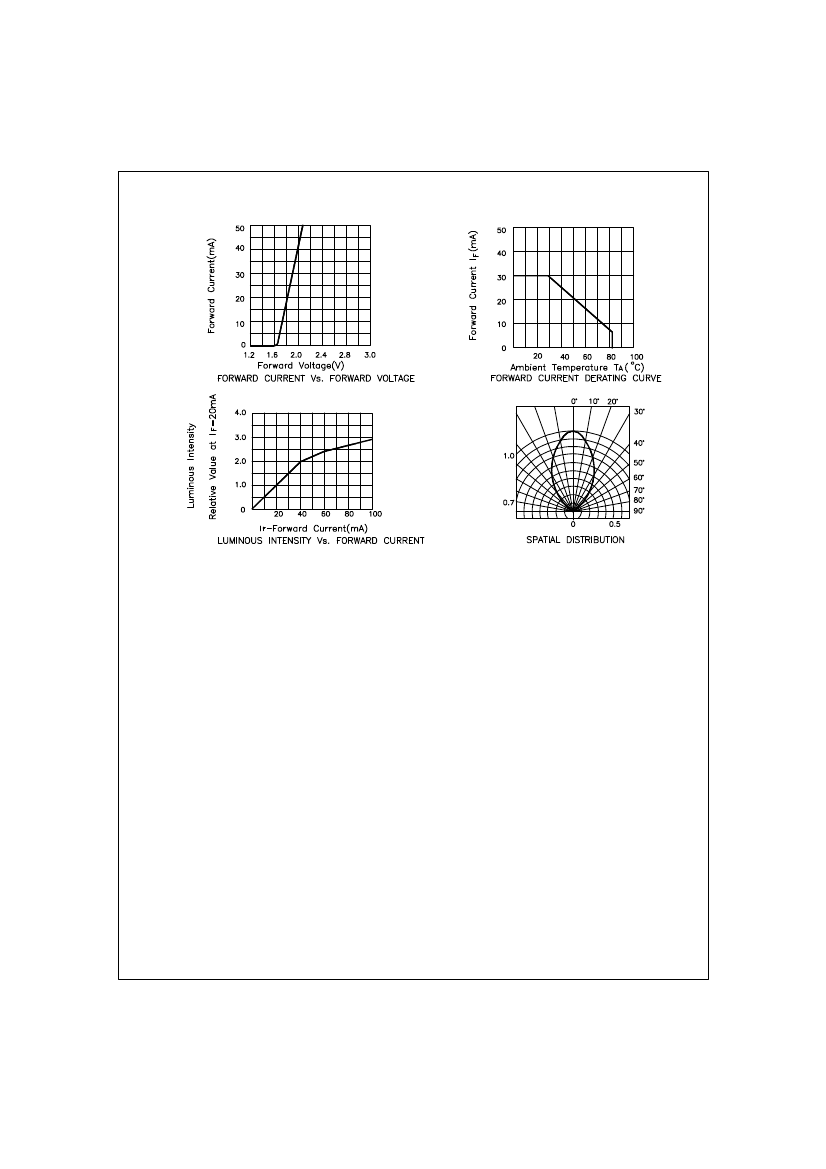

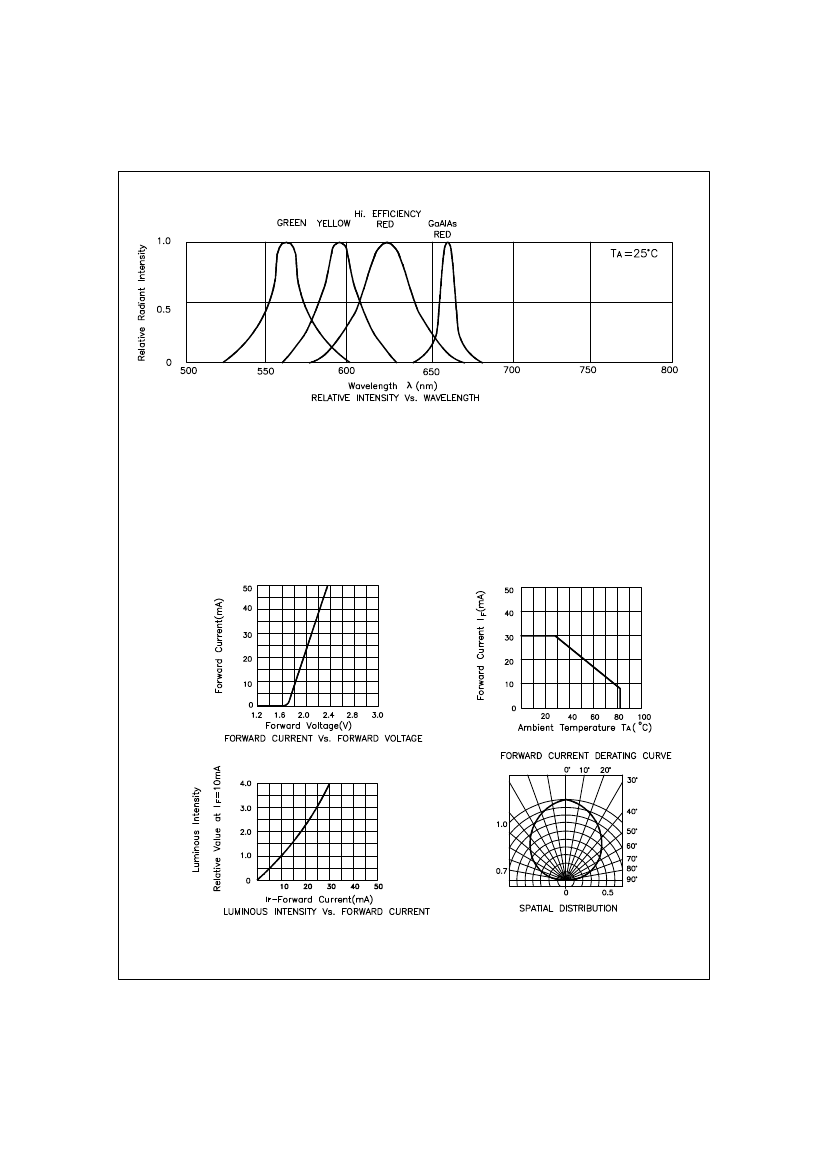

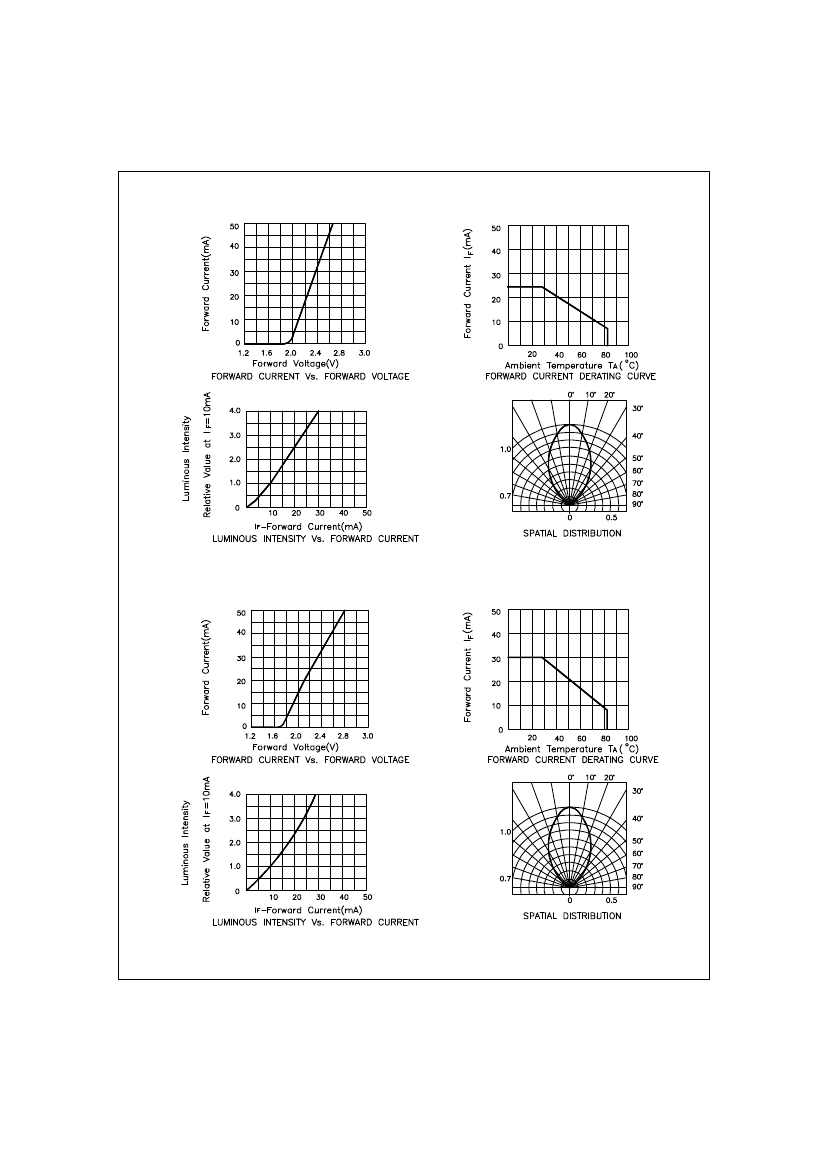

L-73JC/2IDA Related Products

	L-73JC/2IDA	L-73JC/2SRDA	L-73JC/2GDA	L-73JC/2YDA
Description	Single Color LED, High Efficiency Red, Red Diffused, 4.8mm,	Single Color LED, Super Bright Red, Red Diffused, 4.8mm,	SINGLE COLOR LED, GREEN, 4.8mm,	SINGLE COLOR LED, YELLOW, 4.8mm,
Reach Compliance Code	compli	compliant	compliant	compliant
Other features	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE	IC COMPATIBLE
color	HIGH EFFICIENCY RED	SUPER BRIGHT RED	GREEN	YELLOW
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A	0.03 A	0.025 A	0.03 A
Lens type	RED DIFFUSED	RED DIFFUSED	DIFFUSED	DIFFUSED
Nominal luminous intensity	20 mcd	200 mcd	18.5 mcd	18.5 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	2	2	2	2
Number of terminals	4	4	4	4
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	12.52 mm	12.52 mm	12.52 mm	12.52 mm
method of packing	BULK	BULK	BULK	BULK
peak wavelength	625 nm	660 nm	565 nm	590 nm
shape	ROUND	ROUND	ROUND	ROUND
size	4.8 mm	4.8 mm	4.8 mm	4.8 mm
surface mount	NO	NO	NO	NO
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	60 deg	60 deg	60 deg	60 deg
ECCN code	-	EAR99	EAR99	EAR99
