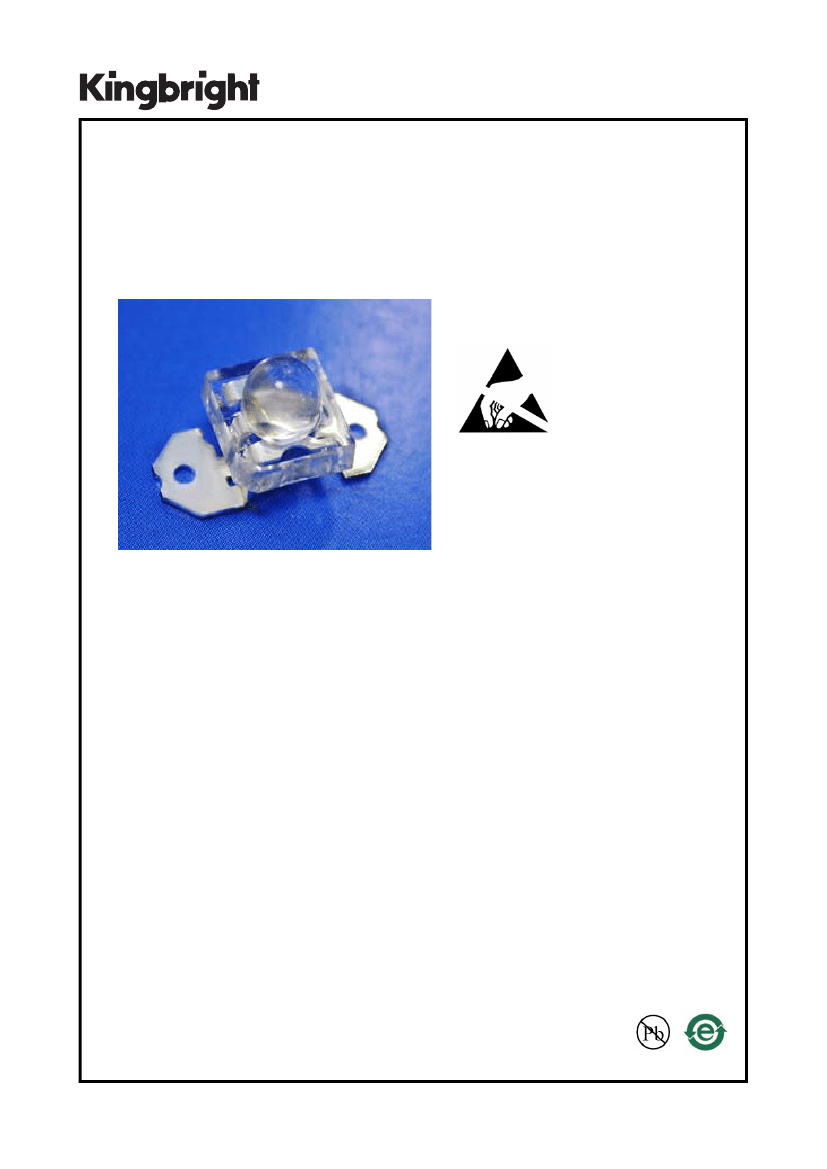

SnapLED
PRELIMINARY SPEC
Part Number: L-7700C4PBC-Z-DTS
Technical Data
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES
Description
Static electricity and surge damage the LEDS.
It is recommended to use a wrist band or
anti-electrostatic glove when handling the LEDs.
All devices, equipment and machinery must be
electrically grounded.
Features
*
HIGH LUMINANCE OUTPUT.
*
DESIGN FOR HIGH CURRENT OPERATION.
*
SOLDERLESS MOUNTING TECHNIQUE.
*
LOW POWER CONSUMPTION.
*
LOW THERMAL RESISTANCE.
*
LOW PROFILE.
*
PACKAGED IN TUBES FOR USE WITH
AUTOMATIC INSERTION EQUIPMENT.
*
RoHS COMPLIANT.
Benefits
*Rugged Lighting Products.
*Electricity savings.
*Maintenance savings.
*Environmental Conformance.
Typical Applications
*Automotive Exterior Lighting.
*Solid State Lighting and Signaling.
SPEC NO: DSAH4417
APPROVED: WYNEC
REV NO: V.1
CHECKED: Allen Liu
DATE: MAY/28/2007
DRAWN: S.J.LIU
PAGE: 1 OF 4

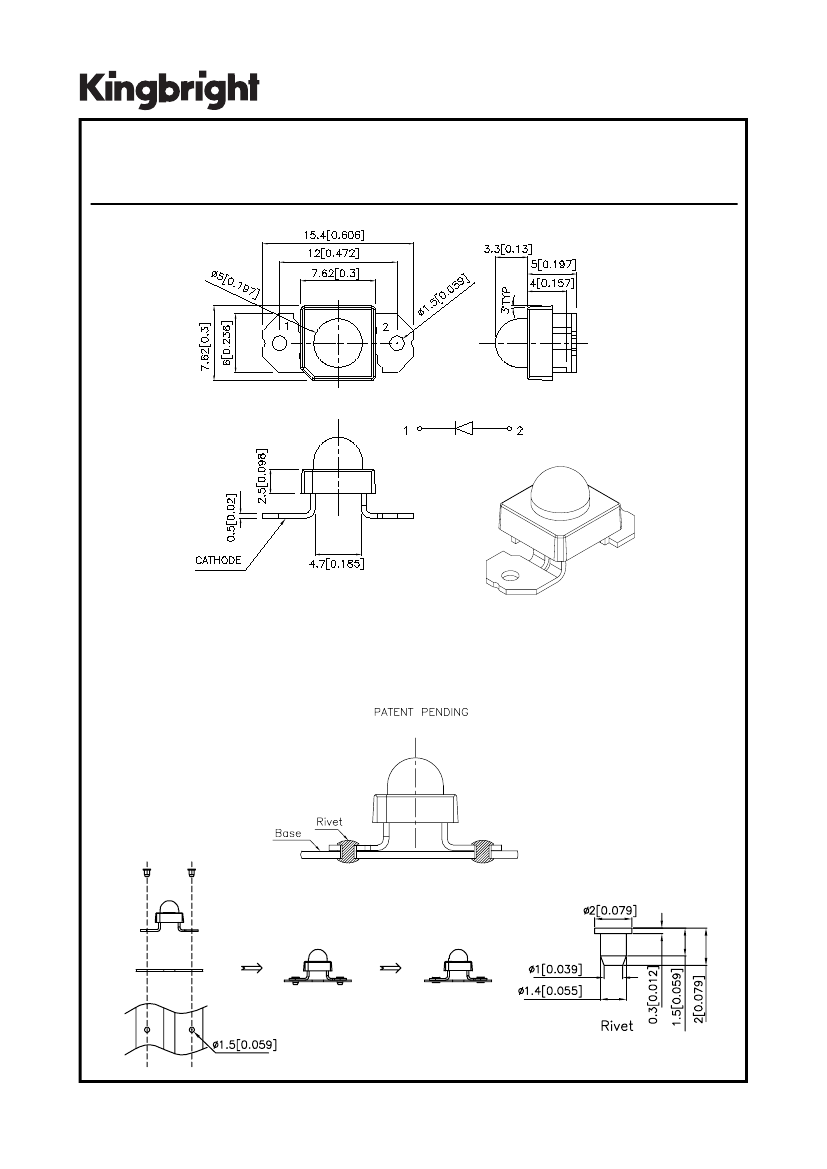

Outline Drawings
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO: DSAH4417
APPROVED: WYNEC
REV NO: V.1
CHECKED: Allen Liu
DATE: MAY/28/2007
DRAWN: S.J.LIU
PAGE: 2 OF 4
Absolute Maximum Ratings at TA=25°C
PARAMETER
DC Forward Current
Power dissipation
Reverse Voltage
Operating Temperature
Storage Temperature
PB-Z
50
210
5
-40 To +85
-55 To +85
UNITS
mA
mW
V
°C
°C
Selection Guide
Iv(cd)
[1]
@50mA
Min.
L-7700C4PBC-Z-DTS
BLUE (InGaN)
3.8
Typ.
8
Viewing Angle
[2]
2θ1/2
Typ.
25°
Part No.
LED COLOR
Notes:
1.Luminous intensity is measured with an integrating sphere after the device has stabilized; Luminous intensity / luminous flux: +/-15%.
2.θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Optical Characteristics at TA=25°C
I
F
=50mA R
θj-a
=200°C/W
DEVICE
TYPE
PEAK
WAVELENGTH
λPEAK
(nm)
TYP.
DOMINANT
[1]
WAVELENGTH
λDOM
(nm)
TYP.
SPECTRAL LINE
WAVELENGTH
Δλ1/2(nm)
TYP.
L-7700C4PBC-Z-DTS
458
465
22
Note:
1.The dominant wavelength is derived from the CIE Chromaticity Diagram and represents the perceived color of the device; Wavelength: +/-1nm.
Electrical Characteristics at TA=25°C
FORWARD VOLTAGE
V
F
(VOLTS)
DEVICE
TYPE
TYP.
@
I
F
=50mA
MAX.
[1]
REVERSE CURRENT
I
R
(uA)
@
V
R
=5V
MAX.
CAPACITANCE
C (pF)
@
V
F
=0V F=1MHZ
TYP.
THERMAL
RESISTANCE
Rθj-pin
°C/W
TYP.
L-7700C4PBC-Z-DTS
Note:
1. Forward Voltage: +/-0.1V.
3.5
4.2
10
110
130

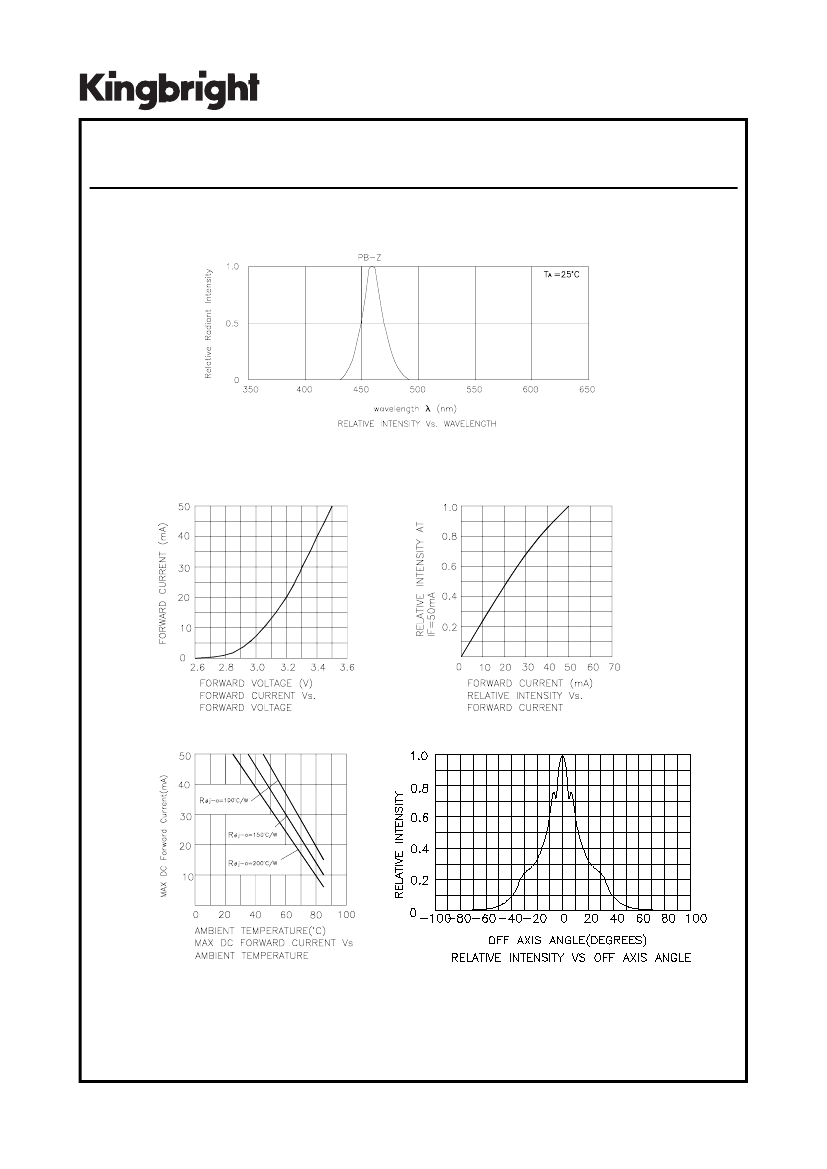

SPEC NO: DSAH4417
APPROVED: WYNEC
REV NO: V.1
CHECKED: Allen Liu
DATE: MAY/28/2007
DRAWN: S.J.LIU
PAGE: 3 OF 4
