L934RK/2YD: DescriptionSingle Color LED Array, Yellow, Diffused, T-1, 3mm; CategoryLED optoelectronic/LED photoelectric; File Size149KB，5 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric Compare View All

L934RK/2YD Overview

Single Color LED Array, Yellow, Diffused, T-1, 3mm

L934RK/2YD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
Reach Compliance Code	unknow
color	YELLOW
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A
Lens type	DIFFUSED
Nominal luminous intensity	15.0 mcd
Installation features	RADIAL MOUNT
Number of functions	2
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	9.65 mm
method of packing	BULK
peak wavelength	590 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	60 deg

Preview

Download Datasheet

View All

T-1 (3mm) BI-LEVEL LED INDICATORS

L934RK/2ID HIGH EFFICIENCY RED

L934RK/2GD GREEN

L934RK/2YD YELLOW

L934RK/2SRD SUPER BRIGHT RED

Features

PRE-TRIMMED

I.C.

Description

LEADS FOR PC MOUNTING.

The High Efficiency Red source color devices are made

with Gallium Arsenide Phosphide on Gallium Phosphide

Orange Light Emitting Diode.

The Green source color devices are made with Gallium

Phosphide Green Light Emitting Diode.

The Yellow source color devices are made with Gallium

Arsenide Phosphide on Gallium Phosphide Yellow Light

Emitting Diode.

The Super Bright Red source color devices are made with

Gallium Aluminum Arsenide Red Light Emitting Diode.

COMPATIBLE.

CASE ENHANCES CONTRAST RATIO.

VIEWING ANGLE.

RELIABILITY LIFE MEASURED IN YEARS.

BLACK

WIDE

HIGH

RATING : 94V-0.

HOUSING MATERIAL: TYPE 66 NYLON.

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subject to change without notice.

SPEC NO: CDA0179

APPROVED: J.LU

REV NO: V.1

CHECKED:

DATE: OCT/21/2001

DRAWN: X.Q.ZHENG

PAGE: 1 OF 5

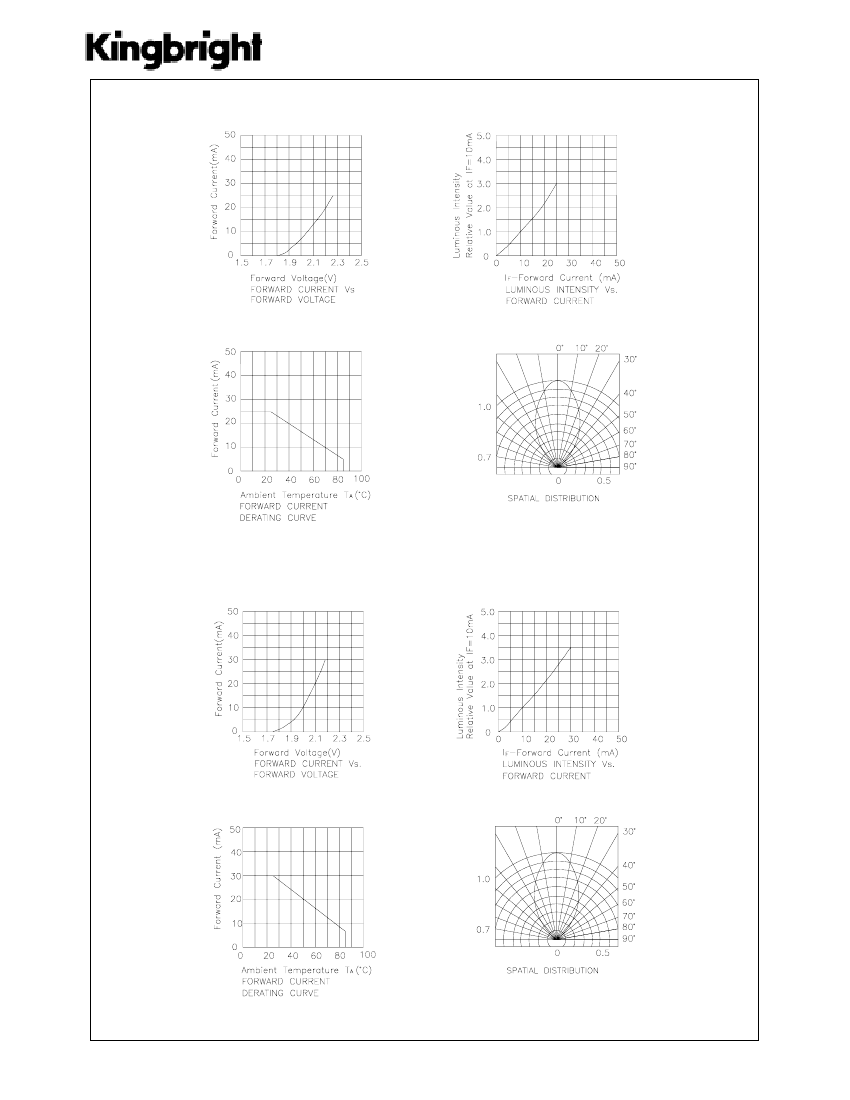

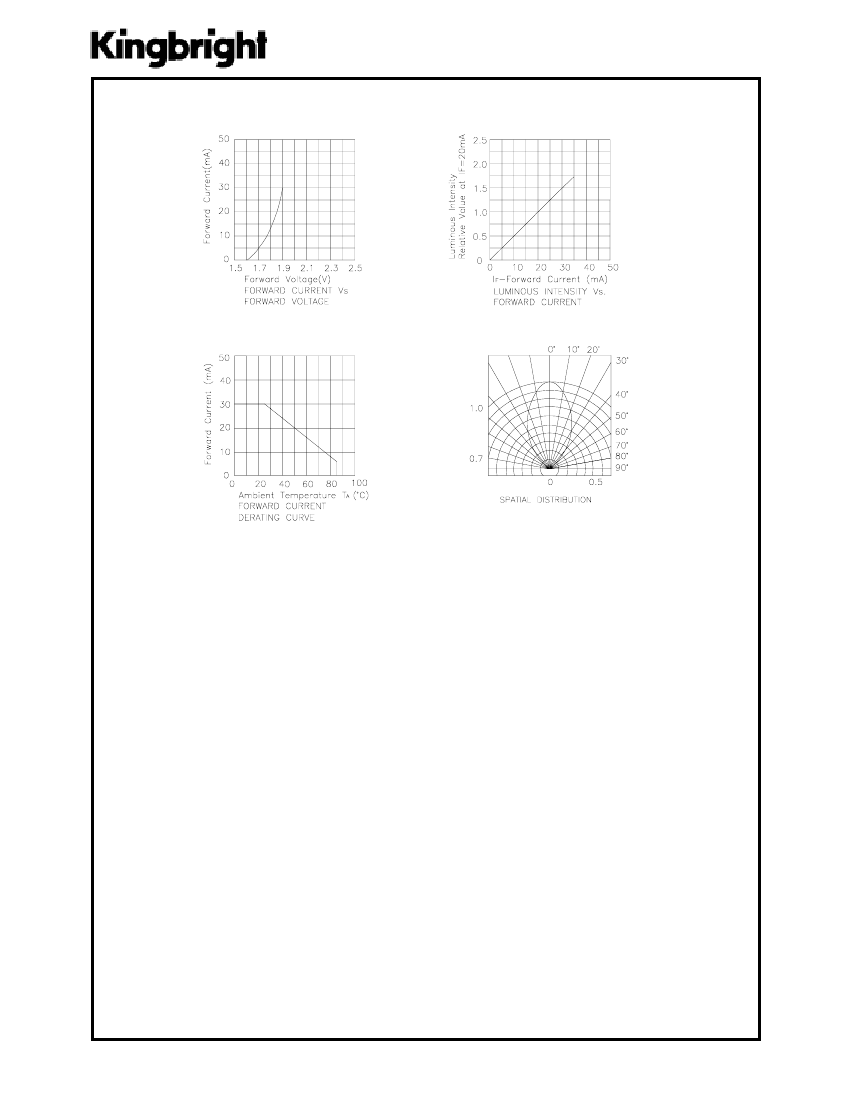

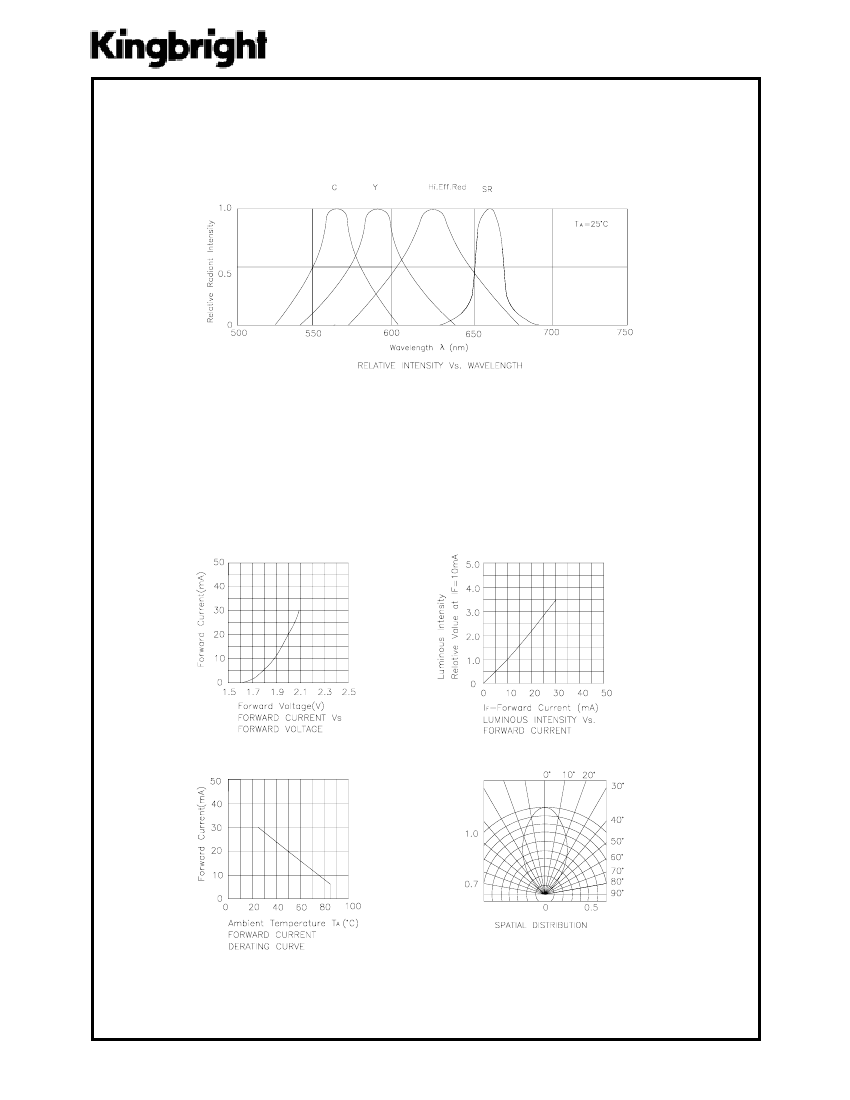

L934RK/2YD Related Products

	L934RK/2YD	L934RK/2GD	L934RK/2ID	L934RK/2SRD
Description	Single Color LED Array, Yellow, Diffused, T-1, 3mm	Single Color LED Array, Green, Diffused, T-1, 3mm	Single Color LED Array, High Efficiency Red, Diffused Red, T-1, 3mm	Single Color LED Array, Super Bright Red, Diffused Red, T-1, 3mm
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Kingbright	Kingbright	Kingbright	Kingbright
Reach Compliance Code	unknow	unknown	unknown	unknow
color	YELLOW	GREEN	HIGH EFFICIENCY RED	SUPER BRIGHT RED
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A	0.025 A	0.03 A	0.03 A
Lens type	DIFFUSED	DIFFUSED	DIFFUSED RED	DIFFUSED RED
Nominal luminous intensity	15.0 mcd	20.0 mcd	25.0 mcd	300.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	2	2	2	2
Number of terminals	4	4	4	4
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY	SINGLE COLOR LED ARRAY
total height	9.65 mm	9.65 mm	9.65 mm	9.65 mm
method of packing	BULK	BULK	BULK	BULK
peak wavelength	590 nm	565 nm	627 nm	660 nm
shape	ROUND	ROUND	ROUND	ROUND
size	3 mm	3 mm	3 mm	3 mm
surface mount	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	60 deg	60 deg	60 deg	60 deg
