CN1J4ATTD393J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> CN1J4ATTD393J

CN1J4ATTD393J: DescriptionArray/Network Resistor, Isolated, Metal Glaze/thick Film, 0.063W, 39000ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0612, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size103KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CN1J4ATTD393J Overview

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.063W, 39000ohm, 50V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 0612, CHIP, ROHS COMPLIANT

CN1J4ATTD393J Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	KOA Speer
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
structure	Chi
Component power consumption	0.0625 W
The first element resistor	39000 Ω
JESD-609 code	e3
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	4
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.5 mm
Package length	3.2 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	1.6 mm
method of packing	TR, PAPER, 7 INCH
Rated power dissipation(P)	0.063 W
Rated temperature	70 °C
resistance	39000 Ω
Resistor type	ARRAY/NETWORK RESISTOR
size code	0612
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	50 V

Preview

Download Datasheet

View All

resistors

convex termination with scalloped corners

resistor array

features

•

Manufactured to type RK73 standards

Less board space than individual chips

Isolated resistor elements

Convex terminations with scalloped corners

Marking: Marked with resistance value

Products with lead-free terminations meet

RoHS requirements. Pb located in glass material,

electrode and resistor element is exempt per Annex 1,

exemption 5 of EU directive 2005/95/EC

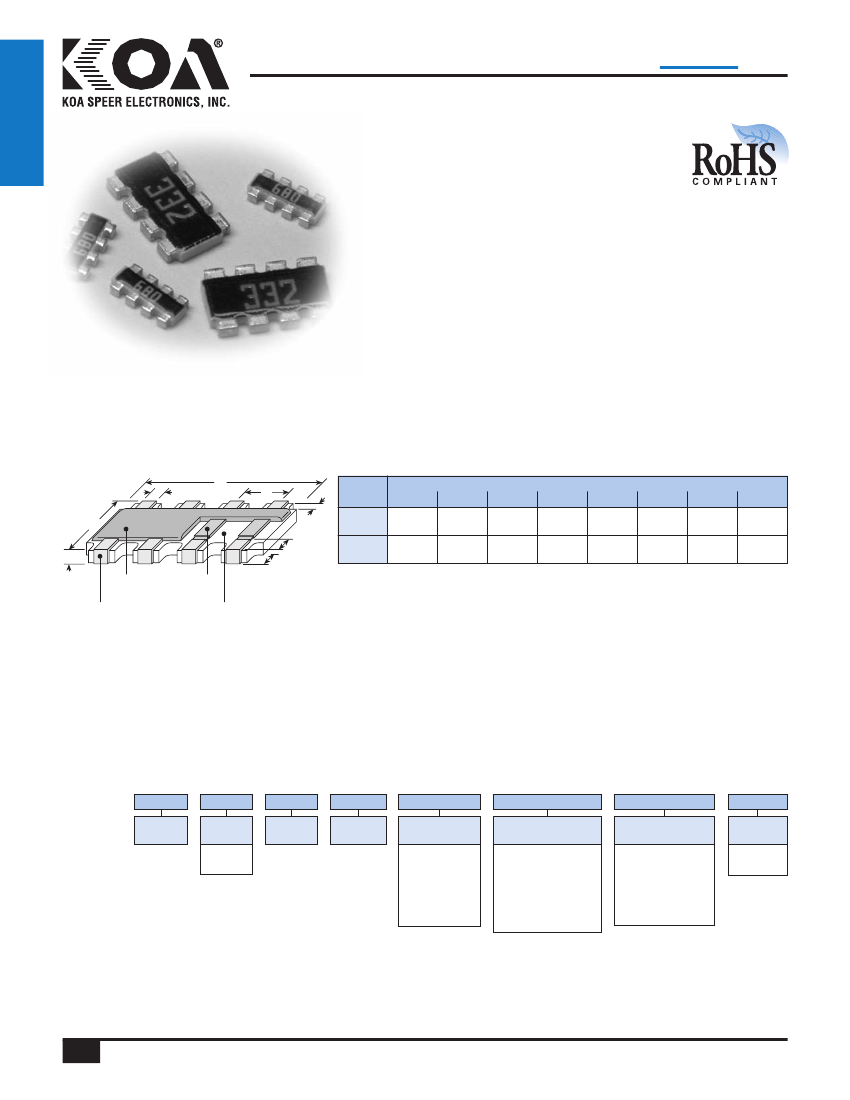

dimensions and construction

Protective

Coating

Electrode

Resistive

Film

Ceramic

Substrate

1J4A

2B4A

Size

Code

Dimensions

inches

(mm)

p (ref.)

.031

(0.8)

.050

(1.27)

.126±.006 .063±.006 .012±.008 .010±.004 .020±.004 .020±.006 .012±.004

(3.2±0.15) (1.6±0.15) (0.3±0.2) (0.25±0.1) (0.5±0.1) (0.5±0.15) (0.3±0.1)

0.2±.008 .122±.008 .020±.008 .014±.006 .022±.004 .031±.008 .018±.004

(5.1±0.2) (3.1±0.2) (0.5±0.2) (0.35±0.15) (0.55±0.1) (0.8±0.2) (0.45±0.1)

ordering information

New Part #

Type

Size

Elements

Terminal

Convex

Termination

Material

T: Sn

(Other termination

styles maybe

available, please

contact factory

for options)

Packaging

TE: 7" embossed

plastic

TD: 7" paper tape

TED: 10" embossed

plastic

TDD: 10" paper tape

101

Nominal

Resistance

2 significant figures

+ 1 multiplier for

±2% & ±5%

3 significant figures

+ 1 multiplier for

±1%

Tolerance

F: ±1%

J: ±5%

For further information on packaging,

please refer to Appendix A.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

2/14/07

KOA Speer Electronics, Inc.

• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
