Electrical / Environmental
High Current Low Profile Surface Mount Inductors
Ro
p
H
n
S
efolsr
lia t
Com
o
‘LF’ M
d
• Operating Temperature Range
• Insulation System
• Ambient Temperature, Maximum
-40°C to +130°C
Class F, 155°C
85°C
Specifications
Part
Number
Inductance
(1)
Irated
(2)
Rated Current (A)
25°C
1
°C
30
Heating
Current
(3
)
(A)
DC Resistance
(4
)
mΩ
mΩ
Typ.
Max.
µ
H ± 20%
1.0
1.5
2.0
HM100-251R0
HM100-251R5
HM100-252R0
Notes:
85
55
45
65
45
35
62
62
62
0.7
0.7
0.7
0.9
0.9
0.9
(1) Inductance is measured at 100kHz, 0.1 Vac without DC current.
(2) The rated current (Irated) is the approximate current at which inductance will be decreased by 20% from its initial (zero DC) value.
(3) Heating Current is the DC current which causes the inductor temperature to increase by approximately 40°C.
(4) DC resistance is measured at 25°C.
Outline Dimensions (mm)
Top View
Side View
Recommended Solder Pad Layout
Case Size
25
A
28.0
B
25.5
C
8.8
D
18.0
E
3.8
F
5.0
G
1.0
H
12.0
J
0.4
Ordering Information
HM100
Model Series
Case Size
25
1R0
LF
TR
Tape & 13” Reel
(150 Units/Reel)
Lead-Free Option:
LF = Lead-Free
(No code used for
non lead-free part)
Inductance Code:
First 2 digits are significant. Last digit
denotes the number of trailing zeros.
For values below 10µH, ‘R’ denotes the
decimal point
68
MAGNETIC COMPONENTS SELECTOR GUIDE 2006 EDITION
We reserve the right to change specifications without prior notice.
www.bitechnologies.com

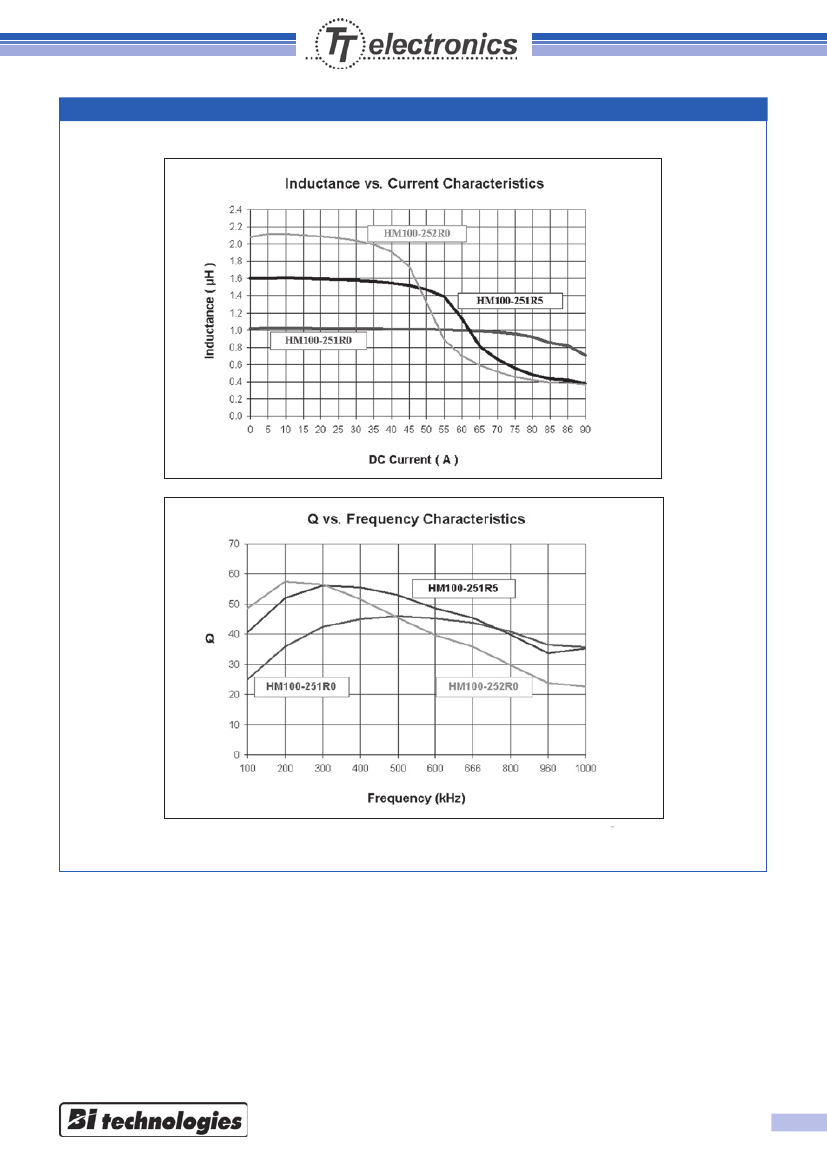

Electrical Characteristics @ 25°C
2006 EDITION MAGNETIC COMPONENTS SELECTOR GUIDE
www.bitechnologies.com
We reserve the right to change specifications without prior notice
69
