POWR-PRO
®
Fuses

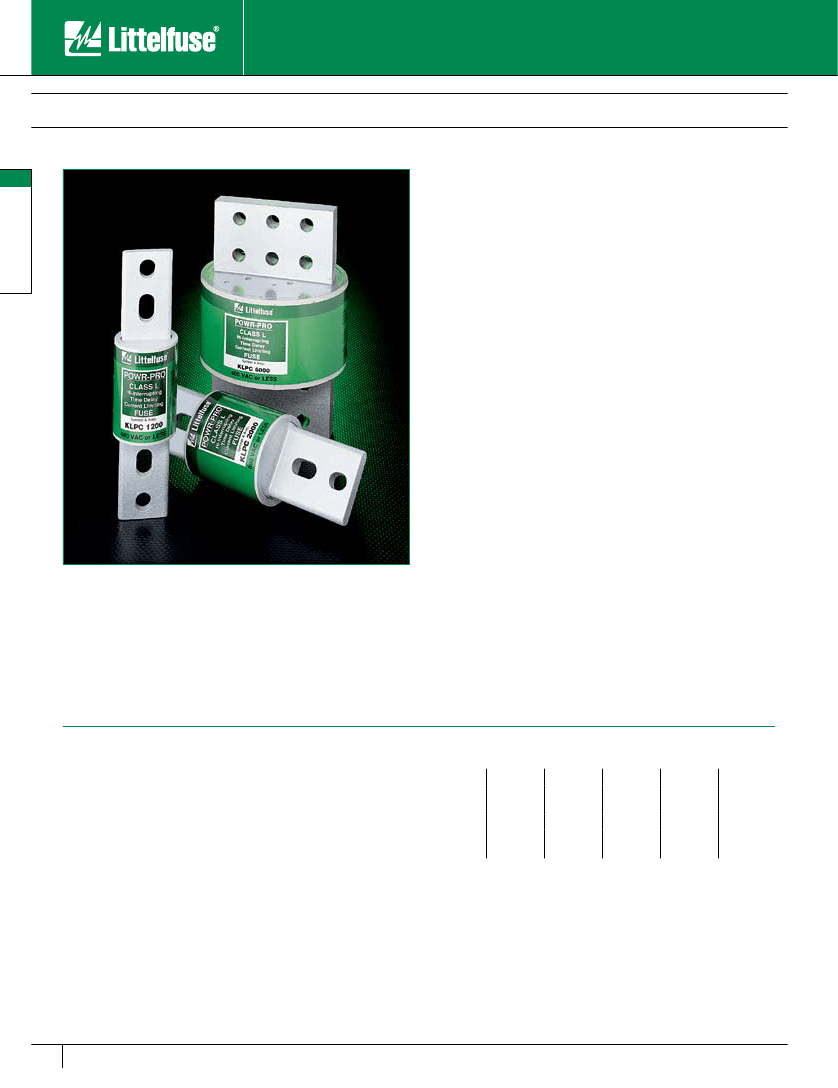

KLPC Series POWR-PRO
®
Class L Fuses
600 VAC • Time-Delay • 200 – 6000 Amperes
current and are also as current-limiting as the fastest Class L fuse on the
market. On average, the peak let-through currents of KLPC series fuses
are 10% less than any other time-delay Class L fuse.
POWR-PRO
®
Fuses
Applications
Service switches
Switchboard mains and feeders
Bolted pressure contact switches
Motor control center mains
Large motor branch circuits
UL Listed series-rated protection for molded case circuit breaker
panelboards and loadcenters. (See panelboard manufacturers’
literature for recommended fuse rating.)
Primary and secondary protection for transformers
Protection of power circuit breakers
Features and Benefits
• Eliminate unnecessary downtime — KLPC POWR-PRO series time-
delay withstands system surges and keeps your circuits in service.
• Best protection for system components — Maximum current
limitation means less equipment and system damage when short
circuits occur. Reduced damage means that electrical service can
be restored quickly, reducing costly downtime, and often permitting
equipment repair rather than replacement.
• Coordinates with other system components — KLPC series fuses
provide maximum coordination with fuses and circuit breakers both
on the line and load side of the fuses. See the Fuseology section of
this catalog for additional information.
• Eliminate need to oversize fuses — This may permit the use of smaller,
less expensive switches. Since lower rated fuses are more current-
limiting, equipment receives even better protection.
• 300kA Interrupting Rating — Littelfuse self-certified to 300,000
amperes as standard. Meets future trend towards higher available
short circuit currents.
KLPC series POWR-PRO fuses provide ideal overcurrent protection
for circuits from 200 through 6000 amperes. KLPC series POWR-PRO
fuses specification-grade construction and performance meet or exceed
the most stringent project specifications: 99.9% pure silver links, silver-
plated copper end bells, glass-reinforced melamine bodies, O-ring seals
between body and end bells, and granular quartz fillers.
KLPC series POWR-PRO fuses are the only UL listed Class L fuses
that provide a minimum of ten seconds time delay at 500% rated
Specifications
Voltage Ratings:
Interrupting Ratings:
AC: 600 Volts
DC: 480 Volts
AC: 200,000 amperes rms symmetrical
300,000 amperes rms symmetrical
(Littelfuse self-certified)
DC: 20,000 amperes
200 – 6000 amperes
AC: Standard 248-10, Class L
UL Listed 601 – 6000 amps
(File No: E81895)
UL Recognized 200 – 600 amps
(File No: E71611)
CSA Certified 200 – 6000 amps
(File No: LR29862)
QPL Federal Specifications WF-1814
700 – 6000 amps
DC: Littelfuse self-certified
Ampere Ratings
200
250
300
350
400
450
500
600
601
650
700
750
800
900
1000
1100
1200
1300
1350
1400
1500
1600
1800
1900
2000
2100
2200
2300
2500
3000
3500
4000
4500
5000
6000
Ampere Range:
Approvals:
Example part number (series & amperage): KLPC 1000
www.littelfuse.com
© 2005 Littelfuse
•
