SnapLED High Mount
Stop Light Array
Technical Data DS29

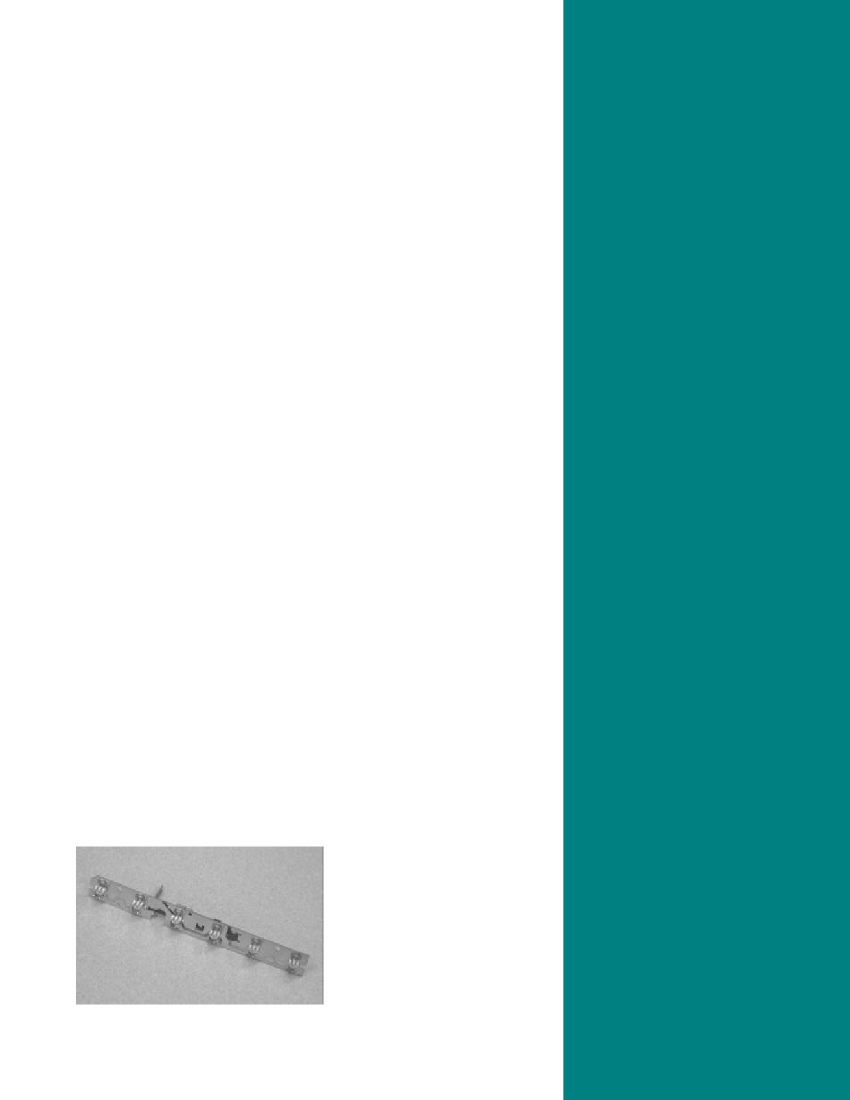

Using Lumiled's patented solderless clinch technology and SnapLED
emitters, this six LED linear assembly is an integrated LED stop lamp
solution complete with control circuitry.
Benefits
•
Cost effective LED Solution
for
HMSL Applications
•
Life of Vehicle Light Source
•
Standard Design for Multiple
Vehicle Applications
•
Rugged and Compact
In addition to three types of power connector, the HMSL product line offers
vehicle designers a choice of three flux output levels for use on exterior
mounts or for implementation behind the rear glass. Furthermore,
SnapLED offers two radiation pattern options for use where greater
luminous intensity is required. Where enhanced reliability is needed, high
voltage protection circuitry is provided. SnapLED HMSL features a
compact and rugged design and provides a cost effective source for
vehicle high mount stop lamps.
Features
•
Drive Circuitry and Connector
Included
•
Choice of connector type
•
Light Source Sufficient for
SAE/ECE/JIS HMSL
Requirements
SnapLED High Mount Stop Light Array
(09/01/02)
Document #: DS29
Selection Guide (all lamps are TS AlInGaP
Red-Orange and voltage is 12.8 volts)
Part Number
HPWG-N500
HPWG-N501
HPWG-N502
HPWG-N503
HPWG-N504
HPWG-N505
HPWG-N506
HPWG-N507
HPWG-N508
HPWG-N550
HPWG-N551
HPWG-N552
Description
HMSL with pin connector
HMSL with pin connector
HMSL with pin connector
HMSL with varistor & hole connector
HMSL with varistor & hole connector
HMSL with varistor & hole connector
HMSL with wire connector
HMSL with wire connector
HMSL with wire connector
HMSL with narrow angle light beam
HMSL with narrow angle light beam
HMSL with narrow angle light beam
Total flux
Φ
V
(
lm
)
[1,2]
Min.
Max.
19.0
28.0
36.0
19.0
28.0
36.0
19.0
28.0
36.0
19.0
28.0
36.0
30.0
45.0
58.0
30.0
45.0
58.0
30.0
45.0
58.0
30.0
45.0
58.0
Power Input
(W)
Min.
Max.
1.6
3.1
3.1
1.6
3.1
3.1
1.6
3.1
3.1
1.6
3.1
3.1
1.9
3.5
3.5
1.9
3.5
3.5
1.9
3.5
3.5
1.9
3.5
3.5
Notes:
1. Total integrated flux of the array at
V
in
= 12.8 V, R
th
junction-ambient
=
12.9°C/W, which assumes that the
array is attached to a thermally
absorbing substrate. To determine
junction temperature, multiply R
th
by power consumption and add to
ambient temperature.
2.
Φ
V
is the total usable flux
measured after the lamp has
stabilized
Circuit Schematic
SnapLED High Mount Stop Light Array
Document #: DS29 (09/01/02)

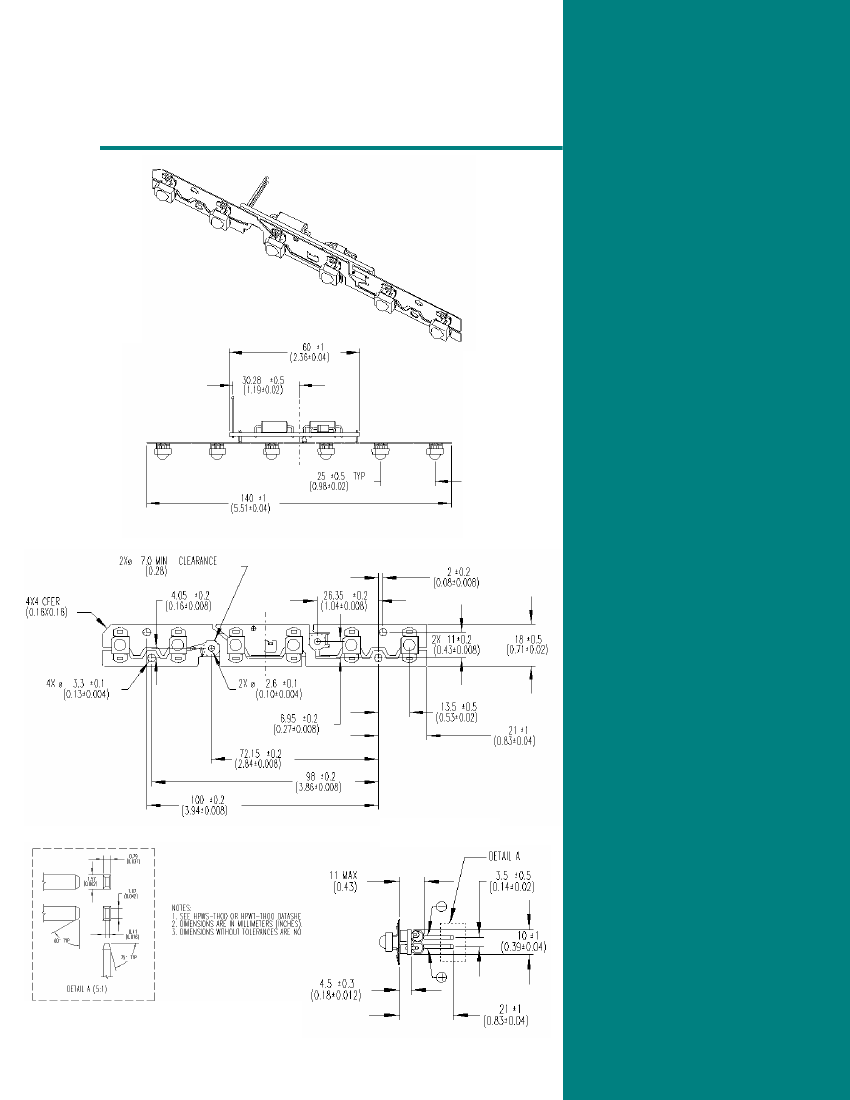

Outline Drawing
Notes:
1. See HPWS-TH00 or HPWT-TH00
datasheet for emitter specifications.
2. Dimensions are in millimeters (inches).
3. Dimensions without tolerances are
nominal.
Side View
SnapLED High Mount Stop Light Array
(09/01/02)
Document #: DS29
Absolute Maximum Ratings at T
A
= 25°C
Parameter
HPWG-N5xx
Units
V
W
V
°C
°C
°C
°C
DC Input Operating Voltage
[1]
16
Power Dissipation
7.0
500
Reverse Voltage (I
R
= 200
μ
A
)
Operating Temperature Range(12.8V-13.5V)
[2]
-40
to +85
Storage Temperature Range
-55
to +100
LED Junction Temperature
125
High Temperature Chamber
125 (2 hrs.)
Notes:
1. 16V operation is allowed at
T
ambient
=25°C only.
2. Temperature range for sustained
operation based on R
th-junction-
ambient
=12.9°C/W.
Optical and Electrical Characteristics
Device type
HPWG-N50x
Operational Forward Voltage
V
F
(Volts)
Min.
Max.
9
16
Color Dominant Wavelength
λ
d
(
nm
)
[1,2]
Min.
Max.
611
634
Notes:
1. The dominant wavelength is
derived from the CIE Chromaticity
Diagram and represents the
perceived color of the device.
2. The dominant wavelength does not
vary between emitters by more
than 8nm within the same
assembly.
SnapLED High Mount Stop Light Array
Document #: DS29 (09/01/02)
Company Information
Lumileds is a world class supplier of Light Emitting Diodes
(LEDs) producing billions of LEDs annually. Lumileds is a
fully integrated supplier, producing core LED material in all
three base colors (Red, Green, Blue) and White. Lumileds
has R&D development centers in San Jose, California
and Best, The Netherlands. Production capabilities in
San Jose, California and Malaysia.
Lumileds is pioneering the high flux LED technology and
bridging the gap between solid state LED technology
and the lighting world. Lumileds is absolutely dedicated to
bringing the best and brightest LED technology to enable
new applications and markets in the Lighting world.
Lumileds may make process
or materials changes affecting
the performance or other
characteristics of our products.
These products supplied after
such changes will continue to
meet published specifications,
but may not be identical to
products supplied as samples
or under prior orders.
LUMILEDS
www.luxeon.com
www.lumileds.com
For technical assistance or the
location of your nearest Lumileds
sales office, call:
Worldwide:
+1 408-435-6044
US Toll free: 877-298-9455
Europe: +31 499 339 439
Fax: 408-435-6855
Email us at info@lumileds.com
Lumileds Lighting, LLC
370 West Trimble Road
San Jose, CA 95131
©2002
Lumileds Lighting. All rights reserved. Lumileds Lighting is a joint venture between Agilent Technologies and Philips
Lighting. Luxeon is a trademark of Lumileds Lighting, LLC. Product specifications are subject to change without notice.
SnapLED High Mount Stop Light Array
Document #: DS29 (09/01/02)
