The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

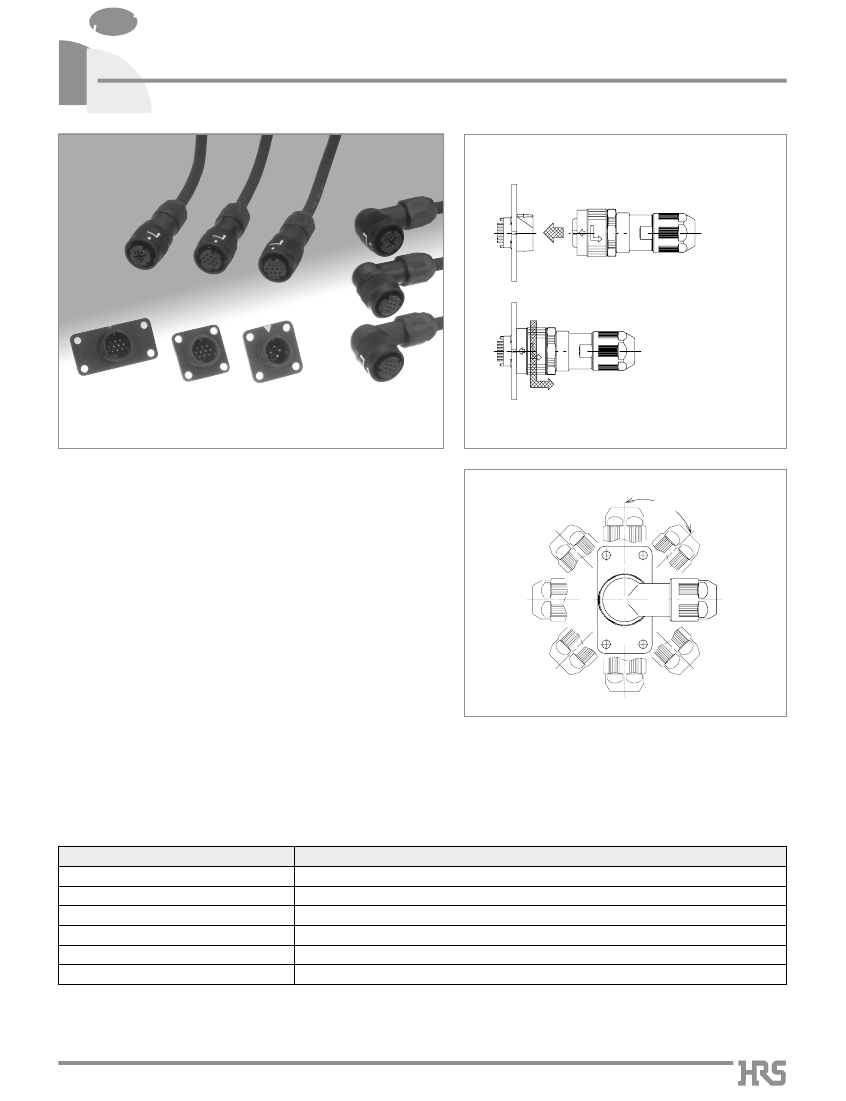

Marking helps align plug with receptacle when mating.
•
3 guide keys make blind mating possible.
(Receptacle structure prevents plug from damaging
receptacle terminals)
fig.2
3. Multi-directional cable exit
Right angle plugs allow the cable to exit in 8 directions, in
45˚ increments.(fig.2)
4. Safty standards
¨
The 4-position connectors meet requirements of T UV
standard.
5. Wide variation
Item
Number of positions
Connector type
Terminations(plug)
Terminations(receptacle)
Conduit material
Applicable cable size
4,10
straight plug,right angle plug,receptacle
solder,crimp
panel mount through-hole,wire solder
plastic,metal
Ø5.3~7.3, Ø6.5~8.0, Ø8.0~9.0(under development)
2010.5
2
1
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
4 pos. : 200 V AC, 200 V DC (contamination level 3)
400 V AC, 400 V DC (contamination level 2)
Specification
30 mø max.
1,000 Mø min.
No flashover or insulation breakdown
No electrical discontinuity of 10 µs or longer
No electrical discontinuity of 10 µs or longer
Contact resistance: 30 mø max.
Operating temperature range
-25°C to 125°C
Storage temperature range
-25°C to 85°C
Item
1.Contact resistance
2.Insulation resistance
3.Withstanding voltage
4.Vibration
Conditions
1 A DC
500 V DC
10 pos. : 900 V AC / 1 minute
4 pos. : 2,000 V AC / 1 minute
Frequency: 10 to 500 Hz/cycle, total amplitude of 0.75 mm,
98m/s
2
each, 3 hours in 3 axis.
Acceleration of 490 m/s
2
, 11 ms duration,
3 axis, each for 3 hours
500 cycles
Temperature :-55°C
/
+15° to +35°C
/
+85°C
/
+15° to +35°C
Time
:-30 min.
/
10 to 15 min.
/
30 min.
/
10 to 15 min.
5 cycles
336 hours at 71°C, and humidity of 95%
5.Shock
6.Durability
(Mating / un-mating)
7.Temperature cycle
Insulation resistance: 500 Mø min.
8.Humidity
9.Water protection
Insulation resistance: 50 Mø min. (at high humidity)
Insulation resistance: 500 Mø min. (when dry)
No water penetration when submerged for 48 hours at the depth of 1.8 meters.
sMaterials
qPlugs
Part
Outer shell
Insulator
Female contacts
O-ring
Gasket
10 pos.
4 pos.
Material
Zinc alloy, aluminum alloy, and
polyamide resin (black)
PPS
Phosphor bronze
Copper alloy
Fluororubber,
Nitrile hydride rubber
Finish
Black chrome plating, black
chromate finish (Cr +3)
Color: Black
Gold plated
Silver plated
---------------
Remarks
---------------
UL94V-0
---------------
---------------
---------------
qReceptacles
Part
Outer shell
Insulator
Male contacts
Ground contact
O-ring
10 pos.
4 pos.
10 pos.
4 pos.
Material
Zinc alloy
PPS
Copper alloy
Brass
Brass
Fluororubber
Finish
Black chromate finish (Cr +3)
Color: Black
Gold plated
Silver plated
Gold plated
Silver plated
---------------
Remarks
---------------
UL94V-0
---------------
---------------
---------------
---------------
---------------
2
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
: Diameter(mm) of the mating interface of the plug
WP : Straight plug
WLP : Right-angle plug
4
Conduit material and Applicable cable size
A:Conduit material metal, Applicable cable Ø5.3~7.3
B:Conduit material metal, Applicable cable Ø6.5~8.0
D:Conduit material plastic, Applicable cable Ø5.7~7.3
E:Conduit material plastic, Applicable cable Ø6.5~8.0
K:Conduit material metal, Applicable cable Ø8.0~9.0(under development)
5
Number of contact : Number of contacts.
6
Contact type
S : Female wire solder
SC : Female crimp
7
Keying
Blank : Standard
X
: X key position
8
Other specifications : 2 numerical digits wil be added when there
is a specifications change other than
shown in positions
q
to
u
qReceptacles
HR34B - 12 WR A - 10 P - X (
**
)
1
1
2
3
4
2
3
4
5
6
7
8
(Excluding ground contacts)
Series name : HR34B Series
Shell size
: Diameter(mm) of the mating interface of the plug
Shell style
WR : Receptacl
Shell type
Blank : Rectangular flange type for 10 positions
A : Square flange for 10 positions
B : Square flange for 4 positions
5
Number of contact : Number of contacts.
6
Contact type
P : Male,wire solder
PD : Male,through hole contact
7
Keying
Blank : Standard
X
: X key position
8
Other specifications : 2 numerical digits wil be added when there
is a specification change other than shown
in positions
q
to
u
qCrimp
contacts
HR34B - SC1 - 2 1 1
1
2
3
4
5
4
Conductor size : AWG#20 - 25
5
Plating
1:Gold plated
1
Series name : HR34B Series
2
Contact style : SC1:Female contact
3
Contact type
1 : 100pcs.per bag
2 : 10,000pcs per reel
3

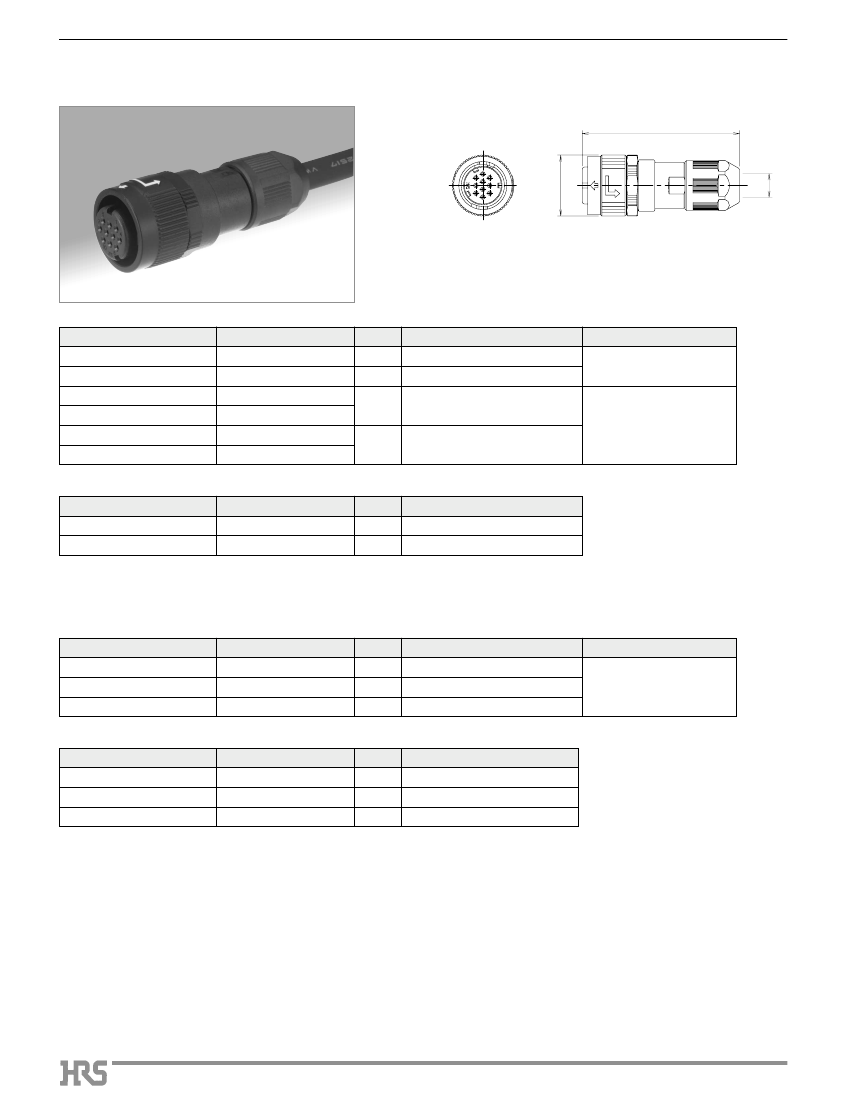

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
Not all cables of applicable dia. range can be easily assembled.
Please kindly check with factory before use.
4

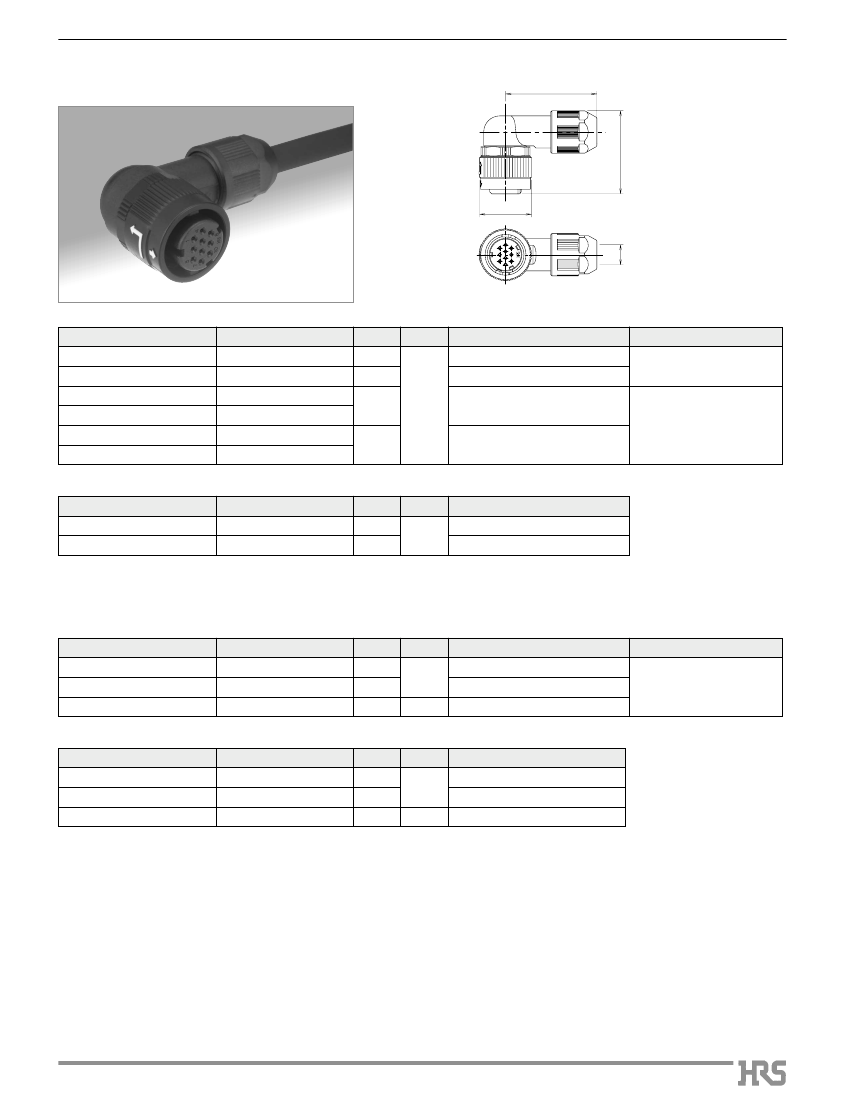

A
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
