HRS2(H)

Relay

1.COIL DATA

1-1.Nominal Voltage

1-2.Coil Resistance

1-3.Operate Voltage

1-4.Release Voltage

1-5.Nominal Power Consumption

3 VDC to 24 VDC

Refer to Table 1

150 to 360 mW

2.CONTACT DATA

2-1.Contact Arrangement

2-2.Contact Material

2-3.Contact Rating

2-4.Max. Switching Voltage

2-5.Max. Switching Current

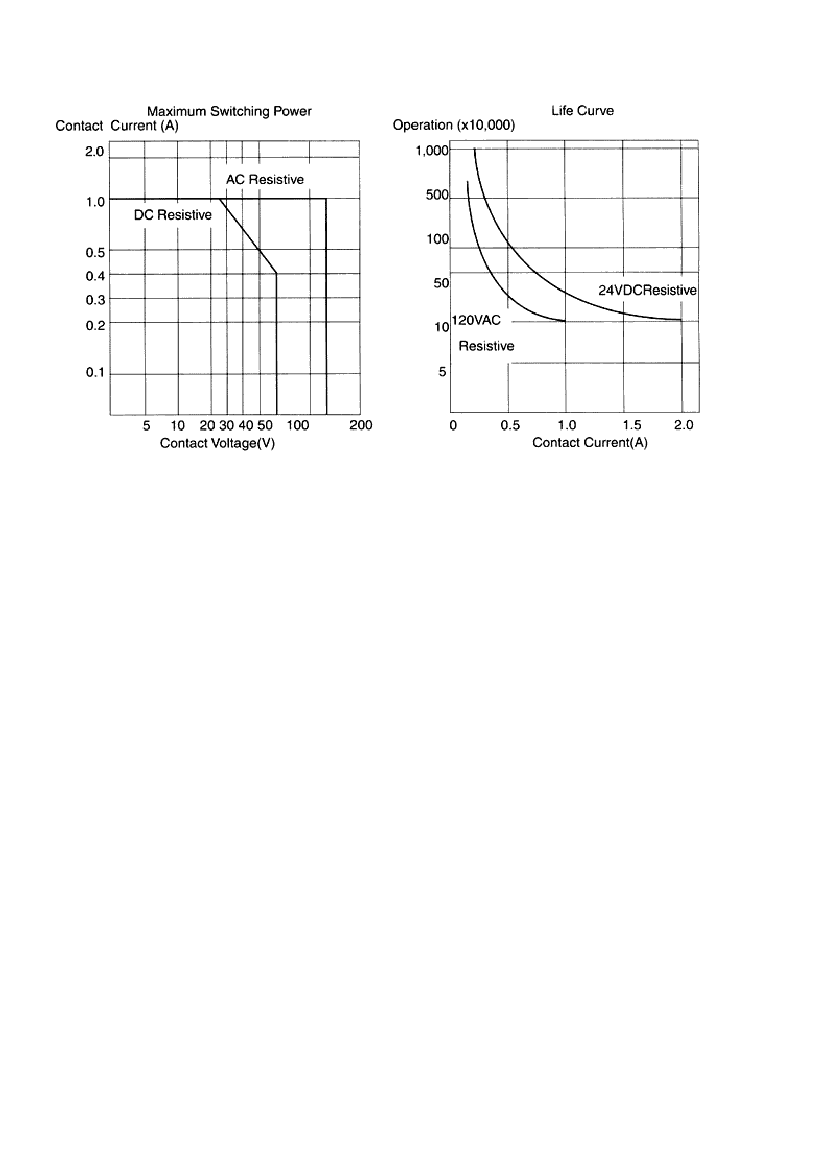

2-6.Max. Switching Power

2-7.Contact Resistance ( Initial )

Electrical

2-8.Life Expectancy

Mechanical

2 Form C

AuAg

1A 24 VDC / 120VAC

60 VDC / 120 VAC

60 VA , 24W

100 mฆธ. at 6 VDC 1A

100,000 operations at nominal load

10,000,000 operations

3.GENERAL DATA

3-1.Insulation Resistance

3-2.Dielectric Strength

3-3.Surge Strength

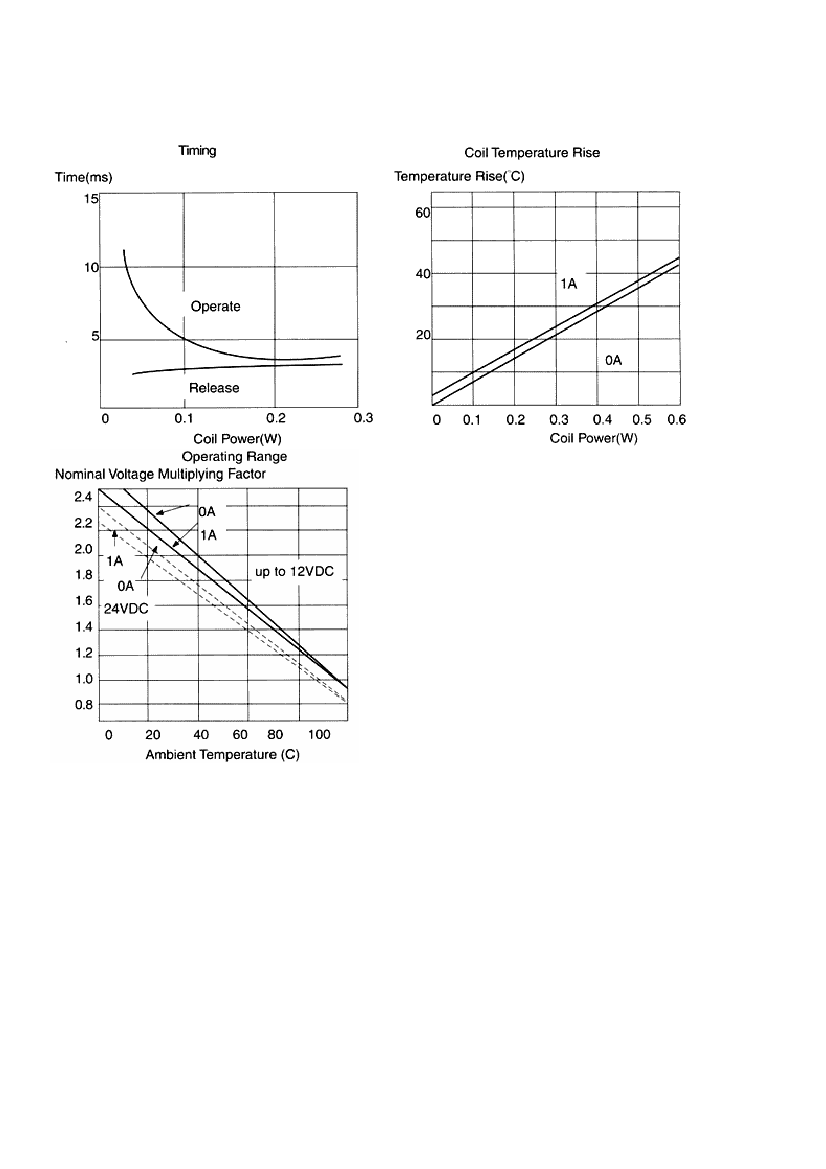

3-4.Operate Time

3-5.Release Time

3-6.Temperature Range

3-7.Shock Resistance

3-8.Vibration Resistance

3-9.Weight

3-10.Safety Standard

Min.100Mฆธ at 500 VDC

1,000VAC , 1min between open contact

1,500VAC , 1min between contact and coil

2,000 VAC ( 20

ฆฬs

)

Max. 6ms

Max. 4ms

-30 to +60

กๆ

15G

10 - 55 Hz , Amplitude 1.5mm

5 gr.

UL NO. E164730

CSA NO. LR109368
