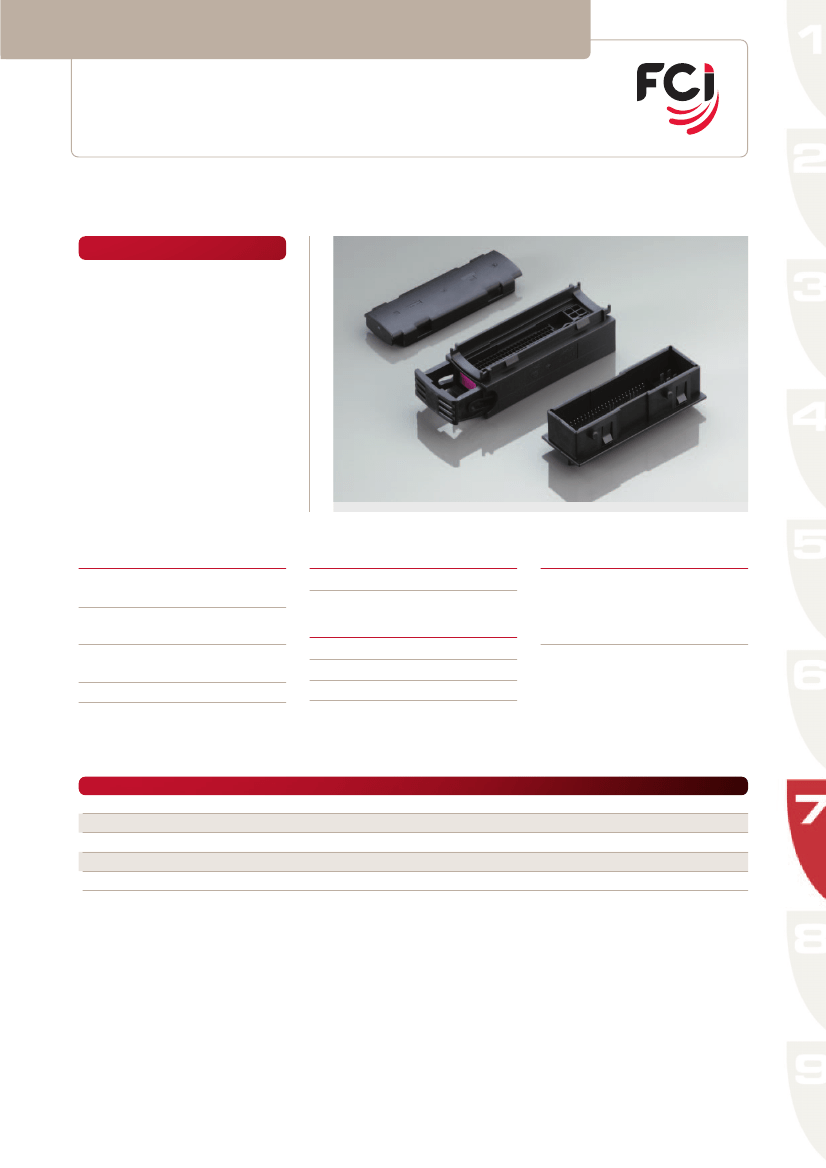

ECU Connectors and Packagings
I/O connector system
DuoTwin / 2.8 mm / 5.2 mm terminals
64 way connector system
Features
•
High density connector system
•
Lateral secondary lock for terminal
position assurance (TPA)
•
Locking cam secured in prefixed
position
•
Cable protection cover
•
Stitch-in pin header with PCB
termination
Performance characteristics
•
Temperature range:
from –40°C to + 120°C
Construction
•
Housing material:
PBT
Connector compatibility
•
Useable terminals:
- DuoTwin 0.64 mm female
terminals
- 2.8 and 5.2 mm female terminals
•
Contact retention force:
for 0.64 mm
> 50 N
< 2.5 N
< 100 N
Tooling
•
TPA removal tool:
•
Cavity plug:
consult us
•
Contact insertion force:
for 0.64 mm
•
Terminal removal tool: consult us
consult us
•
Connector mating force:
Part Number
3 023 32 01
3 023 32 18
3 099 06 01
3 332 04 00
3 332 04 10
Pos.
64
64
64
64
Terminal size
47x[0.64]+15x[2.8]+2x[5.2] mm
47x[0.64]+15x[2.8]+2x[5.2] mm
47x[0.64]+15x[2.8]+2x[5.2] mm
47x[0.64]+15x[2.8]+2x[5.2] mm
Type
Female Housing
Female Housing
Cable protection over
Pin header
Pin header
Code
A
B
A
B
Colour
Black
Black
Black
Black
Black
7.56
Rev 01/04
ECU Connectors and Packagings
I/O connector system
DuoTwin / 2.8 mm / 5.2 mm terminals
64 way connector system

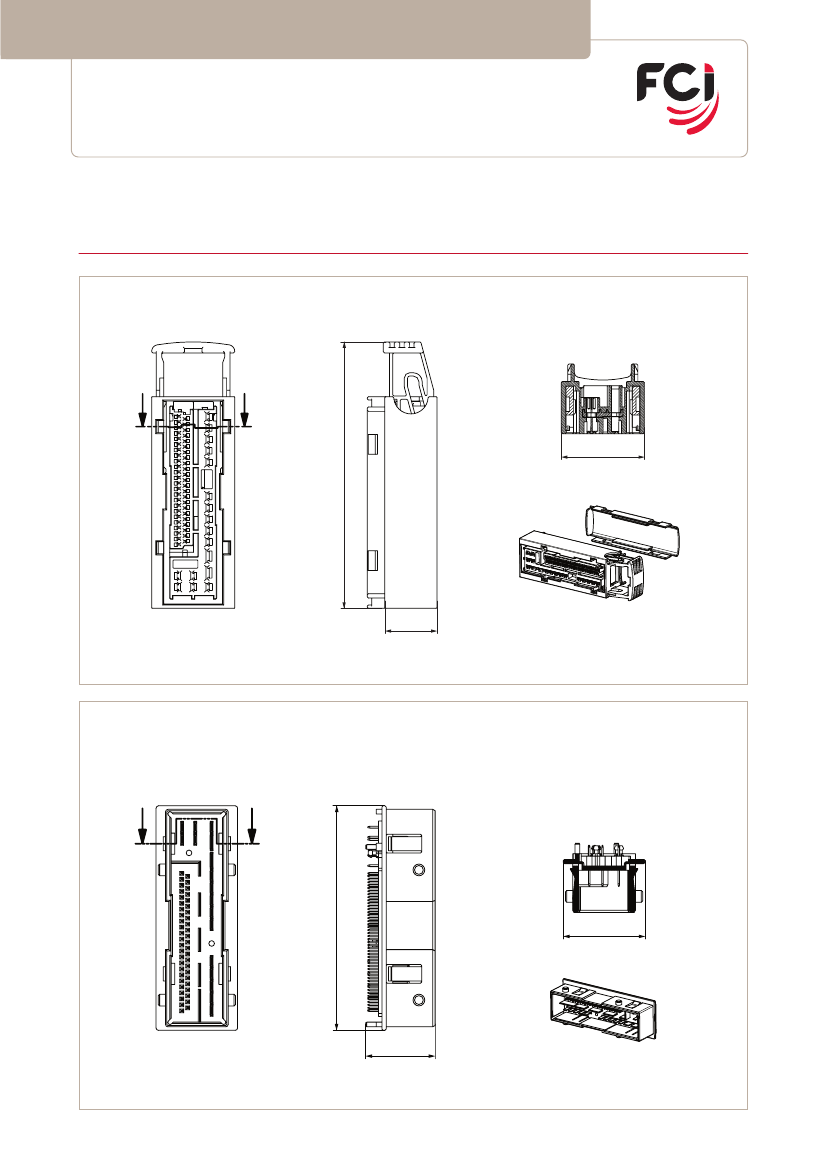

Dimensional characteristics
Female housing
64-WAY
SECTION A-A
A
A
37.9
121.6
31.8
SECTION A-A
Male housing
64-WAY
A
A
SECTION A-A
95.4
34.63
29.5
SECTION A-A
Rev 01/04
7.57
