HS5A-HS5M
5.0AMPS High Efficient Surface Mount Rectifiers

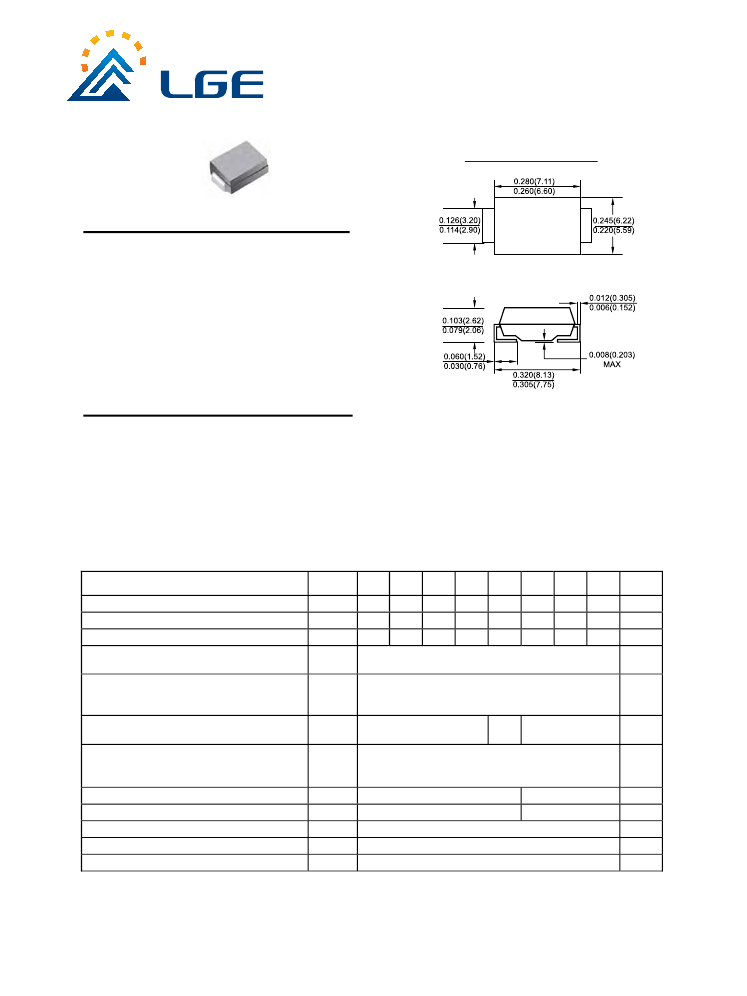

SMC/DO-214AB
Features
Glass passivated junction chip.
For surface mounted application
Low forward voltage drop
Low profile package
Built-in stain relief, ideal for automatic
placement
Fast switching for high efficiency
High temperature soldering:
260
o
C/10 seconds at terminals
Plastic material used carries Underwriters
Laboratory Classification 94V0
Mechanical Data
Cases: Molded plastic
Terminals:
Pure tin plated, lead free
Polarity: Indicated by cathode band
Weight: 0.21 gram
Dimensions in inches and (millimeters)
Rating at 25 C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Maximum Ratings and Electrical Characteristics
o
Type Number
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
See Fig. 1
Peak Forward Surge Current, 8.3 ms Single
Half Sine-wave Superimposed on Rated
Load (JEDEC method )
Maximum Instantaneous Forward Voltage
@ 5.0A
Maximum DC Reverse Current
@ T
A
=25
o
C at Rated DC Blocking Voltage
o
@ T
A
=125 C
Maximum Reverse Recovery Time ( Note 1 )
Typical Junction Capacitance ( Note 2 )
Maximum Thermal Resistance (Note 3)
Operating Temperature Range
Storage Temperature Range
Notes:
Symbol HS
5A
V
RRM
50
V
RMS
35
V
DC
50
I
(AV)
I
FSM
V
F
I
R
Trr
HS
5B
100
70
100
HS
5D
200
140
200
HS
5F
300
210
300
HS
5G
400
280
400
HS
5J
600
420
600
HS HS
Units
5K 5M
800 1000
V
560 700
V
800 1000
V
A
A
1.7
V
uA
uA
nS
pF
o
C/W
o
C
o
C
5.0
150
1.0
1.3
10
250
50
80
60
-55 to +150
-55 to +150
75
50
Cj
R
θJA
T
J
T
STG
1. Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
2. Measured at 1 MHz and Applied V
R
=4.0 Volts.
3. Measured on P.C.Board with 0.6” x 0.6” (16mm x 16mm) Copper Pad Area.
http://www.luguang.cn
mail:lge@luguang.cn
HS5A-HS5M
5.0AMPS High Efficient Surface Mount Rectifiers

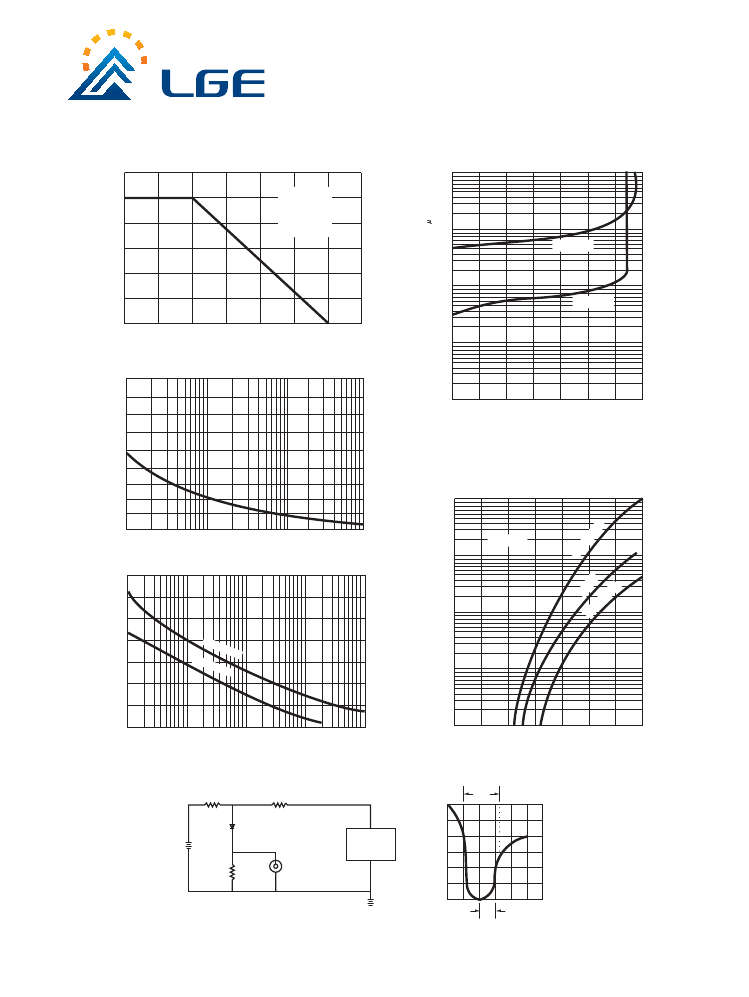

RATINGS AND CHARACTERISTIC CURVES (HS5A THRU HS5M)
FIG.1- MAXIMUM FORWARD CURRENT DERATING
CURVE
6.0
AVERAGE FORWARD CURRENT. (A)
Single Phase
Half Wave 60Hz
Resistive or
Inductive Load
0.375" (9.5mm)
Lead Length
FIG.2- TYPICAL REVERSE CHARACTERISTICS
1000
5.0
4.0
INSTANTANEOUS REVERSE CURRENT. ( A)
100
Tj=100
0
C
3.0
2.0
10
Tj=25
0
C
1.0
0
0
25
50
75
100
125
O
150
175
AMBIENT TEMPERATURE. ( C)
1
FIG.3- MAXIMUM NON-REPETITIVE FORWARD SURGE
CURRENT
300
PEAK FORWARD SURGE CURRENT. (A)
0.1
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLT
AGE. (%)
200
100
FIG.5- TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
100
0
NUMBER OF CYCLES AT 60Hz
INSTANTANEOUS FORWARD CURRENT. (A)
Tj=25
0
C
10
FIG.4- TYPICAL JUNCTION CAPACIT
ANCE
175
150
JUNCTION CAPACITANCE.(pF)
125
100
75
50
25
0
0.1
0.5
1
2
5
10
20
50
100 200
500 1000
REVERSE VOLTAGE. (V)
HS
5G
HS
1
0.1
0.01
0
0.2
0.4
0.6
0.8
1.0
HS
5A
-H
HS
1.2
1
10
100
1000
S5
D
5J
-H
S5
M
HS
5J-
5A-
HS
5G
HS
5M
1.4
FORWARD VOLT
AGE. (V)
FIG.6- REVERSE RECOVERY TIME CHARACTERISTIC AND TEST CIRCUIT DIAGRAM
50W
NONINDUCTIVE
10W
NONINDUCTIVE
+0.5A
(-)
DUT
(+)
50Vdc
(approx)
(-)
PULSE
GENERATOR
(NOTE 2)
1W
NON
INDUCTIVE
OSCILLOSCOPE
(NOTE 1)
(+)
0
-0.25A
trr
NOTES: 1. Rise Time=7ns max. Input Impedance=
NOTES: 1. 1 megohm 22pf
2. Rise Time=10ns max. Sourse Impedance=
2. 50 ohms
-1.0A
1cm
SET TIME BASE FOR
5/ 10ns/ cm
