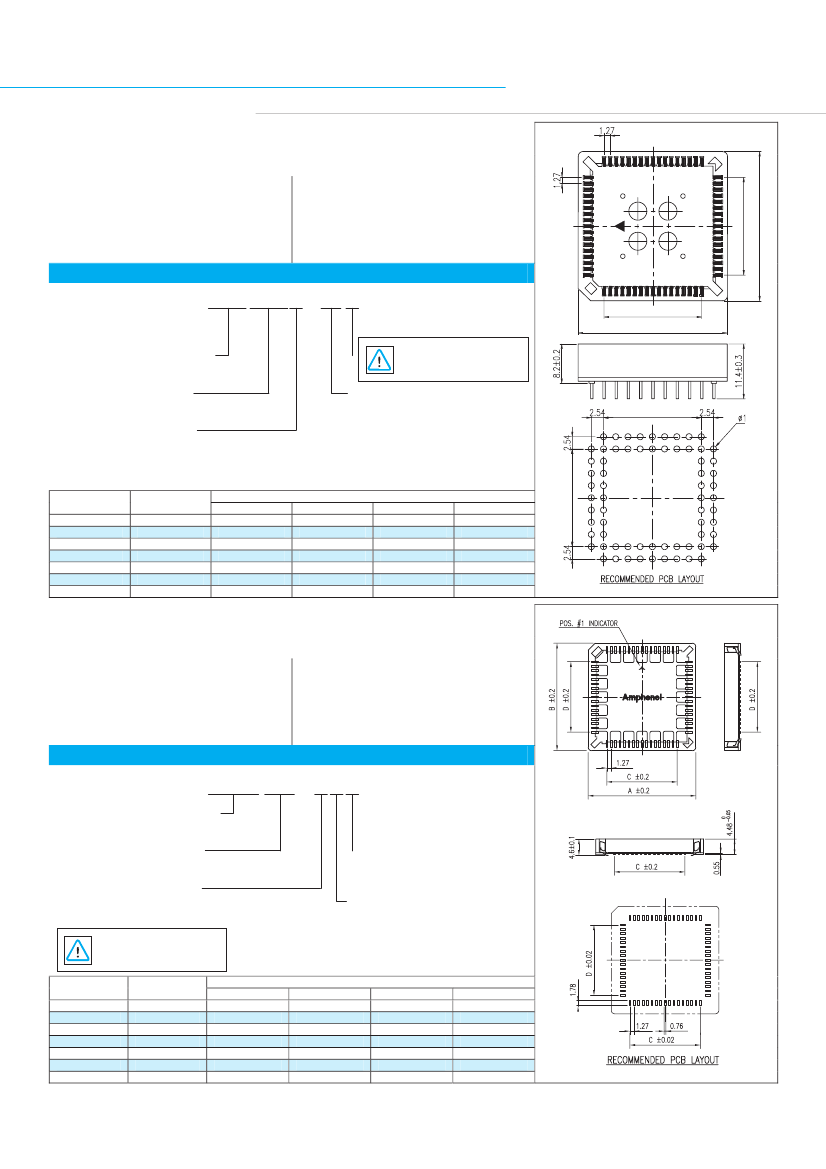

Amphenol
IC Socket Interconnects
G851
Materials
Housing
Contacts
– 94V-0 thermoplastic
– P/B with 50µ” Ni
– 1A
– 250VAC/rms 60Hz
PLCC Socket Connectors
Durability
Gold Flash
100µ” Tin/lead
– 75 cycles
– 100 cycles
D
B
Through-hole PLCC sockets molded from glass filled thermoplastics for re-flow soldering.
Electrical
Current
Voltage
Part Number System:
G851 XXX X 1 XX X
PLCC SOCKET CONNECTOR
Through Hole 2.54mm pitch
NUMBER OF POSITIONS
See Table below
INSULATOR MATERIAL
0: PPS
1: PBT
PNS-8511 Rev.A
C
A
Suffix may be added to Part Number.
This Suffix is for Internal use mainly.
Additional Suffix ‘EU’ or ‘LF’ may be
added for RoHS compliant product.
CONTACT FINISH
05: Tin/Lead 100µ”
10: Selected Gold Flash
C
No. of
Positions
28
32
44
52
68
84
100
Part Number
Code
028
032
044
052
068
084
100
Dimensions
A
18.30
17.90
23.45
25.85
30.85
36.00
42.00
B
18.30
20.50
23.45
25.85
30.85
36.00
42.00
C
7.62
7.62
12.70
15.24
20.32
25.40
30.48
D
7.62
10.16
12.70
15.24
20.32
25.40
30.48
D
PLCC-G8510680105K-09 Rev. A
G851S
Materials
Housing
Contacts
SMT PLCC Socket Connectors
Durability
– 94V-0
– Ph Br with 50µ” Ni
– 1A
– 250VAC/rms 60Hz
100µ” Tin/lead
– 100 cycles
Surface mount PLCC sockets, available in various plastics.
Electrical
Current
Voltage
Part Number System:
G851S XXX 1 X X X
PLCC SOCKET CONNECTOR
Surface Mount
NUMBER OF POSITIONS
See Table below
CONNECTOR HEIGHT
0: Standard (4.3mm, as per diagrams)
1: Low Profile (Request diagrams)
Suffix may be added to Part Number.
This Suffix is for Internal use mainly.
Additional Suffix ‘EU’ or ‘LF’ may be
added for RoHS compliant product.
PACKAGING OPTION
0: Tape Reel
1: Tube
POLARIZATION PEGS
0: None
1: With Polarization Pegs
PNS-851S Rev.B
No. of
Positions
20
28
32
44
52
68
84
Part Number
Code
020
028
032
044
052
068
084
Dimensions
A
15.65
18.18
18.18
23.28
25.84
30.95
36.00
B
15.65
18.18
18.18
23.28
25.84
30.95
36.00
C
5.08
7.62
7.62
12.70
15.24
20.32
25.40
D
5.08
7.62
10.16
12.70
15.24
20.32
25.40
PLCC-G851SXX0-09 Rev. B
P-2
