801-43-050-10-007000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 801-43-050-10-007000

801-43-050-10-007000: DescriptionBoard Connector; CategoryThe connector The connector; File Size228KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

801-43-050-10-007000 Overview

Board Connector

801-43-050-10-007000 Parametric

Parameter Name	Attribute value
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Manufacturer's serial number	801

Preview

Download Datasheet

View All

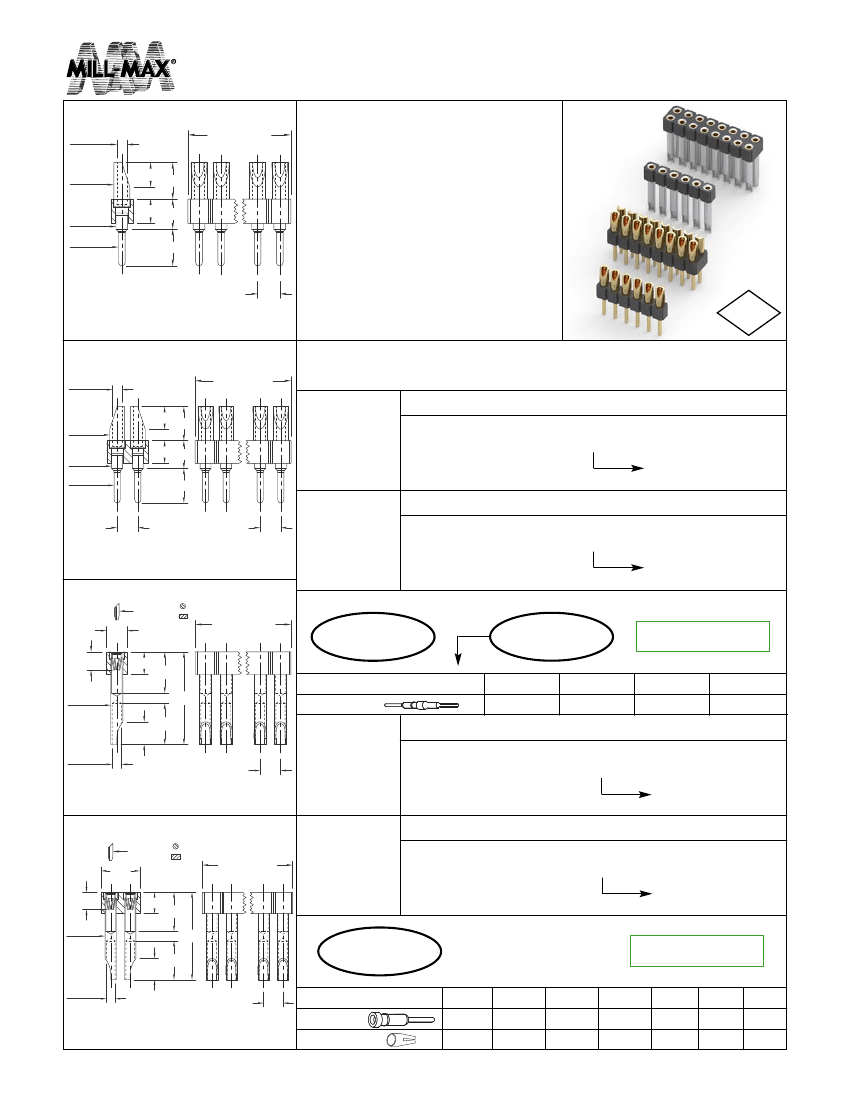

INTERCONNECTS

.100” Grid Solder Cup Headers and Sockets

Single and Double Row

.045 DIA.

HOLE

.110

Number

of Pins

X .100"

Series 800, 801,

802, 803

•

Series 800 & 802 use MM #1107 pins.

See page 185 for details.

•

Series 801 & 803 use MM #1134 pin

receptacles and accept pin diameters

from .025”-.037” and .025” square pins.

See page 148 for details.

•

Series 801 & 803 receptacles use Hi-Rel,

4 finger BeCu #47 contacts rated at

4.5 amps. See page 222 for details.

.072 DIA.

.165

.110

.053 DIA.

.030 DIA.

.135

.167

.100

•

Solder cups are pre-aligned.

•

Insulators are high temp. thermoplastic.

2002/95/EC

Fig. 1

RoHS

.045 DIA.

HOLE

.110

.072 DIA.

Number of Pins

X .100" / 2

Ordering Information

Series 800...007

Solder Cup / Solder Tail

.165

.053 DIA.

.030 DIA.

.110 .135

Fig. 1

800-XX-0_ _-10-007000

Specify # of pins

02-64

Solder Cup / Solder Tail

.167

Series 802...007

.100

Fig. 2

802-XX-0 _ _-10-007000

Specify # of pins

04-64

Fig. 2

.025-.037

.025 * .025

.100

Number of Pins

X .100"

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

XX=Plating Code

See Below

For RoHS compliance

select



plating code.

.089

.110

.200

SPECIFY PLATING CODE XX=

.059 DIA.

.200

.110

.045 DIA.

HOLE

.450



10μ” Au



200μ” Sn

Pin Plating

Series 801...007

.100

Solder Cup Sockets

Fig. 3

801-XX-0 _ _-10-007000

Specify # of pins

Series 803...007

02-64

Solder Cup Sockets

Fig. 3

.025-.037

.025

.200

Number

of Pins

X .100" /

Fig. 4

803-XX-0 _ _-10-007000

Specify # of pins

04-64

For RoHS compliance

select



plating code.

.089

.110

.200

.059 DIA.

.450

.200

.110

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

.045 DIA.

HOLE

.100

SPECIFY PLATING CODE XX=



10µ” Au

30µ” Au



200µ”Sn

30µ” Au

Fig. 4

Sleeve (Pin)

Contact (Clip)

w w w. m i l l - m a x . c o m

85.2



516-922-6000
