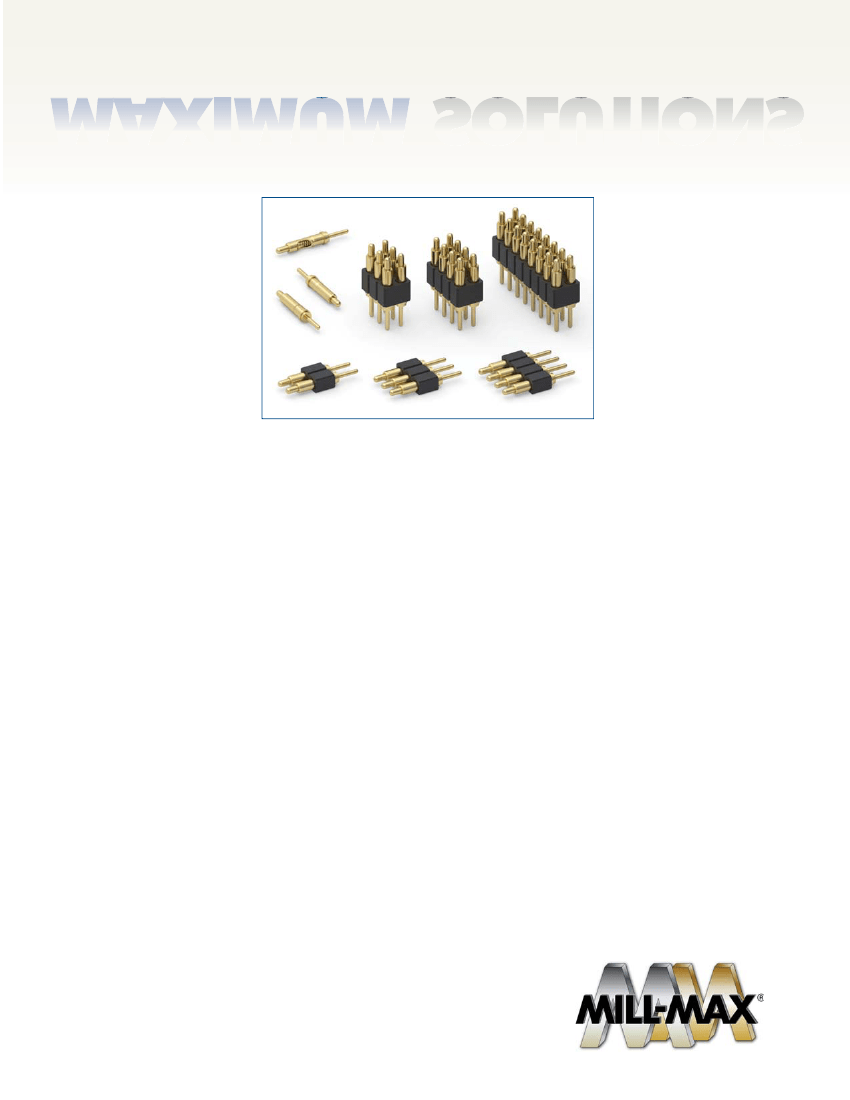

New Through-Hole Version 2mm Pitch Spring-Loaded Connectors
Mill-Max has added a through-hole version of 2mm pitch spring-loaded connectors to complement the series’
surface mount version. As always, real estate is at a premium in electronic packaging with designers demanding
tighter pitch interconnects that deliver high quality performance. These spring-loaded connectors (SLC’s) are an
appealing option combining both durability and space saving qualities. For board-to-board or device-to-board
connections with the additional security of through-hole mounting, these 2mm spring-loaded connectors are a
practical solution.
The connectors feature spring pins with a working travel of .0275” (0,7mm) and a maximum travel of .055” (1,4mm).
The initial, uncompressed, height of the connectors from the board surface is .295” (7,5mm). Mill-Max also offers
standard 2 mm pitch mating target connectors in through-hole and surface mount varieties, each with the option
of a flat or concave face. When mated with
through-hole target connectors,
at mid-stroke, a board to board height
of .425” (10,8 mm) is achieved; .408” (10,35 mm) with the
SMT targets.
The connectors feature a solder tail diameter
of .022” (,56mm) and a plunger diameter of .032” (,81mm) allowing adequate space for laying out the PCB holes,
pads and traces on both the solder and mating sides of the connectors.
These new through-hole SLC’s are offered in single row, series
836-22-0XX-10-001101
and double row, series
838-22-0XX-10-001101.
Standard availability is 2 to 50 positions for single row and 4 to 100 positions for the double
row. Both series are designed for manual placement into Ø .030±.003” plated through-holes in the circuit board
prior to hand, wave or reflow soldering.
The new 2mm pitch spring-loaded connectors maintain the quality and reliability of current Mill-Max spring pin
connectors by utilizing the same precision-machined components and internal spring components. Gold-plated
components and springs ensure the highest conductivity, corrosion resistance and durability. The spring-loaded
pins used in these connectors have a current rating of 2 amps continuous use (3 amps maximum.) The high tem-
perature plastic housing is suitable for all soldering processes and the connectors are RoHS compliant.
For more information, please visit:
www.mill-max.com/PR670.
(11/16 -- PR670)
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, Oyster Bay, NY 11771
516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
SPRING-LOADED
CONNECTORS
Modular
contacts
for use on 2mm grid, supplied in single and double row
contact
strips
Precision-machined piston / base and gold-plated
components
assure a
1,000,000 cycle
life
durability
Pistons have a .0275” mid. stroke and a .055” max. stroke
Low resistance, high
current contacts
are rated at 2 amps
continuous,
3 amps peak
High temperature thermoplastic insulators are suitable for wave and reflow processes
Both 836
&
838 series
contact
strips are designed for manual placement into Ø .030±.003”
plated through-holes in the
circuit
board prior to soldering
SINGLE
ROW
Series
836
ORDERING INFORMATION
Single
Row
Series
836
836-22-0XX-10-001101
Specify number of contacts
01-50
Stroke
Double Row
Series
838
838-22-XXX-10-001101
Specify number of contacts
04-100

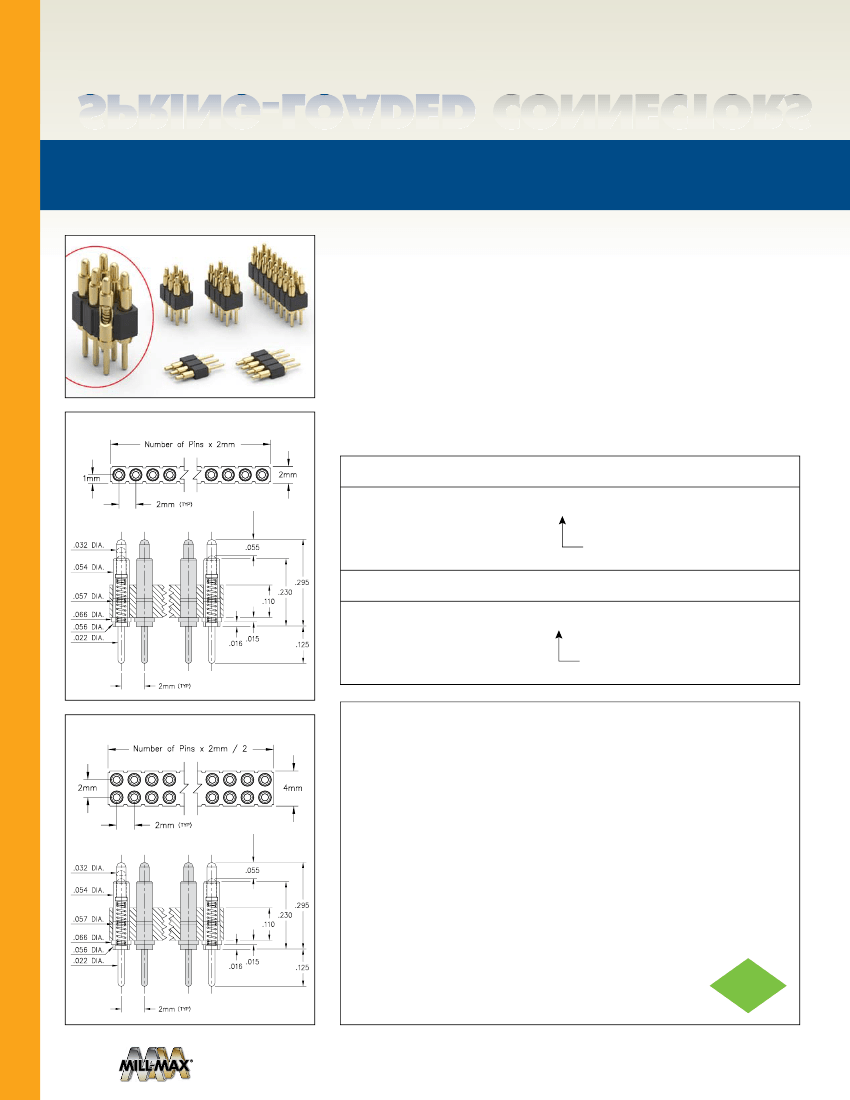

Technical Specifications
DOUBLE ROW
Series
838
PAGE 19.7 | SPRING-LOADED CONNECTORS
Materials:
Contact piston
&
base: Machined
copper
alloy plated 20 ” gold over
100
” nickel
Spring: Beryllium
copper-plated 10
” gold
Insulator:
High temperature thermoplastic, rated
UL94 V-0
Mechanical:
Spring force
@
initial height: 25 grams
Spring force
@
mid stroke (.0275”): 60 grams
Durability: 1,000,000 cycles
Electrical:
Voltage
rating:
100Vrms/150Vdc
Current rating: 2A (continous), 3A (peak) per
contact
Contact resistance: 20m max.
Insulation
resistance:
10,000M
min.
Dielectric
strength: 700Vrms min.
Capacitance:
1pF
max.
Stroke
RoHS - 2
2011/65/EU
