52120-0420 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52120-0420

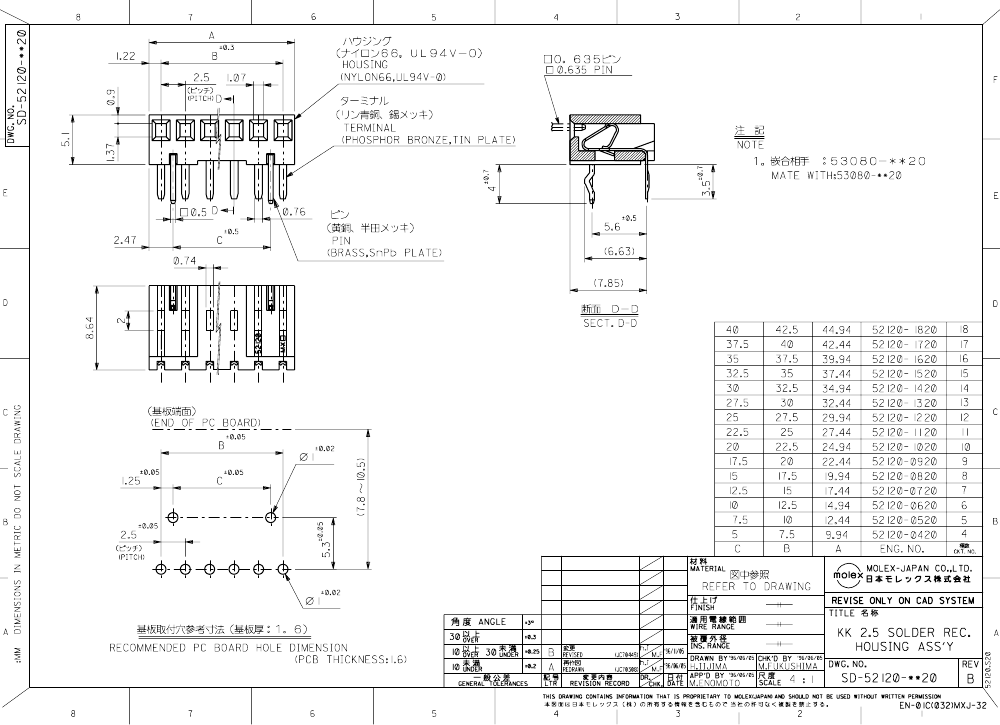

52120-0420: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Female, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size66KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

52120-0420 Overview

Board Connector, 4 Contact(s), 1 Row(s), Female, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Plug

52120-0420 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknow
ECCN code	EAR99
Board mount options	SOLDERABLE RETENTION CLIPS
body width	0.201 inch
subject depth	0.34 inch
body length	0.391 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
insulator material	NYLON
Manufacturer's serial number	52120
Plug contact pitch	0.098 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	4

Preview

Download Datasheet

View All

52120-0420 Related Products

	52120-0420	52120-1520	52120-1820
Description	Board Connector, 4 Contact(s), 1 Row(s), Female, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Plug	Board Connector, 15 Contact(s), 1 Row(s), Female, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Plug	Board Connector, 18 Contact(s), 1 Row(s), Female, Right Angle, 0.098 inch Pitch, Solder Terminal, Locking, Plug
Maker	Molex	Molex	Molex
Reach Compliance Code	unknow	unknown	unknow
ECCN code	EAR99	EAR99	EAR99
Board mount options	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS	SOLDERABLE RETENTION CLIPS
body width	0.201 inch	0.201 inch	0.201 inch
subject depth	0.34 inch	0.34 inch	0.34 inch
body length	0.391 inch	1.474 inch	1.769 inch
Body/casing type	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
insulator material	NYLON	NYLON	NYLON
Manufacturer's serial number	52120	52120	52120
Plug contact pitch	0.098 inch	0.098 inch	0.098 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	1	1	1
Number of rows loaded	1	1	1
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.138 inch	0.138 inch	0.138 inch
Terminal pitch	2.4892 mm	2.4892 mm	2.4892 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	4	15	18
