87914-1235 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87914-1235

87914-1235: DescriptionHeaders and Edge Type Connector,; CategoryThe connector The connector; File Size2MB，49 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

87914-1235 Overview

Headers and Edge Type Connector,

87914-1235 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknow
ECCN code	EAR99

Preview

Download Datasheet

View All

⌀

1.14

0.05

TYP

0.38

CKT 1

2.54

0.05

TYP

NON-ACCUM.

CKT 1

2.54

0.05

2.54 TYP

4.98

CKT 2

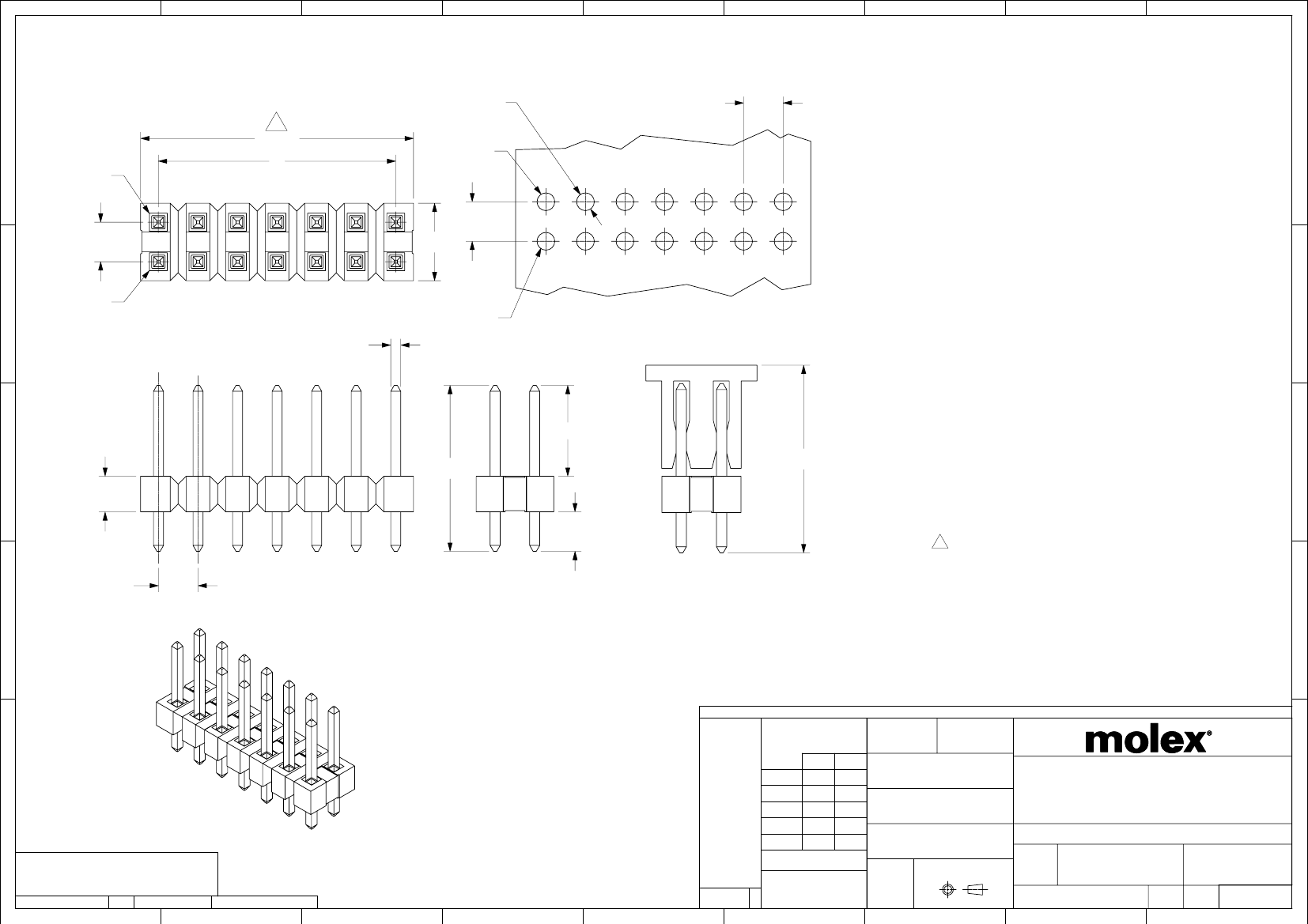

RECOMMENDED P.C.B HOLE LAYOUT

0.64

0.05

SQ TYP

2.29

2.54

TYP

NOTES:

1. MATERIAL:

HSG: LCP, GLASS-FILLED, UL94V-0,

COLOR: BLACK

PIN: 0.64MM SQ PIN, COPPER ALLOY

2. PLATING TYPE:

(1) : 0.0254 µm GOLD FLASH OVER

1.25 µm MIN. NICKEL OVERALL.

(2) : 0.025 µm MIN. GOLD PLATE ON CONTACT AND

1.88 µm MIN. TIN ON SOLDERTAIL OVER

1.25 µm MIN. NICKEL OVERALL.

(3) : 0.25 µm MIN. GOLD PLATE ON CONTACT AND

1.88 µm MIN. TIN ON SOLDERTAIL OVER

1.25 µm MIN. NICKEL OVERALL.

(4) : 0.38 µm MIN. GOLD PLATE ON CONTACT AND

1.88 µm MIN. TIN ON SOLDERTAIL OVER

1.25 µm MIN. NICKEL OVERALL.

(5) : 0.75 µm MIN. GOLD PLATE ON CONTACT AND

1.88 µm MIN. TIN ON SOLDERTAIL OVER

1.25 µm MIN. NICKEL OVERALL

(6) : 2.50 µm MIN. TIN OVER 1.25 m MIN. NICKEL OVERALL.

(7) : 0.38 µm MIN. GOLD PLATE ON CONTACT AND

2.50 µm MIN. TIN ON SOLDERTAIL OVER

1.25 µm MIN. NICKEL OVERALL.

(8) : 0.38 µm MIN. GOLD PLATE ON CONTACT AND

0.05 µm MIN. GOLD FLASH ON SOLDERTAIL OVER

1.25 µm MIN. NICKEL OVERALL.

(9) : 0.05 - 0.25 µm MIN. GOLD FLASH OVER

1.25 µm MIN. NICKEL OVERALL.

3. PIN PUSHOUT FORCE: 1KG MIN IN EITHER DIRECTION

4. THE ABOVE 14 CKT IS FOR ILLUSTRATION PURPOSE ONLY.

5. FOR PACKAGING OPTION PLEASE REFER TO THE TABLE.

6. RECOMMENDED PCB THICKNESS 1.60MM.

7. PRODUCT SPECIFICATION: PS-87920-019

8. WAFER TO BE FLAT WITHIN 0.003mm/mm

. IRREGULAR CIRCUIT CUTOFF WITHIN BREAKAWAY SECTION

IS PERMISSIBLE. CUTTING OR CHIPPING OF THE MAIN

BODY IS NOT ACCEPTABLE.

10. PARTS ARE NOT STACKABLE ON 2.54 CENTER

11. CAP TO BE PLACED AS CENTRAL OF PART AS POSSIBLE

WITH THE TOP SURFACE FLAT FOR PICK AND PLACE.

12. PACKAGING SPECIFICATION:

TRAY: PK-89990-489

BULK: PK-89990-491

TUBE: PK-87914-300

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

2017/03/17

2017/05/09

DIMENSION UNITS

SCALE

GENERAL TOLERANCES

(UNLESS SPECIFIED)

DRWN BY

DATE

NTS

INCH

MIGRATED TO NX

4 PLACES

3 PLACES

2 PLACES

0.2

KCHO

CHK'D BY

DATE

2004/11/05

2004/12/08

DATE

REVISION OF DRAWING MAY BE

CHANGED DURING FINAL RELEASED

FOR PRODUCTION.

RELEASE STATUS

FORMAT: Met-lega-master-tb-prod-A3

REVISION: C

DATE: 2016/02/04

2.54MM PITCH

DUAL ROW HEADER SINGLE WAFER, T/H

PRODUCT CUSTOMER DRAWING

SERIES

MATERIAL NUMBER

CUSTOMER

PTLIM

APPR BY

EC NO:

114031

DRWN:

FCSOO

CHK'D:

APPR:

KHLIM

1 PLACES

0 PLACES

MLONG

DRAWING SIZE

2010/09/06

THIRD ANGLE PROJECTION

ANGULAR TOL

3.0

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

87914

DOCUMENT NUMBER

SEE TABLE

GENERAL MARKET

DOC TYPE DOC PART

SHEET NUMBER

RELEASE DATE

D18

REV

SD-87914-013

PSD

000

1 OF 45

87914-1235 Related Products

	87914-1235	87914-1036
Description	Headers and Edge Type Connector,	Headers and Edge Type Connector,
Maker	Molex	Molex
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
