3530N681J602LE

Description
Ceramic Capacitor, Ceramic, 6000V, C0G, -/+30ppm/Cel TC, 0.00068uF, 5045
CategoryPassive components    capacitor
File Size388KB，3 Pages
ManufacturerNovacap
Websitehttps://www.novacap.eu/en/
Download Datasheet Parametric Compare View All

3530N681J602LE Overview

Ceramic Capacitor, Ceramic, 6000V, C0G, -/+30ppm/Cel TC, 0.00068uF, 5045

3530N681J602LE Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerNovacap
Reach Compliance Codecompli

Preview

Download Datasheet

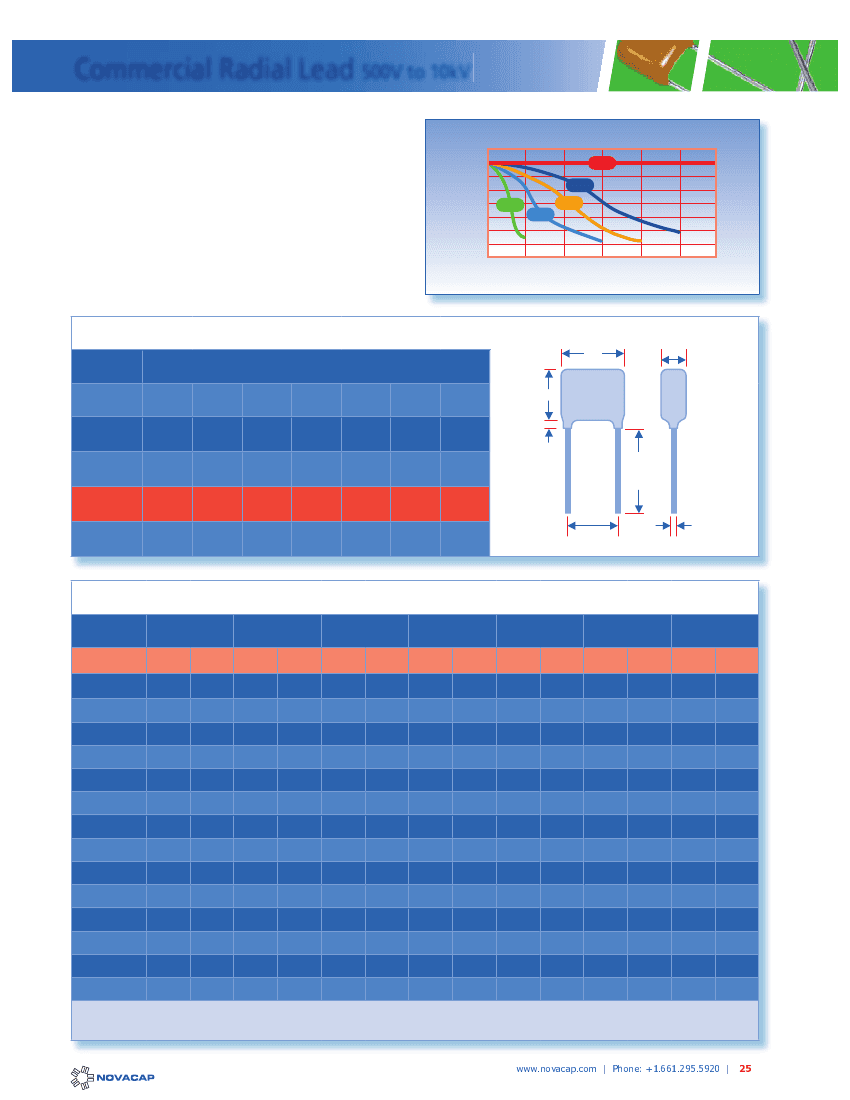

Commercial Radial Lead
50V to 5kV
RoHS compliant interconnects, small case size, Radial Leaded
Capacitors available in C0G, X7R and X8R dielectrics. The
conformal coating and lead mounting style provide a rugged
configuration for optimum performance. Units exhibit high
capacitance efficiency per KV rating and find application in
commercial/industrial use up to 5kV, such as power supplies
and voltage multiplier circuits. They are offered in bulk pack or
taped form, Ref EIA-RS468, making them suitable for automatic
insertion.
For dielectric characteristics see pages 4 & 6.
For capacitance tolerances available see page 26.
For ordering information see page 26.

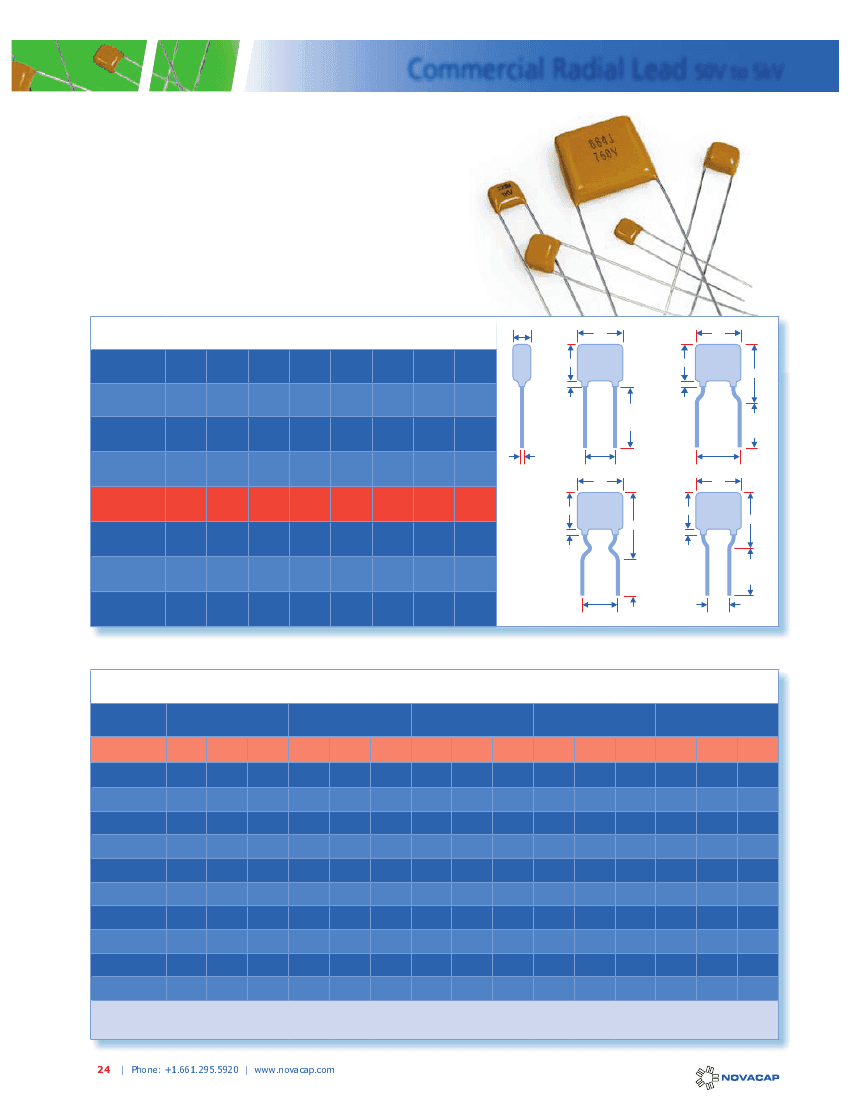

Dimensions - inches/mm
Lead Style
Size
Wmax
inches:
mm:
T
W
W
LE
LD
LR
LD
LQ
LD
LE
LB
H
LE
H
LD/LQ
HS
0805 0805 1206 1206 1206 1210 1812 2225
0.150
3.81
0.150
3.81
0.100
2.54
0.200
5.08
0.100
2.54
0.51
0.150
3.81
0.150
3.81
0.100
2.54
0.250
6.35
0.200
5.08
0.020
0.51
0.200
5.08
0.150
3.81
0.125
3.18
0.250
6.35
0.100
2.54
0.020
0.51
0.200
5.08
0.150
3.81
0.125
3.18
0.250
6.35
0.200
5.08
0.020
0.51
0.200
5.08
0.150
3.81
0.125
3.18
0.250
6.35
0.250
6.35
0.020
0.51
0.200
5.08
0.200
5.08
0.175
4.45
0.300
7.62
0.200
5.08
0.020
0.51
0.300
7.62
0.250
6.35
0.200
5.08
0.350
8.89
0.200
5.08
0.025
0.64
0.350
8.89
0.350
8.89
0.200
5.08
0.500
12.70
0.200
5.08
0.025
0.64
WD
0.060
(1.50)
Max
1.000
(25.40)
Min
0.060
(1.50)
Max
1.000
(25.40)
Min
S
S
Hmax
inches:
mm:
W
W
Tmax
inches:
mm:
H
LB
HS
H
LR
HS
HSmax
inches:
mm:
S
0.060
(1.50)
Max
inches ±0.02:
mm ±0.51:
1.000
(25.40)
Min
S
0.060
(1.50)
Max
1.000
(25.40)
Min
WD
inches ±0.02:
0.020
mm ±0.51:
S
Capacitance and Voltage Selection
Size
Min cap.
100
C0G
0805
121
X7R
104
683
273
123
272
1206
121
X8R
473
333
183
562
1210
221
X8R
154
104
333
153
1812
331
X8R
274
184
823
393
2225
221
X8R
564
394
154
563
100
C0G
123
103
392
182
102
391
121
X7R
274
184
683
223
682
102
100
C0G
223
183
822
472
222
821
121
X7R
474
334
124
563
153
222
101
C0G
393
273
223
123
822
272
122
821
151
X7R
125
824
394
154
473
682
272
122
101
C0G
124
823
473
273
153
392
182
102
561
471
X7R
185
155
824
334
104
153
562
152
102
102
X8R
125
105
564
154
50V
100V
250V
500V
1kV
2kV
3kV
4kV
5kV
392
392
152
821
471
Note:
Maximum capacitance values are shown above as 3 digit code: 2 significant figures followed by the no. of zeros
e.g. 183 = 18,000pF. R denotes decimal e.g. 2R7 = 2.7pF.
"
¥

!



¥
¦




¢














©
¨
§
¦
¥
¤
£
¢
¡


3530N681J602LE Related Products
