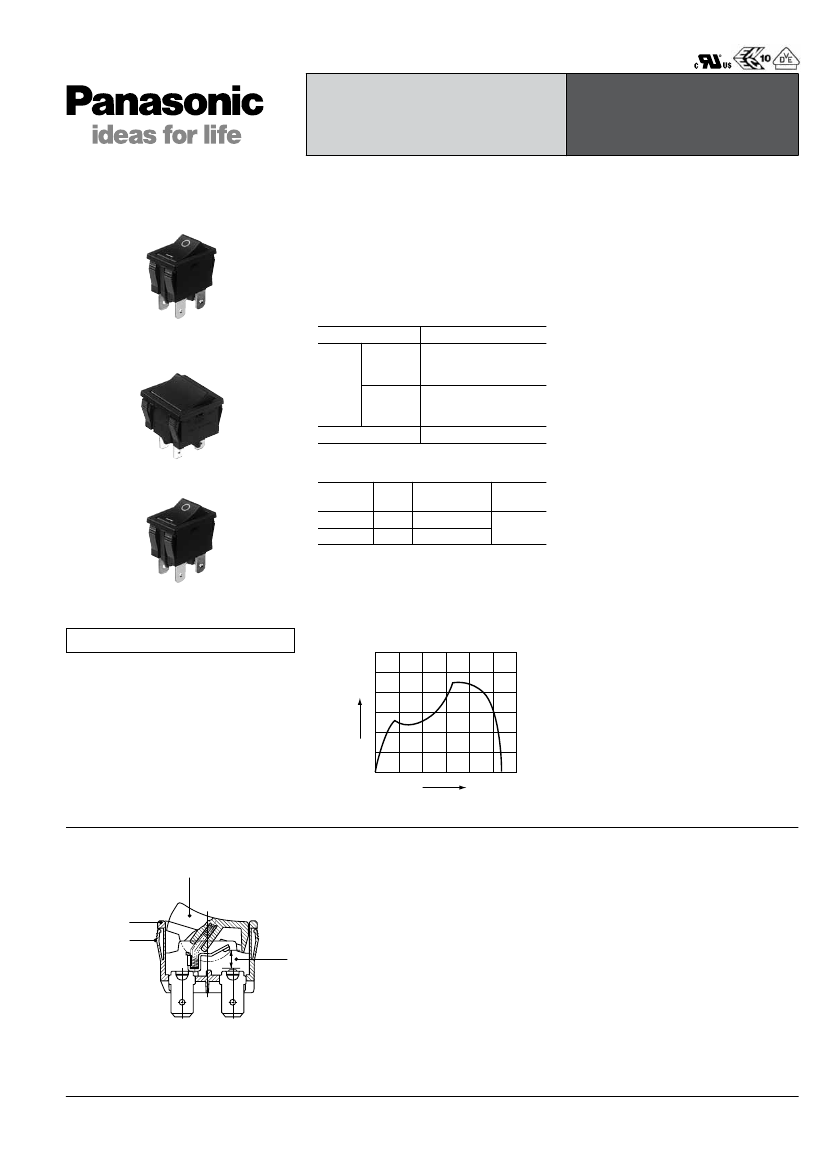

” indication is visible on the side of the actuator,
it indicates that the switch is in the “ON” state.)
With
I O
indications:
The
I
and
O
symbols are located on each side, respectively.
With
I
indications:
The
I
symbols is located on the side.
PRODUCT TYPES
1. 10 A type
1) Standard actuator type
(1) Without indication on actuators
Terminal shape
.187 Quick-connect terminal
Soldering terminal
PC board terminal
PC board right angle terminal
PC board left angle terminal
Poles
1-pole
2-pole
1-pole
2-pole
1-pole
2-pole
1-pole
2-pole
1-pole
2-pole
Operating types
Part No.
Without indication
AJ7100∗F
AJ7200∗F
AJ7110∗F
AJ7210∗F
AJ7120∗F
AJ7220∗F
AJ7130∗F
AJ7230∗F
AJ7140∗F
AJ7240∗F
ON-OFF
Remarks: 1. A letter indicating the actuator color is entered in place of asterisk. (W: White, B: Black, R: Red, Z: Dark gray, H: Light gray, L: Blue, G: Green, and Y: Yellow).
Standard flange color is black. For other colors type, they are custom ordered. For requests of other flange color, please enter the following letter before the “F”
in the part number. (W: White, R: Red, Z: Dark gray, H: Light gray, L: Blue, G: Green and Y: Yellow)
2. Long guard type is available for .187 Quick-connect terminal and soldering terminal type. When ordering, please add a “T” before the “F” at the end of the part
number.
3. The color of indication on the actuator:
• For white actuator: black
• For others: white
4. They come with a stamp indicating international standards without your request.
5. Note that the position of the
I
mark on the flange is used as a reference for left angle and right angle terminals as shown in the diagram below. This also applies
Remarks: 1. A letter indicating the actuator color is entered in place of asterisk. (W: White, B: Black, R: Red, Z: Dark gray, H: Light gray, L: Blue, G: Green, and Y: Yellow).
Standard flange color is black. For other colors type, they are custom ordered. For requests of other flange color, please enter the following letter before the “F”
in the part number. (W: White, R: Red, Z: Dark gray, H: Light gray, L: Blue, G: Green and Y: Yellow)
2. Long guard type is available for .187 Quick-connect terminal and soldering terminal type. When ordering, please add a “T” before the “F” at the end of the part
number.
3. The color of indication on the actuator:
• For white actuator: black
• For others: white
4. They come with a stamp indicating international standards without your request.
5. Note that the position of the
I
mark on the flange is used as a reference for left angle and right angle terminals as shown in the diagram below. This also applies
to the 6A type.
I
mark
I
mark
Right angle terminal
Left angle terminal
2) Wide actuator type
(1) Without indication on actuators
Terminal shape
.187 Quick-connect terminal
Soldering terminal
PC board terminal
Poles
1-pole
2-pole
1-pole
2-pole
1-pole
2-pole
ON-OFF
Operating types
Part No.
Without indication
AJ7W100∗F
AJ7W200∗F
AJ7W110∗F
AJ7W210∗F
AJ7W120∗F
AJ7W220∗F
(2) With indication on actuators
Terminal shape
.187 Quick-connect terminal
Soldering terminal
PC board terminal
Poles
1-pole
2-pole
1-pole
2-pole
1-pole
2-pole
Operating types
Part No.
With
I O
indication
AJ7W101∗F
AJ7W201∗F
AJ7W111∗F
AJ7W211∗F
AJ7W121∗F
AJ7W221∗F
With
— O
indication
AJ7W102∗F
AJ7W202∗F
AJ7W112∗F
AJ7W212∗F
AJ7W122∗F
AJ7W222∗F
ON-OFF
Remarks: 1. A letter indicating the actuator color is entered in place of asterisk. (W: White, B: Black, R: Red, Z: Dark gray, H: Light gray, L: Blue, G: Green, and Y: Yellow).
Standard flange color is black. For other colors type, they are custom ordered. For requests of other flange color, please enter the following letter before the “F”
in the part number. (W: White, R: Red, Z: Dark gray, H: Light gray, L: Blue, G: Green and Y: Yellow)
2. The color of indication on the actuator:
• For white actuator: black
• For others: white
3. They come with a stamp indicating international standards without your request.
