5962R9568001V9A datasheet, PDF

5962R9568001V9A: DescriptionHC/UH SERIES, QUAD 2-INPUT AND GATE, UUC14, DIE-14; Categorylogic logic; File Size225KB，8 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

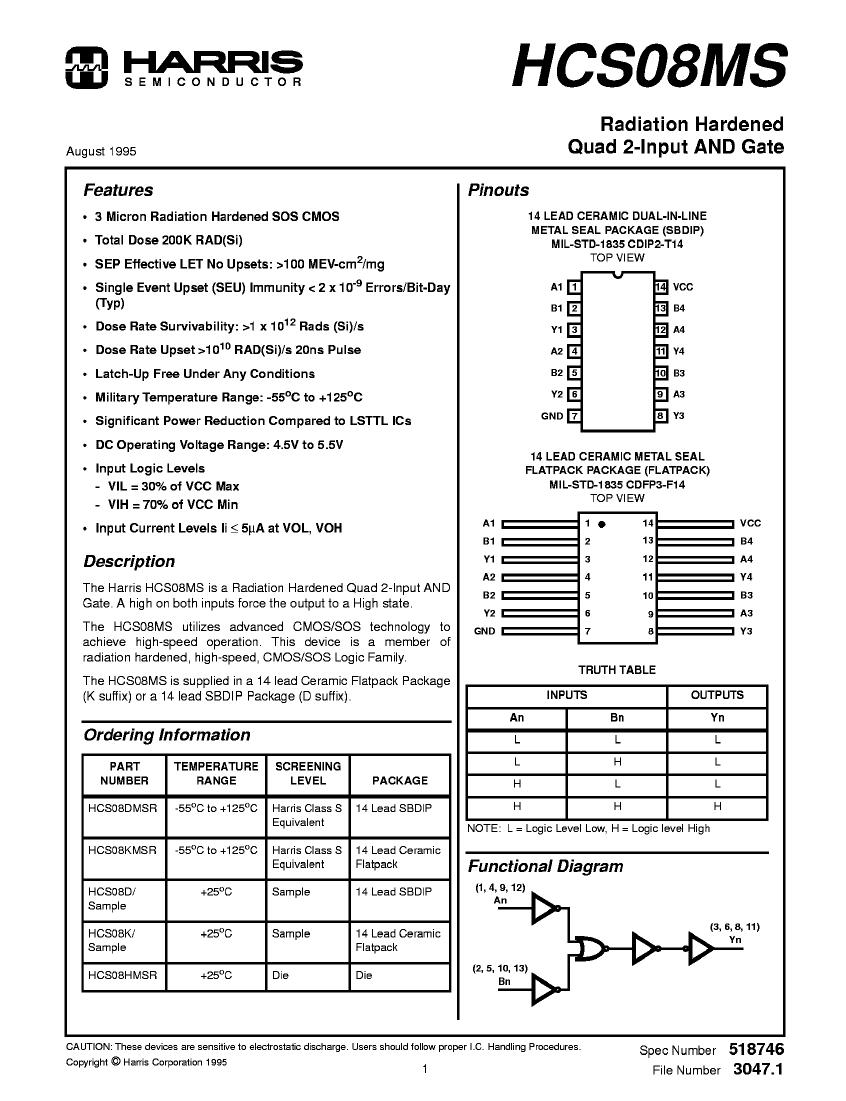

5962R9568001V9A Overview

HC/UH SERIES, QUAD 2-INPUT AND GATE, UUC14, DIE-14

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DIE
package instruction	DIE, DIE OR CHIP
Contacts	14
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	R-XUUC-N14
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	AND GATE
MaximumI(ol)	0.00005 A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Encapsulate equivalent code	DIE OR CHIP
Package shape	RECTANGULAR
Package form	UNCASED CHIP
power supply	5 V

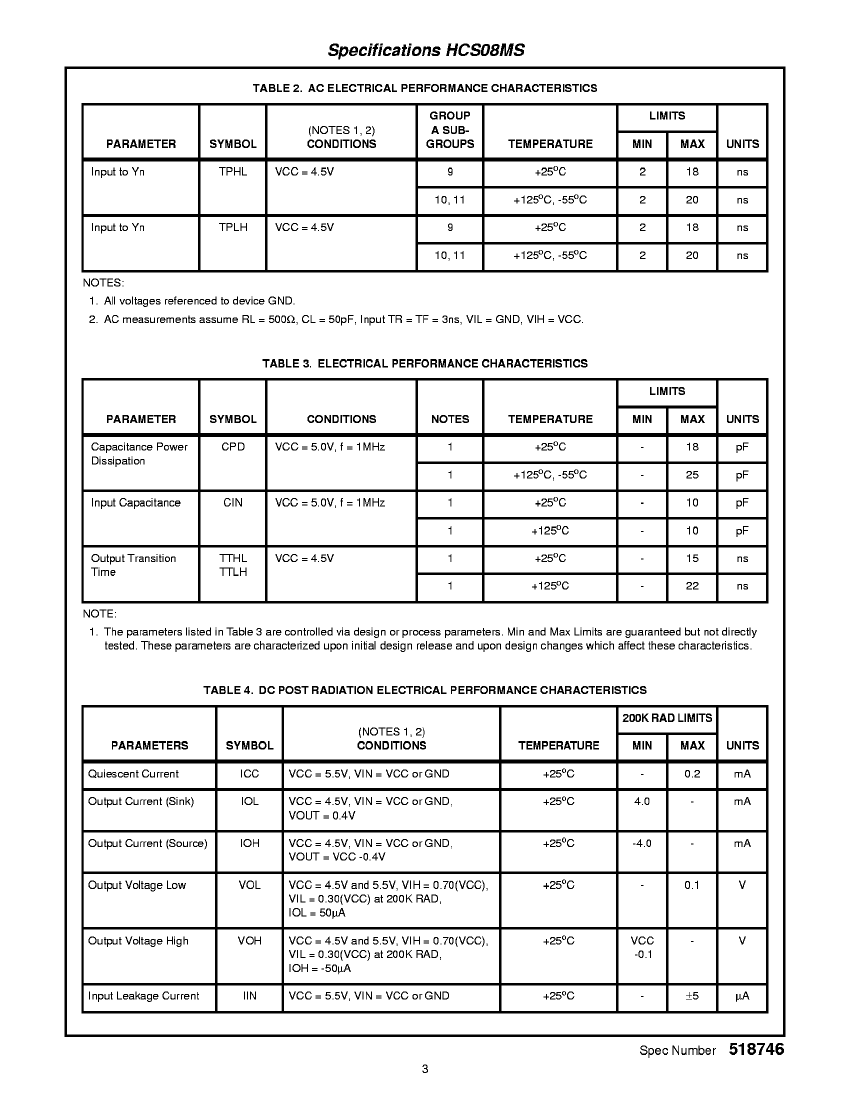

Prop。Delay @ Nom-Sup	20 ns
propagation delay (tpd)	18 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535V;38534K;883S
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	UPPER

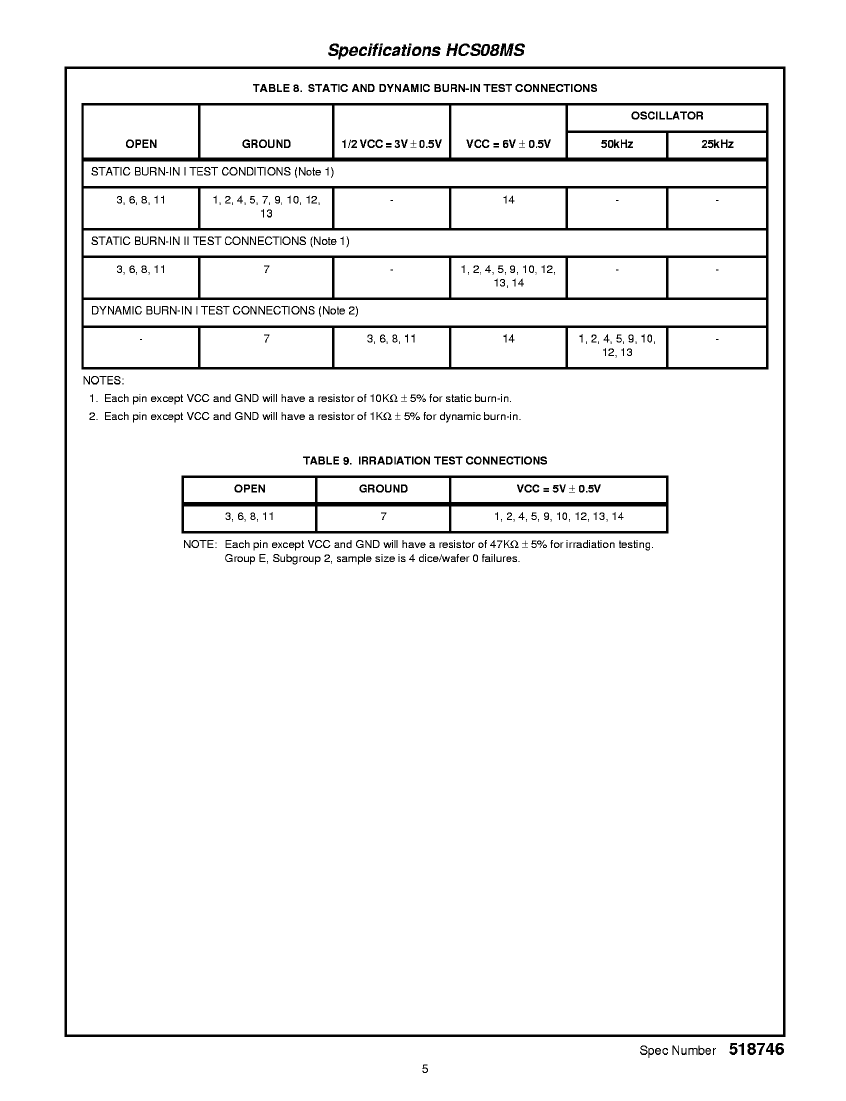

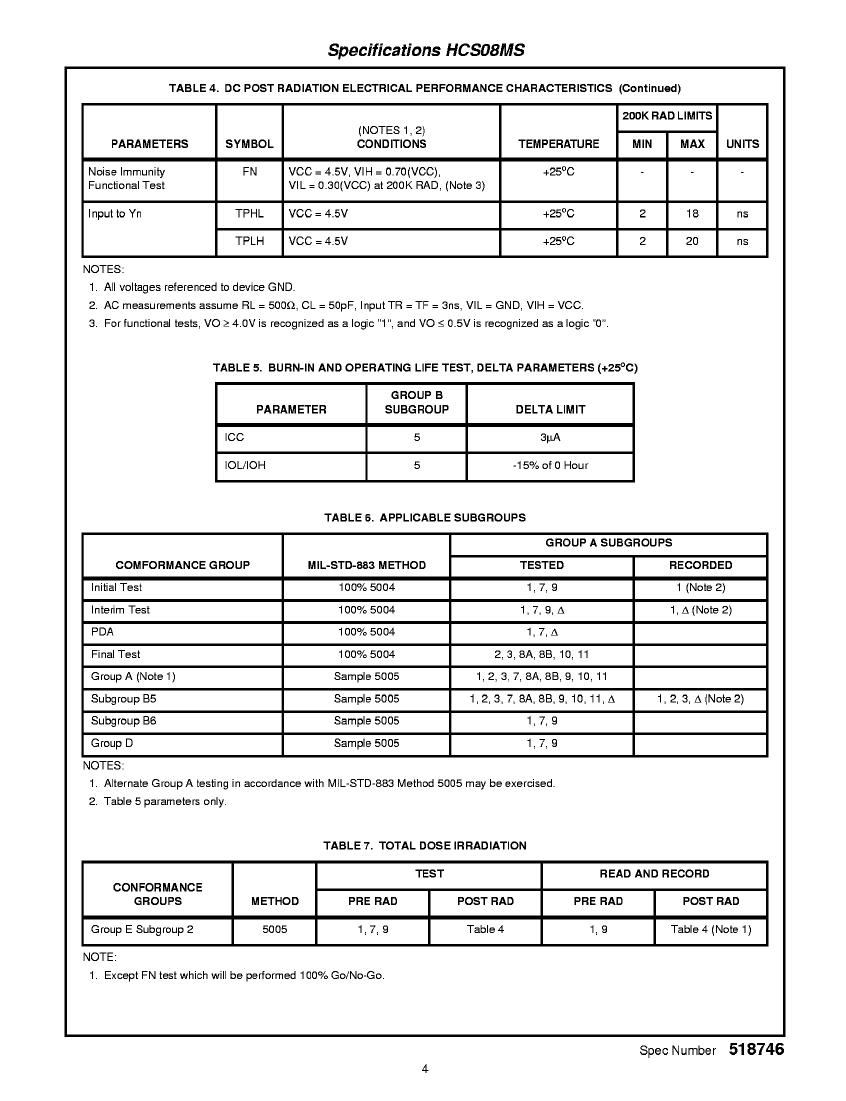

total dose	100k Rad(Si) V

	5962R9568001V9A
Description	HC/UH SERIES, QUAD 2-INPUT AND GATE, UUC14, DIE-14
Maker	Renesas Electronics Corporation
Parts packaging code	DIE
package instruction	DIE, DIE OR CHIP
Contacts	14
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	R-XUUC-N14
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	AND GATE
MaximumI(ol)	0.00005 A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIE
Encapsulate equivalent code	DIE OR CHIP
Package shape	RECTANGULAR
Package form	UNCASED CHIP
power supply	5 V
Prop。Delay @ Nom-Sup	20 ns
propagation delay (tpd)	18 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535V;38534K;883S
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	UPPER
total dose	100k Rad(Si) V
