5962R9674202QXX datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> 5962R9674202QXX

5962R9674202QXX: Description8-CHANNEL, SGL ENDED MULTIPLEXER, CDFP16, CERAMIC, DFP-16; CategoryAnalog mixed-signal IC The signal circuit; File Size53KB，3 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962R9674202QXX Overview

8-CHANNEL, SGL ENDED MULTIPLEXER, CDFP16, CERAMIC, DFP-16

5962R9674202QXX Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DFP
package instruction	DFP,
Contacts	16
Reach Compliance Code	compli
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-CDFP-F16
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	8
Number of functions	1
Number of terminals	16
Nominal off-state isolation	45 dB
Maximum on-state resistance (Ron)	1800 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Certification status	Not Qualified
Filter level	MIL-PRF-38535
Maximum seat height	2.92 mm
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	3000 ns
Maximum connection time	3000 ns
technology	CMOS
Temperature level	MILITARY
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
width	6.73 mm

Preview

Download Datasheet

View All

HS-508BRH

Data Sheet

December 1999

File Number

4824

Radiation Hardened 8 Channel CMOS

Analog Multiplexer with Overvoltage

Protection

The HS-508BRH is a dielectrically isolated, radiation

hardened, CMOS analog multiplexer incorporating an

important feature; it withstands analog input voltages much

greater than the supplies. This is essential in any system

where the analog inputs originate outside the equipment.

They can withstand a continuous input up to 10V greater than

either supply, which eliminates the possibility of damage when

supplies are off, but input signals are present. Equally

important, it can withstand brief input transient spikes of

several hundred volts; which otherwise would require complex

external protection networks. Necessarily, ON resistance is

somewhat higher than similar unprotected devices, but very

low leakage current combine to produce low errors.

Reference Application Notes 520 and 521 for further

information on the HS-508BRH multiplexer in general.

The HS-508BRH has been speciﬁcally designed to meet

exposure to radiation environments. Operation from -55

C to

125

C is guaranteed.

Features

• Electrically Screened to SMD # 5962-96742

• QML Qualiﬁed per MIL-PRF-38535 Requirements

• Radiation Environment

- Gamma Dose (γ) . . . . . . . . . . . . . . . . . 3 x 10

RAD(Si)

- Dielectrically Isolated Device Islands

- SEP >100 Mev-mg/cm

• Analog/Digital Overvoltage Protection

• ESD Rated to 3KV

• Fail Safe with Power Loss (No Latchup)

• Break-Before-Make Switching

• DTL/TTL and CMOS Compatible

• Analog Signal Range

. . . . . . . . . . . . . . . . . . . . . . . . . . . .±15V

• Fast Access Time

• Supply Current at 1MHz Address Toggle . . . . . .4mA (Typ)

• Standby Power . . . . . . . . . . . . . . . . . . . . . . . .7.5mW (Typ)

Speciﬁcations for Rad Hard QML devices are controlled

by the Defense Supply Center in Columbus (DSCC). The

SMD numbers listed here must be used when ordering.

Detailed Electrical Speciﬁcations for these devices are

contained in SMD 5962-96742. A “hot-link” is provided

on our homepage for downloading.

www.intersil.com/spacedefense/newsafclasst.asp

Ordering Information

ORDERING NUMBER

5962R9674202QEC

5962R9674202QXC

5962R9674202VEC

5962R9674202VXC

INTERNAL

MKT. NUMBER

HS1-508BRH-8

HS9-508BRH-8

HS1-508BRH-Q

HS9-508BRH-Q

TEMP.

RANGE (

-55 to 125

HS1-508BRH/PROTO HS1-508BRH/PROTO

HS9-508BRH/PROTO HS9-508BRH/PROTO

Pinouts

HS1-508BRH 16 LEAD SIDEBRAZE DIP

MIL-STD-1835, CDIP2-T16

TOP VIEW

AO 1

EN 2

-VSUP 3

IN 1 4

IN 2 5

IN 3 6

IN 4 7

OUT 8

16 A1

15 A2

14 GND

13 +VSUP

12 IN 5

11 IN 6

10 IN 7

9 IN 8

-VSUP

IN1

IN2

IN3

IN4

OUT

HS9-508BRH 16 LEAD FLATPACK

MIL-STD-1835, CDFP4-F16

TOP VIEW

GND

+VSUP

IN5

IN6

IN7

IN8

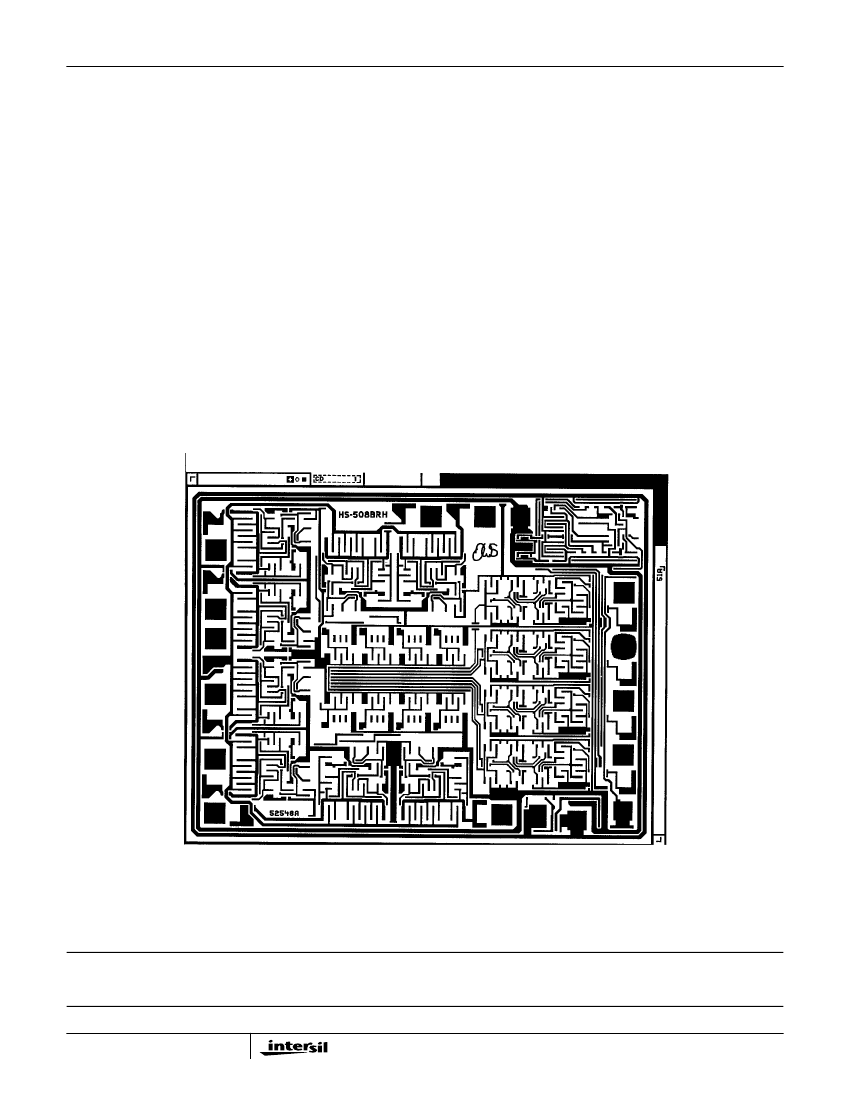

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

1-888-INTERSIL or 321-724-7143

Intersil Corporation 1999

5962R9674202QXX Related Products

	5962R9674202QXX	5962R9674202QXC	5962R9674202VEX	5962R9674202QEX	5962R9674202VEC	5962R9674202QEC	5962R9674202VXX	5962R9674202VXC
Description	8-CHANNEL, SGL ENDED MULTIPLEXER, CDFP16, CERAMIC, DFP-16	8-CHANNEL, SGL ENDED MULTIPLEXER, CDFP16, CERAMIC, DFP-16	8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16	8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16	8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16	8-CHANNEL, SGL ENDED MULTIPLEXER, CDIP16, SIDE BRAZED, CERAMIC, DIP-16	8-CHANNEL, SGL ENDED MULTIPLEXER, CDFP16, CERAMIC, DFP-16	8-CHANNEL, SGL ENDED MULTIPLEXER, CDFP16, CERAMIC, DFP-16
Parts packaging code	DFP	DFP	DIP	DIP	DIP	DIP	DFP	DFP
package instruction	DFP,	DFP,	DIP,	DIP,	DIP,	DIP,	DFP,	DFP,
Contacts	16	16	16	16	16	16	16	16
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-CDFP-F16	R-CDFP-F16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDIP-T16	R-CDFP-F16	R-CDFP-F16
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of channels	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16	16	16
Nominal off-state isolation	45 dB	45 dB	45 dB	45 dB	45 dB	45 dB	45 dB	45 dB
Maximum on-state resistance (Ron)	1800 Ω	1800 Ω	1800 Ω	1800 Ω	1800 Ω	1800 Ω	1800 Ω	1800 Ω
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	DFP	DIP	DIP	DIP	DIP	DFP	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535	MIL-PRF-38535	MIL-PRF-38535	MIL-PRF-38535	MIL-PRF-38535	MIL-PRF-38535	MIL-PRF-38535	MIL-PRF-38535
Maximum seat height	2.92 mm	2.92 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	2.92 mm	2.92 mm
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	YES	YES	NO	NO	NO	NO	YES	YES
Maximum disconnect time	3000 ns	3000 ns	3000 ns	3000 ns	3000 ns	3000 ns	3000 ns	3000 ns
Maximum connection time	3000 ns	3000 ns	3000 ns	3000 ns	3000 ns	3000 ns	3000 ns	3000 ns
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
total dose	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V
width	6.73 mm	6.73 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	6.73 mm	6.73 mm
Maker	Renesas Electronics Corporation	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Base Number Matches	-	1	1	1	1	1	-	-
