GA2C684 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> GA2C684

GA2C684: DescriptionFilm Capacitor,; CategoryPassive components capacitor; File Size141KB，3 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

GA2C684 Overview

Film Capacitor,

GA2C684 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
Capacitor type	FILM CAPACITOR
Number of terminals	2

GA2C684 Preview

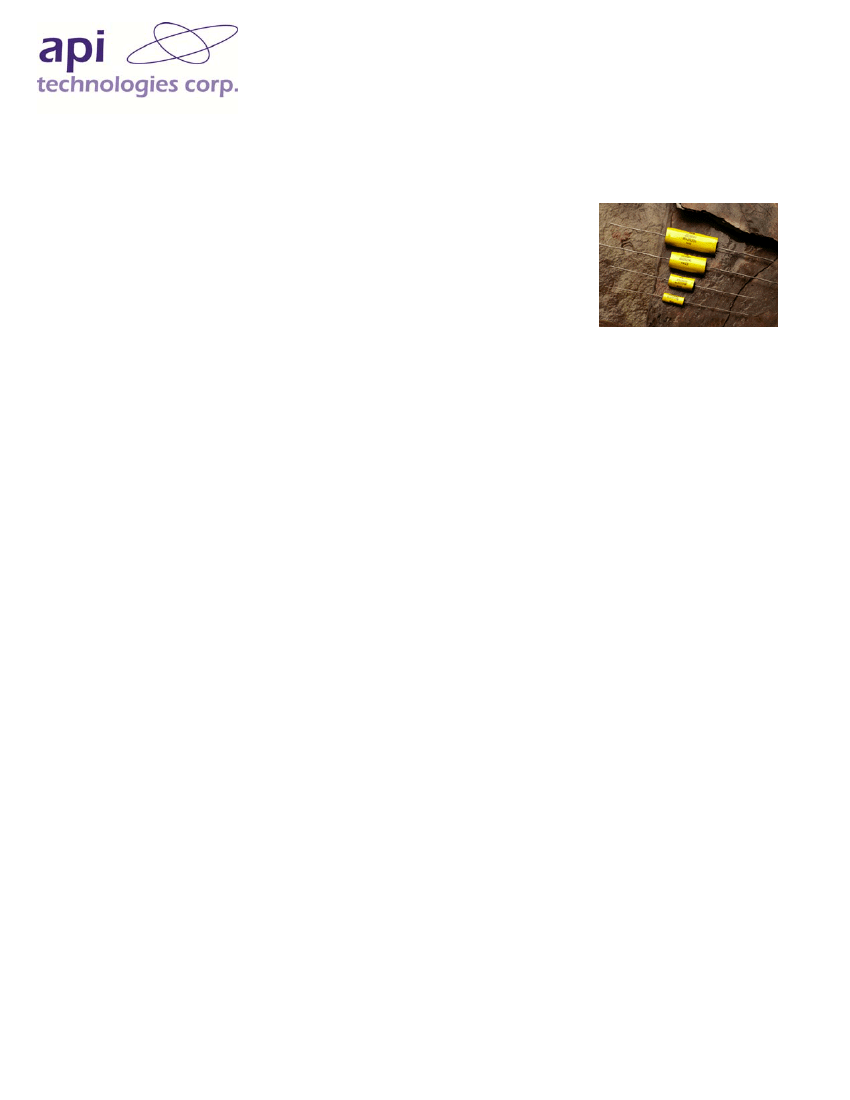

METALLIZED POLYPROPYLENE CAPACITORS

WRAP AND FILL – STYLE “A2”

METALLIZED POLYPROPYLENE



LOW LEAKAGE, HIGH INSULATION RESISTANCE

SELF-HEALING, HIGH RELIABILITY

DC OPERATION: BLOCKING, COUPLING, BYPASS, R.F. CIRCUITRY

R.C. CIRCUITS, COMPUTERS AND INSTRUMENATION

A.C. OPERATION: POWER FACTOR, LINE FILTERING

NEGATIVE TC IS ACCEPTABLE FOR USE WITH FERRITE INDUCTORS

STYLE “A2”



POLYESTER TAPE WRAP, END FILLED WITH EPOXY

LOWEST POSSBILE VOLUME

RECTANGULAR-OVAL SHAPE, AXIAL LEADS

DESIGNED TO MEET THERMAL SHOCK, VIBRATION AND MOISTURE



RESISITANCE SPECIFICATIONS

Wrap and fill capacitors are available in cylindrical-axial lead units. Designation is “GA1”. Hermetically sealed and pre-

molded plastic case types are also available. Please contact factory or representative.

SPECIFICATIONS

CONSTRUCTION:

Metallized polypropylene capacitors are available only in extended foil (non-inductive) construction.

PACKAGING:

Polyester tape wrap with epoxy end fills gives the best possible volume density for this type unit.

LEADS:

Copperweld (steel, coated with 30% copper by weight and tinplated with 60-40 Sn-Pb) is standard and may be

soldered or welded in circuit assembly. Nickel "A" leads available upon request.

TEMPERATURE RANGE:

May be operated at rated DC voltage from -55°C to + 85°C or to + 105° C at voltages, indicated

by the aerating curve on page 3.

ELECTRICAL [NON-DESTRUCTIVE] TESTS

Capacitance shall be measured at or referred to 1000 ± 20 Hz at 25 ± 5°C for capacitance values up to and

including 1.0 mfd. Capacitance values greater than 1.0 mfd., shall be measured at 60 ± 6 Hz.

Ref: MIL-STD-202E, Method 305.

Dissipation factor shall be measured as described for capacitance and shall not exceed 0.2%. Typical values,

throughout temperature range, are given on curves page 3.

Insulation resistance shall be measured at rated voltage or 500 VDC, whichever is less. After 2 minutes

electrification, minimum values shall be 200,000 MEG/MFD., need not exceed 400,000 megohms.

Ref: MIL-STD-202E, Method 302.

Dielectric Strength: Capacitors shall withstand specified DC test potential for 60 seconds through a limiting

resistance of 1 ohm/volt.

Terminal to terminal - 150% of DC rating.

TerminaI to case - 200 % of DC rating.

Ref: MIL-STD-202E, Method 301.

Dielectric Absorption: Dielectric absorption shall not exceed 0.1% when tested to MIL-C-19978D.

Ref: MIL-C-19978D, Paragraph 3.22.

ENVIRONMENTAL TESTS

Vibration: Capacitors will meet or exceed the requirements of MIL-STD-202E, Method 204C.

Moisture Resistance: Capacitors will meet or exceed the requirements of MIL-STD-202E, Method 103B, Condition

B, with 500V or rated voltage applied, whichever is less.

Life Test: Will withstand 140% of rated DC voltage for 250 hours at 105°C. No more than 1 failure in 12 units

permitted when tested.

Lead Pull Test: The leads on these capacitors shall withstand a steady axially applied pull of 5 lbs. for one minute.

Electromagnetic Integrated Solutions

8061 Avonia Road

●

Fairview

●

Pennsylvania

●

16415

Phone: (814) 474-1571

●

Email: eisSales@apitech.com

●

Web: http://eis.apitech.com

CUSTOM DESIGN

Available on short notice - special shapes, values, characteristics, combination sections and networks. Non-metallic cases

or fabricated steel and brass with glass-to-metal seals. Engineering service is expert and prompt.

APPLICATIONS

Metallized Polypropylene capacitors, in style "GA2" oval wrap and fill cases offer the user the best possible volume density

for this type unit. These units have consistently met the environmental requirements of MIL-C-55514A and moisture

resistance per MIL-STD-202E, Method 103B.

Metallized Polypropylene capacitors combine the reliability of self-healing action with high dielectric strength and insulation

resistance of Polypropylene film.

Metallized Polypropylene capacitors are designed primarily for DC application -- blocking, coupling, bypass, DC line filtering

- where RF and audio components are small in comparison to DC rating. However, they have been used successfully in

such AC power applications as power factor correction and AC line filtering.

Metallized Polypropylene capacitors operate at all temperatures from -55 to + 85°C., derate to 60% at 105°C.

APPLICATION GUIDE: [AC VOLTAGE RATING, -55˚C to +125˚C. AMBIENT]

DC VOLTAGE

EQUIVALENT VAC [RMS] RATING AT

RATING

60 Hz

400 Hz

200

(.001 uf thru 1.0 uf)

160

120

(1.1 uf thru 5.0 uf)

120

300

(.001 uf thru .82 uf)

240

180

(.83 uf thru 4.0 uf)

210

157

400

(.001 uf thru .47 uf)

360

200

(.48 uf thru 2.0 uf)

295

165

600

(.001 uf thru .22 uf)

504

280

(.23 uf thru .82 uf)

415

230

(AC voltage assumed to be pure sine wave)

1000 Hz

120

105

140

110

240

195

1200 Hz

115

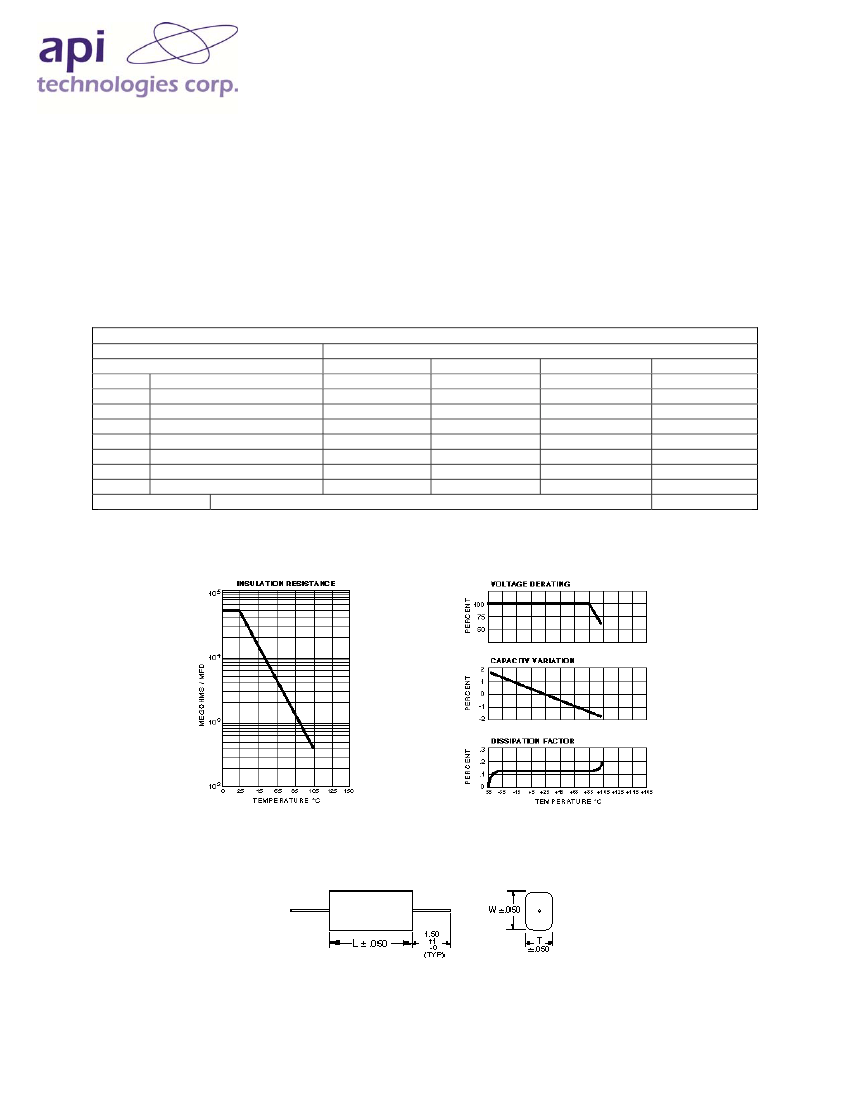

TYPICAL TEMPERATURE CHARACTERISTICS

GA2 Series - Specifications

Electromagnetic Integrated Solutions

8061 Avonia Road

●

Fairview

●

Pennsylvania

●

16415

Phone: (814) 474-1571

●

Email: eisSales@apitech.com

●

Web: http://eis.apitech.com

PART NUMBER KEY

EXAMPLE

Code

Dielectric

Metallized

Polypropylene

Case Style

Wrap & Fill

Shape

Rectangular

Oval

Voltage

A-50

B-100

C-200

E-400

G-600

104

Capacity

In Picofarads the first

2 digits indicate

significant figures, the

indicates number

of zeroes to follow

Tolerance

± 20% = Bank

± 10% = K

± 5% = J

± 3% = H

± 2% = G

± 1% = F

Dimensions: (in.)

MFD

.0010

.0012

.0015

.0018

.0022

.0027

.0033

.0039

.0047

.0056

.0068

.0082

.010

.012

.015

.018

.022

.027

.033

.039

.047

.056

.068

.082

.10

.12

.15

.18

.22

.27

.33

.39

.47

.56

.68

.82

1.0

1.5

2.0

3.0

4.0

5.0

6.0

8.0

10.0

.09

.11

.09

.12

.13

.15

.17

.19

.22

.19

.21

.20

.22

.25

.28

.31

.30

.33

.28

.31

.35

.39

.40

.42

.49

.58

.66

.74

.79

.91

.18

.20

.21

.22

.24

.26

.28

.31

.28

.30

.29

.31

.34

.37

.40

.39

.43

.40

.43

.47

.51

.56

.58

.65

.74

.82

.90

.95

1.07

200 VDC

Part No.

.40

.53

.65

.78

.90

1.17

1.42

1.68

1.93

2.25

GA2C102

GA2C122

GA2C152

GA2C182

GA2C222

GA2C272

GA2C332

GA2C392

GA2C472

GA2C562

GA2C682

GA2C822

GA2C103

GA2C123

GA2C153

GA2C183

GA2C223

GA2C273

GA2C333

GA2C393

GA2C473

GA2C563

GA2C683

GA2C823

GA2C104

GA2C124

GA2C154

GA2C184

GA2C224

GA2C274

GA2C334

GA2C394

GA2C474

GA2C564

GA2C684

GA2C824

GA2C105

GA2C155

GA2C205

GA2C305

GA2C405

GA2C505

GA2C605

GA2C805

GA2C106

.09

.12

.09

.12

.13

.15

.17

.19

.21

.18

.20

.19

.21

.23

.26

.29

.32

.28

.32

.35

.38

.42

.47

.43

.40

.49

.58

.74

.80

.18

.21

.18

.21

.22

.24

.26

.28

.30

.27

.29

.28

.30

.32

.35

.38

.39

.42

.39

.43

.47

.50

.54

.59

.65

.74

.90

.95

300 VDC

Part No.

.40

.53

.65

.78

.90

1.17

1.42

1.68

1.93

2.25

GA2D102

GA2D122

GA2D152

GA2D182

GA2D222

GA2D272

GA2D332

GA2D392

GA2D472

GA2D562

GA2D682

GA2D822

GA2D103

GA2D123

GA2D153

GA2D183

GA2D223

GA2D273

GA2D333

GA2D393

GA2D473

GA2D563

GA2D683

GA2D823

GA2D104

GA2D124

GA2D154

GA2D184

GA2D224

GA2D274

GA2D334

GA2D394

GA2D474

GA2D564

GA2D684

GA2D824

GA2D105

GA2D155

GA2D205

GA2D305

GA2D405

.09

.12

.09

.12

.14

.15

.17

.19

.22

.19

.22

.24

.26

.28

.31

.29

.31

.30

.33

.37

.41

.46

.41

.42

.46

.52

.58

.73

.79

.18

.21

.18

.21

.23

.24

.26

.28

.31

.28

.31

.33

.35

.37

.40

.41

.43

.42

.45

.49

.53

.58

.57

.58

.62

.68

.74

.89

.95

400 VDC

Part No.

.40

.53

.65

.78

.90

1.17

1.42

1.68

1.93

2.25

GA2E102

GA2E122

GA2E 52

GA2E182

GA2E222

GA2E272

GA2E332

GA2E392

GA2E472

GA2E562

GA2E682

GA2E822

GA2E103

GA2E123

GA2E153

GA2E183

GA2E223

GA2E273

GA2E333

GA2E393

GA2E473

GA2E563

GA2E683

GA2E823

GA2E104

GA2E124

GA2E154

GA2E184

GA2E224

GA2E274

GA2E334

GA2E394

GA2E474

GA2E564

GA2E684

GA2E824

GA2E105

GA2E155

GA2E205

.09

.12

.09

.12

.14

.15

.17

.19

.21

.19

.21

.23

.24

.28

.31

.33

.30

.33

.31

.34

.38

.42

.40

.43

.49

.55

.61

.68

.75

.77

.85

1.00

.128

.18

.21

.18

.21

.23

.24

.26

.28

.30

.28

.30

.32

.33

.37

.40

.42

.45

.43

.46

.50

.54

.56

.59

.65

.67

.73

.78

.85

.93

.95

1.05

1.30

1.48

600 VDC

Part No.

.40

.53

.65

.78

.90

1.17

1.42

1.68

1.93

2.25

1.25

2.25

GA2G102

GA2G122

GA2G152

GA2G182

GA2G222

GA2G272

GA2G332

GA2G392

GA2G472

GA2G562

GA2G682

GA2G822

GA2G103

GA2G123

GA2G153

GA2G183

GA2G223

GA2G273

GA2G333

GA2G393

GA2G473

GA2G563

GA2G683

GA2G823

GA2G104

GA2G124

GA2G154

GA2G184

GA2G224

GA2G274

GA2G334

GA2G394

GA2G474

GA2G564

GA2G205

GA2G824

GA2G105

GA2G155

GA2G205

WIRE LEADS

PART LENGTH

.40 THRU .65

.78 THRU .90

1.17 THRU 2.25

A.W.G.

#24

#22

#20

DIA.

.020

.025

.031

Electromagnetic Integrated Solutions

8061 Avonia Road

●

Fairview

●

Pennsylvania

●

16415

Phone: (814) 474-1571

●

Email: eisSales@apitech.com

●

Web: http://eis.apitech.com
