AM27LS00ADC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> AM27LS00ADC

AM27LS00ADC: DescriptionStandard SRAM, 256X1, 35ns, TTL, CDIP16, HERMETIC SEALED, CERAMIC, DIP-16; Categorystorage storage; File Size1MB，9 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

AM27LS00ADC Overview

Standard SRAM, 256X1, 35ns, TTL, CDIP16, HERMETIC SEALED, CERAMIC, DIP-16

AM27LS00ADC Parametric

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	DIP,
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	35 ns
JESD-30 code	R-GDIP-T16
length	19.431 mm
memory density	256 bi
Memory IC Type	STANDARD SRAM
memory width	1
Number of functions	1
Number of terminals	16
word count	256 words
character code	256
Operating mode	ASYNCHRONOUS
Maximum operating temperature	75 °C
Minimum operating temperature
organize	256X1
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

Preview

Download Datasheet

View All

REI Datasheet

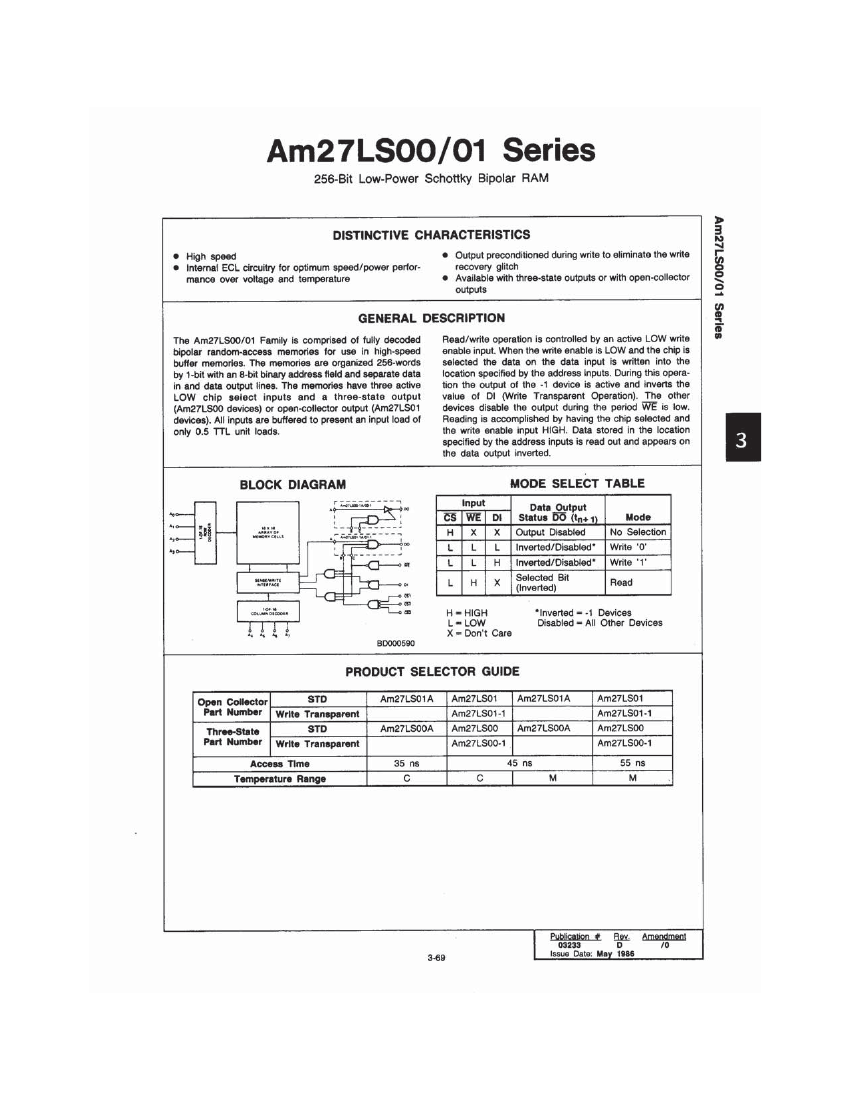

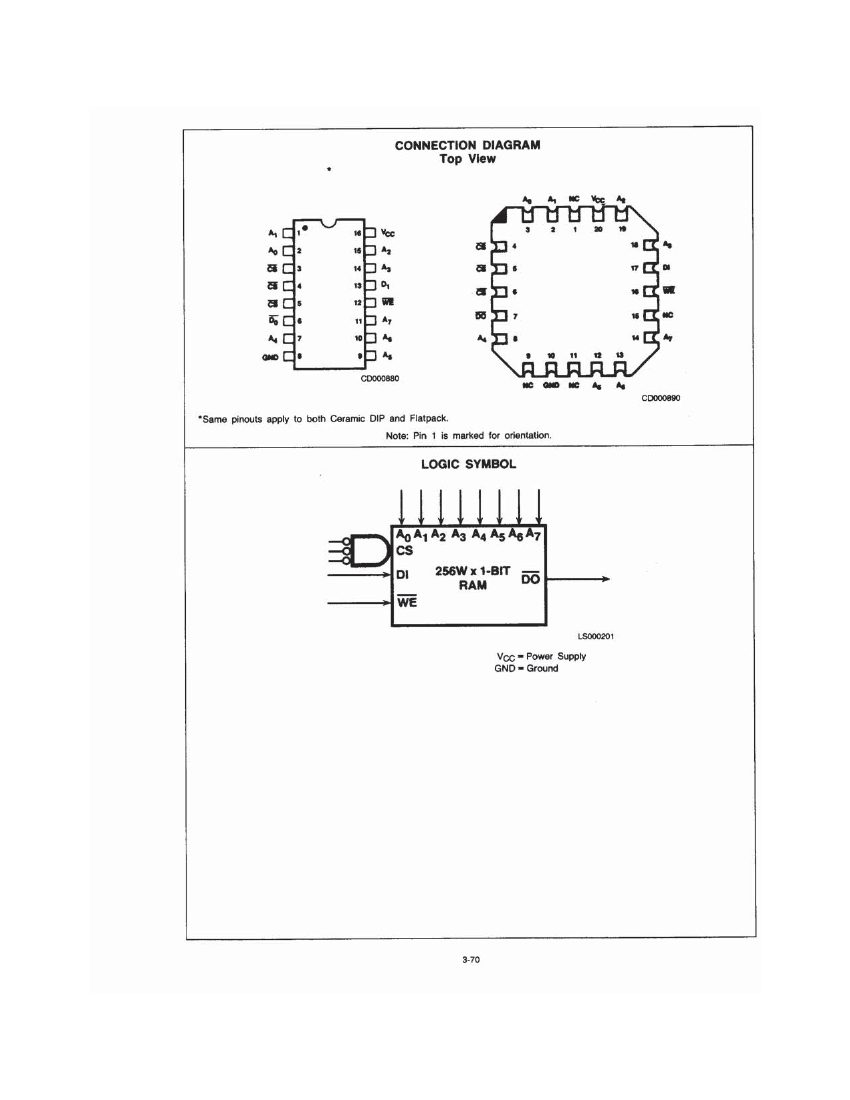

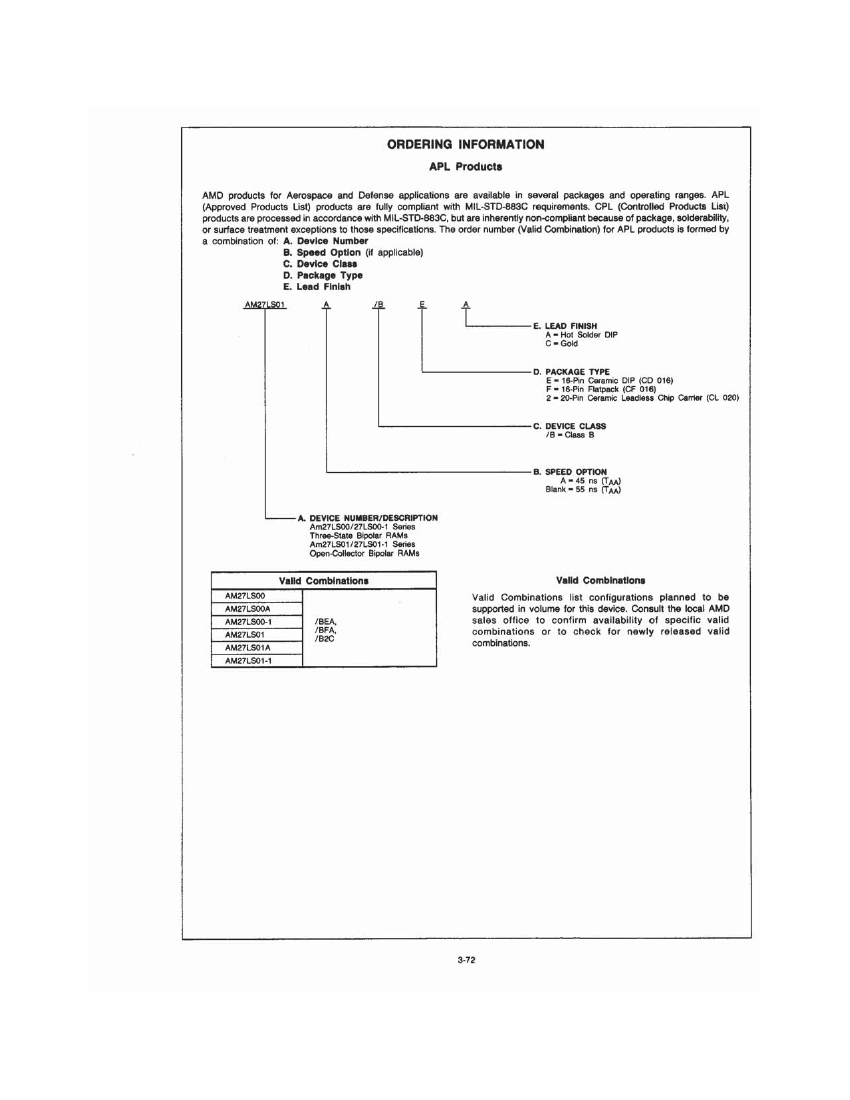

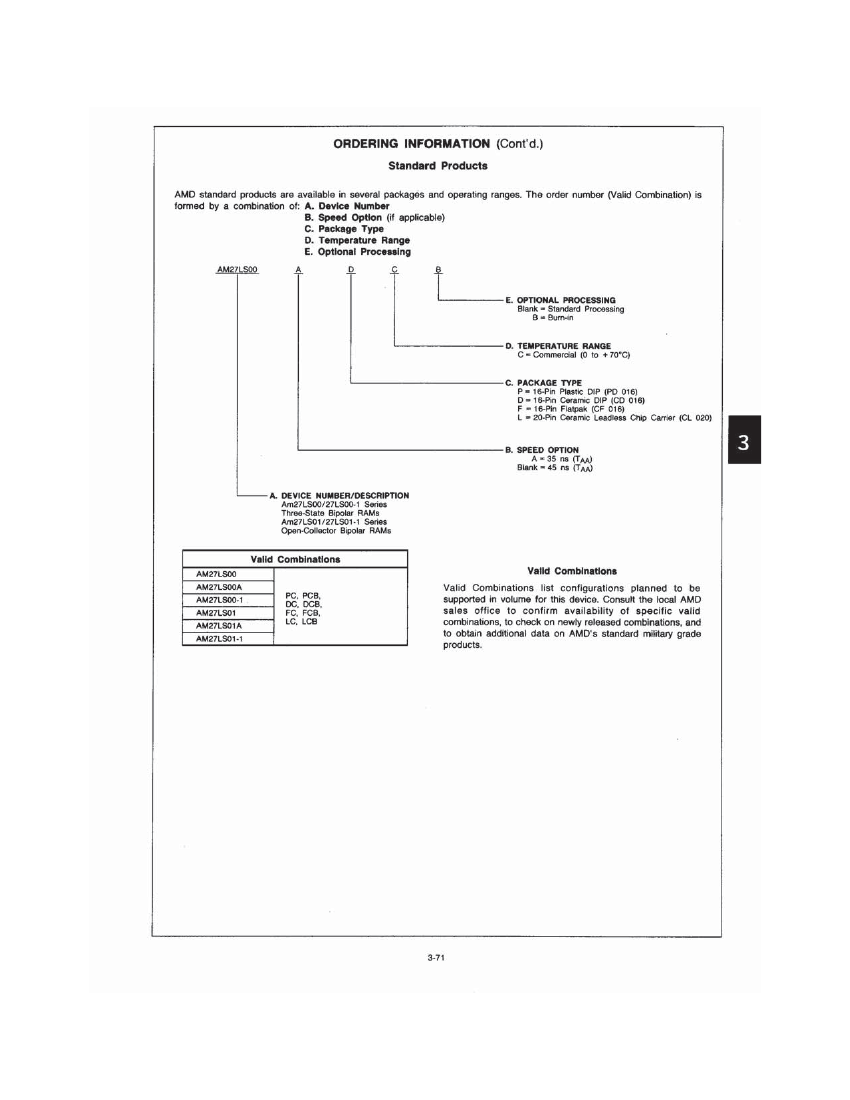

AM27LS00, AM27LS01

256-Bit Low-Power Schottky Bipolar RAM

The AM27LS00/01 Family is comprised of fully decoded bipolar random-access memories for use

in high-speed buffer memories. The memories are organized 256-words by 1-bit with an 8-bit binary

address field and separate data in and data output lines. The memories have three active LOW chip

select inputs and a three-state output (AM27LS00 devices) or open-collector output (AM27LS01

devices). All inputs are buffered to present an input load of only 0.5 TTL unit loads.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

• ISO-9001

• AS9120 certification

• Qualified Manufacturers List (QML) MIL-PRF-38535

•

Class Q Military

• Class V Space Level

• Qualified Suppliers List of Distributors (QSLD)

• Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

AM27LS00ADC Related Products

	AM27LS00ADC	AM27LS00APC	AM27LS00PC	AM27LS00-1PC	AM27LS00DC
Description	Standard SRAM, 256X1, 35ns, TTL, CDIP16, HERMETIC SEALED, CERAMIC, DIP-16	Standard SRAM, 256X1, 35ns, TTL, PDIP16, PLASTIC, DIP-16	Standard SRAM, 256X1, 45ns, TTL, PDIP16, PLASTIC, DIP-16	Standard SRAM, 256X1, 45ns, TTL, PDIP16, PLASTIC, DIP-16	Standard SRAM, 256X1, 45ns, TTL, CDIP16, HERMETIC SEALED, CERAMIC, DIP-16
package instruction	DIP,	DIP,	DIP,	DIP,	DIP,
Reach Compliance Code	unknow	unknow	unknow	unknown	unknow
Maximum access time	35 ns	35 ns	45 ns	45 ns	45 ns
JESD-30 code	R-GDIP-T16	R-PDIP-T16	R-PDIP-T16	R-PDIP-T16	R-GDIP-T16
length	19.431 mm	19.05 mm	19.05 mm	19.05 mm	19.431 mm
memory density	256 bi	256 bi	256 bi	256 bit	256 bi
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	1	1	1	1	1
Number of functions	1	1	1	1	1
Number of terminals	16	16	16	16	16
word count	256 words	256 words	256 words	256 words	256 words
character code	256	256	256	256	256
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C	75 °C
organize	256X1	256X1	256X1	256X1	256X1
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Maker	Rochester Electronics	-	-	Rochester Electronics	Rochester Electronics
Base Number Matches	-	1	1	1	-
