TECHNICAL DATA SHEET
1.0/2.3

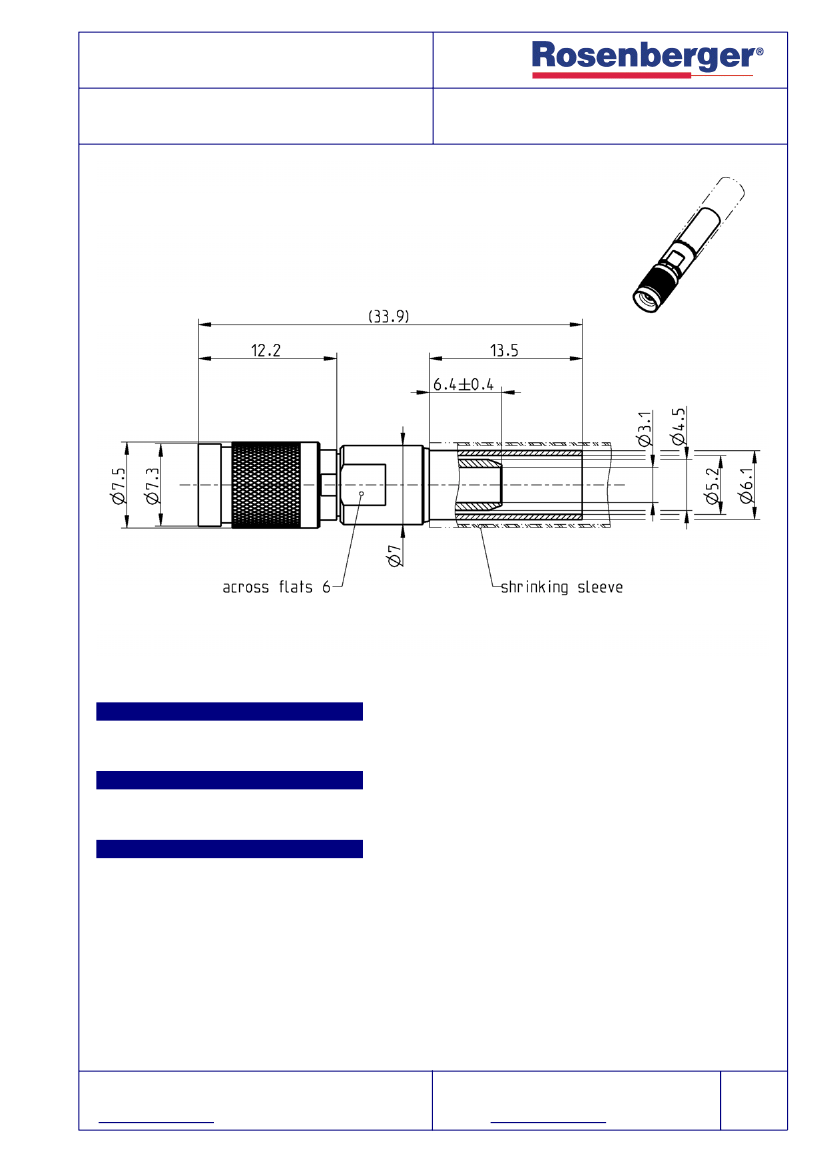

STRAIGHT PLUG
QUICK LOCK
34S160-106H3
All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
CECC 22 230, DIN 47297
Documents
Assembly instruction
34 A8
Material and plating
Connector parts
Center contact
Outer contact
Body
Centering sleeve
Dielectric
Crimping ferrule
Material
Beryllium copper
Beryllium copper
Brass
Brass
PTFE
Copper
Plating
Gold, min. 1.27 µm, over nickel
Gold, min. 1.27 µm, over nickel
Nickel, 2.5-5 µm
Nickel, 2.5-5 µm
Nickel, 2.5-5 µm
RF_35/12.04/3.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
1.0/2.3
Electrical data
Impedance
Frequency
Return loss
50
Ω
DC to 10 GHz
≥
32 dB, DC to 1 GHz
≥
25 dB, 1 to 4 GHz
≥
20 dB, 4 to 10 GHz
≤
0.1 x
f(GHz)
dB
3
≥
1x10 MΩ
≤
4 mΩ
≤
2.5 mΩ
750 V rms
250 V rms
≥
90 dB up to 1 GHz
STRAIGHT PLUG
QUICK LOCK
34S160-106H3
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
Working voltage
RF-leakage
- Limitations are possible due to the used cable type -
Mechanical data
Mating cycles
Center contact captivation
Engaging and disengaging force
Coupling mechanism retention force
≥
500
≥
10 N
0.9 N to 10 N
≥
200 N (screw version, quick-lock)
Environmental data
Temperature range
Climatic class
Vibration
-40°C to +85°C
IEC 60068-2-1 40/85/21
IEC 60068-2-2
IEC 60068-2-3
IEC 60068-2-6
10 Hz to 2000 Hz, 100m/s²
Tooling
Crimping tool
Crimp insert
11W150-000
11W15A-506
Suitable cables
RG 141 /U, RG 58 C/U
Packing
Standard
Weight
100 pcs in bag
6.3 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/12.04/3.0
Draft
Inge Mühlauer
Date
28/09/04
Approved
Rong Fang
Date
02/11/05
Rev.
b00
Engineering change number
05-0567
Name
Inge Mühlauer
Date
02/11/05
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
2/2
