REVISION B
DO NOT
SCALE FROM
THIS PRINT
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
BARA-XXXXX-XX-XX-XXXX
Pb
THIS PRODUCT MANUFACTURED
WITH LEAD-FREE PROCESSING
END 2 CONNECTOR
-01BJ: SMA-J-C-X-ST-BS5 (SEE SHEET 3)
-01SP: SMA-P-C-X-ST-CS5 (SEE SHEET 3)
-SCC4: PRB4-P-C-X-ST-CS5(SEE SHEET 3)
-00SJ: SMP-J-C-XX-ST-CS5 (SEE SHEET 3)
-00RJ: SMP-J-C-XX-RA-CS5 (SEE SHEET 3)
***
-92SJ: 292XX-J-C-XX-ST-CS5 (SEE SHEET 4)
***
-92SP: 292XX-P-C-XX-ST-CS5 (SEE SHEET 4)
END 2 PLATING OPTION
1: GOLD ALL COMPONENTS
6. ALTERNATE H GOLD / H GOLD / NICKEL
7. ALTERNATE GOLD MEDIUM/ GOLD FLASH
8. ALTERNATE HEAVY GOLD/MEDIUM GOLD
9. ALTERNATE HEAVY GOLD/MEDIUM GOLD
P: HEAVY GOLD / PASSIVATED STAINLESS STEEL
(SEE SHEET 2 AND 3 FOR PLATING SPECIFICS)

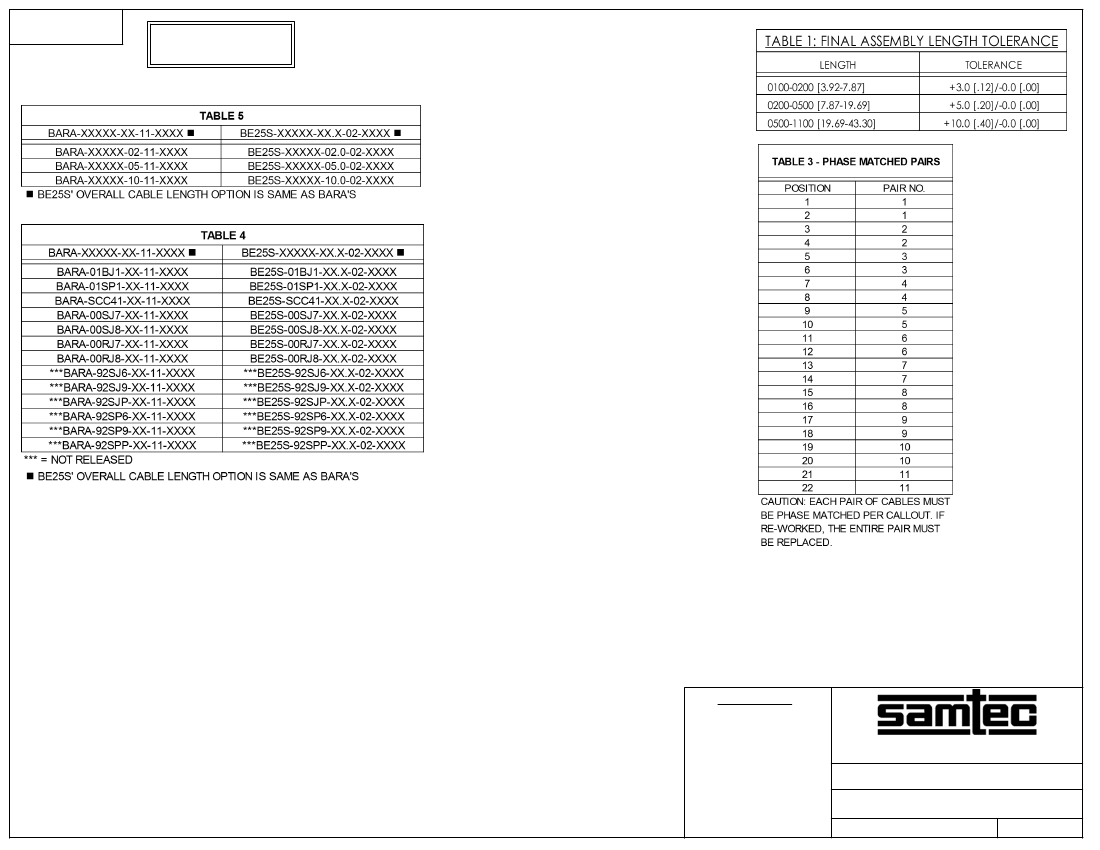

OVERALL CABLE LENGTH (MILLIMETERS)
0100-9999 [3.9 - 393.7]
(SEE NOTE 9 & 10)
PHASE MATCHED PAIRS
-11
(SEE SHEET 2, TABLE 3)
PHASE MATCHING SPEC
-02: 2.0 PICO-SECOND
-05: 5.0 PICO-SECONDS
-10: 10.0 PICO-SECONDS
***=NOT RELEASED
PATENT NUMBER
7,544,093
2.86 .113 REF
14
19
10
05
1.59 .063 REF
1
LENGTH: XXXX
(SEE TABLE 1, SHEET 2 FOR TOLERANCE)
C3-B, I-GR C
(SEE NOTE 2) 2
01
3.30 .130 REF
16.08 .633
REF
04
22
16.51 .650
REF
5.61 .221 REF
17.99 .708 REF
44.50±5.00 1.752±.197
(SEE NOTE 8) 4
3
CABLE ASSEMBLIES NOT
SHOWN FOR CLARITY
BARA-00SJ-XX-XX-XXXX SHOWN
FIG 1
25.40±10.00 1.000±.394
C1-D-ET
C2-D-ET
NOTES:
1. C REPRESENTS A CRITICAL DIMENSION
2. USE DRAWING No. BE25S-XXXXX-XX.X-XX-XXXX FOR CABLE ASSEMBLY INSTRUCTIONS
3. PARTS TO BE PROCESSED PER SAMTEC WORKMANSHIP GUIDELINES.
C
4. ALL ASSEMBLIES TO BE 100% ELECTRICALLY TESTED.
C
5. ALL ASSEMBLIES TO BE 100% HI-POT TESTED AT 300V.
6. NOTE DELETED.
7. FOR SUB-ASSEMBLY AND FINISHED GOOD PACKAGING REQUIREMENTS, REFERENCE
SAMTEC PACKAGING STANDARD, LOCK WASHERS AND NUTS TO BE SHIPPED UNASSEMBLED.
8. PRINT CABLE POSITION AND "PAT" (3 LINES FOR POSITION, 1 LINE FOR "PAT")
AND APPLY TO CABLES (TAG STYLE) AS SHOWN.
9. CABLE STOCKED IN INCHES, 1 INCH = 25.4 MILLIMETERS.
10. CABLE LENGTHS LONGER THAN 1000 MILLIMETERS ARE NOT SUPPORTED BY S.I. TEST DATA.
F:\DWG\MISC\MKTG\BARA-XXXXX-XX-XX-XXXX-MKT.SLDDRW
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES ARE:
DECIMALS
ANGLES
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
X.X: 0.3 [.01]
5
X.XX: 0.13 [.005]
X.XXX: 0.051 [.0020]
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1

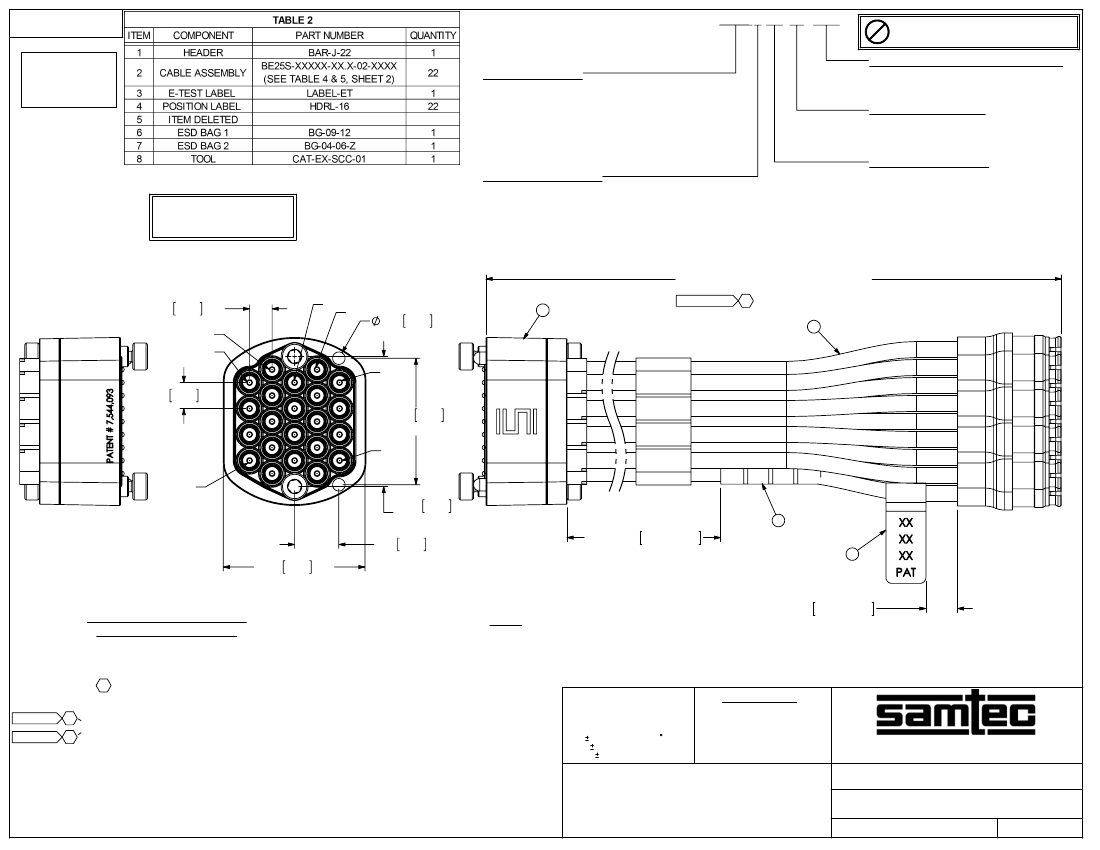

BULLSEYE 22 POSITION ASSEMBLY
BY:
ALVIN W
BARA-XXXXX-XX-XX-XXXX
02/11/2014
SHEET
1
OF
6
REVISION B
PATENT NUMBER
7,544,093
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
BULLSEYE 22 POSITION ASSEMBLY
BARA-XXXXX-XX-XX-XXXX
02/11/2014
SHEET
2
OF
6
F:\DWG\MISC\MKTG\BARA-XXXXX-XX-XX-XXXX-MKT.SLDDRW
BY:
ALVIN W
REVISION B

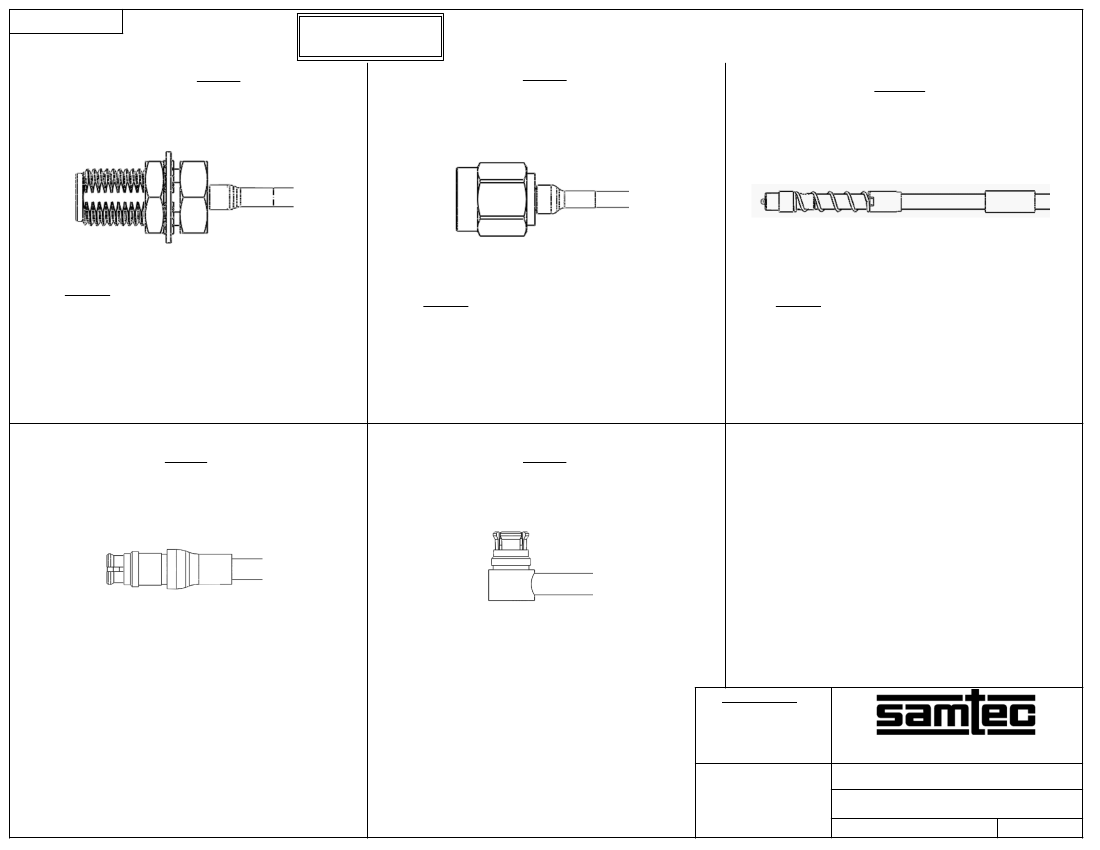

-01BJ
PATENT NUMBER
7,544,093
(STRAIGHT BULKHEAD JACK)
(USE DRAWING No.
SMA-J-C-X-ST-BS5
FOR ASSEMBLY INSTRUCTIONS)
(SEE NOTE 7)
(STRAIGHT PLUG)
(USE DRAWING No.
SMA-P-C-X-ST-CS5
FOR ASSEMBLY INSTRUCTIONS)
-01SP
(ROUND TIP/STD. FERRULE)
(USE DRAWING No.
PRB4-P-C-X-ST-CS5
FOR ASSEMBLY INSTRUCTIONS)
-SCC4
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N:
SMA-J-C-H-ST-BS5)
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N:
SMA-P-C-H-ST-CS5)
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N:
PRB4-P-C-H-ST-CS5)
NOTE:
ALL CRITICAL DIMENSIONS ON SMA-J-C-X-ST-BS5
THAT APPLY MUST BE VERIFIED.
NOTE:
ALL CRITICAL DIMENSIONS ON SMA-P-C-X-ST-CS5
THAT APPLY MUST BE VERIFIED.
NOTE:
ALL CRITICAL DIMENSIONS ON PRB4-P-C-X-ST-CS5
THAT APPLY MUST BE VERIFIED.
(STRAIGHT JACK)
(USE DRAWING No. SMP-J-C-XX-ST-CS5
FOR ASSEMBLY INSTRUCTIONS)
-00SJ
(RIGHT ANGLE JACK)
(USE DRAWING No. SMP-J-C-XX-RA-CS5
FOR ASSEMBLY INSTRUCTIONS)
-00RJ
PLATING OPTIONS
7: 10μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: SMP-J-C-GF-ST-CS5)
8: 30μ" MIN. GOLD CENTER CONTACT
10μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMP-J-C-HG-ST-CS5)
PLATING OPTIONS
7: 10μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: SMP-J-C-GF-RA-CS5)
8: 30μ" MIN. GOLD CENTER CONTACT
10μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: SMP-J-C-HG-RA-CS5)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
NOTE:
ALL CRITICAL DIMENSIONS ON
SMP-J-C-XX-ST-CS5
THAT APPLY MUST BE VERIFIED.
NOTE:
ALL CRITICAL DIMENSIONS ON
SMP-J-C-XX-RA-CS5
THAT APPLY MUST BE VERIFIED.
SHEET SCALE: 1:1
F:\DWG\MISC\MKTG\BARA-XXXXX-XX-XX-XXXX-MKT.SLDDRW
BULLSEYE 22 POSITION ASSEMBLY
BARA-XXXXX-XX-XX-XXXX
02/11/2014
SHEET
3
OF
6
BY:
ALVIN W
REVISION B
PATENT NUMBER
7,544,093
***
-92SJ
(STRAIGHT JACK)
(USE DRAWING No. 292XX-J-C-XX-ST-CS5
FOR ASSEMBLY INSTRUCTIONS)
***
-92SP
(STRAIGHT PLUG)
(USE DRAWING No. 292XX-P-C-XX-ST-CS5
FOR ASSEMBLY INSTRUCTIONS)
PLATING OPTIONS
6: 30μ" MIN. GOLD CENTER CONTACT
30μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: 292PB-J-C-HH-ST-CS5)
9: 30μ" MIN. GOLD CENTER CONTACT
10μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: 292PB-J-C-HG-ST-CS5)
P: 30μ" MIN. GOLD CENTER CONTACT
PASSIVATED STAINLESS STEEL OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: 292PS-J-C-HP-ST-CS5)
PLATING OPTIONS
6: 30μ" MIN. GOLD CENTER CONTACT
30μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: 292PB-P-C-HH-ST-CS5)
9: 30μ" MIN. GOLD CENTER CONTACT
10μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: 292PB-P-C-HG-ST-CS5)
P: 30μ" MIN. GOLD CENTER CONTACT
PASSIVATED STAINLESS STEEL OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N: 292PS-P-C-HP-ST-CS5)
NOTE:
ALL CRITICAL DIMENSIONS ON 292XX-J-C-XX-ST-CS5
THAT APPLY MUST BE VERIFIED.
NOTE:
ALL CRITICAL DIMENSIONS ON 292XX-P-C-XX-ST-CS5
THAT APPLY MUST BE VERIFIED.
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
BULLSEYE 22 POSITION ASSEMBLY
SHEET SCALE: 1:1
F:\DWG\MISC\MKTG\BARA-XXXXX-XX-XX-XXXX-MKT.SLDDRW
BARA-XXXXX-XX-XX-XXXX
02/11/2014
SHEET
4
OF
6
BY:
ALVIN W
REVISION B
PATENT NUMBER
7,544,093
INSERTION TOOL
LOCKING FERRULE
KEYS (2)
COMPRESSION SPRING
LOCKING COVER
KEYWAYS
GROUND FERRULE
(INSERTION TOOL) 8
DETAIL 'C'
SCALE 5 : 1
DETAIL 'B''
SCALE 5 : 1

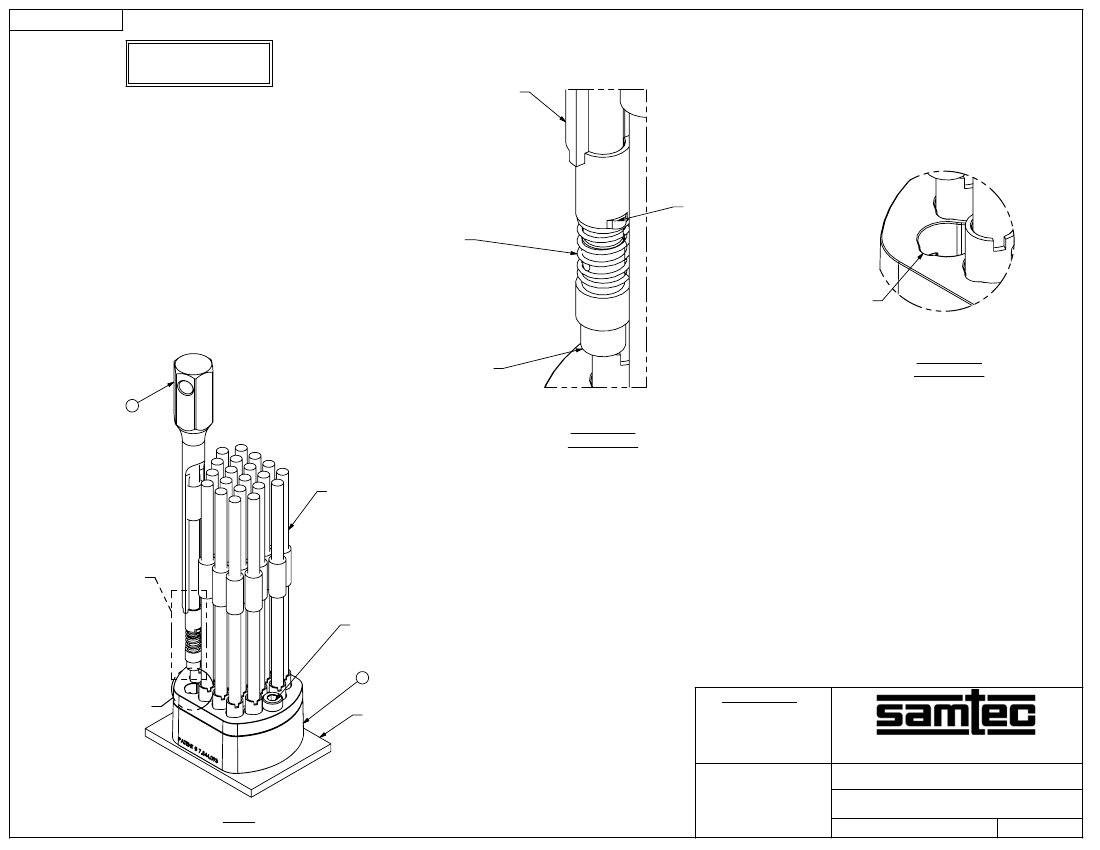

BE25S CABLE ASSEMBLY
CABLE INSTALLATION PROCEDURE:
'B''
TORQUE TO 0.5 IN/LBS
(PRIOR TO CABLES INSTALLED)
2PLCS
1
INSURE LOCKING FERRULE KEYS (SEE DETAIL A) ALIGN WITH KEYWAY
FEATURES IN THE CONNECTOR BODY (SEE DETAIL B). PUSH DOWN
ON THE LOCKING FERRULE (WITH MINIMAL FORCE) USING THE INSERTION
TOOL. TWIST THE INSERTION TOOL CLOCKWISE (IT SHOULD TURN FREELY)
90∶-95∶ STOP AND RELEASE. THE LOCKING FERRULE WILL LIFT INTO THE
LOCK CHAMBER, LOCATED INSIDE THE CONNECTOR BODY, BY WAY OF
THE COMPRESSION SPRING. REPEAT THIS PROCESS WITH REMAINING
CABLE ASSEMBLIES .
REVERSE ABOVE PROCEDURE TO DISASSEMBLE.
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
'C'
TARGET PCB (NOT SUPPLIED)
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
BULLSEYE 22 POSITION ASSEMBLY
APPLICATION VIEW
FIG 3
SHEET SCALE: 1:1
F:\DWG\MISC\MKTG\BARA-XXXXX-XX-XX-XXXX-MKT.SLDDRW
BY:
ALVIN W
BARA-XXXXX-XX-XX-XXXX
02/11/2014
SHEET
5
OF
6
