307H-1AH-V6VDC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> 307H-1AH-V6VDC

307H-1AH-V6VDC: DescriptionPower/Signal Relay, 1 Form A, SPST, Momentary, 0.075A (Coil), 6VDC (Coil), 450mW (Coil), 10A (Contact), 30VDC (Contact), DC Input, Random, AC Output, Through Hole-Straight Mount,; CategoryMechanical and electronic products relay; File Size85KB，4 Pages; ManufacturerSong Chuan

Download Datasheet Parametric Compare View All

307H-1AH-V6VDC Overview

Power/Signal Relay, 1 Form A, SPST, Momentary, 0.075A (Coil), 6VDC (Coil), 450mW (Coil), 10A (Contact), 30VDC (Contact), DC Input, Random, AC Output, Through Hole-Straight Mount,

307H-1AH-V6VDC Parametric

Parameter Name	Attribute value
Maker	Song Chuan
Reach Compliance Code	unknow
ECCN code	EAR99

Preview

Download Datasheet

View All

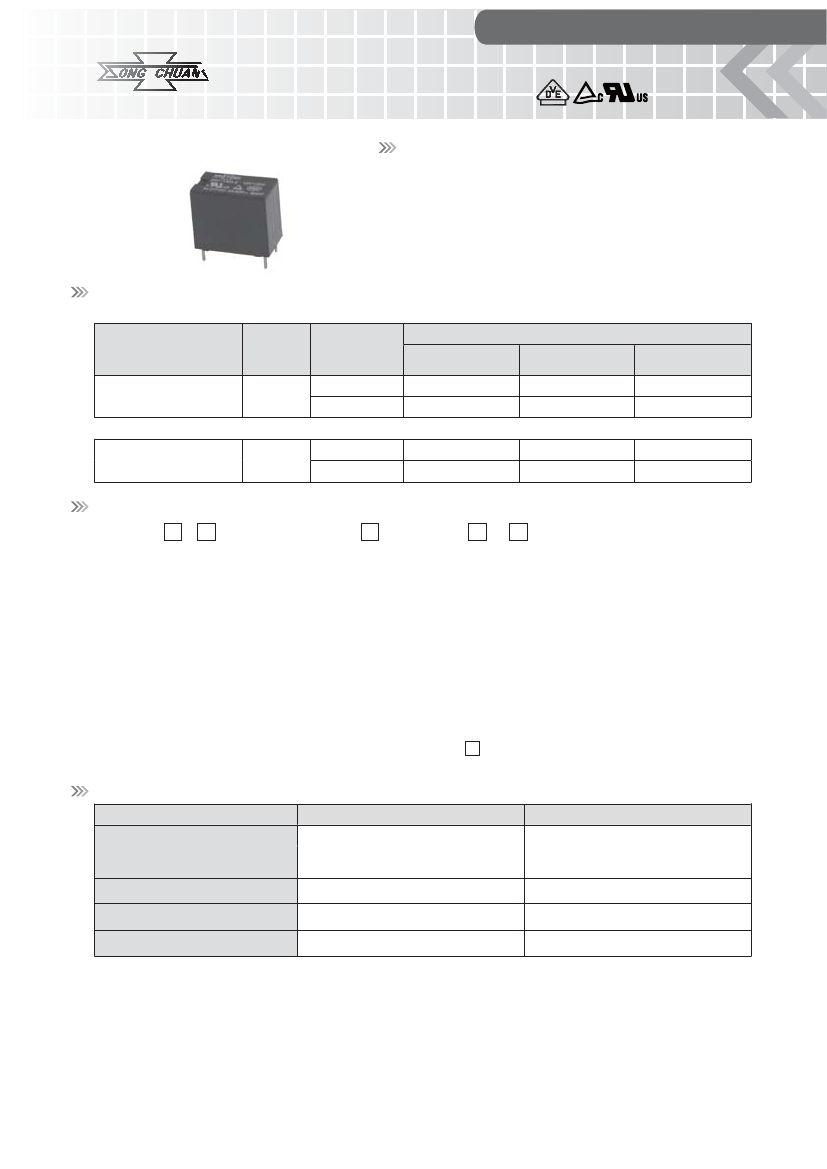

SONG CHUAN

307

Features

Miniature 12A 125VAC, 10A 250VAC/30VDC PCB Relay.

UL/CUL, TUV, VDE approved.

450mW and 200mW coil are available.

High CTI 250 material or product comply with IEC 60335-1

are available.

Complies with RoHS-Directive 2011/65/EU.

Optional for halogen free version.

Optional for explosion-proof version.

Type List

Standard Type

Terminal

style

PCB terminal

Contact

form

(SPNO)

Insulation

system

---------

Designation (provided with)

Flux tight

307-1AH-C

307-1AH-F-C

Sealed type

307-1AH-V

307-1AH-F-V

Sealed type

washable

307-1AH-S

307-1AH-F-S

High Power Type

PCB terminal

(SPNO)

---------

307H-1AC-C

307H-1AC-F-C

307H-1AC-V

307H-1AC-F-V

307H-1AC-S

307H-1AC-F-S

Ordering Information

307

1. 307

1A H

6. Blank

7. C

Blank

-- Standard type

-- Class F

-- Flux tight

-- Sealed type

-- Sealed type washable

Standard type

-- Comply with IEC 60335-1

-- Coil voltage (please refer to the

coil rating data for the availability)

-- Basic series designation

2. Blank -- Standard type

-- High power type

3. Blank -- Standard type

-- High sensitivity type

4. 1A

5. C

-- Single pole normally open

-- Contact material AgNi

-- Contact material AgSnO

Contact Rating

Type

Resistive load

Max. switching current

Max. switching voltage

Max. switching capacity

307

5A 240VAC

277VAC

1200VA

307H

8A 240VAC

10A 240VAC

12A 125VAC

12A

277VAC

1920VA

Note

307H special version of 10A 240VAC 100K ops. can be selected.

307H-1AH-V6VDC Related Products

	307H-1AH-V6VDC	307-1AC-C24VDC	307H-1AC-F-CE13VDC	307H-1AC-F-V24VDC	307N-1AC-F-S6VDC	307N-1AC-S5VDC	307-1AH-F-VE112VDC	307H-1AC-VE16VDC	307HN-1AH-C18VDC	307N-1AH-F-V9VDC
Description	Power/Signal Relay, 1 Form A, SPST, Momentary, 0.075A (Coil), 6VDC (Coil), 450mW (Coil), 10A (Contact), 30VDC (Contact), DC Input, Random, AC Output, Through Hole-Straight Mount,	Power/Signal Relay, 1 Form A, SPST, Momentary, 0.019A (Coil), 24VDC (Coil), 450mW (Coil), 10A (Contact), 30VDC (Contact), DC Input, Random, AC Output, Through Hole-Straight Mount,	Power/Signal Relay, 1 Form A, SPST, Momentary, 0.15A (Coil), 3VDC (Coil), 450mW (Coil), 10A (Contact), 30VDC (Contact), DC Input, Random, AC Output, Through Hole-Straight Mount,	Power/Signal Relay, 1 Form A, SPST, Momentary, 0.019A (Coil), 24VDC (Coil), 450mW (Coil), 10A (Contact), 30VDC (Contact), DC Input, Random, AC Output, Through Hole-Straight Mount,	Power/Signal Relay, 1 Form A, SPST, Momentary, 0.033A (Coil), 6VDC (Coil), 200mW (Coil), 10A (Contact), 30VDC (Contact), DC Input, Random, AC Output, Through Hole-Straight Mount,	Power/Signal Relay, 1 Form A, SPST, Momentary, 0.04A (Coil), 5VDC (Coil), 200mW (Coil), 10A (Contact), 30VDC (Contact), DC Input, Random, AC Output, Through Hole-Straight Mount,	Power/Signal Relay, 1 Form A, SPST, Momentary, 0.038A (Coil), 12VDC (Coil), 450mW (Coil), 10A (Contact), 30VDC (Contact), DC Input, Random, AC Output, Through Hole-Straight Mount,	Power/Signal Relay, 1 Form A, SPST, Momentary, 0.075A (Coil), 6VDC (Coil), 450mW (Coil), 10A (Contact), 30VDC (Contact), DC Input, Random, AC Output, Through Hole-Straight Mount,	Power/Signal Relay, 1 Form A, SPST, Momentary, 0.011A (Coil), 18VDC (Coil), 200mW (Coil), 10A (Contact), 30VDC (Contact), DC Input, Random, AC Output, Through Hole-Straight Mount,	Power/Signal Relay, 1 Form A, SPST, Momentary, 0.022A (Coil), 9VDC (Coil), 200mW (Coil), 10A (Contact), 30VDC (Contact), DC Input, Random, AC Output, Through Hole-Straight Mount,
Maker	Song Chuan	Song Chuan	Song Chuan	Song Chuan	Song Chuan	Song Chuan	Song Chuan	Song Chuan	Song Chuan	Song Chuan
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
