SAW components
SAW filter
Band 40 partial Post PA
Series/type:
Ordering code:
Date:
Version:
B9635
B39232B9635P810
April 25, 2016
2.0
© EPCOS AG 2016. Reproduction, publication and dissemination of this data sheet, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
SAW components
SAW filter
Data sheet
Table of contents
B9635
2335 MHz
1
Application.........................................................................................................................................
3
2
Features............................................................................................................................................
3
3
Package............................................................................................................................................
4
4
Pin configuration................................................................................................................................
4
5
Matching circuit.................................................................................................................................
5
6
Characteristics...................................................................................................................................
6
7
Maximum ratings...............................................................................................................................
8
8
Transmission coefficient....................................................................................................................
9
9
Reflection coefficients......................................................................................................................
10
10
EVM...............................................................................................................................................
11
11
Packing material............................................................................................................................
12
12
Marking..........................................................................................................................................
14
13
Soldering profile.............................................................................................................................
15
14
Annotations...................................................................................................................................
16
15
Cautions and warnings..................................................................................................................
17
Important notes.................................................................................................................................
18
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 18
April 25, 2016
SAW components
SAW filter
Data sheet
1
Application
Low-loss RF filter for smallcells
Usable pass band 70MHz
2
Features

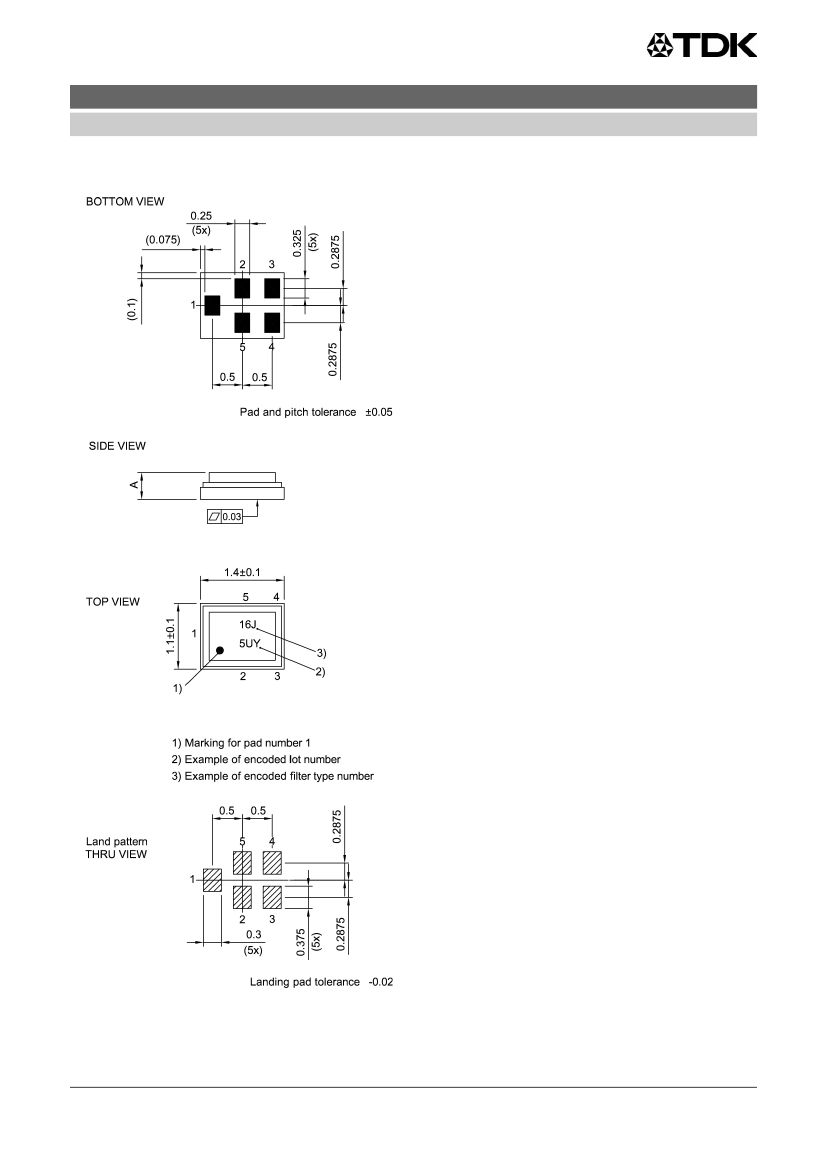

Package size 1.4±0.1 mm × 1.1±0.1 mm
Package height 0.45 mm (max.)
Approximate weight 3 mg
RoHS compatible
Package for Surface Mount Technology (SMT)
Ni/Au-plated terminals
Electrostatic Sensitive Device (ESD)
Moisture Sensitivity Level 2a (MSL2a)
B9635
2335 MHz

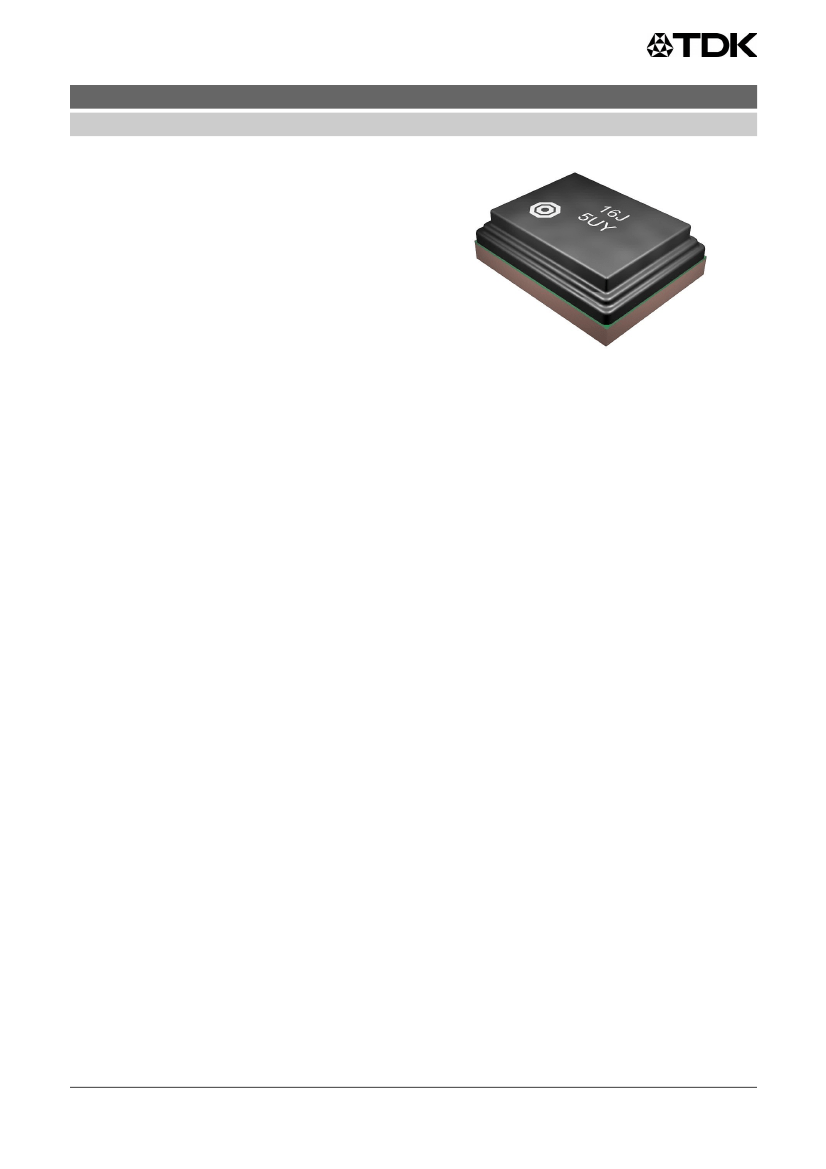

Figure 1:
Picture of component
with example of product marking.
