BTH1-21-10-2-Z datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> BTH1-21-10-2-Z

BTH1-21-10-2-Z: DescriptionConnector Accessory; CategoryThe connector Connector bracket; File Size157KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

BTH1-21-10-2-Z Overview

Connector Accessory

BTH1-21-10-2-Z Parametric

Parameter Name	Attribute value
Objectid	7408455487
Reach Compliance Code	unknown
Factory Lead Time	13 weeks 2 days
Samacsys Description	Body Features: Primary Product Material Aluminum \| Primary Product Plating Material Cadmium \| Dimensions: Cable Entry Diameter 31.8 MM \| Product Length 1.18 INCH \| Product Length 30 MM \| Cable Entry Diameter 1.25 INCH \| Accepts Cable Diameter Range 0 – 31.8 MM \| Housing Features: Body Orientation Straight \| Operation/Application: Compatible With Connector Shell Size 25 \| Other: Entry Size Code 20 \| Product Type Features: Sealable Yes \| Usage Conditions: Operating Temperature Range -65 – 175 DEGC \| Operating
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2024-04-10 10:47:41
Connector bracket type	CONNECTOR ACCESSORY
Material	NICKEL ALUMINUM BRONZE
Installation method	STRAIGHT
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Housing size	21
Wire gauge	0 AWG
Maximum wire diameter

Preview

Download Datasheet

View All

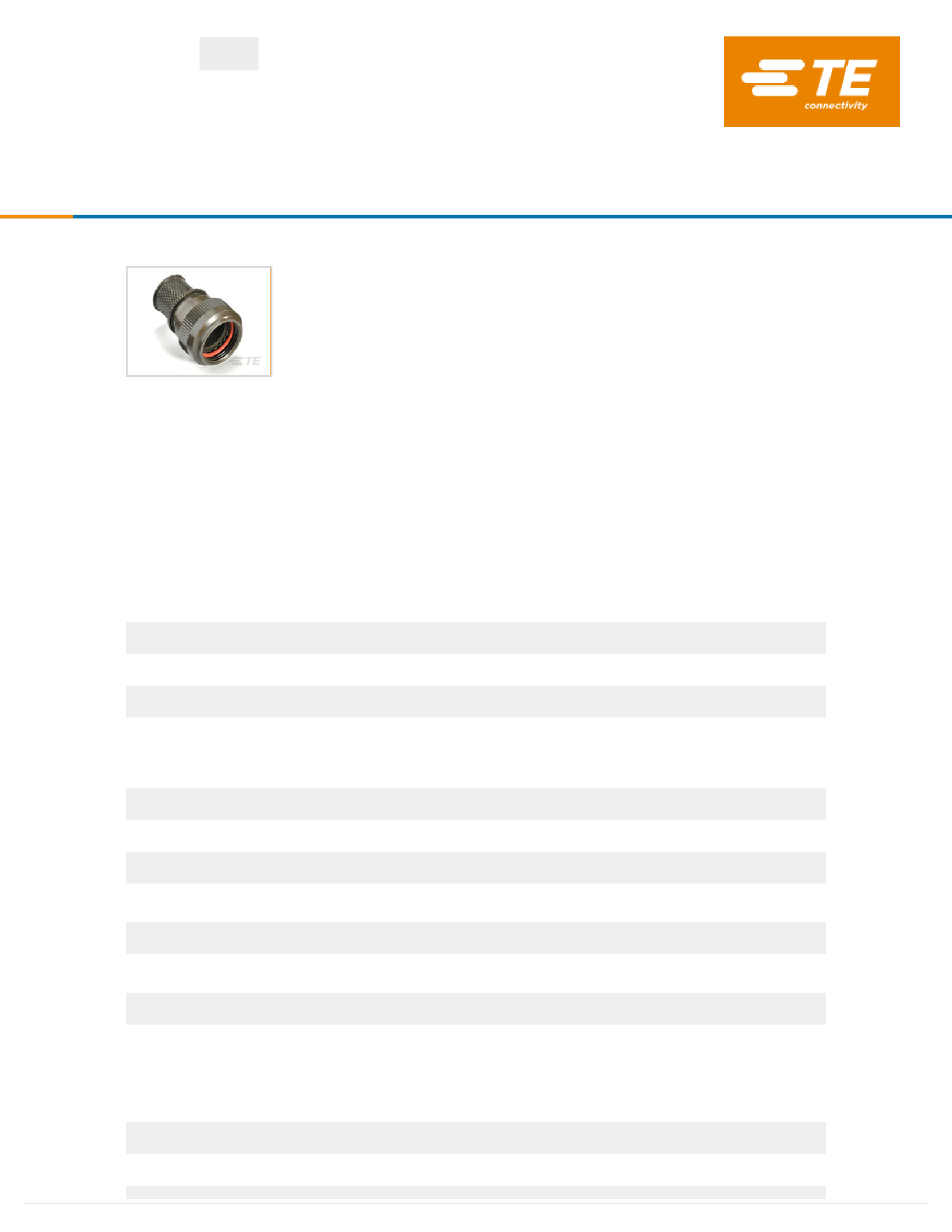

BTH1-21-10-2-Z

Ruggedized Backshells & Adapters, Nickel Aluminum Bronze, Unplated (Shotblast

Glass Bead), Cable Diameter Range 0 – 15.8 mm, Straight, Band Adapter

BTH1-21-10-2-Z

Polamco



ACTIVE

TE Internal #: AAE2888-00

Ruggedized Backshells & Adapters, Nickel Aluminum Bronze,

Unplated (Shotblast Glass Bead), Cable Diameter Range 0 – 15.8

mm, Straight, Band Adapter

View on TE.com >

Connectors

Connector Backshells & Adapters

Ruggedized Backshells & Adapters

Backshell Material:

Nickel Aluminum Bronze

Adapter Plating Material:

Unplated (Shotblast Glass Bead)

Cable Diameter Range:

0 – 15.8 mm

Adapter Angle:

Straight

Termination Device Type:

Band Adapter

Features

Product Type Features

Adapter Angle

Termination Device Type

Connector Shell Size

Sealable

Body Features

Backshell Material

Adapter Plating Material

Adapter Entry Size

Dimensions

Cable Diameter Range

Usage Conditions

Operating Temperature Range

-65 – 175 °C[-85 – 347 °F]

0 – 15.8 mm

Nickel Aluminum Bronze

Unplated (Shotblast Glass Bead)

Straight

Band Adapter

Yes

Product Compliance

For compliance documentation, visit the product page on TE.com>

EU RoHS Directive 2011/65/EU

EU ELV Directive 2000/53/EC

For support call+1 800 522 6752

Compliant

Not Yet Reviewed

No Restricted Materials Above Threshold

05/11/2021 03:20AM | Page 1



China RoHS 2 Directive MIIT Order No 32, 2016

BTH1-21-10-2-Z

Ruggedized Backshells & Adapters, Nickel Aluminum Bronze, Unplated (Shotblast

Glass Bead), Cable Diameter Range 0 – 15.8 mm, Straight, Band Adapter

China RoHS 2 Directive MIIT Order No 32, 2016

EU REACH Regulation (EC) No. 1907/2006

No Restricted Materials Above Threshold

Current ECHA Candidate List: JAN 2021

(211)

Candidate List Declared Against: JAN 2021

(211)

Does not contain REACH SVHC

Halogen Content

Low Halogen - Br, Cl, F, I < 900 ppm per

homogenous material. Also BFR/CFR/PVC

Free

Not applicable for solder process capability

Solder Process Capability

Product Compliance Disclaimer

This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge

based on the information they provided. This information is subject to change. The part numbers that TE has identified as

EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent

chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these

limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products

will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part

numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous

materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits

as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides

on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance on

requirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-

reach

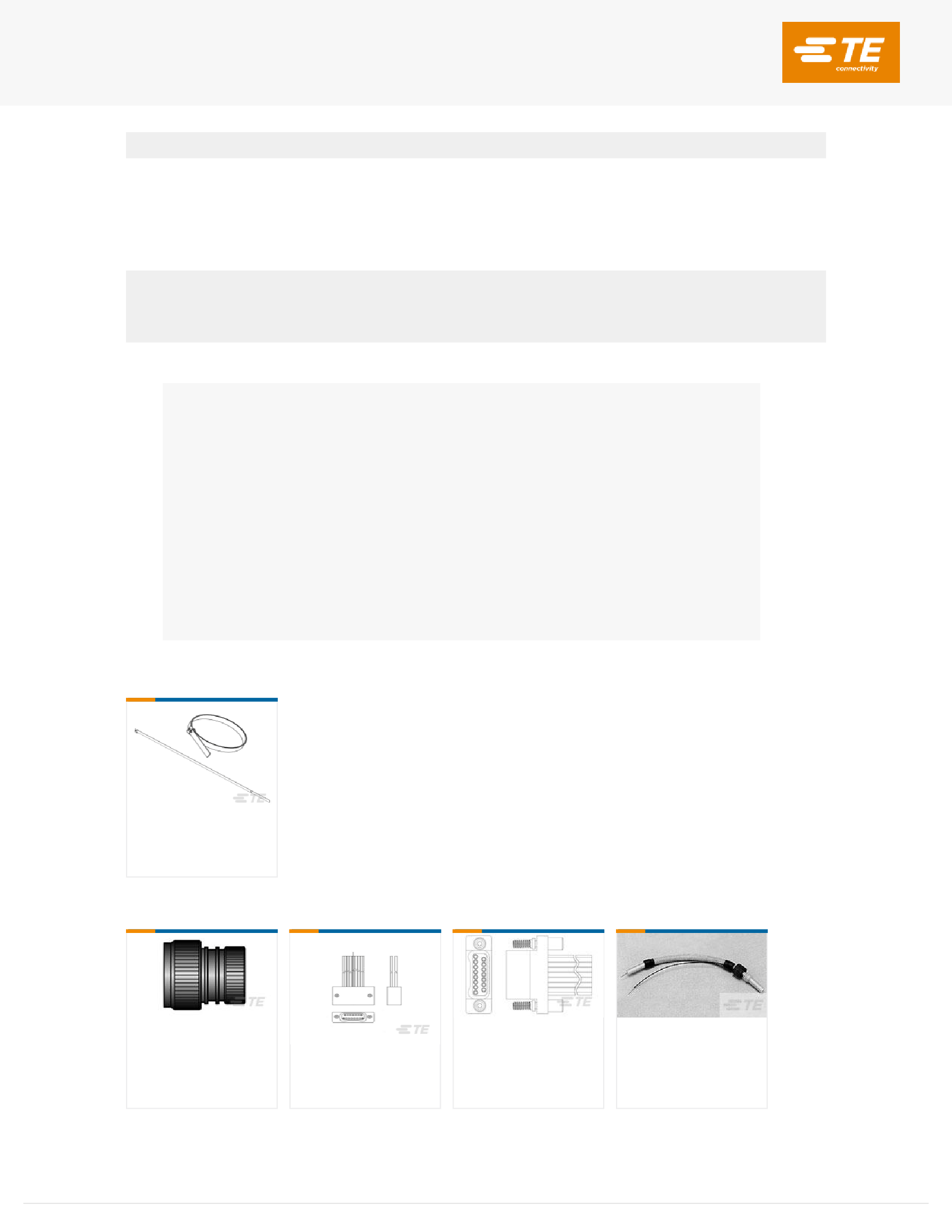

Compatible Parts

TE Part # 794596-000

BND-1425S
