Terminal blocks
to
Type 478
and
Type 229
ASP046
Type 213
Type 214
Type 249
Type 250
page 50
page 100
page 100
page 98
page 98

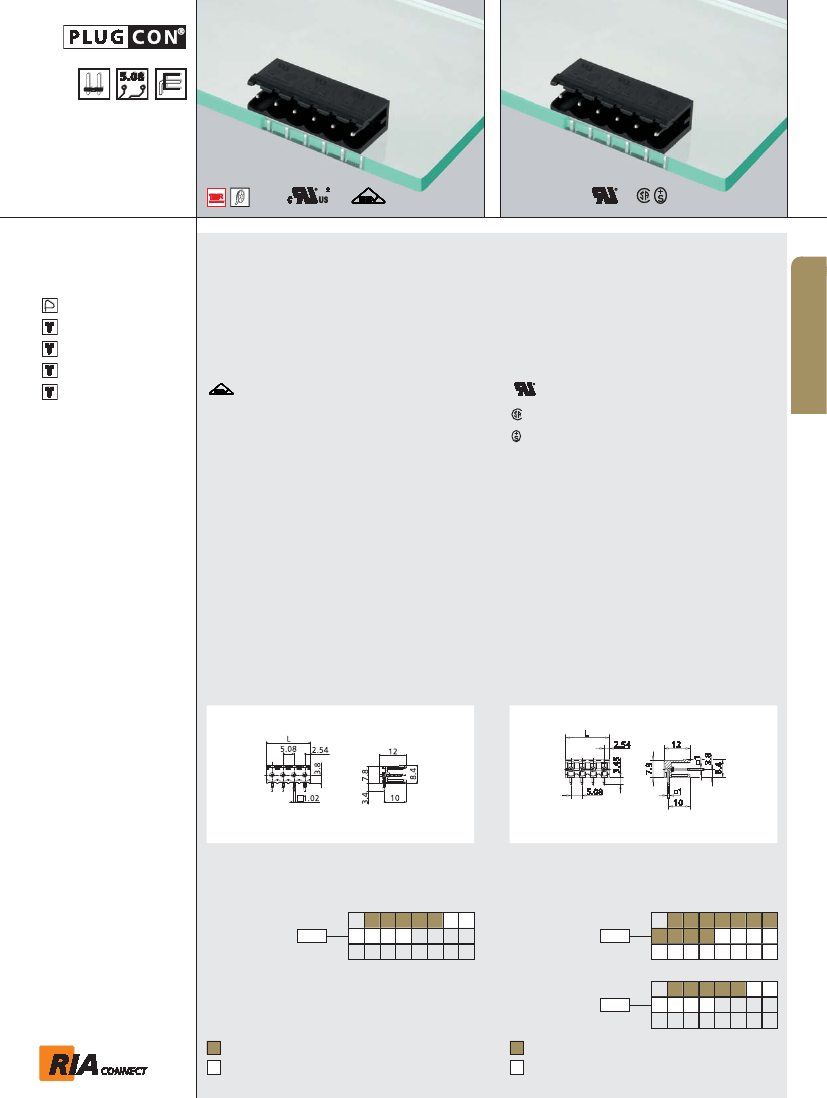

Type 478
Header, centerline 5.08 mm / 0.200 inches, horizontal
mounting, designed for THR, optional Tape on Reel pack-
aging for automated processing, square contact pins
1 mm / 0.039 inches, closed ends, codable, open ends
Type 229
Header, centerline 5.08 mm / 0.200 inches, horizontal
mounting, square contact pins 1 mm / 0.039 inches,
open ends, codable
A
Technical Data
250 V / 4 kV / 10 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 4.08 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
320
800
800
Rated test voltage
4
6
4
Protection category according
to IEC 529
IP00
Solder pin dimension
1.0 x 1.0 mm
Recommended pc board hole
dia.
Ø 1.5 mm
Solder pin length
3.45 mm
Pole size
2 - 12
Color
black
Technical Data
V/A
V/A
300 / 15
300 / 15
250 V / 4 kV / 10 A
Insulation co-ordination according to EN 60664-1
Clearance and creepage distances min. 4.08 mm
Insulating material class
CTI 600
Overvoltage category
III
III
II
Pollution degree
3
2
2
Rated voltage
320
800
800
Rated test voltage
4
6
4
Protection category according
to IEC 529
IP00
Solder pin dimension
1.0 x 1.0 mm
Recommended pc board hole
dia.
Ø 1.5 mm
Solder pin length
3.45 mm
Pole size
2 - 24
Color
black
Accessories
for
Type 229
Coding set
700024
page 206
Dimensions in mm
1 mm = 0.0394 in.
Dimensions in mm
1 mm = 0.0394 in.
L = (pole size - 1) x centerline + 5.08 mm / 0.200 inches
L = (pole size - 1) x centerline + 4.98 mm / 0.196 inches
Part numbers (P/N)
Type 478
centerline 5.08 mm / 0.200 inches
(information: page 110)
Complete the part number by
adding the pole size.
Part numbers (P/N)
Type 229
(information: page 110)
Complete the part number by
adding the pole size.
02 03 04 05 06 07 08
09 10 11 12
centerline 5.08 mm / 0.200 inches
02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
P/N
314781
P/N
312291
Type 229
* approval pending
centerline 10.16 mm / 0.400 inches
02 03 04 05 06 07 08
09 10 11 12
P/N
312292
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
Standard pole sizes
Available on demand. Minimum order quantity 5000
pieces per item.
