B062-2042-208-Z: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size271KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

B062-2042-208-Z Overview

Board Connector, 20 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Plug

B062-2042-208-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.2 inch
subject depth	0.201 inch
body length	1.026 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	B062
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.5626 mm
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	20

Preview

Download Datasheet

View All

HOW TO ORDER:

B

0

6

2

-

X

4

2

-

2

0

X

-

Z

ELECTRICAL:

CURRENT: 3A

CONTACT RESISTANCE: 20mΩ Max.

INSULATOR RESISTANCE: 5000MΩ Min.

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN.

OPERATING TEMPERATURE: -40° C TO +105° C

NUMBER OF CONTACTS:

04 thru 80

DEFINITION:

4 - SURFACE MOUNT

(BOTTOM ENTRY)

NUMBER OF ROWS:

2 - DOUBLE ROW

HEIGHT:

2 - 5.0mm

MOUNTING PEG OPTION:

0 - w/OUT MOUNTING PEG

PLATING OVERALL:

0 - FULL TIN

RoHS

1 - FULL Au FLASH

COMPLIANT

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

MATERIAL:

INSULATOR: HIGH TEMPERATUE PLASTIC (UL94V-0)

CONTACT: PHOSPHOR BRONZE

Rev

0

Issued

Revised for RoHS Compliance

PACKAGING:

Blank - Tube

1 - Tape / Reel

2 - Tray

T1 - Tube w/cap

T2- Tape/ Reel w/cap

T3 - Tray w/cap

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

Drawn Checked Approved

S.M.

A.M.

B.S.

S.M.

Date

09/18/03

2/22/07

SMP TECHNOLOGY, INC.

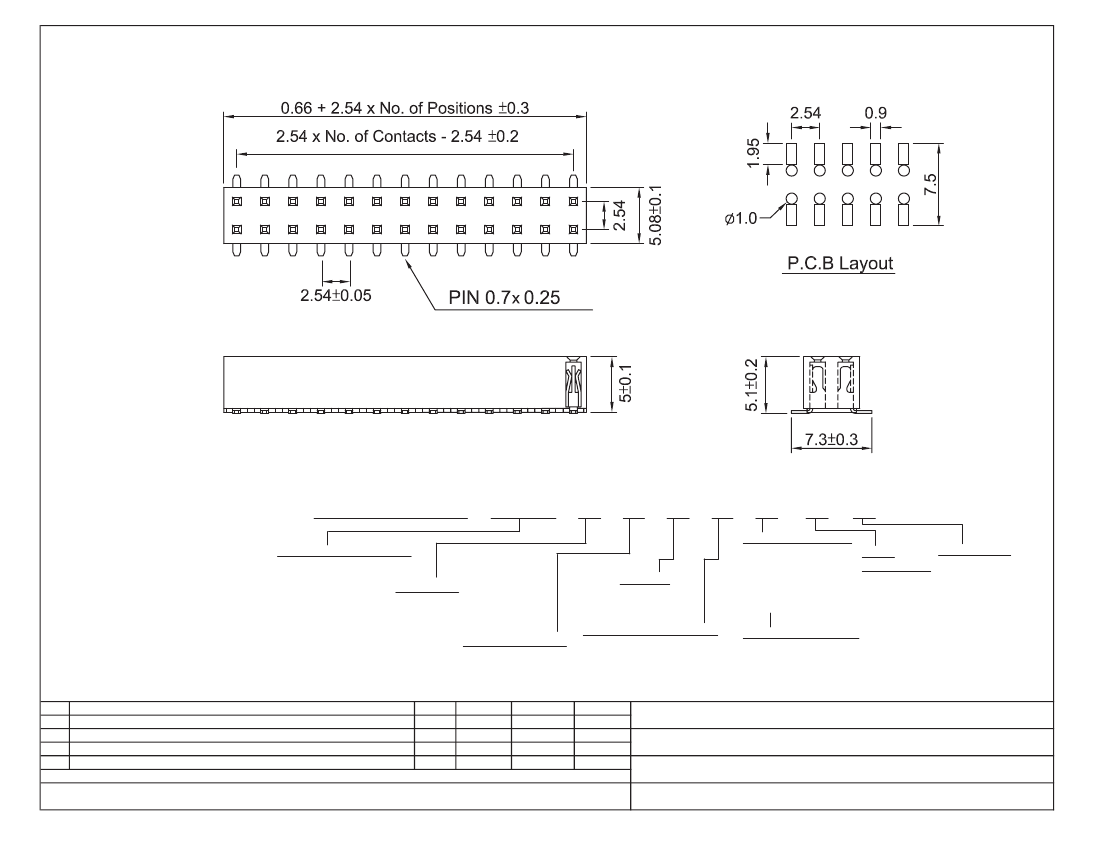

Receptacle Assembly, 2.54mm Pitch, Double Row, Bottom entry

Surface Mount, 5.0mm Height, No Mounting Peg

SCALE:n/a

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/- 0.15

ANGLE +/-

UNIT: mm

P/N: B062-XX42-20X-Z

Pg: 1
