H211-0200-034-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> H211-0200-034-Z

H211-0200-034-Z: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size219KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

H211-0200-034-Z Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle

H211-0200-034-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.12 inch
subject depth	0.155 inch
body length	0.3 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	H2
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	3

Preview

Download Datasheet

View All

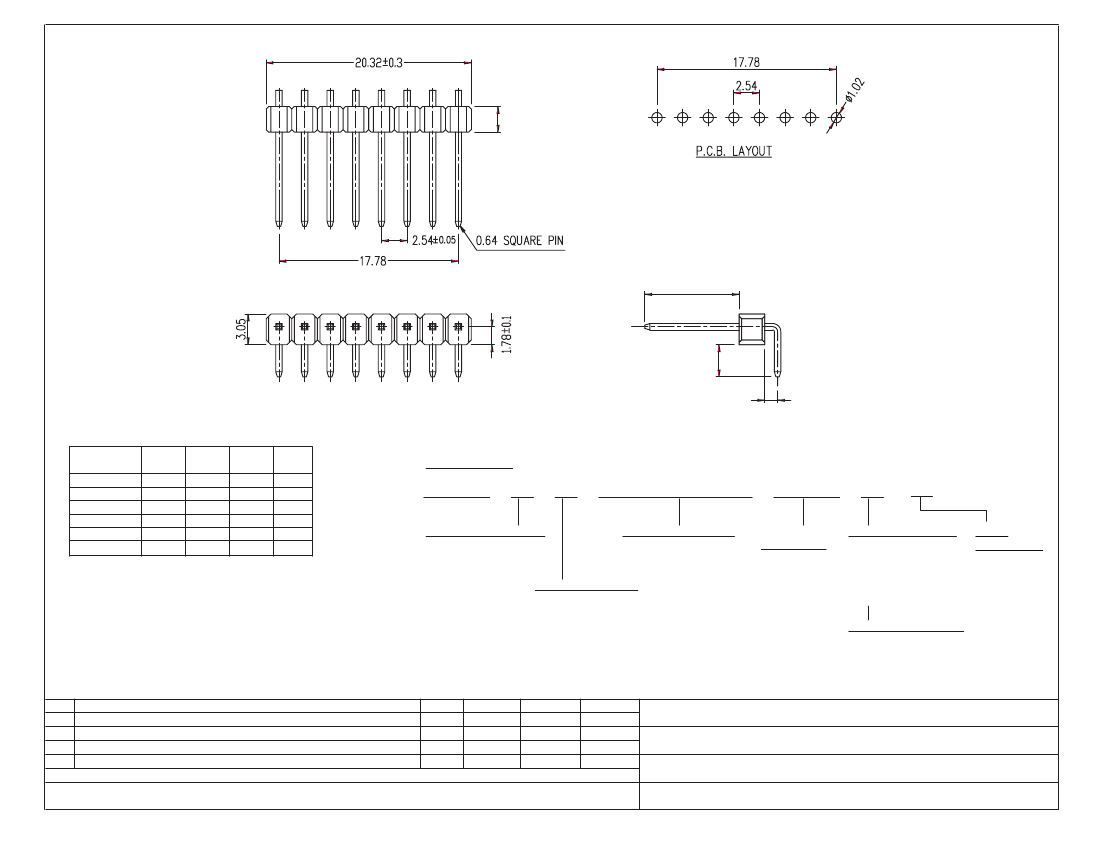

DIMENSION

NUMBER

0200

0201

0202

0210

0211

0212

5.85

6.10

5.84

11.94

5.85

8.08

3.05

3.60

2.29

3.18

7.28

3.18

1.40

1.27

4.06

1.27

2.54

3.05

HOW TO ORDER:

RoHS

COMPLIANT

CONTACT MATERIAL:

1 - COPPER ALLOY

ELECTRICAL:

DIMENSION NUMBER:

SEE DIMENSION

NUMBER ABOVE

CURRENT RATING: 3A

CONTACT RESISTANCE: < 30m W

INSULATOR RESISTANCE: > 1000M W

DIELECTRIC WITHSTANDING VOLTAGE: 1000V AC FOR 1 MIN.

OPERATING TEMPERATURE: -55° C TO +105° C

NUMBER OF ROWS:

1 - SINGLE ROW

NUMBER OF

CONTACTS:

01 thru 98

A0=100

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au FLASH

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

MATERIAL:

INSULATOR: GLASS FILLED POLYESTER, UL94V-0

Rev

0 Issued

Added 0210, 0211, 0212 Dimensions

B Revised for RoHS Compliance

Drawn

S.E.

A.M.

B.S.

Checked

S.M.

Approved

S.M.

Date

10/01/97

11/04/04

08/13/08

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

SMP TECHNOLOGY, INC.

PIN HEADER 2.54mm PITCH, RIGHT ANGLE

TOL. DEC.

.X +/- 0.35

.XX +/- 0.25

.XXX +/-

ANGLE +/-

UNIT: mm

SERIES: H 2

Pg: 1
