Z100-1602-4151-Z: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Plug; CategoryThe connector The connector; File Size309KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

Z100-1602-4151-Z Overview

Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Plug

Z100-1602-4151-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	ROHS COMPLIANT
Board mount options	LOCATING POSTS
body width	0.14 inch
subject depth	0.142 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	50 Cycles
maximum insertion force	.556 N
Insulation resistance	5000000000 Ω
insulator material	NYLON
Manufacturer's serial number	Z100
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.556 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	16

Preview

Download Datasheet

View All

ELECTRICAL:

CURRENT RATING: 1A

CONTACT RESISTANCE:

<30 Milliohm Max

INSULATION RESISTANCE:

>5000 Megaohm Min

DIELECTRIC WITHSTANDING VOLTAGE:

600V (RMS) AC for 1 Minute

OPERATING TEMPERATURE: -40°C to +105°C

MATERIAL:

INSULATOR: Nylon 6T UL94V-0

CONTACT: Phosphor Bronze

MATERIAL:

DURABILITY: 50 Cycles

RETENTION FORCE: 300g Min

INSERTION FORCE: 56g

SOLDERABILITY: Per MIL-STD-202F Method 208D

MAX. PROCESSING TEMPERATURE: 260°C for 10 seconds

Rev

0

Issued

A

Revised for RoHS Compliance

SCALE

TOL. DEC.

.X +/- 0.3

.XX +/- 0.2

.XXX +/- 0.1

HOW TO ORDER:

Z

1

0

0 - X

X

X - 4

1

X

X - Z

RoHS COMPLIANT

NO OF POSITIONS

06-98

A0=100

TYPE

02 - Surface Mount/

Single Polorization

05 - Surface Mount/

No Polorization

CONTACT PLATING

Full Gold

1 - Gold Flash

3 - 10u" Gold

PACKAGING

4 - 15u" Gold

1 - In Tube

5 - 30u" Gold

2 - With Cap In Tube

3 - With Film In Tube

4 - With Cap; Tape & Reel

5 - With Film; Tape & Reel

Drawn Checked Approved

MDH

S.M.

B.S.

S.M.

Date

09/29/04

9/14/07

SMP TECHNOLOGY, INC.

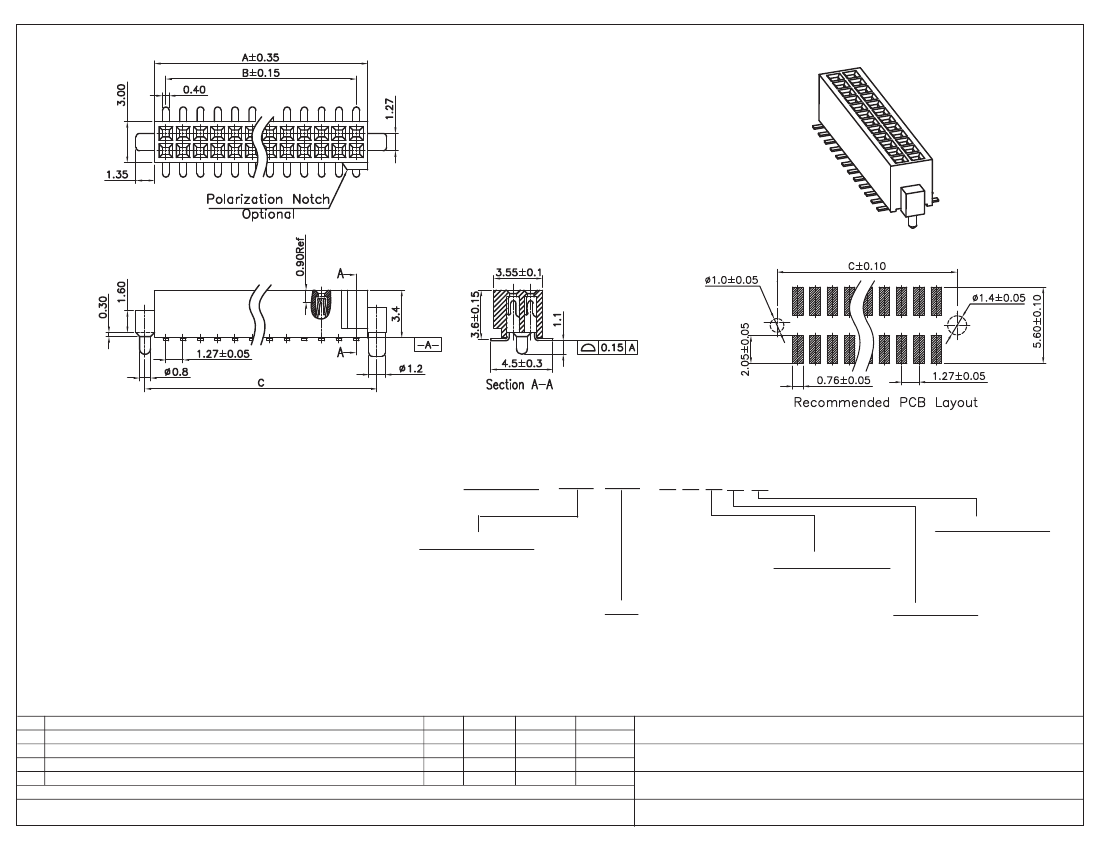

Receptacle Assembly; 1.27mm x 1.27mm; Top Entry; Surface

Mount; 3.6mm Height

ANGLE +/-

5°

UNIT: mm

P/N: Z100-XX XX-41XX-Z

Pg: 1
