Board to Board
Connectors
Female

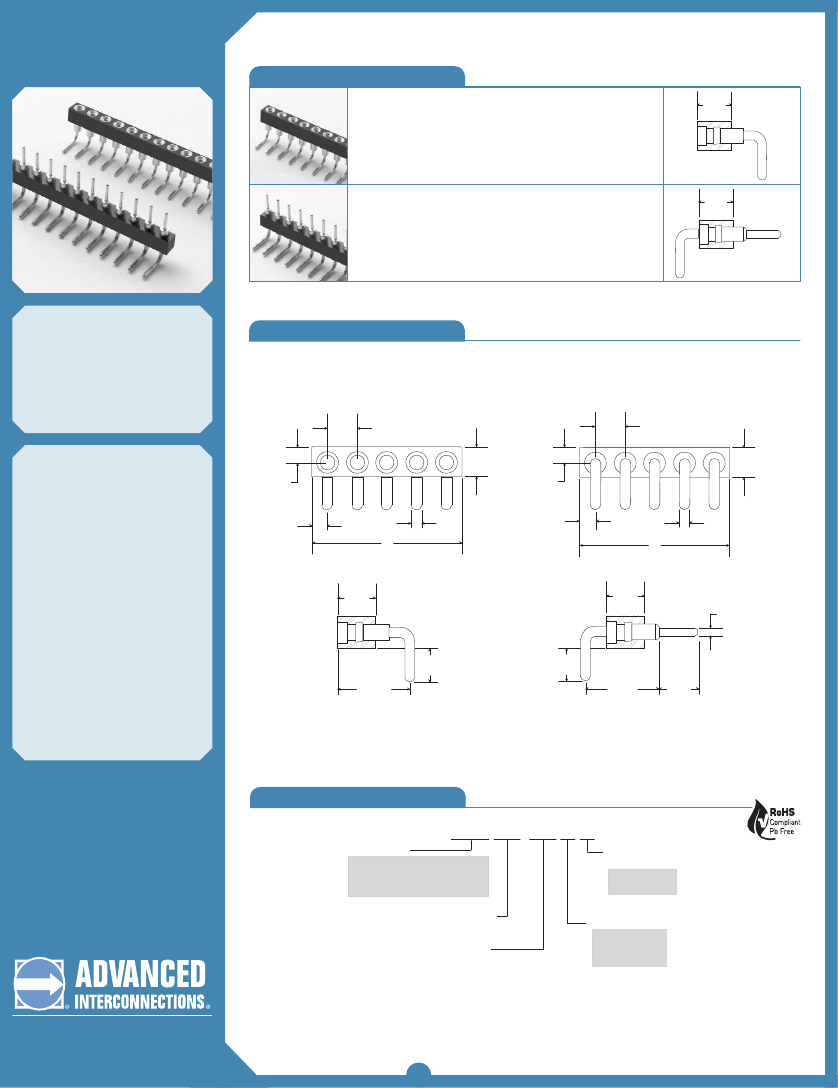

Single Row Right Angle Board to Board Connectors
.100/(2.54mm) Pitch • Molded Insulators
Table of Models
Description:
FR-4 Single Row (FLSS)
Material: FR-4 Fiberglass Epoxy Board
Index: -40°C to 140°C (-40°F to 284°F)
.095
(2.41)
Male
Description:
FR-4 Single Row (FLSA)
Material: FR-4 Fiberglass Epoxy Board
Index: -40°C to 140°C (-40°F to 284°F)
.095
(2.41)
FLSS replaces RLSS and FLSA replaces RLSA.
Features:
• High reliability method of
interconnecting PCB to PCB.
• .018/(.46mm) diameter male pins.
• Screw-machined terminals with
multi-finger contacts.
Dimensional Information
Female
FLSSXXX-160XX
.100 Typ.
(2.54)
.100
(2.54)
.050
(1.27)
.050
(1.27)
.020 Dia.
(.51)
Male
FLSAXXX-159X
.100 Typ.
(2.54)
.100
(2.54)
Specifications:
Terminals:
Brass - Copper Alloy
(C36000) ASTM-B-16
Contacts:
Beryllium Copper
(C17200) ASTM-B-194
Plating:
G - Gold over Nickel
M - Matte Tin over Nickel
T - Tin/Lead over Nickel
Gold per ASTM-B-488
Matte Tin per ASTM545-97
Tin/Lead per MIL-P-81728
Nickel per QQ-N-290
.050
(1.27)
.050
(1.27)
.025 Dia.
(.64)
A
A
.095
(2.41)
.095
(2.41)
.018 Dia.
(.46)
(2.54)
.114
(2.90)
.236
(5.99)
(2.54)
.114
(2.90)
.253
(6.43)
.125
(3.18)
A = Pitch .100/(2.54mm) x Number of Terminals in Row
How To Order
FLSS 032 - 160 M G
Body Type
RoHS Compliant
Contact Plating
(female only)
RoHS Compliant:
FLSS - Single Row Female
FLSA - Single Row Male
G - Gold
T - Tin/Lead
Terminal Plating
RoHS Compliant:
Number of Pins
002 to 032
Terminal Type
-160 Female
-159 Male
G - Gold
M - Matte Tin
T - Tin/Lead
5 Energy Way, West Warwick, RI 02893 USA
Tel: 800.424.9850 | 401.823.5200
Fax: 401.823.8723
info@advanced.com | www.advanced.com
Catalog 16A Rev. 1
Note: Terminals plated with Matte Tin are available only with Gold plated contacts.
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
52
inch/(mm)

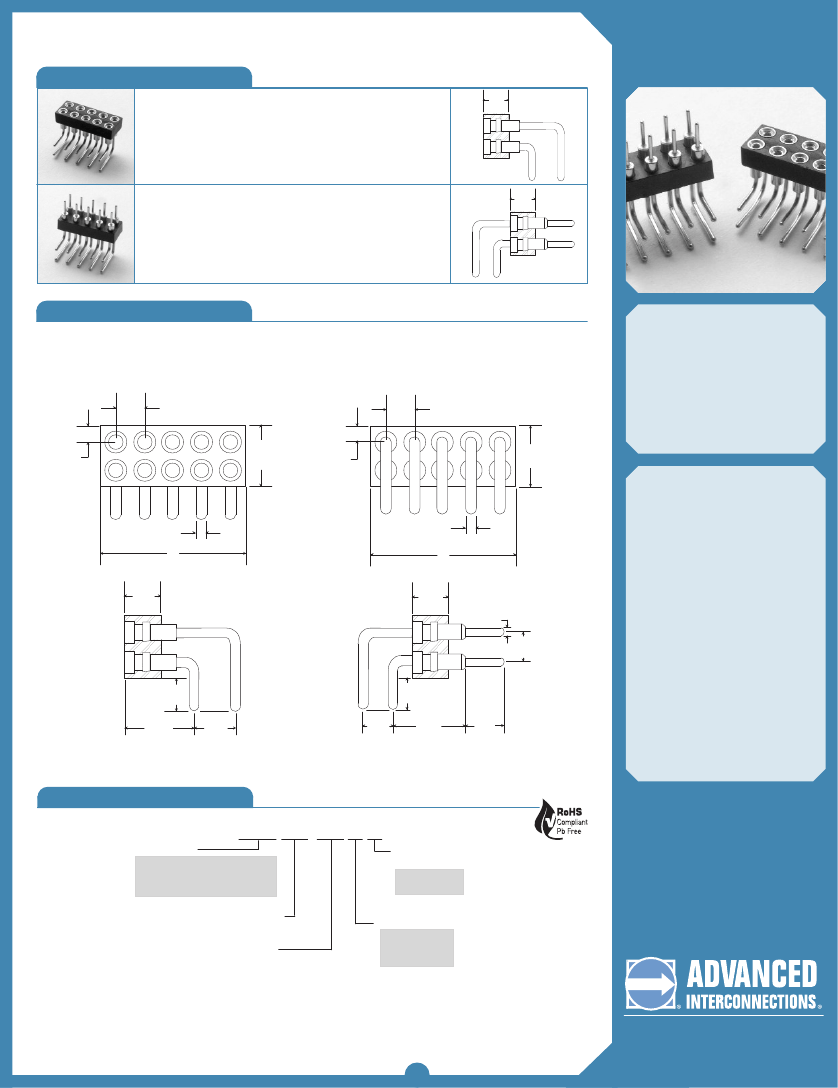

Dual Row Right Angle Board to Board Connectors
.100/(2.54mm) Pitch • Molded Insulators
Table of Models
Female
Board to Board
Connectors
.095
(2.41)
Description:
Molded Dual Row (RLSS)
Material: High Temp. Liquid Crystal Polymer (LCP)
Index: -40°C to 260°C (-40°F to 500°F)
Male
Description:
Molded Dual Row (RLSA)
Material: High Temp. Liquid Crystal Polymer (LCP)
Index: -40°C to 260°C (-40°F to 500°F)
.095
(2.41)
Dimensional Information
Female
RLSSXXX-162XX
.100 Typ.
(2.54)
Male
RLSAXXX-161X
.100 Typ.
(2.54)
Features:
• High reliability method of
interconnecting PCB to PCB.
• .025/(.64mm) diameter male pins.
• .100/(2.54mm) row to row pitch.
• Screw-machined terminals with
multi-finger contacts.
.200
(5.08)
.050
(1.27)
.200
(5.08)
.050
(1.27)
Specifications:
Terminals:
.020 Dia.
(.51)
.025 Dia.
(.64)
A
A
.095
(2.41)
.025 Dia.
(.64)
Brass - Copper Alloy
(C36000) ASTM-B-16
Contacts:
Beryllium Copper
(C17200) ASTM-B-194
.100
(2.54)
.095
(2.41)
(5.08)
.114
(2.90)
.236
(5.99)
.100
(2.54)
.100
(2.54)
.114
(2.90)
.247
(6.27)
.125
(3.18)
Plating:
G - Gold over Nickel
M - Matte Tin over Nickel
T - Tin/Lead over Nickel
Gold per ASTM-B-488
Matte Tin per ASTM545-97
Tin/Lead per MIL-P-81728
Nickel per QQ-N-290
A = Pitch .100/(2.54mm) x Number of Terminals in Row
How To Order
RLSS 070 - 162 M G
Body Type
RoHS Compliant
Contact Plating
(female only)
RoHS Compliant:
RLSS - Dual Row Female
RLSA - Dual Row Male
G - Gold
T - Tin/Lead
Terminal Plating
RoHS Compliant:
Number of Pins
004 to 070
Terminal Type
-162 Female
-161 Male
G - Gold
M - Matte Tin
T - Tin/Lead
Note: Terminals plated with Matte Tin are available only with Gold plated contacts.
inch/(mm)
Products shown covered by patents issued and/or pending. Specifications subject to change without notice.
53
5 Energy Way, West Warwick, RI 02893 USA
Tel: 800.424.9850 | 401.823.5200
Fax: 401.823.8723
info@advanced.com | www.advanced.com
Catalog 16A Rev. 1
